Understanding the Cam Belt Diagram for Proper Installation and Maintenance

To keep your engine running smoothly, make sure to regularly inspect and replace the cam belt. A clear understanding of the cam belt diagram can help you identify proper alignment and avoid costly engine damage. The diagram shows the correct positioning of the cam belt, highlighting key components like the crankshaft, camshaft, tensioner, and pulleys.

Begin by locating the crankshaft and camshaft sprockets in your diagram. The cam belt connects these two, ensuring synchronized movement between the engine’s valves and pistons. Pay attention to the timing marks on both sprockets; they must align precisely to ensure the engine runs smoothly.

The tensioner is another crucial part of the cam belt system. It helps maintain the correct tension on the belt, preventing it from slipping or wearing out prematurely. The diagram will typically show the correct position of the tensioner and how it should be adjusted during installation or replacement.

Before starting, double-check that all timing marks align as per the diagram. If they’re misaligned, even slightly, it can cause significant engine problems. Understanding the cam belt diagram ensures that you avoid common installation mistakes and maintain your engine’s performance.

Cam Belt Diagram

To correctly install or replace a cam belt, referring to a cam belt diagram is crucial. The diagram illustrates the precise positioning of the camshaft and crankshaft pulleys, the tensioner, and the alignment marks. Following these visuals ensures the engine components are timed properly, preventing potential damage or poor engine performance.

First, make sure the engine is at top dead center (TDC) before beginning the installation. This guarantees that the pistons are in the right position, and the camshaft and crankshaft are aligned correctly. The cam belt diagram will show you the correct placement of the timing marks, which should align perfectly during installation.

Pay close attention to the tensioner in the diagram. The cam belt needs to be tightly installed, but not too tight. The tensioner ensures that there is no slack in the belt, which could cause slipping or misalignment. Some diagrams may show a specific direction for the belt’s teeth, as they should face the right way to prevent wear or failure.

Lastly, always double-check the cam belt diagram for any specific instructions regarding the installation of additional components such as pulleys or covers. Ensure all components are securely fastened before starting the engine to avoid unnecessary wear or damage.

How to Identify Key Components in a Cam Belt Diagram

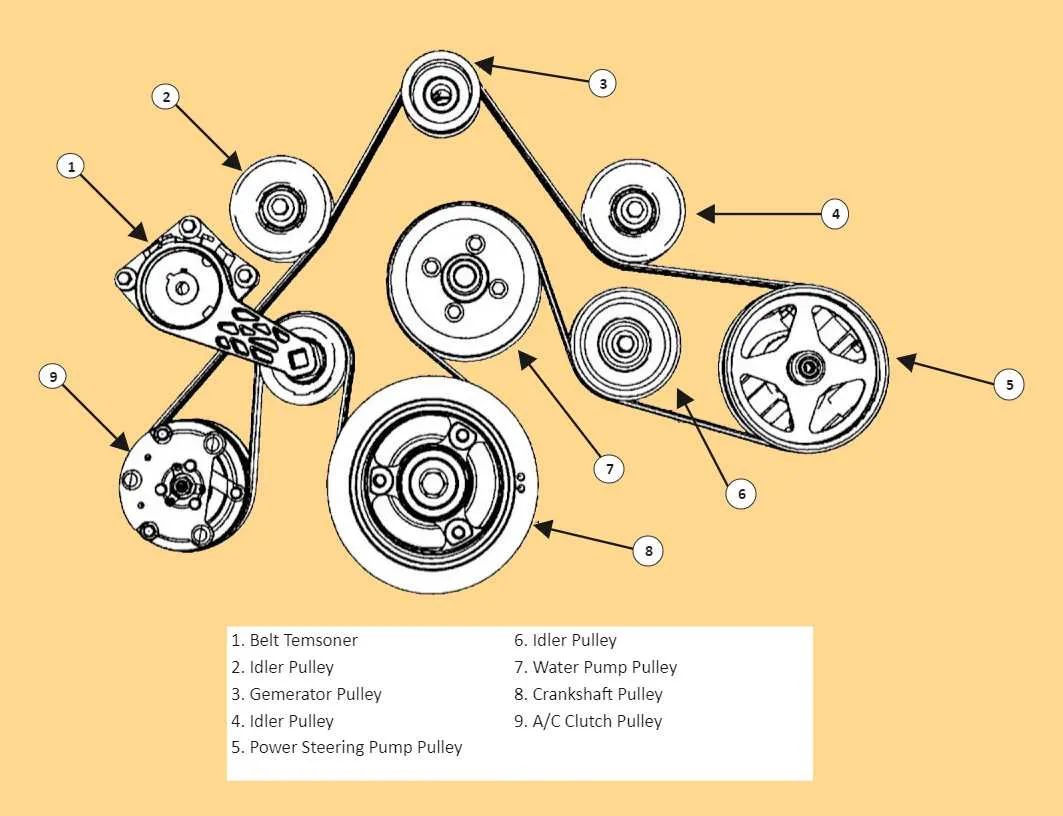

Begin by locating the camshaft sprocket. This is often the largest gear in the diagram and is directly linked to the camshaft. It controls the opening and closing of the engine’s valves. Identify it by its central position and the connecting teeth that mesh with the timing belt.

Next, focus on the crankshaft sprocket. It is usually positioned below the camshaft sprocket and is smaller. This sprocket connects to the crankshaft and helps drive the camshaft. It’s often drawn with a distinct marking or an alignment notch, which ensures the timing is set correctly.

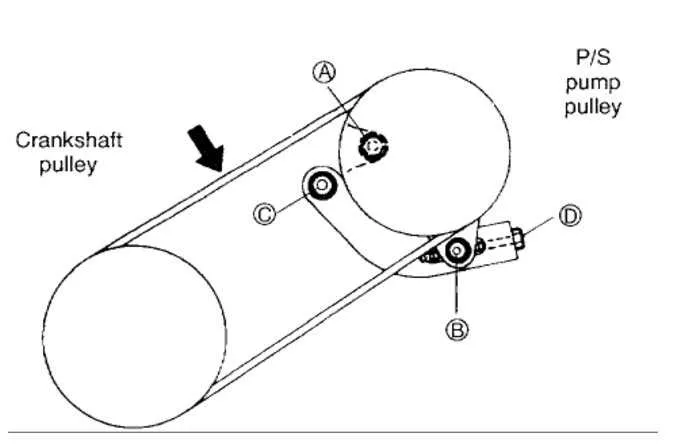

Check for the tensioner pulley. The tensioner keeps the timing belt tight and ensures that the components turn smoothly. It’s typically represented as a smaller wheel located near the belt. It is often shown with a spring-loaded mechanism to maintain consistent pressure on the belt.

The idler pulley is another key component. Its job is to guide the timing belt without providing tension. This pulley is typically located between the tensioner and the sprockets. It might be drawn as a small circle or slightly off-center to show its supporting role in the system.

Look for the timing marks on the diagram. These are critical for setting up the cam belt correctly. They are often represented as small dots or lines on the sprockets and the belt, helping align the components during installation.

• Camshaft sprocket: Largest gear, directly linked to the camshaft.
• Crankshaft sprocket: Smaller, positioned below the camshaft sprocket.
• Tensioner pulley: Maintains belt tension, often spring-loaded.
• Idler pulley: Guides the belt without applying tension.
• Timing marks: Dots or lines to align the components accurately.

By recognizing these components and understanding their roles, you can ensure that the cam belt diagram is interpreted correctly, leading to proper installation and functionality of your engine’s timing system.

Step-by-Step Guide to Interpreting a Cam Belt Diagram for Your Vehicle

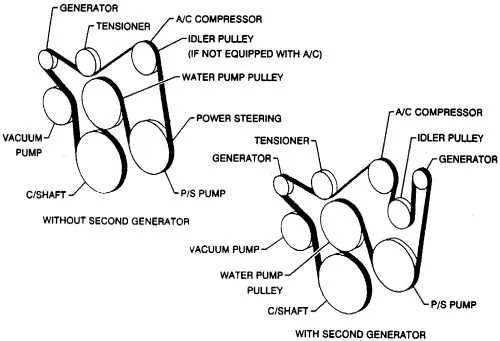

First, locate the cam belt diagram in your vehicle’s manual or on the engine cover. This diagram is a vital tool for understanding how the camshaft, crankshaft, and other components interact in your engine.

1. Identify the Components: Look for key components such as the camshaft, crankshaft, tensioner, idler pulleys, and the cam belt itself. These will be represented by symbols or labels. The diagram often includes timing marks that show how these components align.

2. Understand Timing Marks: The timing marks on the diagram indicate how the cam belt should align with the crankshaft and camshaft. This is crucial for engine timing, which directly affects engine performance. Ensure that all marks align precisely as shown.

3. Recognize Direction of Rotation: The diagram will usually indicate the direction in which the cam belt rotates. This is important for proper installation and ensures that the belt moves in the correct direction to avoid damage.

4. Pay Attention to Belt Tension: The diagram should show how to properly tension the cam belt. A tensioner pulley keeps the belt tight enough to avoid slippage, but too much tension can damage the belt or bearings. Check the recommended tensioning procedure carefully.

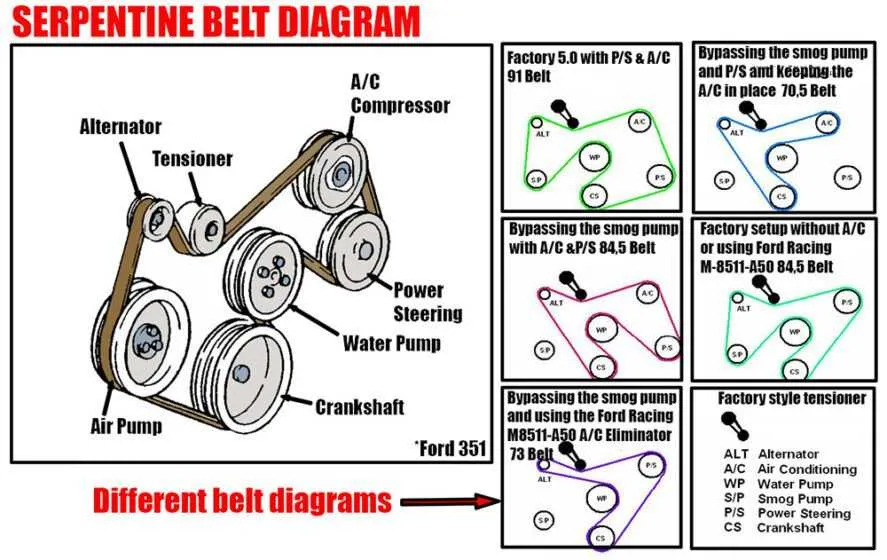

5. Observe Belt Routing: Follow the routing path shown in the diagram. It should detail how the belt loops around various pulleys, including the camshaft and crankshaft. A correct routing ensures smooth operation and prevents the belt from slipping or breaking.

6. Cross-Check with Manufacturer Specifications: Finally, confirm that the diagram matches the specific timing setup for your vehicle model. Different vehicles may have slight variations in belt placement or component alignment, so always consult the manufacturer’s specifications before making adjustments.

Common Issues with Cam Belts and How to Spot Them Using the Diagram

If the cam belt is showing signs of wear or misalignment, use the diagram to pinpoint the issue. A common problem is tension loss, which can be seen if the belt isn’t snug against the sprockets. Check the diagram for proper belt routing to confirm whether it’s aligned correctly.

Another frequent issue is belt slippage. This happens when the cam belt becomes too loose. The diagram will show you the exact tension points. Make sure the belt runs smoothly through the idler pulley and tensioner. If you spot any misalignment, the belt may need re-tensioning or replacement.

Cracking or fraying of the cam belt is a clear indication of wear. Look for damaged sections along the belt’s length using the diagram’s reference points. This damage is often caused by exposure to heat or lack of proper maintenance. Check the belt for any visible signs of these issues, and replace it as needed.

Skipping teeth on the cam belt will lead to timing errors and engine misfires. The diagram shows the teeth pattern and alignment on each sprocket. If you notice uneven spacing or missing teeth, it’s a sign the belt has jumped out of place and needs replacing.

To prevent these issues, regularly inspect the cam belt using the diagram to ensure proper alignment, tension, and condition. If any discrepancies arise, addressing them early can save you from costly engine repairs.
