2011 Dodge Avenger Serpentine Belt Routing and Diagram Guide
If you’re working on a 2011 Dodge Avenger and need to replace or inspect the serpentine belt, having a clear diagram can save you time and effort. The serpentine belt powers several components like the alternator, power steering pump, and air conditioning compressor, so knowing its routing is key to avoiding mistakes.
The serpentine belt on the 2011 Dodge Avenger routes around multiple pulleys and tensioners. The diagram typically shows the path of the belt, including which direction it should travel around each component. Pay attention to the belt’s tensioner pulley, which keeps the belt tight and ensures it doesn’t slip off.
Before starting the replacement, it’s a good idea to check the diagram for your specific engine model. There might be small differences in routing depending on whether you have a 2.4L or 3.5L engine. Ensure the new belt matches the original size to maintain proper functionality.
In addition, always check the condition of the pulleys and tensioner before installing the new serpentine belt. Worn pulleys can lead to premature wear on the new belt. If everything looks good, following the diagram closely will help you complete the job with ease.

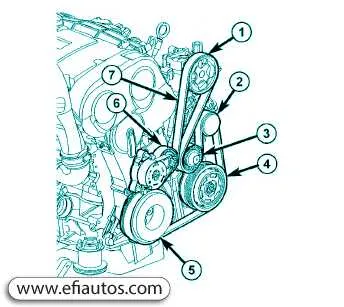

2011 Dodge Avenger Serpentine Belt Diagram

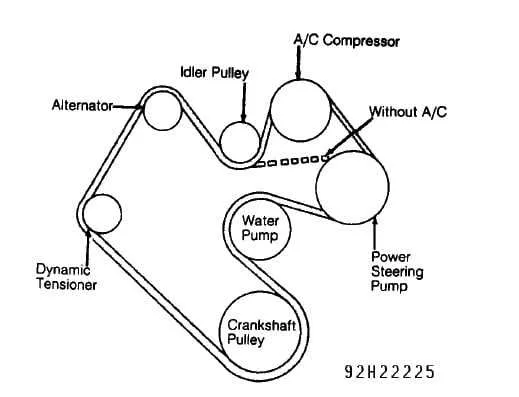

To correctly install the serpentine belt on a 2011 Dodge Avenger, follow the diagram below. This model uses a single serpentine belt to drive the alternator, power steering pump, water pump, and air conditioning compressor. Ensure the belt is routed properly to avoid misalignment and excessive wear.
Key Points:
– Start by positioning the belt over the crankshaft pulley, ensuring it is aligned with the grooves.
– The belt then runs up to the alternator pulley, followed by the water pump and power steering pump.
– The belt should loop around the air conditioning compressor and return to the crankshaft pulley.
– Double-check that the tensioner pulley is properly positioned and maintaining the correct belt tension.
Make sure to consult the vehicle’s service manual for any specific adjustments based on your engine type. If you are unsure, replace the belt at the recommended interval to avoid unexpected failures.
Identifying the Components in the Serpentine Belt System
The serpentine belt system in the 2011 Dodge Avenger includes several key components. The serpentine belt itself is the main part, but there are also pulleys, the tensioner, and various accessories it powers. Each of these plays a specific role in keeping the engine running smoothly.
Serpentine Belt: This long, continuous belt is responsible for transferring power from the engine’s crankshaft to various engine accessories such as the alternator, air conditioning compressor, power steering pump, and water pump.
Idler Pulley: The idler pulley helps maintain tension in the serpentine belt and guides it around the system. It doesn’t drive any accessories but is crucial for belt routing.
Tensioner Pulley: The tensioner pulley applies constant pressure to keep the belt tight. It ensures that the serpentine belt does not slip off the pulleys, maintaining the correct level of tension.
Alternator: This component generates electricity to charge the car’s battery and power electrical systems. The serpentine belt drives the alternator.
Power Steering Pump: The power steering pump assists with steering by pressurizing the fluid in the steering system. The belt powers this pump as well.
Air Conditioning Compressor: The air conditioning compressor circulates refrigerant throughout the A/C system. The serpentine belt powers the compressor to provide cooling inside the cabin.
Water Pump: The water pump circulates coolant throughout the engine, keeping the engine temperature regulated. The serpentine belt drives the water pump, which is essential for preventing overheating.
Each of these components plays a vital role in maintaining the performance and efficiency of the engine. Regular inspection of the serpentine belt and related components can prevent breakdowns and extend the life of the vehicle.
Steps to Properly Install the Serpentine Belt on a 2011 Dodge Avenger
Start by disconnecting the negative battery terminal to ensure safety while working on the engine. Use a socket wrench to remove any components obstructing access to the serpentine belt.
Locate the belt tensioner and use a serpentine belt tool or a socket wrench to relieve tension from the belt. Rotate the tensioner counterclockwise to loosen the belt and slide it off the pulleys.
Check the condition of the tensioner and pulleys. If the tensioner or pulleys are worn or damaged, replace them before installing the new belt.
Refer to the serpentine belt diagram for your 2011 Dodge Avenger. This diagram is typically located on a sticker in the engine bay or in the vehicle’s service manual. Make sure you understand the path the belt should take around the various pulleys.
Position the new serpentine belt around the pulleys, following the exact route shown in the diagram. Pay close attention to the correct placement on each pulley to avoid misalignment.
Once the belt is in place, use the serpentine tool to rotate the tensioner again and slip the belt over the tensioner pulley. Ensure the belt is properly seated on all pulleys and there is no slack.
Check the alignment of the belt on all pulleys before starting the engine. If the belt looks misaligned or if there is an unusual noise when the engine is running, double-check the installation and make adjustments as needed.
Reconnect the negative battery terminal and start the engine to ensure the belt operates smoothly and there are no issues with tension or alignment.
Common Issues with the Serpentine Belt and How to Troubleshoot Them
If your serpentine belt is squealing, it could be a sign that it’s either worn out or not tensioned properly. Check for any visible cracks, frays, or signs of glazing on the belt. A glazed belt often results from overheating or slipping, which can be caused by a misaligned pulley or insufficient tension. If you spot glazing, replace the belt. Ensure it is properly aligned on all pulleys and that the tensioner is working correctly.
Another common problem is a loose belt, which can happen due to a failing tensioner. If the belt appears loose or slips during engine operation, inspect the tensioner for wear. Tensioners often lose their spring tension over time and need to be replaced. Also, check the pulleys for any unusual noise or resistance when turned by hand. If a pulley feels rough or doesn’t spin smoothly, it may be seizing, which could also lead to premature belt wear.
Over time, belts can stretch, causing them to lose the proper fit. This issue often results in poor performance of components like the alternator, power steering, or air conditioning. If you notice any of these systems not functioning properly, it could be due to a stretched belt. Replacing the belt with a new one should solve the issue. Be sure to install the new belt following the correct serpentine belt diagram for your 2011 Dodge Avenger to ensure proper fit and function.
In some cases, you may experience poor belt performance due to an accumulation of dirt or oil on the belt. If the engine is leaking oil or coolant, these substances can cause the belt to slip or deteriorate. Inspect the belt for any oily residue and clean it with a non-abrasive cloth. If cleaning doesn’t improve performance, replacing the belt may be necessary.
