Belt Diagram and Repair Guide for 2007 Pontiac Grand Prix Engine Components

The 2007 Pontiac Grand Prix belt diagram is a key resource for understanding the positioning and routing of the vehicle’s drive belts. This diagram helps ensure proper installation and maintenance, avoiding potential issues like belt slippage or misalignment. With the right information, you can efficiently replace or adjust the belts without confusion.

The serpentine belt, the primary belt responsible for powering multiple components, must follow a specific path. The diagram clearly shows the route it should take, including its connections to the alternator, power steering pump, and air conditioning compressor. Pay close attention to the tensioner location, as improper tension can lead to premature wear and belt failure.

Understanding the belt layout of the 2007 Pontiac Grand Prix reduces maintenance time and prevents unnecessary repairs. Make sure to compare the diagram with your current setup before starting any work. This simple step ensures you’re working with accurate information, making the process straightforward and safe.

Belt Diagram 2007 Pontiac Grand Prix

The 2007 Pontiac Grand Prix relies on a specific belt routing system to ensure proper functioning of its engine components. It’s crucial to follow the belt diagram for correct installation. The main drive belt system consists of the serpentine belt, which drives various accessories such as the alternator, power steering pump, and air conditioning compressor.

Locate the tensioner pulley when working with the belt. It helps to maintain proper tension on the serpentine belt. The diagram for this model shows a clear path that the belt follows around multiple pulleys. Make sure to check for any wear or damage on the belt, as these can lead to issues with the vehicle’s performance.

If you are replacing the belt, use the diagram as a reference to ensure proper routing. Incorrect installation may cause the belt to slip off or wear prematurely, affecting the performance of your car. It’s also worth inspecting the pulleys and tensioner for any signs of malfunction or wear during the replacement process.

Remember, regular belt inspections are crucial for preventing unexpected breakdowns. Check the belt for cracks, fraying, or other signs of damage and replace it promptly if necessary. A well-maintained belt system keeps your Grand Prix running smoothly and prevents further damage to engine components.

How to Read the Belt Diagram for a 2007 Pontiac Grand Prix

To interpret the belt diagram of a 2007 Pontiac Grand Prix, first locate the diagram on the engine bay. It’s often placed near the radiator or on the fan shroud, and sometimes inside the hood. This diagram provides a visual guide for the serpentine belt routing, showing how the belt interacts with various pulleys and components.

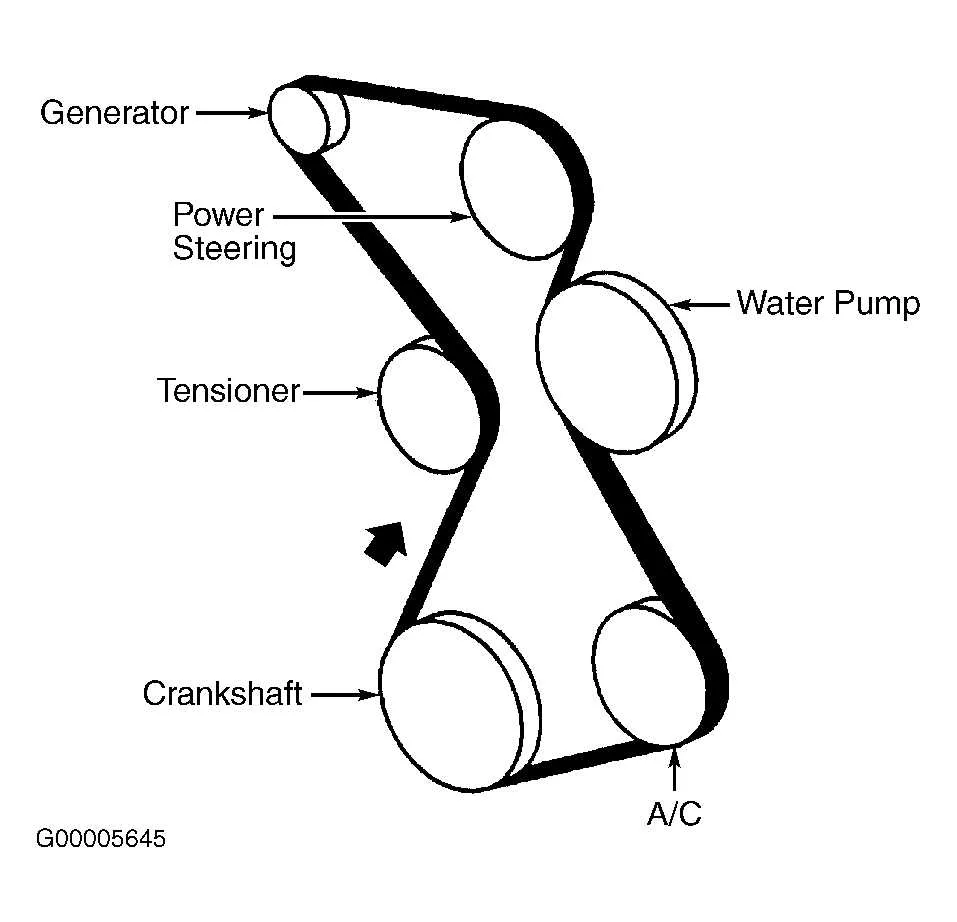

The diagram features an overhead view of the engine’s belt system, including pulleys for the alternator, power steering pump, water pump, and air conditioning compressor. Each pulley is labeled, and the path of the belt is clearly marked, helping you visualize its path and direction of travel.

Here’s how to read it:

• Check for pulleys: Identify key components such as the alternator, idler pulleys, and tensioner. The diagram shows their relative position on the belt route.
• Understand the tensioner role: The tensioner pulley maintains the correct tension on the belt. In the diagram, this pulley is often marked to indicate the direction the tensioner moves to tighten or loosen the belt.
• Observe the belt’s path: Follow the belt’s path around pulleys. If you’re replacing the belt, make sure the new belt follows this exact route to avoid any misalignment.
• Note the rotation direction: Pay attention to the rotation arrows on the diagram. These show how the belt moves around the pulleys.

If the belt diagram is unclear or missing, you can use a service manual or online resources to find a clear diagram specific to your model. Double-check the routing before installing a new belt to prevent any issues.

Lastly, make sure the belt is properly tensioned. A loose or over-tightened belt can lead to performance issues or premature wear. The tensioner should automatically adjust the belt tension, but ensure it’s in good working condition before driving.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Pontiac Grand Prix

First, disconnect the negative terminal of the battery to prevent any electrical accidents. Then, locate the serpentine belt routing diagram, which can typically be found near the engine bay or inside the hood. This will help you understand the exact path the belt follows.

Next, identify the tensioner pulley. Use a ratchet or breaker bar to relieve tension on the belt by rotating the pulley counterclockwise. Once the tension is released, slide the belt off the pulleys. Make a mental note of how the belt is routed for easier installation of the new one.

Remove the old serpentine belt completely from the engine bay. Inspect the belt for signs of wear like cracking or fraying, which might have been causing performance issues.

Before installing the new belt, ensure that all pulleys are free from debris and in good condition. If necessary, replace any damaged pulleys to avoid future issues. When you’re ready, position the new belt over the pulleys according to the routing diagram.

Once the belt is in place, use the ratchet or breaker bar again to rotate the tensioner pulley and allow the new belt to settle into place. Double-check that the belt sits properly on all pulleys and is aligned correctly.

Reconnect the negative terminal of the battery and start the engine. Observe the belt while the engine is running to ensure it operates smoothly without any slipping or unusual noises. If everything looks good, close the hood and you’re done!

Common Belt Issues and Troubleshooting for 2007 Pontiac Grand Prix Owners

If your 2007 Pontiac Grand Prix is making strange noises or the engine is acting up, it might be a belt problem. Start by inspecting the serpentine belt. If it appears cracked, worn, or frayed, it’s time for a replacement. This belt powers several key components like the alternator, power steering, and air conditioning, so a failure can affect multiple systems.

A common issue with serpentine belts is tension loss. If you notice squealing sounds, especially on startup, the belt may be loose. Check the tensioner for wear; if it’s failing to keep the correct pressure, the belt won’t function properly. A faulty tensioner should be replaced to restore proper belt function.

If your car struggles with overheating, it could be due to a slipping water pump belt. Inspect it for damage or excessive wear. The water pump is crucial for circulating coolant, and if the belt isn’t functioning correctly, it can lead to engine overheating, risking significant damage.

Another problem to watch for is the alternator belt. If it’s slipping, the alternator might not charge the battery properly, causing electrical issues. Check for any signs of wear or glazing on the alternator belt and replace it if necessary to avoid battery drain or starting problems.

Make sure to inspect the belt routing as well. If a belt is misaligned or installed incorrectly, it can lead to premature wear and even cause the belt to snap. A belt routing diagram will help ensure everything is set up properly.

Lastly, excessive vibrations or shaking during driving can signal a worn belt or misaligned pulleys. In this case, don’t hesitate to replace the affected parts. Keep in mind that a worn or damaged belt can cause additional wear on surrounding components, so addressing belt issues early is key to preventing bigger problems down the line.
