Complete 4.7 Engine Belt Diagram Guide for Accurate Installation and Maintenance
Locate the 4.7 engine belt layout accurately to ensure proper routing for each pulley. Identify the alternator, power steering pump, water pump, and air conditioning compressor positions to prevent misalignment that can cause premature wear.
Verify belt tension visually and manually before starting the engine. Use a calibrated gauge or press with your thumb on the longest span to detect slack or excessive tightness. Adjust the tensioner if necessary to maintain optimal contact on all pulleys.
Follow the diagram closely during replacement to avoid twisting or crossing the belt. Begin installation from the crankshaft pulley, threading the belt around accessories according to the diagram sequence. Check that all grooves align perfectly with pulley ribs to prevent slipping or noise.
Inspect the belt for cracks, fraying, or glazing during every maintenance interval. Replace immediately if damage is visible to maintain consistent engine performance and prevent sudden failures that could lead to costly repairs.
Belt Diagram Practical Guide for Identification and Maintenance
Locate the belt diagram printed on the engine compartment or in the vehicle manual to verify the correct routing. Identify each pulley and component by comparing them directly with the diagram, noting the alternator, water pump, power steering pump, and crankshaft positions.
Inspect the belt for cracks, fraying, glazing, or missing ribs. Check tension by pressing the belt at the midpoint between pulleys; a properly tensioned belt should deflect about half an inch under moderate pressure. Replace the belt immediately if signs of wear exceed safety limits.
Follow the diagram step by step when removing and reinstalling the belt. Always release the tensioner slowly and avoid forcing the belt onto pulleys. Align the ribs accurately to prevent slippage and uneven wear.
Maintain pulleys by cleaning debris, checking for wobble, and ensuring bearings rotate smoothly. Lubricate only the tensioner pivot if required by the manufacturer; avoid applying oil or grease to the belt itself.
Document the belt type, length, and part number for future reference. Verify the belt’s orientation on each pulley matches the diagram before starting the engine. Run the engine briefly and observe the belt’s tracking to confirm proper installation.

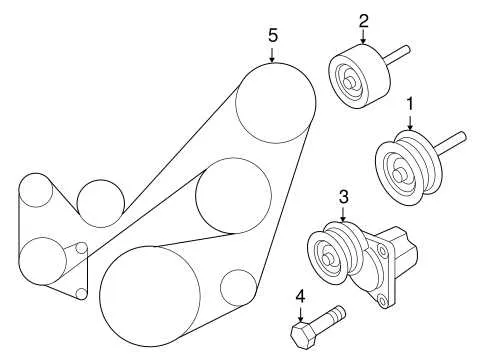

Locate and Identify All Pulleys in the 4.7 Engine
Begin with the crankshaft pulley at the bottom center of the engine; it drives the main belt and sets the alignment for other pulleys.
Move to the alternator pulley on the upper left side, which maintains electrical output and is spring-loaded for belt tension.
Locate the power steering pump pulley near the upper right; check for smooth rotation and ensure the belt groove matches the serpentine belt type.
Identify the water pump pulley at the front center; it circulates coolant and must align precisely with the crankshaft and tensioner pulleys.
Find the air conditioning compressor pulley, typically mounted low on the passenger side, with a clutch mechanism that engages only when the A/C is active.
Check the idler pulleys, usually positioned along the belt path to guide and maintain tension; note their bearing condition and orientation.
Locate the tensioner pulley, which adjusts the belt automatically; ensure it has proper spring tension and no side-to-side wobble.
Verify all pulleys are clean, free of cracks, and rotate smoothly; misaligned or damaged pulleys can lead to premature belt wear or slippage.

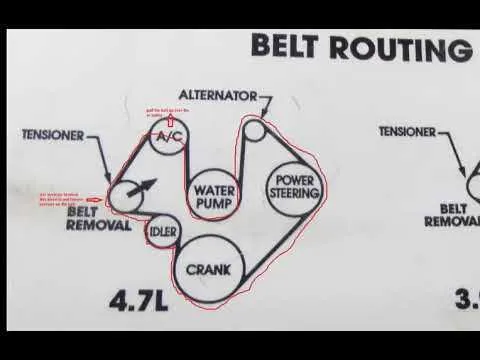

Follow Correct Serpentine Belt Routing for Proper Installation
Align the serpentine belt according to the factory routing diagram for the 4.7 engine. Incorrect routing can cause pulley misalignment, accessory damage, or premature belt wear.
Identify all pulleys before installation:
- Crankshaft pulley – main driver of all accessories
- Alternator pulley – maintains battery charge
- Power steering pump pulley – ensures smooth steering operation
- Water pump pulley – drives coolant circulation
- Air conditioning compressor pulley – powers AC system
- Idler pulleys – maintain proper belt tension and alignment
- Tensioner pulley – provides spring-loaded adjustment for belt slack
Follow these steps for proper routing:
- Place the belt around the crankshaft pulley first, ensuring full contact with the groove.
- Route the belt around the alternator, power steering, and AC compressor pulleys according to the diagram, keeping the belt seated in each groove.
- Loop the belt around idler pulleys as indicated to maintain correct tension and alignment.
- Position the belt over the tensioner pulley last. Use a wrench or ratchet to relieve tension and slide the belt fully onto the tensioner.
- Inspect the entire routing visually to confirm the belt sits correctly in all pulley grooves without twisting or misalignment.
Rotate the crankshaft manually one full turn after installation to ensure smooth movement and consistent tension across all pulleys. Adjust if the belt rides unevenly or slips off any pulley.
Check belt alignment periodically during engine operation. Listen for squealing or unusual noise, which indicates incorrect routing or misaligned pulleys.
Inspect Belt Condition and Adjust Tension During Maintenance
Check the serpentine belt for cracks, fraying, or glazing across the ribbed surface. Any visible damage indicates the belt needs replacement to prevent slippage or failure. Examine both sides of the belt and follow it along all pulleys for hidden wear points.
Measure belt tension using a tension gauge or by applying moderate pressure at the midpoint between pulleys. For the 4.7 engine, a properly tensioned belt should deflect approximately 1/2 inch under 10–15 pounds of force. Adjust the automatic tensioner if the belt shows excessive slack or tightness.
Inspect pulley alignment and ensure all bolts are secure. Misaligned pulleys can accelerate wear and reduce belt life. Rotate the engine by hand to observe belt movement and detect unusual vibrations or wobbling.
Clean pulleys from debris, oil, or grease before reinstalling the belt. Contaminants reduce grip and increase wear. Replace the belt immediately if rubber chunks are missing or ribs appear uneven.
After adjustment, start the engine and watch the belt in operation. Listen for squealing or rattling sounds and recheck tension after initial warm-up. Proper maintenance extends belt lifespan and maintains stable engine performance.
