2015 Duramax Belt Diagram and Routing Guide
To maintain the reliability of your 2015 Duramax engine, ensuring the belt system is intact is crucial. The serpentine belt plays a significant role in powering various components such as the alternator, power steering pump, and air conditioning compressor. Regularly inspecting the belt for wear and tear can prevent sudden failures that could lead to expensive repairs.
First, locate the serpentine belt routing diagram. It’s typically found on a label near the engine bay or in the owner’s manual. Make sure to follow the exact routing as shown in the diagram when replacing the belt. This will help ensure proper tension and function of the belt system, avoiding potential issues like slipping or misalignment.
For the replacement process, start by loosening the tensioner with a wrench or specialized tool. This will allow you to remove the old belt easily. Pay attention to the condition of the tensioner pulley and other associated components, as these can also wear over time. If any part seems faulty, it’s best to replace them along with the belt to avoid further issues.
After installing the new belt, check the alignment and tension once again to make sure everything is set up correctly. Regular maintenance of the belt system will help keep your 2015 Duramax running smoothly and extend its lifespan.

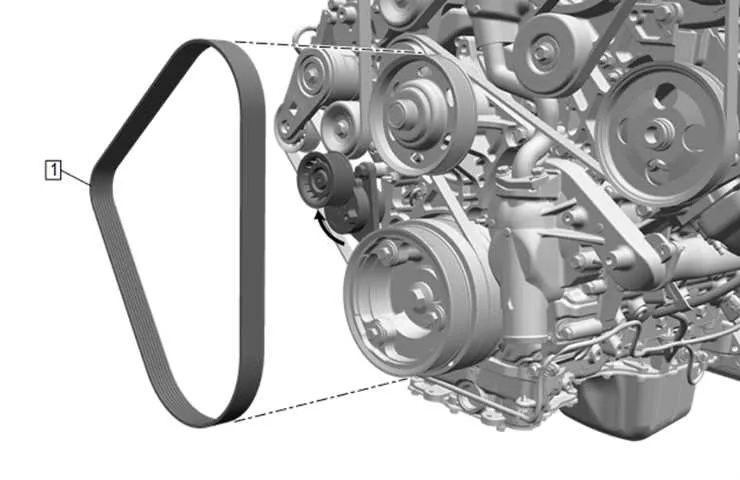

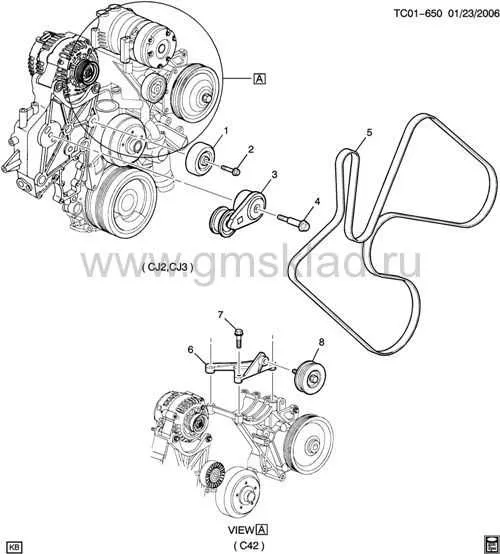

2015 Duramax Belt Diagram
To understand the belt system in a 2015 Duramax, start by identifying the correct routing. The serpentine belt plays a key role in driving multiple components such as the alternator, water pump, and air conditioning compressor. Follow the diagram carefully to avoid misalignment or slippage that could lead to further issues.
The belt should be routed along the pulleys in a specific order. Ensure that the tensioner pulley is correctly adjusted, as it maintains the appropriate tension. Incorrect tension can cause the belt to wear prematurely or slip, leading to engine performance problems.
Pay close attention to the alignment of each pulley. If the belt is misaligned, it can result in uneven wear and may even damage the engine components. If replacing the belt, use the diagram to confirm the new belt matches the specified length and configuration for your model.
Lastly, after replacing the belt, start the engine and observe the operation. Listen for any unusual noises such as squealing or chirping, which might indicate improper installation or a damaged pulley.
Step-by-Step Belt Routing for 2015 Duramax Engine
To correctly route the serpentine belt on a 2015 Duramax engine, follow these steps to ensure proper tension and smooth engine operation.
- Start with the tensioner pulley: Locate the tensioner pulley and use a socket wrench to relieve the tension on the belt. Rotate the tensioner clockwise to release the belt.
- Remove the old belt: Carefully remove the belt from the engine components. Take note of the belt routing as it will be crucial for installing the new belt in the next steps.
- Position the new belt: Begin by placing the new serpentine belt around the crankshaft pulley. Ensure it’s seated properly in the grooves.
- Route the belt through the components: Follow the correct routing path by threading the belt through the various pulleys. Pay attention to the alternator, power steering pump, air conditioning compressor, and other components as per the service manual diagram for the 2015 Duramax engine.
- Re-engage the tensioner: After the belt is routed, use the socket wrench to release the tensioner pulley and allow it to apply tension to the belt.
- Verify the alignment: Check that the belt is properly seated in all pulleys. The belt should be flush with the grooves, and no components should be under too much stress.
- Test the belt: Start the engine and observe the belt’s operation. Listen for any unusual noises, such as squealing or slipping, which may indicate improper installation or alignment.
Ensure the belt is running smoothly by repeating these steps as necessary. Proper installation will prevent premature wear and ensure optimal performance of the Duramax engine.
Common Issues with the Belt System on 2015 Duramax
One common issue with the belt system on the 2015 Duramax is belt wear. Over time, the serpentine belt can become cracked or frayed due to constant exposure to heat and friction. Regular inspection can help identify these signs early, preventing a breakdown.
Another issue is the tensioner pulley failure. The pulley can lose tension or seize, leading to improper belt movement and potential slipping. It’s recommended to replace the pulley if it shows any signs of wear or noise.
Misalignment of the belt is also frequent, often caused by worn-out components such as the alternator or water pump. Misalignment can cause excessive stress on the belt, leading to premature damage. Ensure that all pulleys and accessories are properly aligned during maintenance checks.
Finally, coolant leaks from the water pump can damage the belt. If coolant comes into contact with the belt, it can weaken the rubber and cause slipping or cracking. Regular inspection of the water pump for leaks is crucial to avoid this issue.
How to Replace the Belt on 2015 Duramax
Begin by disconnecting the negative battery terminal to avoid electrical hazards during the process.
Locate the tensioner pulley on the engine. Use a ratchet wrench to relieve tension from the belt by turning the tensioner clockwise. This will allow you to remove the belt from the pulleys. Make sure to note the routing of the old belt or consult the belt diagram for your specific model to ensure correct installation of the new belt.
Remove the old belt from the engine bay, making sure to inspect the pulleys for any wear or damage. If you notice any issues with the pulleys or tensioner, replace them before installing the new belt.
Position the new belt over the pulleys according to the routing diagram. Begin by placing it around the main components, such as the crankshaft, alternator, and water pump. Ensure the belt fits snugly in the grooves of the pulleys.
Once the belt is in place, use the ratchet wrench to rotate the tensioner again, allowing it to tighten the new belt. Check for proper tension by pressing on the belt. It should have a small amount of give but should not feel loose.
Finally, reconnect the battery and start the engine. Observe the belt for any signs of slipping or unusual noise. If everything runs smoothly, the belt replacement is complete.
