2015 Buick Encore Serpentine Belt Diagram and Pulley Layout Guide

Locate the serpentine belt routing clearly before any adjustments. The 2015 Buick Encore uses a single serpentine belt to drive the alternator, water pump, and power steering. Understanding the exact path reduces the risk of misalignment and premature wear.

Inspect the tensioner and pulleys regularly. Check for smooth rotation and absence of cracks or squeals. Replace any worn or stiff components to maintain consistent belt tension and prevent slipping or belt failure.

Follow the diagram during installation or replacement. Align the belt precisely with each pulley groove, ensuring it sits fully without twisting. Using the manufacturer-provided diagram prevents misrouting that can damage engine components or reduce accessory performance.

Maintain clean pulley surfaces and remove debris. Dirt, grease, or worn material can accelerate belt wear and cause uneven movement. Regular inspection and cleaning extend belt life and maintain stable engine operation.

Check belt condition periodically. Look for cracks, fraying, or glazing. Replace the belt at the first signs of damage to avoid unexpected breakdowns and ensure reliable performance across all driven accessories.

2015 Buick Encore Serpentine Belt Diagram and Maintenance Guide

Locate the serpentine belt routing diagram under the hood near the engine or in the owner’s manual for accurate reference. This belt drives the alternator, water pump, power steering pump, and air conditioning compressor, so correct routing is critical.

Inspect the belt for cracks, fraying, or glazing every 12,000 miles or annually. Any visible damage or excessive wear requires immediate replacement to prevent engine accessory failure.

Check the tensioner pulley to ensure proper belt tension. A loose belt can slip and reduce performance, while an overly tight belt can strain bearings. Use a wrench to rotate the tensioner and verify smooth movement.

Clean the pulleys and remove debris to maintain smooth belt operation. Dirt buildup can accelerate wear and cause noise. A clean surface ensures the belt maintains proper grip on all components.

Replace the serpentine belt with the exact OEM size. Route it according to the diagram, ensuring each pulley groove aligns correctly. After installation, rotate the engine manually to confirm proper seating and tension.

Monitor belt noise, such as squealing or chirping, which indicates misalignment or wear. Address these issues immediately to prevent accessory malfunction or engine overheating.

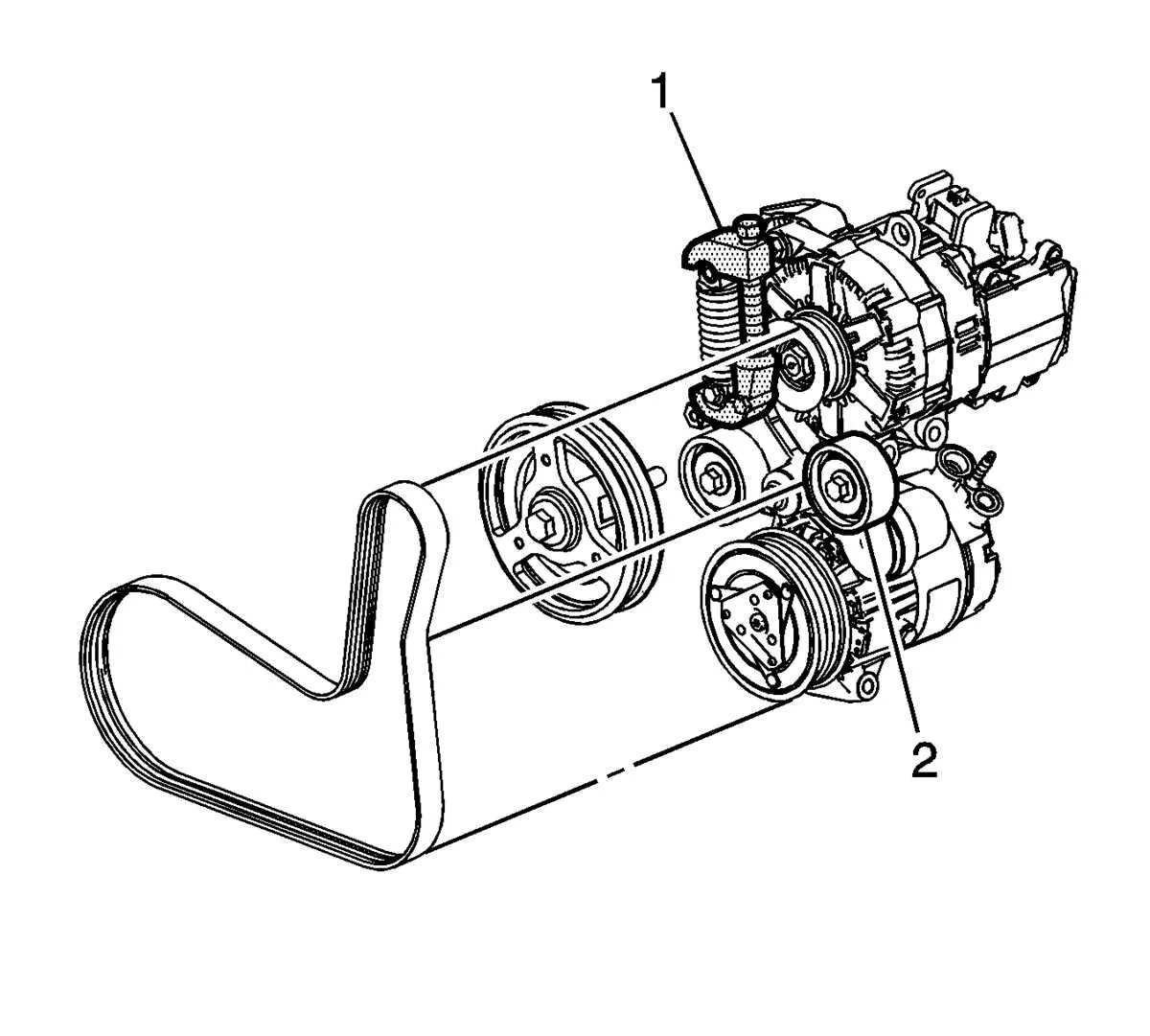

Identify All Pulleys and Belt Routing for 2015 Buick Encore

Locate the crankshaft pulley at the engine’s lower front; this drives the serpentine belt. Above it, find the alternator pulley on the passenger side, responsible for charging the battery. The power steering pump pulley sits on the driver side, ensuring hydraulic pressure for steering.

Identify the air conditioning compressor pulley near the lower center, connected to the AC system. The tensioner pulley, positioned mid-engine, maintains proper belt tension and prevents slippage. The idler pulleys, located strategically along the belt path, guide the belt smoothly around components.

Follow the belt path clockwise from the crankshaft: wrap around the alternator, move down to the AC compressor, cross the tensioner, route over the power steering pulley, pass any idler pulleys, and return to the crankshaft. Ensure the belt sits properly in each pulley groove and aligns evenly without twisting.

Inspect each pulley for wear or misalignment. Spin pulleys manually if accessible; they should rotate freely without noise. Replace damaged or seized pulleys to maintain proper belt function and prevent engine accessory failure.

Step-by-Step Instructions for Removing and Replacing the Serpentine Belt

Loosen the tensioner to relieve pressure on the serpentine belt using a 3/8-inch ratchet or breaker bar. Position it on the square drive of the tensioner pulley and rotate clockwise to release tension.

Slide the belt off the alternator pulley first, then sequentially remove it from the remaining pulleys following the belt routing diagram. Keep the diagram accessible to avoid misrouting the new belt.

Inspect all pulleys for wear, damage, or misalignment. Spin each idler and accessory pulley to ensure smooth rotation and no grinding noises.

Compare the new serpentine belt with the old one to confirm matching length and rib pattern. Verify that the belt type corresponds to your 2015 Buick Encore engine.

Route the new belt over the pulleys according to the belt diagram. Ensure each rib sits correctly in the pulley grooves. Start with the lower pulleys and work upward, leaving the tensioner for last.

Reapply tension by slowly releasing the tensioner while guiding the belt into position. Double-check that the belt is fully seated on all pulleys and aligned straight.

Manually rotate the crankshaft pulley two full turns to confirm smooth movement and proper tracking of the belt. Observe pulleys for wobbling or slippage.

Start the engine and let it run for a few minutes. Monitor the serpentine belt for proper alignment and listen for abnormal noises. Shut off the engine and inspect tension once more.

Inspect Belt Condition and Adjust Tension to Prevent Engine Issues

Check the serpentine belt for cracks, fraying, glazing, or missing chunks. Use a flashlight to inspect all sides, especially near the pulleys. Any visible damage indicates the belt needs replacement.

Measure belt tension by pressing down at the midpoint between pulleys. The 2015 Buick Encore 1.4L turbo engine requires approximately 1/2 inch (12 mm) deflection under moderate pressure. Excessive slack can cause slippage, noise, and accessory malfunction.

Adjust the belt tension using the automatic tensioner. Rotate the tensioner clockwise with a wrench to relieve tension, remove the old belt, and route the new belt according to the factory diagram. Slowly release the tensioner to apply proper tension.

After installation, run the engine at idle and observe belt tracking. Ensure it sits evenly on all pulleys without wobbling or misalignment. Inspect again after the first 50 miles for proper tension and wear.

Lubricate tensioner pivot points lightly if needed and confirm the belt’s ribbed side aligns with pulley grooves. Replace any worn pulleys to prevent premature belt failure.
