2003 Honda Accord Belt Diagram and Maintenance Guide
The 2003 Honda Accord belt system is crucial for the smooth operation of the engine. It includes the timing belt, serpentine belt, and other auxiliary belts that drive components such as the alternator, power steering pump, and air conditioning compressor.
To ensure proper function, regularly check the belt’s tension and alignment. A loose or misaligned belt can lead to engine misfires or damage to the drive components. Refer to the detailed belt diagram for specific routing and maintenance intervals.
If you notice squealing noises or loss of power steering, inspect the serpentine belt for wear or cracks. A worn belt should be replaced immediately to prevent further issues.
For accurate installation, always follow the manufacturer’s recommendations regarding belt routing and tension. Regularly maintaining your belt system will help avoid costly repairs and keep your Honda Accord running smoothly for years.

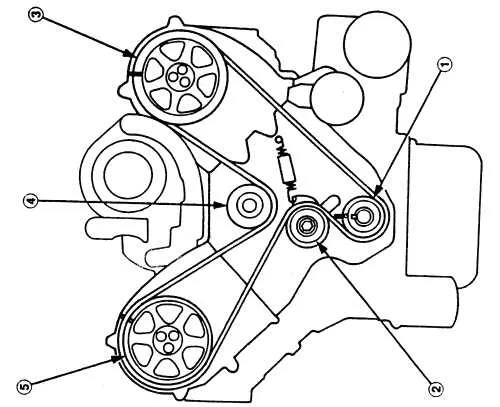

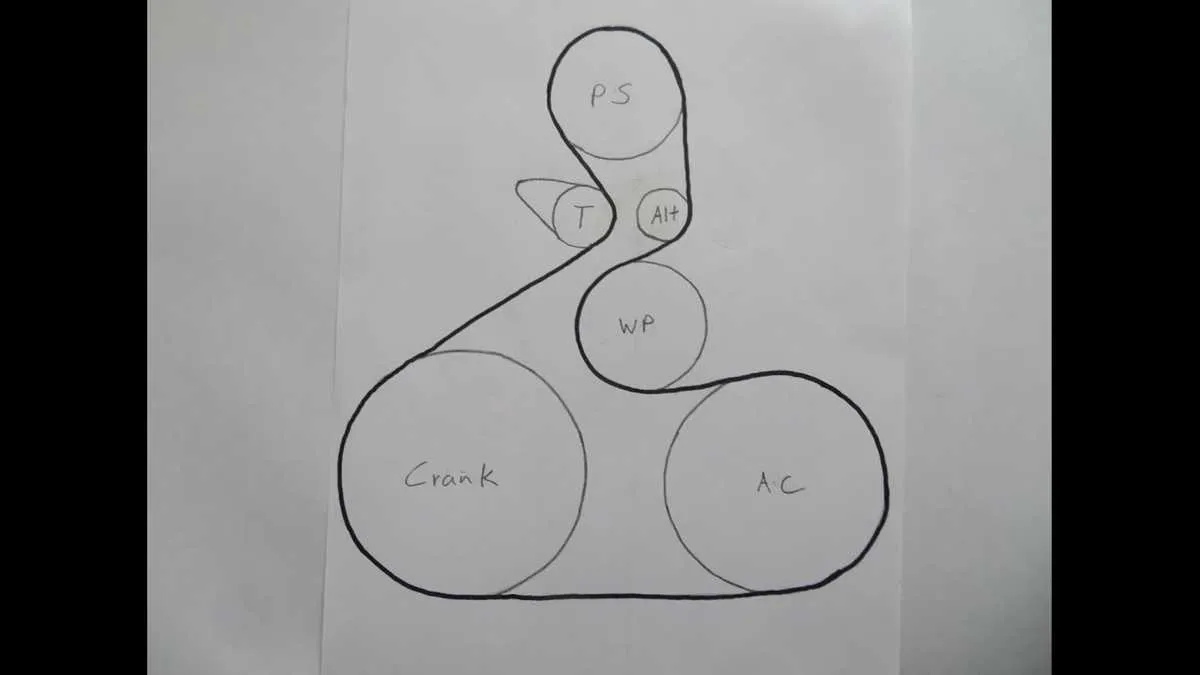

2003 Honda Accord Belt Diagram
The 2003 Honda Accord uses a serpentine belt to drive multiple accessories, including the alternator, power steering pump, and air conditioning compressor. To replace or inspect the belt, ensure the vehicle is off and the ignition is turned off.
To remove the serpentine belt, first, locate the belt tensioner. Use a wrench or socket to relieve tension from the belt. Carefully remove the belt from its pulleys, noting the direction and routing to ensure proper installation of the new belt.
When installing a new serpentine belt, follow the diagram specific to the 2003 Honda Accord. The belt must be routed around all the pulleys, making sure it is properly seated on each one. After installation, check the tension to ensure the belt is tight enough to prevent slipping but not overly tight to avoid damage to components.
If the belt shows signs of wear such as cracking, fraying, or glazing, replace it immediately to prevent failure. Regular inspection is advised to maintain vehicle performance and avoid unexpected breakdowns.
Understanding the Timing Belt Setup on a 2003 Honda Accord
The timing belt on a 2003 Honda Accord is a critical component of the engine, connecting the crankshaft and camshaft to ensure proper synchronization of the engine’s valves. Regular inspection and replacement are essential to avoid engine damage caused by a broken or worn-out timing belt. The 2003 Accord uses an interference engine, meaning if the timing belt fails, the pistons can collide with the valves, causing significant damage.
When replacing the timing belt, check the belt for wear, cracks, or fraying. It’s recommended to replace the timing belt every 105,000 miles (or 168,000 kilometers) as per the manufacturer’s guidelines. During replacement, it’s also wise to inspect related components such as the water pump, tensioner, and idler pulleys, which should be replaced if worn out to avoid future issues.
Make sure to properly align the timing marks on the crankshaft and camshaft when installing the new timing belt. This ensures the engine timing is correct, preventing potential misfires or poor engine performance. Follow the specified torque settings for the bolts securing the camshaft and crankshaft pulleys to avoid damaging the components.
For optimal performance, it’s critical to replace the timing belt within the recommended interval, as a neglected timing belt could lead to catastrophic engine failure. If unsure about the condition of the timing belt, seek professional assistance to ensure proper maintenance of the engine’s timing system.
How to Identify and Replace the Serpentine Belt on a 2003 Honda Accord
Inspect the serpentine belt by looking for visible signs of wear, such as cracks, fraying, or glazing. If you spot any of these, it’s time to replace it. The serpentine belt should be smooth and free of significant damage to ensure proper operation of the engine’s accessories.
To remove the old serpentine belt, locate the tensioner pulley. Use a wrench to rotate the tensioner in the direction indicated on the pulley, relieving tension on the belt. Slide the belt off the pulleys carefully, noting its routing for the new installation.
Install the new serpentine belt by following the same routing as the old one. Make sure the belt fits snugly in the grooves of each pulley. Rotate the tensioner pulley again to allow the new belt to slip into place and relieve tension on it.
After installation, double-check the belt’s alignment and ensure it’s properly tensioned. Start the engine and observe the belt’s movement to confirm it operates smoothly without any slipping or noise.
Common Issues with the 2003 Honda Accord Belt System and Troubleshooting Tips
Worn-out or damaged belts often cause poor performance or failure in the 2003 Honda Accord’s engine system. Identifying issues early can save time and money. Here are common problems and troubleshooting tips.
- Squealing or High-Pitched Noise: This often indicates a loose or worn serpentine belt. Inspect the belt for cracks or fraying. If the belt shows signs of wear, replace it. Tightening the tensioner may also resolve minor noise issues.
- Belt Slippage: If the belt is slipping on the pulleys, check for incorrect tension. Adjust the tensioner to maintain the proper tension level. A worn tensioner can also contribute to slippage, requiring replacement.
- Cracks or Missing Fragments: Examine the belt for visible cracks or missing segments. This is a sign the belt is at the end of its life. Replace it immediately to avoid further engine damage.
- Overheating Issues: A malfunctioning or misaligned serpentine belt can lead to the engine overheating. Inspect the belt alignment and replace any damaged components that could affect the water pump or alternator drive.
- Pulley Misalignment: If you notice abnormal wear on the belt or hear grinding sounds, it could be a sign of pulley misalignment. Inspect each pulley and replace any that are bent or damaged.
Regular maintenance, including inspecting the belt for signs of wear, ensures smooth engine operation. Replace the belt every 60,000 to 100,000 miles or sooner if issues are detected.
