Complete Guide to Understanding the 2012 Fusion Belt Layout and Component Connections
Locate the main serpentine belt routing first. On the 2012 Ford Fusion, the belt snakes around the crankshaft, alternator, power steering pump, and AC compressor. Identifying each pulley visually before removal prevents confusion during reinstallation and reduces the risk of misalignment.
Inspect the tensioner carefully. The automatic belt tensioner keeps consistent pressure on the belt. Look for cracks, excessive wear, or stiffness in the spring mechanism. A worn tensioner can accelerate belt failure even if the belt itself appears intact.
Follow the diagram methodically. Place a printed or digital copy of the belt diagram near your workspace. Align the belt over each pulley exactly as shown, starting with the crankshaft and moving clockwise. Double-check the routing against the tensioner before applying full tension.
Check belt condition during installation. Confirm that the ribs sit properly in the grooves and that no twists occur along the path. Twisted or misaligned belts generate noise, uneven wear, and can slip under load, affecting alternator and AC performance.
Test the system after installation. Run the engine at idle and observe the belt’s movement. Listen for squeaks or vibration. Proper tension and alignment ensure smooth operation and prolong the lifespan of both the belt and associated components.

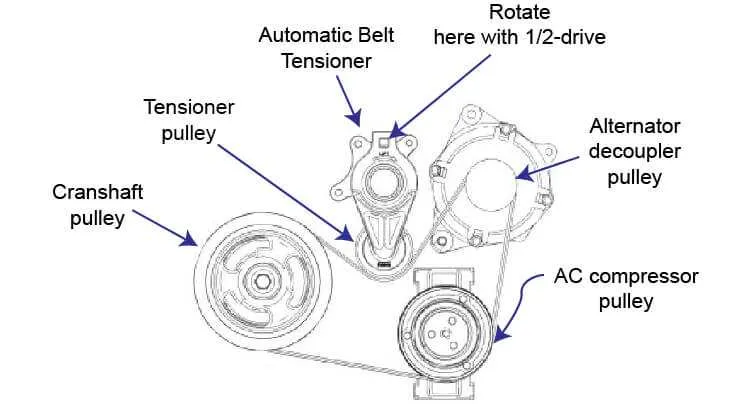

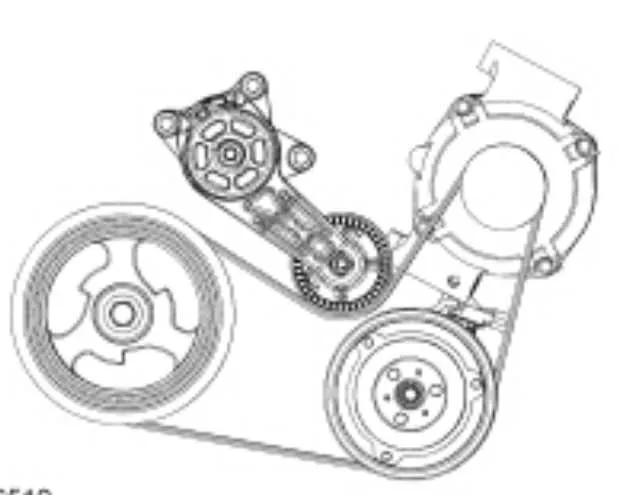

2012 Fusion Belt Diagram
Locate the serpentine belt routing diagram on the engine cover or inside the driver’s side fuse box panel to confirm exact path. The 2012 Fusion features a single serpentine belt that drives the alternator, power steering pump, water pump, and A/C compressor. Follow the diagram carefully to ensure proper tension and alignment, as misrouting can cause accessory malfunction or belt slippage.
Check the tensioner pulley position; the diagram indicates the spring-loaded tensioner location for automatic adjustment. Align the belt on each pulley according to the diagram, starting with the crankshaft pulley and working clockwise to prevent twisting. Verify each groove sits correctly on the pulley to avoid premature wear.
Replace the belt if cracks, fraying, or glazing appear. Use the diagram to trace the belt path before removal, marking the routing with a chalk or marker if needed. Recheck the diagram after installation to confirm all pulleys match the original layout.
For the 2.5L inline-4 engine, the belt routing runs from the crankshaft pulley to the alternator, then to the tensioner, water pump, A/C compressor, and back to the crankshaft. On the 3.0L V6, the routing includes an additional idler pulley before the water pump. Consulting the diagram prevents errors during installation and ensures proper engine accessory operation.
Identifying Each Belt in the 2012 Fusion Engine
Locate the serpentine belt at the front of the engine; it drives the alternator, power steering pump, and air conditioning compressor. Check the tensioner pulley near the top right side of the engine for proper alignment and tension.
The timing belt, positioned behind the engine cover on the left, synchronizes the crankshaft and camshaft. Inspect it for cracks, fraying, or missing teeth, especially if mileage exceeds 100,000 miles.
The accessory belt, smaller than the serpentine, powers secondary components like the water pump on certain Fusion models. Trace its path from the crank pulley to the respective accessory to confirm correct routing.
Use the belt routing diagram printed under the hood or in the owner’s manual to identify each belt precisely. Match the diagram to the pulleys, noting the tensioner positions and idler pulleys to avoid misalignment during replacement.
Replace any belt showing signs of wear immediately. Keep a close eye on the tensioners and pulleys; misaligned belts can lead to engine noise, reduced efficiency, or severe mechanical damage.
Step-by-Step Guide to Reading the 2012 Fusion Belt Diagram
Locate the belt diagram in the engine compartment or the owner’s manual for the 2012 Fusion. Identify the serpentine belt path clearly, noting the positions of the alternator, power steering pump, A/C compressor, and crankshaft pulley.
- Trace the belt path visually: Follow the diagram starting from the crankshaft pulley. Confirm each pulley the belt loops around matches the diagram.
- Identify tensioner position: The automatic belt tensioner maintains proper tension. Locate it on the diagram and verify the spring direction and tensioner arm movement.
- Check pulley labels: Match every labeled pulley with its engine component. Common labels include ALT for alternator, PS for power steering, and AC for air conditioning.
- Compare belt routing: Ensure the routing in the diagram corresponds to the current engine setup. Differences can indicate previous modifications or repairs.
- Verify rotation direction: Some diagrams indicate the belt rotation around pulleys. Note clockwise or counterclockwise rotation for proper alignment during installation.
- Use reference markers: Align the belt’s ribbed side with the pulleys’ grooves. Diagrams often highlight ribbed versus smooth side paths to prevent slipping.
- Confirm tensioner placement: After routing, ensure the belt fits securely on the tensioner. Slight movement in the tensioner arm is normal, but excessive slack signals misalignment.
- Double-check connections: Review all components in the diagram. Missing a single pulley can cause engine performance issues or belt damage.
Follow this sequence for accurate interpretation of the 2012 Fusion belt diagram. Keeping the diagram visible during inspection or replacement helps avoid errors and ensures correct belt routing for smooth engine operation.
Troubleshooting Common Belt Issues Using the Diagram
Check the diagram to identify the exact routing path of the serpentine belt. Misalignment is the leading cause of squealing and premature wear. Compare the belt’s position against the diagram, ensuring it sits correctly on each pulley, especially the tensioner and alternator.
If the belt appears frayed or has visible cracks, locate the specific segment on the diagram and inspect the corresponding pulleys for damage. Worn bearings on the water pump, idler, or power steering pulley often create uneven belt wear patterns.
For slipping belts, measure the tension using a gauge or press on the belt at the midpoint of the longest span. Refer to the diagram to identify tensioner orientation and adjust it according to manufacturer specifications. A properly aligned tensioner prevents vibration and extends belt life.
Noise localized near a particular pulley usually indicates a pulley misalignment or a failing component. Use the diagram to trace the belt path and isolate the pulley in question. Rotate each pulley by hand to detect rough spots or resistance that could affect belt performance.
After replacing or adjusting the belt, follow the diagram to verify the routing once more. Run the engine at idle and observe belt tracking, ensuring it remains centered on all pulleys without wobbling or slipping. Repeat inspections after 500–1,000 miles to confirm stability and longevity.
