Husqvarna MZ61 Drive Belt Diagram and Maintenance Guide
To properly maintain your Husqvarna MZ61, understanding the drive belt diagram is critical. The diagram provides a clear layout of how the belt is routed through the mower’s system, ensuring smooth operation and efficient power transfer.
Inspect the belt regularly for signs of wear such as fraying or cracking. A worn-out belt can lead to poor performance or even a complete failure, so it’s essential to replace it on time. Ensure the belt is properly tensioned to prevent slippage and reduce strain on the engine.
Follow the manufacturer’s specifications for belt type and tension. Using the correct belt and maintaining proper tension will extend the lifespan of your mower and improve its cutting performance. Ensure that the belt is routed according to the diagram to avoid damage to other components.
If you encounter difficulty with installation or adjustments, refer to the step-by-step guide in the manual. Proper alignment is crucial for efficient power transfer and optimal mower function. Follow the diagram closely and ensure the belt is not twisted or incorrectly positioned.

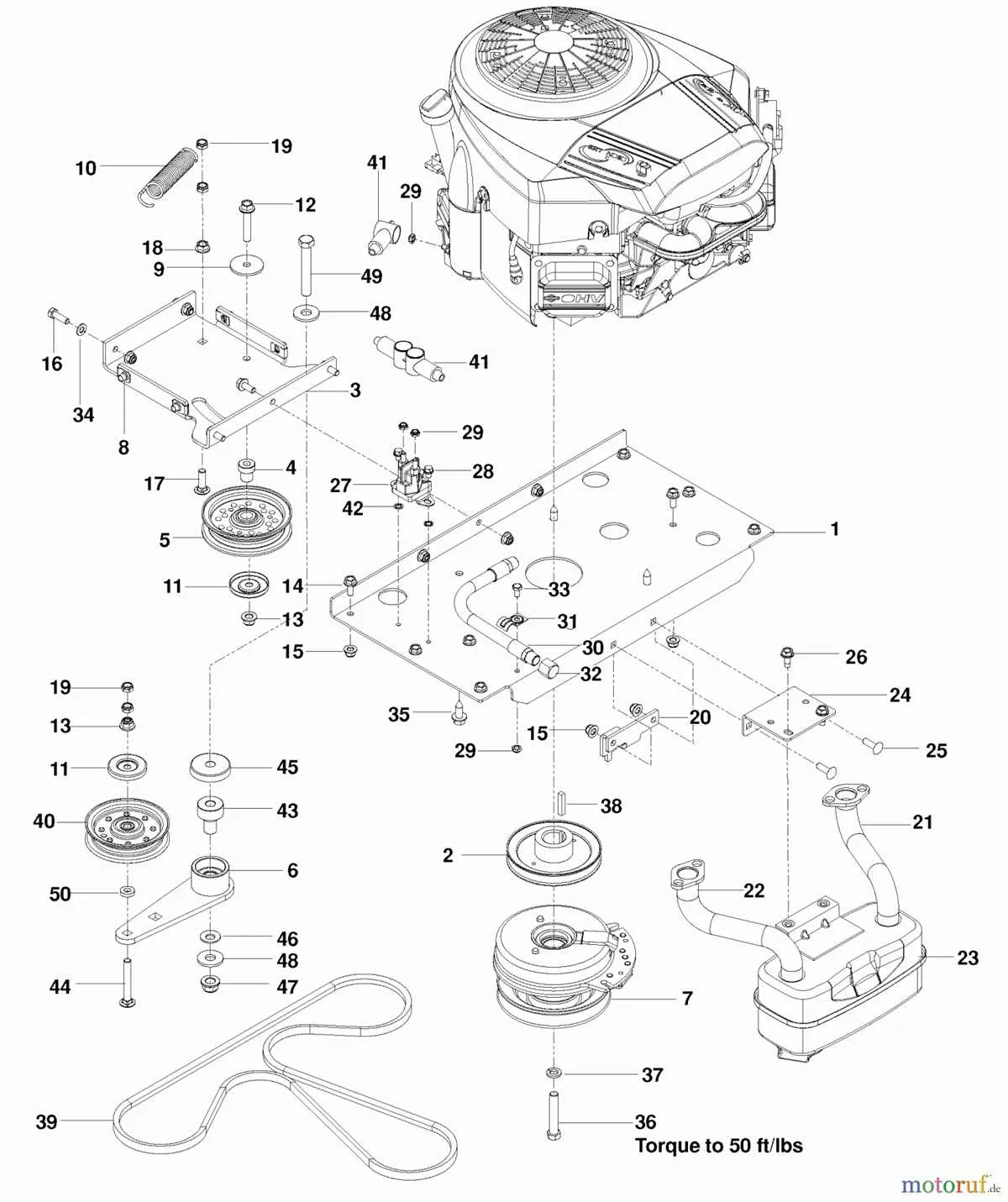

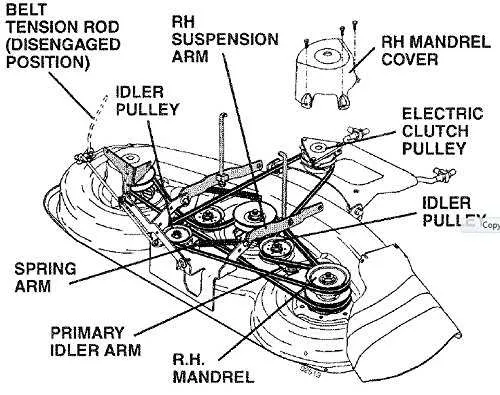

Husqvarna MZ61 Drive Belt Diagram
For proper operation and maintenance of your Husqvarna MZ61, it’s crucial to understand the layout of the drive belt. This diagram helps identify the path the drive belt takes, ensuring correct installation and avoiding damage to the components.
Start by locating the drive belt on the mower. It runs from the engine’s drive pulley to the deck pulley system. The belt should be routed around the tensioner pulleys and idler pulleys, with the belt properly aligned in the grooves to maintain optimal tension and prevent slipping.
Ensure that the drive belt is not twisted during installation. Check the diagram for the correct routing, paying attention to each pulley’s position. The tensioner pulleys adjust the belt’s tension to maintain the proper operation of the mower. When replacing the belt, use the diagram to confirm the belt length and type, as using the wrong belt can lead to operational issues.
If you notice wear or damage to the belt, it’s vital to replace it immediately. Inspect the belt frequently for signs of cracks, fraying, or stretching. Regular maintenance will help extend the lifespan of both the belt and the mower.
How to Identify the Correct Drive Belt for Husqvarna MZ61
Check the model and serial number of your Husqvarna MZ61 before purchasing a drive belt. These details are typically found on the mower’s identification plate, which is located near the frame or on the engine. Once you have the model information, refer to the owner’s manual for specific belt part numbers. If the manual is unavailable, visit the Husqvarna website or contact a local dealer to ensure compatibility with your MZ61 model.
Measure the old belt if it’s still intact. This includes its length and width, which are crucial for finding an exact match. Use a tape measure to determine the circumference and width of the belt. Make sure these dimensions align with the specifications listed for the MZ61’s drive belt. An incorrect size may cause the mower to operate inefficiently or damage other components.
If the belt is broken or worn out, bring it to a local dealer or a service center. They can help you match the correct part number based on your model’s specifications. Alternatively, online retailers specializing in lawn equipment parts often offer search tools that allow you to find compatible belts based on your mower’s make and model.
Step-by-Step Guide to Replacing the Drive Belt on Husqvarna MZ61
To replace the drive belt on your Husqvarna MZ61, follow these steps carefully to ensure a smooth process.
- Disconnect the battery: Start by removing the battery to prevent any electrical hazards during the procedure.
- Lift the mower deck: Use a jack or lift to raise the mower deck. Ensure the mower is stable before proceeding.
- Remove the deck belt: Locate the deck belt and carefully remove it from the pulleys. This may require detaching the tension spring and loosening the belt guides.
- Loosen the drive belt: Remove any covers or guards that are blocking access to the drive belt. Once exposed, release the tension on the drive belt by loosening the tension spring or pulley.
- Remove the old drive belt: Slide the belt off the pulleys and discard it. Take note of the routing for the new belt installation.
- Install the new drive belt: Place the new drive belt onto the pulleys, following the correct routing path as shown in the manual. Ensure it sits properly on all pulleys.
- Reassemble the mower: Tighten the tension spring and any other components you loosened during the process. Reinstall any covers or guards that were removed.
- Reconnect the battery: After confirming everything is securely in place, reconnect the battery.
- Test the mower: Start the mower and check that the new belt is functioning properly. Listen for any unusual sounds and observe the operation to ensure it’s running smoothly.
Troubleshooting Common Drive Belt Issues on Husqvarna MZ61
If the drive belt on your Husqvarna MZ61 is slipping or not functioning properly, inspect the tension. If the belt is too loose, it won’t transfer power effectively. Adjust the tension by tightening the spring-loaded tensioner. If the belt is too tight, it may cause unnecessary strain on the engine and other components.
Check for visible signs of wear such as cracks or fraying along the belt. A worn belt will not grip the pulleys efficiently, leading to slippage and poor performance. Replace the belt if any damage is visible. Ensure that you are using the correct belt size as per the manufacturer’s specifications.
Inspect the pulleys for debris or damage. Any obstruction in the pulley system can interfere with the smooth operation of the belt. Clean the pulleys and remove any debris, and check for any signs of wear, such as grooves or cracks. Replace worn pulleys to prevent further damage to the belt.
If you hear a squealing noise, it may be due to a misaligned belt. Ensure the belt is properly aligned with the pulleys and adjust as needed. Misalignment can cause uneven wear on the belt and decrease its lifespan.
Lastly, inspect the idler pulley and tensioner. These components apply the correct tension to the drive belt, and any damage to them can cause issues with the belt’s performance. If either is damaged or worn, replace them immediately to restore proper functionality.
