2012 Cadillac SRX Serpentine Belt Diagram and Installation Guide
If you’re replacing the serpentine belt on your 2012 Cadillac SRX, you’ll want to follow the correct routing for optimal performance. The belt diagram for this model is a simple yet essential guide to ensuring that your engine runs smoothly and without unnecessary wear. Pay close attention to the exact alignment to avoid any misrouting that could cause friction, wear, or even damage to components.
The serpentine belt on the 2012 Cadillac SRX connects several critical components, including the alternator, air conditioning compressor, power steering pump, and water pump. It’s important to confirm the exact routing of the belt before making any replacements. Incorrect installation can lead to premature belt failure and operational issues.
To ensure proper installation, start by locating the belt tensioner and loosening it before removing the old belt. Make sure the new belt matches the original routing pattern as indicated in the diagram. Double-check the tension of the belt once installed to avoid slippage or excessive tightness, both of which can lead to malfunctioning parts.

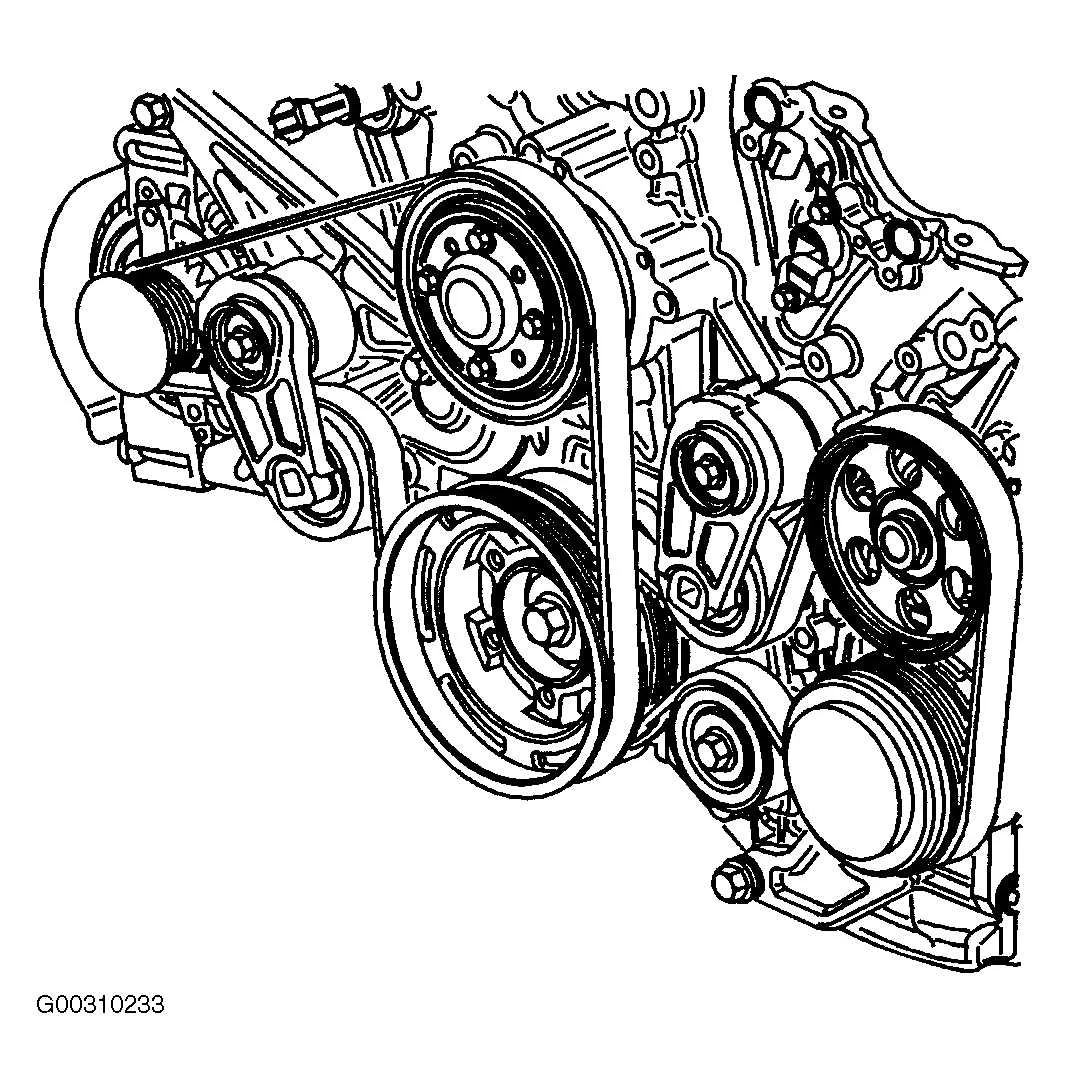

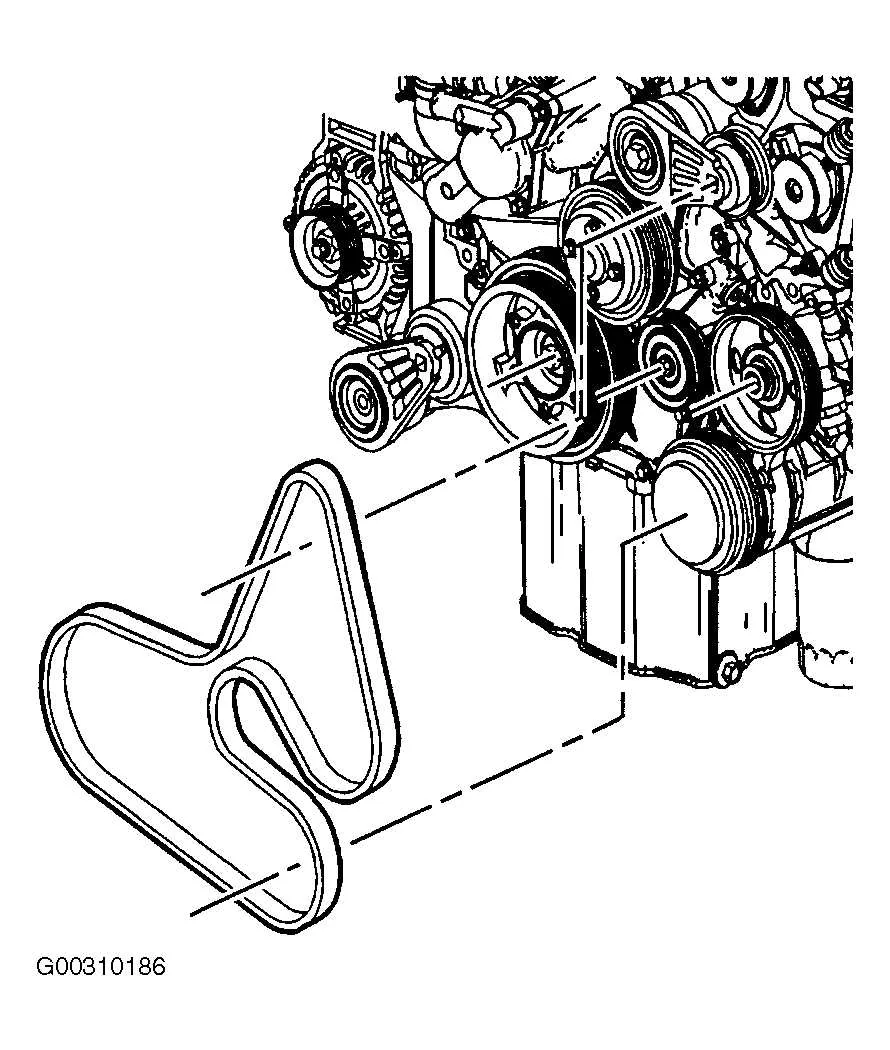

2012 Cadillac SRX Belt Diagram
The 2012 Cadillac SRX uses a serpentine belt system to drive multiple components, including the alternator, power steering pump, and air conditioning compressor. To ensure proper function, check the belt tension and alignment regularly. The belt diagram is crucial for reinstallation after maintenance or if the belt needs to be replaced. Follow this layout for accurate reassembly.
The primary serpentine belt runs along the front of the engine. It starts from the crankshaft pulley, moves around the alternator pulley, and continues to the power steering pump. From there, it loops over the idler pulley and connects to the AC compressor. Double-check for any deviations in the routing of the belt, as improper placement can cause slipping or damage to engine components.
When replacing the belt, always ensure that the new belt matches the specifications in the owner’s manual. The proper belt tension is critical for optimal performance–too tight can lead to premature wear, while too loose can cause slippage and reduced power to key systems.
Consult the engine bay for the exact routing diagram to avoid any mistakes. Proper maintenance of the belt system prevents costly repairs and ensures your SRX remains in top condition.
Understanding the Belt Routing for 2012 Cadillac SRX
The belt routing diagram for the 2012 Cadillac SRX is critical for ensuring proper operation of the engine’s accessories. The serpentine belt is responsible for driving multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. Make sure to follow the exact routing path to avoid potential issues like belt slippage or damage.
To start, the serpentine belt loops over the crankshaft pulley, then moves to the alternator and the power steering pump. After passing through the air conditioning compressor, the belt moves around the tensioner pulley and returns to the crankshaft pulley. Ensure the belt is routed around all pulleys correctly and that it maintains proper tension for efficient operation.
Check the diagram frequently during maintenance to verify that the belt remains in the correct alignment. If the belt shows signs of wear or if you notice any slipping, it’s crucial to replace it immediately to prevent further damage to other components. Always use the recommended belt size for the 2012 Cadillac SRX to ensure the correct fit and performance.
Identifying Common Issues with the Serpentine Belt System
Check for squealing noises, which often indicate a worn-out serpentine belt. If the belt starts to slip or crack, it may be time for a replacement. Inspect the belt for signs of fraying or cracks, especially near the edges. A broken or damaged belt can cause the engine to overheat or lose power to essential components like the alternator and power steering.
Inspect the belt tensioner as well. A loose tensioner can lead to insufficient tension, causing the belt to slip or misalign. If the tensioner is faulty, it may require replacement to keep the system running smoothly. Also, be aware of the condition of the pulleys. Damaged or misaligned pulleys can cause the belt to wear unevenly or get off track.
If you notice irregular belt wear, check for misaligned components or issues with the pulley system. Uneven wear can be a sign that one or more pulleys are not spinning freely. In these cases, replacing the pulleys or adjusting their alignment is necessary to prevent further damage to the serpentine belt.
Steps to Replace the Serpentine Belt on 2012 Cadillac SRX
Before you begin, ensure the vehicle is parked on a flat surface, the engine is off, and the parking brake is engaged.
- Locate the Serpentine Belt
– Open the hood and find the serpentine belt on the front of the engine. It should be visible and routed over various pulleys and accessories. - Release Tension on the Belt
– Use a wrench or socket to rotate the tensioner pulley counterclockwise. This will relieve tension and allow you to remove the belt from the pulleys. Make sure the tensioner moves smoothly. - Remove the Old Belt
– With the tension relieved, carefully remove the belt from all pulleys. Take note of the belt’s routing, as this will be important when installing the new belt. - Inspect the Pulleys
– Check each pulley for any signs of damage or wear. Spin the pulleys by hand to ensure they rotate freely. Replace any damaged pulleys before proceeding with the new belt. - Install the New Serpentine Belt
– Start routing the new serpentine belt according to the belt diagram located on the engine compartment. Ensure the belt fits snugly over each pulley and follows the exact path as the old belt. - Reapply Tension
– Use the wrench or socket to rotate the tensioner pulley again, allowing the tensioner to apply pressure to the new belt. Verify that the belt is properly tensioned. - Check Belt Alignment
– Inspect the belt to ensure it is aligned properly on all pulleys. A misaligned belt can cause premature wear or failure. - Test the System
– Start the engine and observe the belt’s movement. Ensure it is running smoothly and quietly without any slipping or noise.
Once these steps are completed, your new serpentine belt will be in place and functioning correctly. Keep an eye on the belt’s condition periodically to avoid future issues.
