2010 Ford Escape 2.5 Serpentine Belt Routing Diagram and Installation Guide

To replace or inspect the serpentine belt on a 2010 Ford Escape 2.5, understanding the correct routing of the belt is crucial. The serpentine belt powers several components of the engine, including the alternator, air conditioning compressor, and power steering pump. A clear diagram helps avoid costly mistakes during replacement and ensures proper functioning of all systems.

In the 2010 Ford Escape, the serpentine belt follows a specific path. Starting from the crankshaft pulley, it moves across the tensioner pulley, over the alternator pulley, and around other components such as the power steering pump and air conditioning compressor. Referencing an accurate diagram ensures that the belt is routed in the correct direction, preventing issues such as slippage or premature wear.

Check the belt tension before reinstalling. The proper tension is critical to avoid the risk of the belt coming loose or wearing out quickly. If in doubt, use a belt tension gauge or a pry bar to test for correct tightness. Use a high-quality replacement belt for best results and ensure that the pulleys are in good condition to avoid unnecessary friction.

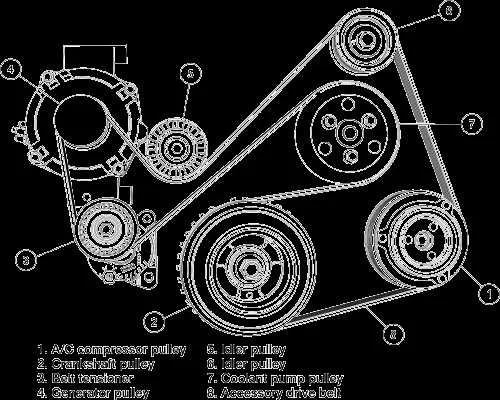

2010 Ford Escape 2.5 Serpentine Belt Diagram

The serpentine belt on the 2010 Ford Escape 2.5 is responsible for driving multiple components such as the alternator, power steering pump, and air conditioning compressor. Proper routing is key for ensuring all accessories function smoothly. Below is the correct serpentine belt routing for your vehicle.

Start by noting the following components in the belt path:

• Alternator
• Power steering pump
• Air conditioning compressor
• Crankshaft pulley
• Idler pulley
• Tensioner pulley

The belt begins at the crankshaft pulley, looping around the idler pulley and tensioner. It moves to the power steering pump, then wraps around the alternator and finally reaches the air conditioning compressor. Ensure the belt maintains proper tension. The tensioner pulley will help keep it tight, preventing slipping and wear.

If you’re replacing the serpentine belt, it’s best to use a belt tensioner tool to release tension from the tensioner pulley. This will allow you to easily slip the old belt off and install the new one. Always check for any signs of wear or damage on the pulleys before installing the new belt.

Consult your vehicle’s manual for specific part numbers and belt length, or refer to a replacement chart for the 2010 Ford Escape 2.5 to ensure you’re getting the correct fit. Proper installation and maintenance of the serpentine belt will help keep your engine running smoothly and prevent costly repairs down the line.

Understanding the Serpentine Belt Layout for the 2010 Ford Escape 2.5

The serpentine belt on the 2010 Ford Escape 2.5 is an essential component that drives multiple accessories such as the alternator, power steering pump, air conditioning compressor, and water pump. A precise belt layout ensures smooth functioning and optimal engine performance.

The belt system follows a specific route around the engine’s pulleys. Begin by noting the location of the tensioner pulley, which is responsible for maintaining proper tension. This pulley typically sits on the passenger side of the engine. The belt should loop around the crankshaft pulley, the power steering pump, the alternator, and the A/C compressor, in that order. Depending on the exact model and setup, there may be additional pulleys such as idlers or a separate pulley for the water pump.

To replace or inspect the serpentine belt, it’s crucial to use a suitable tool to release tension from the tensioner pulley. Once relaxed, remove the belt carefully, noting the exact routing before doing so. This will help you when installing the new belt. If the belt has any visible signs of wear, like fraying or cracks, it should be replaced immediately to avoid damage to other components.

Consult the owner’s manual or a service manual for the precise diagram for your specific model. Make sure to double-check the routing before starting the engine to prevent misalignment that can cause further damage.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2010 Ford Escape 2.5

Begin by ensuring the engine is off and the car is parked on a level surface. Disconnect the negative terminal of the battery to avoid any electrical issues. Next, locate the serpentine belt on the front of the engine, checking the routing diagram under the hood for guidance.

Use a 3/8″ drive ratchet or serpentine belt tool to relieve tension from the belt tensioner. This will allow you to easily remove the belt from its pulleys. Take note of the belt’s routing path, as it will be essential for installing the new one. A picture or diagram can help here.

Once the belt is free, carefully remove it. Check the pulleys for any signs of damage or wear. Spin each pulley by hand to ensure they move freely and quietly. Replace any pulleys or components that show wear before installing the new belt.

Now, install the new serpentine belt. Start by threading it over the pulleys according to the routing diagram. Ensure the belt is seated correctly in each groove, making sure it’s aligned with the pulleys.

Re-engage the tensioner by using your tool to push it back into place. This will allow the belt to tighten. Double-check the tension on the belt by pressing it in the middle of the longest span. It should move about half an inch when pressed with moderate force.

Reconnect the battery terminal and start the engine. Observe the belt’s movement for any signs of misalignment or unusual noises. If everything looks good, you’re done!

Common Issues with the Serpentine Belt System on the 2010 Ford Escape 2.5

The serpentine belt system on the 2010 Ford Escape 2.5 is prone to several issues that can affect its performance and longevity. Being aware of these problems can help prevent costly repairs and ensure smooth operation of your vehicle.

• Cracking and Wear: Over time, the serpentine belt can develop cracks due to prolonged exposure to heat and friction. These cracks weaken the belt, making it more likely to snap. Regular inspection is recommended to check for visible damage.
• Squeaking or Squealing Sounds: If the serpentine belt begins to make noise, it may be slipping or misaligned. This could be due to worn-out pulleys, incorrect tension, or a damaged belt. Tightening the belt or replacing the pulleys may resolve the issue.
• Pulley Issues: The pulleys that guide the serpentine belt can wear out or become misaligned, leading to an inefficient system. In some cases, the bearings within the pulleys may fail, which can cause additional noise or belt wear.
• Contamination: Oil, coolant, or other fluids can contaminate the serpentine belt, reducing its grip and causing it to slip. Keep an eye on leaks and ensure that the system remains clean to avoid premature wear.
• Incorrect Belt Tension: The tension of the serpentine belt is crucial for its proper functioning. If the belt is too loose, it can slip and cause reduced power transfer. If it’s too tight, it can put unnecessary strain on the pulleys and engine components. A belt tensioner failure is often the culprit.
• Excessive Mileage: After a certain mileage, the serpentine belt naturally starts to lose its efficiency. Depending on driving conditions and maintenance, it’s typically recommended to replace the belt every 60,000 to 100,000 miles.

Addressing these issues early can prevent larger engine problems and costly repairs down the line. Regular checks and maintenance are key to keeping the serpentine belt system running smoothly.
