2011 Toyota Corolla Belt Diagram and Component Layout

To ensure your 2011 Toyota Corolla operates smoothly, understanding the belt system layout is crucial. The serpentine belt plays a pivotal role in driving various engine components, such as the alternator, power steering pump, and air conditioning compressor. A clear understanding of its route and tensioning will help in troubleshooting and replacement tasks.

The serpentine belt in the 2011 Corolla runs along a series of pulleys, driven by the engine’s crankshaft. Check the diagram to identify the exact path it follows, ensuring all components are properly connected. Keep an eye on the tensioner and idler pulleys as well–these can wear out over time and cause belt misalignment or squealing sounds.

For belt replacement, the procedure requires releasing the tension on the serpentine belt using a ratchet and a belt tensioner tool. Once the tension is released, carefully remove the belt, making sure to note its routing before replacing it with a new one. Always inspect the pulleys for any signs of wear or damage to prevent future issues.

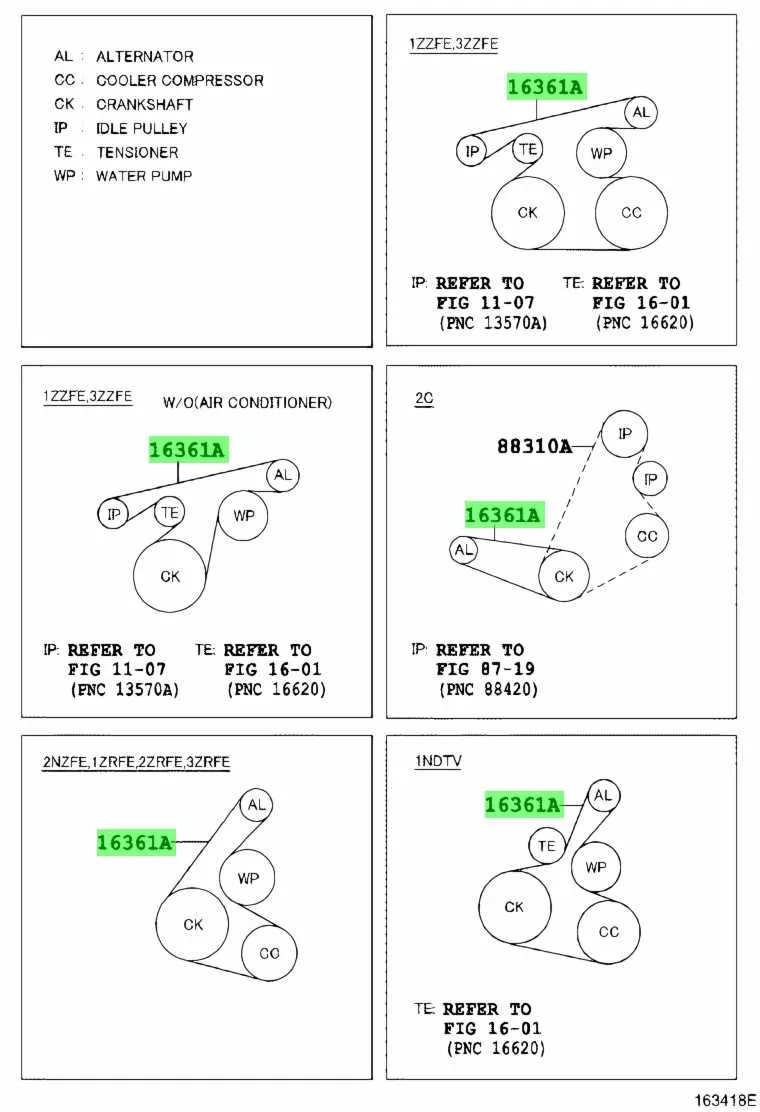

2011 Corolla Belt Diagram

The 2011 Toyota Corolla uses a serpentine belt to drive various components of the engine, such as the alternator, power steering pump, and air conditioning compressor. Refer to the specific belt routing diagram to ensure the belt is properly installed, especially when replacing or inspecting it. A misrouted belt can cause engine damage or failure of critical components.

Ensure the belt is correctly positioned on all pulleys, following the direction indicated in the diagram. Pay attention to the tensioner pulley, which should maintain the right amount of tension for optimal performance. If the belt has been removed or replaced, verify that it is installed following the exact pattern shown in the diagram to avoid improper tension and misalignment.

For proper belt inspection, look for signs of wear such as cracks, fraying, or glazing. If any of these signs are present, the belt should be replaced immediately to prevent further damage to the engine components. Also, check the pulleys for any damage or obstructions that could cause the belt to wear prematurely.

If the serpentine belt appears worn but functional, consider replacing it as part of routine maintenance to avoid potential breakdowns. Use only a belt that matches the specifications outlined in the vehicle’s manual or recommended by the manufacturer to ensure longevity and reliability.

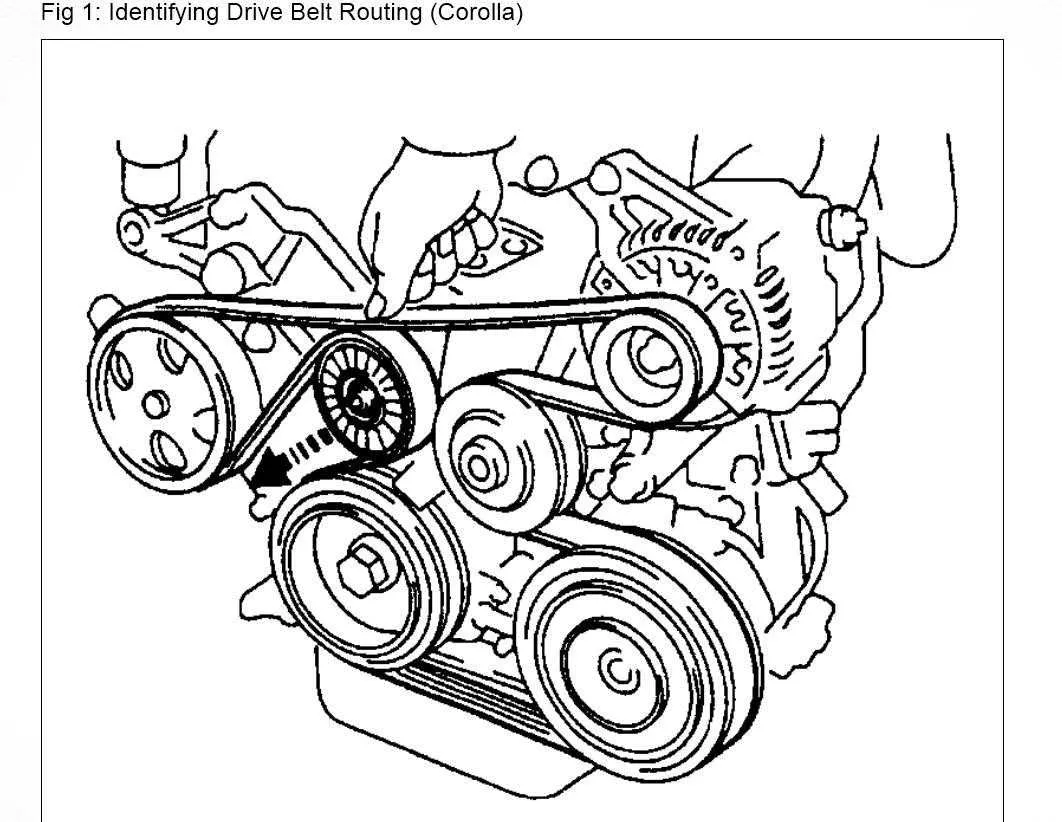

Identifying the Correct Belt Routing for the 2011 Corolla

Locate the tensioner pulley on the engine. It is typically positioned on the left side, near the alternator. Use a socket wrench to relieve tension and remove the serpentine belt. Make sure to observe the current routing of the belt before removal, as this provides a reference for correct installation.

The serpentine belt should be routed around the crankshaft pulley first, moving counterclockwise. From there, it loops over the water pump pulley, alternator pulley, and then to the power steering pulley. Pay close attention to the path around the idler pulley, ensuring it is aligned with the rest of the components. Ensure the belt stays tightly in place as you pass it over the pulleys.

Once the belt is installed, check for correct alignment and tension. The belt should sit evenly on all pulleys without slipping. If the belt feels loose or misaligned, adjust the tensioner pulley accordingly. Verify the belt routing once more to ensure no missteps in the path.

Consult the engine’s diagram for any model-specific adjustments. Some 2011 Corollas might have variations based on the engine type (1.8L, etc.), so verify the correct routing based on your vehicle’s specific configuration.

Steps to Replace the Serpentine Belt in a 2011 Corolla

First, ensure the engine is off and cool to prevent any injury. Disconnect the car battery to avoid accidental electrical issues.

Locate the serpentine belt tensioner, usually found near the alternator. Use a socket wrench to rotate the tensioner in the direction indicated by the manufacturer’s guidelines. This will relieve the tension on the belt.

Carefully remove the serpentine belt from the pulleys. Take note of the belt’s routing, as it is crucial to install the new one correctly. You can refer to the 2011 Corolla’s service manual for an exact diagram.

Inspect the new belt before installation for any damage. Begin placing the new serpentine belt over the pulleys, following the exact routing path from the diagram.

Once the belt is in place, rotate the tensioner again to create slack and allow the belt to slide into position. Make sure the belt is snug and properly seated on all pulleys.

Reconnect the car battery and start the engine to ensure the belt operates smoothly. Check for any unusual sounds or movement. If all looks good, the replacement is complete.

Common Belt Issues and How to Troubleshoot Them in a 2011 Corolla

One common issue with the serpentine belt in a 2011 Corolla is squeaking or squealing noises. This often indicates that the belt is either worn, loose, or misaligned. Inspect the belt for cracks, fraying, or glazing. If the belt appears damaged, replace it immediately. Check the tensioner and pulleys for wear as well, as these can cause the belt to slip and make noise.

Another issue is belt slippage, which can occur if the tension is insufficient. This typically results in a loss of power to components such as the alternator or power steering. To troubleshoot this, first check the tensioner to ensure it is functioning properly. If the tensioner is not applying enough pressure, replace it or adjust the tension accordingly.

Frequent belt snapping can be caused by a number of factors, including improper alignment, pulley damage, or excessive wear. Check the pulleys for smooth rotation and ensure they are aligned properly. Any misalignment can lead to premature wear and cause the belt to break. Additionally, inspect the belt for signs of glazing or excessive heat buildup, which can also contribute to snapping.

If the belt starts to lose its grip on the pulleys, you may experience intermittent power loss or a failure of certain accessories. This can be traced back to either a loose belt or a problem with the pulleys themselves. Ensure the belt is properly tightened and the pulleys are not worn or damaged.

In rare cases, a broken serpentine belt can be caused by a faulty water pump or a malfunctioning component in the system. If the belt has snapped and the pulleys are in good condition, check the condition of the water pump and other components to rule out further issues.
