Stx38 John Deere 38 Inch Mower Deck Belt Diagram and Maintenance Guide

The Stx38 John Deere mower deck belt is a crucial component for the smooth operation of your mower. If the belt has become loose, worn, or damaged, it’s important to replace it promptly. To help you get the job done correctly, refer to the following belt diagram for a clear guide to proper installation.

Start by ensuring you have the correct replacement belt for your mower model. The belt should be routed according to the diagram to maintain proper tension and functionality. Make sure all pulleys and other components are in good condition before replacing the belt to avoid further issues.

Follow the diagram closely: Begin by positioning the belt around the pulleys as shown, ensuring it’s aligned with each groove properly. Tighten any components that require it, and double-check that the belt is not twisted before securing everything back in place.

After installation, test the mower to ensure the deck functions smoothly and the belt is running correctly. If you encounter any resistance or unusual noises, check the tension again and ensure the belt has been properly routed.

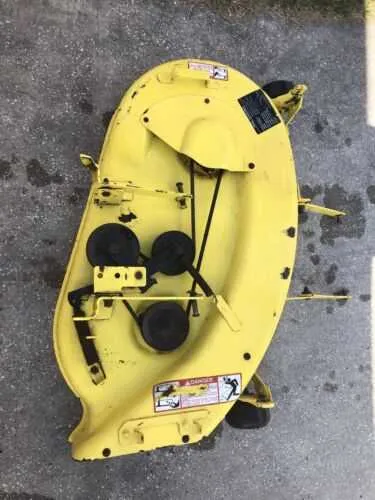

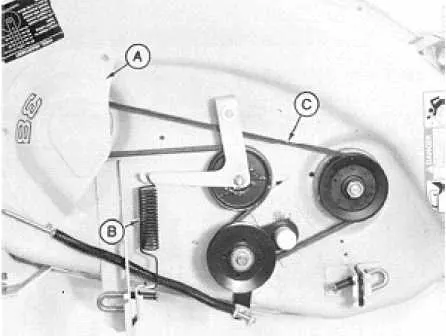

Stx38 John Deere 38 Inch Mower Deck Belt Diagram

The belt diagram for the Stx38 John Deere 38-inch mower deck is crucial for ensuring proper installation and smooth operation of your mower. The belt is responsible for transferring power from the engine to the blades, so its correct alignment is key to achieving optimal performance.

To begin, locate the drive belt in your mower’s engine compartment. The Stx38 uses a 38-inch deck belt that loops around the pulleys, ensuring the blades rotate properly. The belt should follow a specific path: it starts at the engine pulley, wraps around the idler pulleys, and connects to the deck pulleys, ultimately driving the mower blades.

Ensure that the belt is routed according to the diagram. Misalignment can cause the belt to slip or break, leading to power loss or damage. Pay close attention to the orientation of the idler pulleys, as they help maintain proper tension on the belt, preventing it from slipping off or wearing prematurely.

If the belt is loose or damaged, replace it with the correct part number as specified in the owner’s manual. A worn-out belt can affect performance and may result in overheating or reduced cutting efficiency. Additionally, regularly inspect the belt for signs of wear such as cracks or fraying and replace it immediately if necessary.

For accurate maintenance, use the diagram as a reference during replacement. Follow the steps carefully, and remember to adjust the belt tension correctly after installation. Incorrect tension can result in poor cutting performance or damage to the mower deck components.

Understanding the Belt Routing for Stx38 Mower Deck

The belt routing on the Stx38 mower deck is a critical component for ensuring smooth operation. Proper routing ensures the belt drives the blades efficiently, preventing unnecessary wear. Start by checking the belt’s position relative to the pulleys to confirm if it’s properly aligned.

The belt should pass over the engine pulley, loop around the tensioner pulley, and route around the blade spindles. Ensure the belt is placed in the grooves of the pulleys correctly. A misaligned belt can slip off, causing damage to the components.

Next, inspect the tensioner pulley for proper adjustment. It should be able to apply adequate tension to the belt, but without over-tightening. Over-tightening can lead to premature wear and strain on the mower’s components.

If you’re replacing the belt, carefully follow the diagram provided in the operator’s manual. It gives a visual guide to how the belt should run through each pulley. Take extra care around the idler pulleys and blade spindles, as these are common areas for improper routing.

Finally, after the belt is in place, check the movement by hand. Rotate the pulleys manually to verify the belt’s alignment. Any signs of friction or misalignment may indicate an issue that needs attention.

How to Replace the Mower Deck Belt on Stx38 John Deere

Start by raising the mower deck to its highest position. Use a jack or lift to ensure the deck is stable and secure. Once elevated, disconnect the spark plug wire to prevent accidental starts.

Next, remove the deck from the mower by unscrewing the bolts holding it in place. Keep track of all fasteners, as you’ll need them for reinstallation. With the deck removed, you can now focus on the belt system.

Identify the belt routing diagram on the deck or refer to the Stx38 manual for guidance. Carefully remove the old belt from the pulleys. Pay attention to the belt’s path to ensure you route the new one in the same manner.

Place the new belt around the pulleys, starting from the engine pulley and working your way to the deck pulleys. Make sure the belt is properly tensioned but not too tight. Improper tension can cause premature wear or slipping.

Once the belt is in place, reassemble the deck and secure it back onto the mower. Tighten all bolts and check the alignment of the belt. Reconnect the spark plug wire.

Finally, test the mower by starting it and running the deck at full speed. Check for any unusual noise or vibration, which could indicate improper belt installation. If everything runs smoothly, the replacement is complete.

Troubleshooting Common Belt Issues on Stx38 Mower Deck

If the mower deck belt on your Stx38 is slipping or showing signs of wear, it’s time to inspect it. Check for any visible damage, cracks, or fraying, as these can be a sign of excessive wear. A worn-out belt can affect the performance of the mower and cause the blades to stop functioning properly.

• Belt Slipping: If the belt slips during operation, it might be too loose. Check the tension and adjust the idler pulley to restore proper tightness. A loose belt can also indicate that the belt has stretched over time and needs replacement.
• Excessive Wear or Cracking: Inspect the belt for any signs of cracks or fraying. If you find these, replace the belt immediately. A damaged belt can snap and cause further damage to the mower deck or other components.
• Misalignment: Misalignment of the belt can result in inefficient operation. Check the routing of the belt and make sure it’s properly aligned with all pulleys. Refer to the Stx38 mower deck belt diagram for correct routing instructions.
• Debris in the Belt Path: Debris such as grass, dirt, or rocks can obstruct the belt’s movement. Regularly clean the belt area to ensure smooth operation and prevent unnecessary wear.
• Pulley Wear: Worn or damaged pulleys can cause the belt to slip or get misaligned. Inspect the pulleys for signs of wear or damage and replace them if needed to prevent belt issues.

By addressing these common issues, you can ensure your Stx38 mower operates smoothly and efficiently. Regular maintenance, such as cleaning and inspecting the belt and pulleys, will extend the life of the components and prevent costly repairs down the line.
