2011 Acura MDX Serpentine Belt Diagram and Maintenance Tips
To properly maintain your 2011 Acura MDX, understanding the belt configuration is crucial. A quick look at the belt diagram will give you the necessary details to check, replace, or repair the belts efficiently. The key belts in your vehicle are the serpentine belt, timing belt, and accessory belts, all of which play a vital role in keeping your engine and components running smoothly.
Refer to the diagram to ensure that the belts are routed correctly, as improper installation can lead to overheating, premature wear, and engine damage. The serpentine belt should be inspected regularly for signs of wear like cracking or fraying. If it’s time for a replacement, make sure to use the exact specifications for your 2011 Acura MDX, including the correct length and tension to avoid complications.
Double-check the belt routing with the diagram, especially if you’re replacing the belts yourself. Pay attention to the path and make sure it aligns with the pulleys and components. This will prevent any unnecessary damage to your vehicle and improve its performance.
2011 Acura MDX Belt Diagram

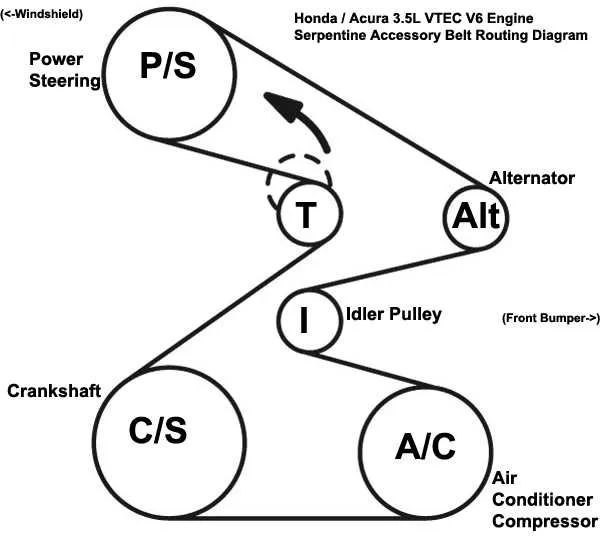

The 2011 Acura MDX uses a serpentine belt system that powers multiple engine components, including the alternator, power steering pump, water pump, and air conditioning compressor. To ensure proper belt alignment and function, refer to the belt routing diagram specific to the 2011 model. Make sure the belt is routed correctly to prevent slippage or damage to components.
Inspect the belt for wear, cracks, or damage at regular intervals. If the belt is worn or shows signs of damage, replace it to avoid engine problems. A misaligned or damaged belt can lead to overheating, battery drainage, or loss of power steering, among other issues.
For the 2011 MDX, the diagram typically shows a smooth side of the belt facing the pulleys, and the ribbed side facing the engine accessories. The alternator pulley is a key component in maintaining tension, and should be aligned as shown in the diagram to avoid misplacement.
Refer to the service manual for the specific routing path and pulley configurations if you plan on replacing or inspecting the belt yourself. If you’re unsure, it’s always advisable to seek professional assistance.
Understanding the Belt Routing for the 2011 Acura MDX

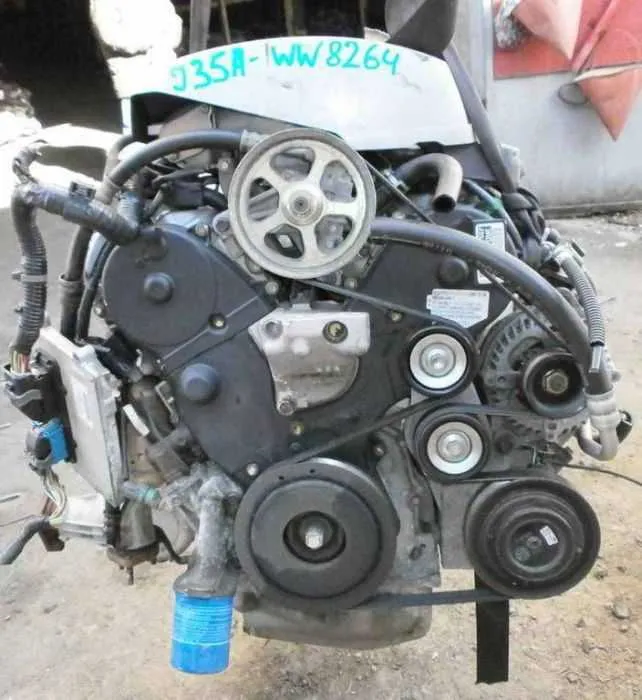

To properly maintain the 2011 Acura MDX, knowing the belt routing is crucial for avoiding common issues such as belt slippage or premature wear. The serpentine belt in this vehicle drives several components including the alternator, power steering pump, and air conditioning compressor. Make sure to inspect the belt periodically for cracks or fraying.

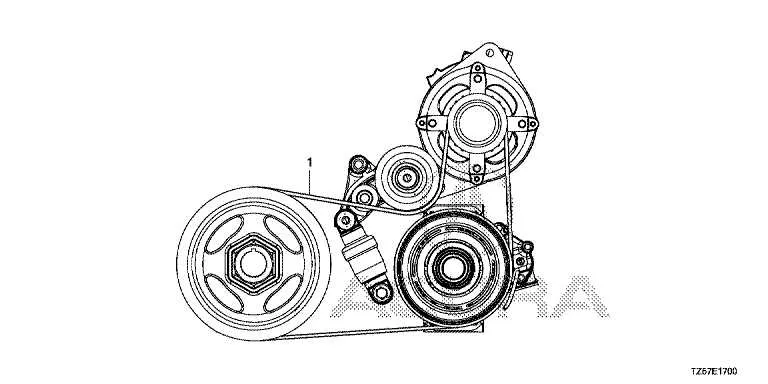

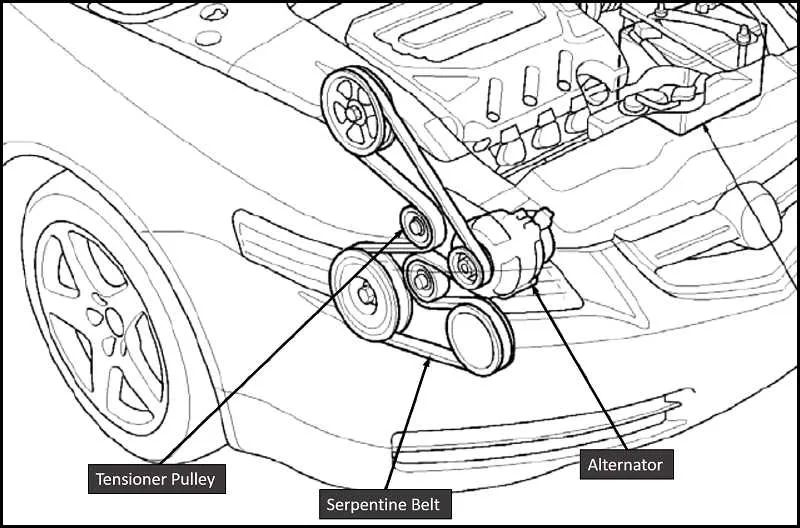

Begin by ensuring the belt is routed correctly around the crankshaft pulley, which is the starting point of the system. From there, it moves to the tensioner, and from the tensioner, it loops around the water pump pulley. It should also pass over the alternator pulley and power steering pump before returning to the crankshaft pulley. The AC compressor is driven by a separate smaller belt that should also be checked for tension.
Double-check the tensioner to make sure it’s applying the right amount of pressure. If the belt is too loose or too tight, it can lead to premature wear or slipping. For proper alignment, inspect each pulley and the condition of the belt. If the belt is cracked or damaged, it should be replaced immediately to avoid further engine damage.
Consult your vehicle’s manual for specific torque specifications and recommended tensioner settings. If in doubt, a professional mechanic should perform the installation or inspection to ensure everything is working as it should.
How to Identify a Worn or Damaged Belt in the 2011 Acura MDX
If you notice unusual noises like squealing or grinding from the engine, the serpentine belt might be worn or damaged. Inspect it visually for cracks, fraying, or wear spots. Check the tension by pressing down on the belt; it should have some resistance. A loose or slack belt indicates it needs adjustment or replacement.
Next, check for glazing–a shiny, smooth surface on the belt. This is a sign of excessive heat and friction. If the belt feels smooth or hard in certain areas, it’s a sign of wear. Pay attention to any slipping or misalignment as well, which can cause further damage to the pulleys and engine components.
If the belt appears to be cracked or torn in sections, replace it immediately. A worn belt can lead to power steering failure, overheating, or alternator malfunctions. Regular checks and prompt replacements help avoid costly repairs down the road.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2011 Acura MDX
To replace the serpentine belt on your 2011 Acura MDX, follow these steps carefully to avoid any issues:
- Prepare the Tools and Parts: Gather a 15mm socket, a ratchet wrench, a breaker bar, a serpentine belt tool (or a long-handled wrench), and a new serpentine belt for the 2011 Acura MDX.
- Locate the Belt Tensioner: The serpentine belt tensioner is located on the front side of the engine, slightly to the right of the alternator. You’ll need to relieve the tension to remove the belt.
- Loosen the Tensioner: Use the serpentine belt tool or a long-handled wrench to turn the tensioner pulley counterclockwise. This will relieve the tension on the belt, allowing you to slide it off the pulleys.
- Remove the Old Belt: With the tension released, carefully remove the old serpentine belt from the pulleys. Pay attention to the routing, as it will help you install the new belt correctly.
- Inspect Pulleys: Check all the pulleys for wear or damage, including the tensioner, idler, and other components the belt touches. Replace any damaged pulleys before installing the new belt.
- Install the New Belt: Begin installing the new serpentine belt by following the same routing as the old one. Refer to the belt diagram under the hood if needed. Make sure the belt is seated properly in each groove on the pulleys.
- Reapply Tension: Use the serpentine belt tool to turn the tensioner pulley counterclockwise again, allowing the belt to tighten. Ensure the belt is snug but not overly tight.
- Check Alignment: Double-check that the belt is properly aligned and running in all the grooves of the pulleys. If the belt is misaligned, adjust it accordingly.
- Test the Belt: Start the engine and observe the belt while the engine is running. Make sure it runs smoothly and there are no strange noises. If everything sounds and looks good, you’re finished.
That’s it! You’ve successfully replaced the serpentine belt on your 2011 Acura MDX. Regular maintenance will help ensure your vehicle runs smoothly for years to come.
