Ariens Zero Turn Belt Diagram and Maintenance Guide
To maintain the performance of your Ariens zero turn mower, understanding the belt diagram is key. The diagram provides a clear visual of how belts are routed and connected within the mower, ensuring smooth operation and reducing wear on parts.
Start with the drive belt: This belt powers the mower’s wheels. Inspect it regularly for cracks, wear, or slippage, and replace it if needed. Follow the diagram for correct routing to avoid misalignment.
Next, check the deck belt: This belt connects the engine to the mower deck, enabling the blades to turn. A misaligned or damaged deck belt can lead to inefficient cutting or even engine strain. Ensure it’s routed as shown in the diagram for optimal performance.
The diagram also illustrates the idler pulleys that keep the belts under proper tension. These pulleys ensure that belts do not slip or become too tight, both of which can cause damage to the system. Always verify their alignment according to the diagram.

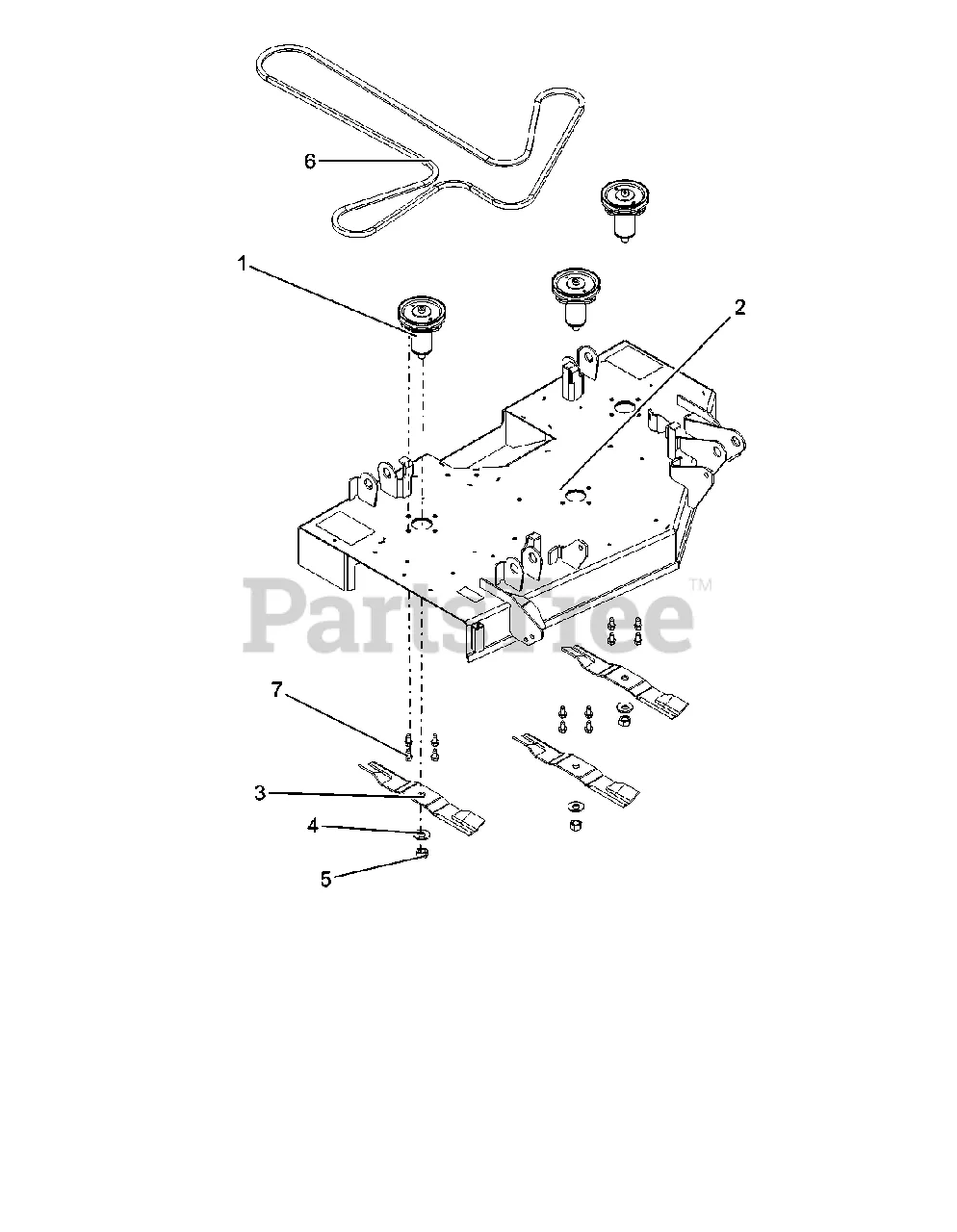

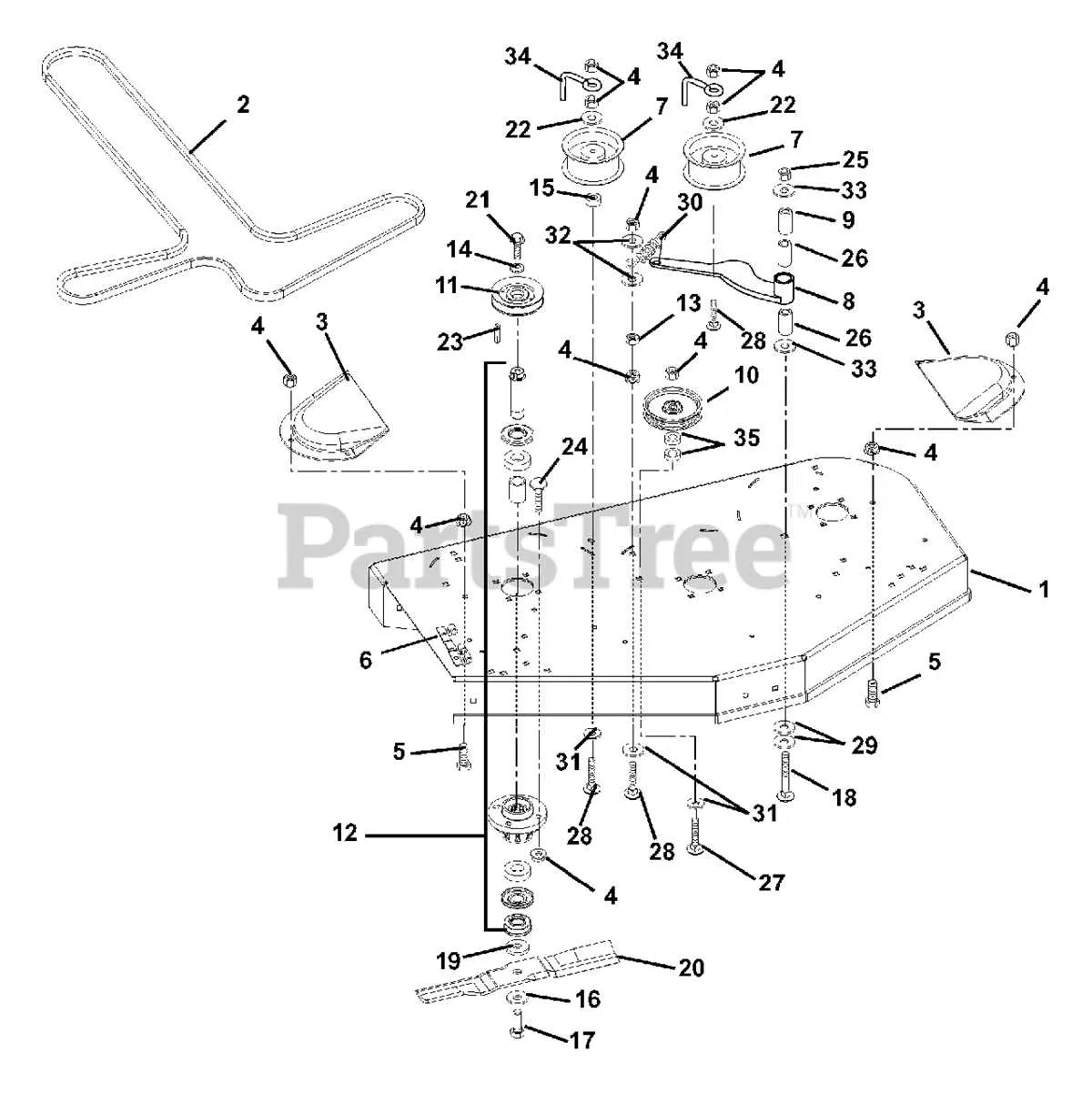

Ariens Zero Turn Belt Diagram
The Ariens zero-turn mower uses a complex belt system to power various components. To maintain its performance, understanding the belt layout and how to replace or adjust it is critical. Refer to the diagram to identify the exact routing of the belts and ensure all components are properly connected.
Follow this step-by-step guide to understand the belt diagram and the maintenance process:
| Component | Belt Part | Routing Direction |
|---|---|---|
| Engine Pulley | Drive Belt | Clockwise from the engine |
| Transmission Pulley | Drive Belt | Counterclockwise towards the transmission |
| Deck Pulley | Deck Belt | Clockwise from the deck |
| Idler Pulley | Drive Belt | Across the idler pulleys |
| Deck Idler Pulley | Deck Belt | Across the deck idler pulleys |
Regular checks on these belts will help ensure smooth operation. Look for wear and tear, especially around high-friction areas such as the idler pulleys and the engine pulleys. If the belt becomes loose or damaged, replace it according to the manufacturer’s guidelines for optimal performance.
For reference, always consult the Ariens owner’s manual for specific details regarding your model’s belt diagram. Regular maintenance will extend the life of your mower and prevent breakdowns.
How to Identify the Correct Belt for Your Ariens Zero Turn Mower
To identify the correct belt for your Ariens zero turn mower, follow these steps:
- Check the model number: Locate the mower’s model number, usually found on the frame or the deck. This number will help you find the right part for your specific model.
- Refer to the owner’s manual: The manual includes the exact belt specifications, including part numbers, sizes, and routing diagrams.
- Measure the old belt: If the old belt is still in place, measure its length, width, and thickness. Use a tape measure or caliper to ensure accurate measurements.
- Examine belt routing: Take note of how the belt is routed through pulleys and idlers. Make sure the new belt follows the same path to ensure proper function.
- Consult a dealer or retailer: Visit an authorized Ariens dealer or online retailer. Provide them with your mower’s model number to receive the correct belt recommendation.
Replacing the belt with the wrong size or type can cause malfunction. Always double-check the specifications to ensure optimal performance.
Step-by-Step Process for Replacing the Belt on Ariens Zero Turn Mowers
To replace the belt on an Ariens Zero Turn mower, follow these steps carefully.
1. Lift the Mower – Use a jack to lift the mower safely off the ground, ensuring it’s stable before proceeding.
2. Disconnect the Battery – Disconnect the negative terminal of the battery to avoid accidental electric shocks or engagement during the repair.
3. Remove the Deck – Loosen the bolts and pins holding the mower deck in place. Slide the deck out from under the mower to expose the belt system.
4. Inspect the Belt Routing – Note the current belt routing, as this will help you install the new belt correctly. You can refer to the mower’s manual or diagram for guidance.
5. Release the Tension Pulley – Using a wrench, release the tension on the belt by loosening the pulley bolt. This will allow the belt to be removed more easily.
6. Remove the Old Belt – Slide the old belt off the pulleys carefully. If the belt is stuck, gently move the pulleys or other parts to release it.
7. Install the New Belt – Place the new belt over the pulleys following the routing diagram. Make sure the belt is securely seated on each pulley.
8. Adjust the Tension – Reattach the tension pulley and ensure that the belt is tight enough, but not overly tight. The belt should have some slack, but not too much.
9. Reinstall the Deck – Once the belt is in place, slide the mower deck back under the mower and reattach it using the pins and bolts.
10. Reconnect the Battery – Reconnect the negative terminal of the battery, ensuring it’s securely fastened.
11. Test the Mower – Start the mower and check the belt’s performance. Ensure it moves freely without slipping or making unusual noises.
Common Issues with Ariens Zero Turn Belts and How to Solve Them
If your Ariens zero-turn mower isn’t performing as expected, the belt could be the culprit. Here are some common problems and their solutions:
1. Slipping or Loose Belt
A loose belt can cause poor performance or even stop the mower from moving. This often happens due to worn-out pulleys or incorrect tension. Check the belt tension and tighten it if necessary. If the belt has stretched, replacing it with a new one is recommended.
2. Belt Breakage
If the belt has snapped, inspect the mower for any sharp edges or debris that could have caused damage. Ensure that the belt is properly aligned with the pulleys to prevent future breakage. Replace the broken belt with the correct part number to avoid any further issues.
3. Excessive Wear or Fraying
Over time, the belt may start to fray due to excessive heat, dirt, or debris. Inspect the belt for any visible signs of wear. Clean the pulleys and surrounding areas regularly to prevent debris buildup. If the belt is heavily worn, replacing it will restore optimal functionality.
4. Misaligned Pulleys
If the pulleys are misaligned, it can cause the belt to wear unevenly or slip. Check the pulleys for proper alignment. Adjust or replace any pulleys that appear to be damaged or out of position. This will help prolong the life of the belt and ensure smooth operation.
5. Incorrect Belt Installation
Improper installation of the belt can cause it to slip or fail prematurely. Double-check the belt routing and ensure it’s installed according to the mower’s diagram. Following the manufacturer’s instructions is critical for proper function and safety.
