2010 Acura TSX Serpentine Belt Diagram and Routing Information

Understanding the serpentine belt system on your 2010 Acura TSX is crucial for maintaining proper engine performance. This system drives key components such as the alternator, power steering pump, and air conditioning compressor. The diagram provides a clear representation of how the belt routes through these components, ensuring that each part functions as intended.

The serpentine belt diagram for the 2010 Acura TSX is designed to help you identify the correct path and alignment of the belt. This prevents issues such as slipping or wearing, which can lead to poor engine performance or costly repairs. Make sure to replace the belt at the recommended interval to avoid any unexpected breakdowns.

Replacing the serpentine belt involves following the exact routing as shown in the diagram. Any deviation from this path can result in significant damage to the engine components. If you’re unfamiliar with the process, consult the owner’s manual or a professional mechanic to ensure the job is done correctly.

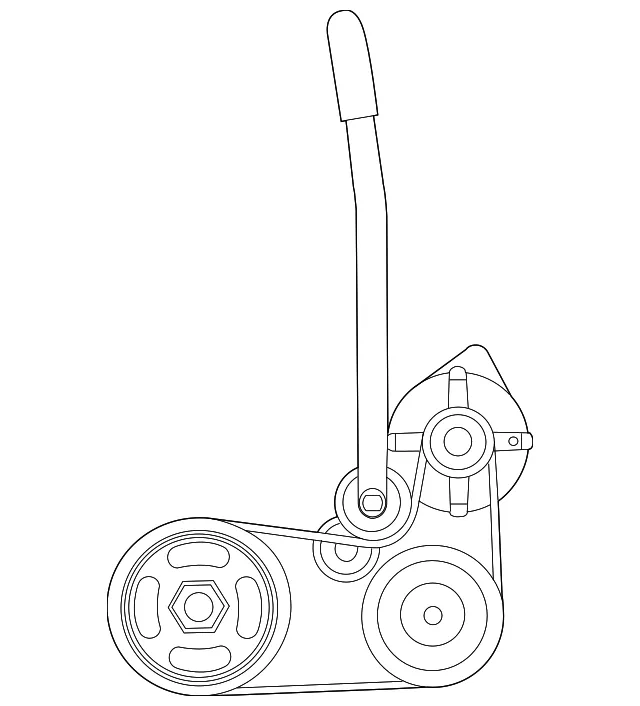

2010 Acura TSX Belt Diagram

The 2010 Acura TSX uses a serpentine belt that drives multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. To ensure proper operation and avoid damage, refer to the belt routing diagram. The diagram details the correct path and installation sequence for the serpentine belt, which is essential for maintaining engine performance.

Here’s the belt routing for the 2010 Acura TSX:

• The belt starts at the crankshaft pulley.
• It loops around the power steering pump pulley and the air conditioning compressor pulley.
• The belt then moves over the alternator pulley and the water pump pulley.
• Finally, it returns to the crankshaft pulley, completing the loop.

Before replacing the belt, inspect all related pulleys for wear or misalignment. Replace any damaged components immediately to prevent further issues. When installing the new belt, ensure it is properly tensioned according to manufacturer specifications. Incorrect tension can lead to belt slippage or premature wear.

To make sure the belt is correctly installed, align the grooves on the belt with the pulleys and ensure it sits flush against the pulleys. A visual inspection of the routing diagram will help avoid any mistakes during installation. Double-check the belt’s tension after installation to ensure it is properly adjusted.

How to Identify the Serpentine Belt Routing on 2010 Acura TSX

First, locate the serpentine belt routing diagram, usually found on the radiator support or near the front of the engine. This diagram shows the path the belt follows through the pulleys and components.

Next, visually inspect the engine to identify each pulley. The serpentine belt passes over several pulleys, including the crankshaft, alternator, power steering pump, and air conditioning compressor. Ensure the belt runs over the tensioner pulley, which keeps proper tension on the belt.

Once the routing is clear, compare it with the diagram. If there are discrepancies, such as a missing pulley or an incorrect path, the belt may not function properly, leading to engine performance issues.

Finally, make sure the belt is positioned correctly on each pulley. If it is off-track, adjust it according to the routing diagram. This ensures the serpentine belt operates smoothly, driving various engine components effectively.

Common Issues with the Serpentine Belt in 2010 Acura TSX and How to Fix Them

If the serpentine belt in your 2010 Acura TSX is squealing or showing signs of wear, it’s time to inspect it for common problems. A damaged or worn belt can cause the engine to overheat, lead to power steering failure, or cause the alternator to stop charging. Below are the most frequent issues and how to resolve them.

1. Belt Wear and Cracking

Over time, the serpentine belt can become brittle and crack due to heat, friction, or age. Inspect the belt for visible cracks, fraying, or missing chunks. Replace the belt if these issues are present. Use a high-quality replacement belt specifically designed for the 2010 Acura TSX to ensure proper fit and function.

2. Belt Slippage

Belt slippage occurs when the belt fails to maintain proper tension, leading to ineffective operation of engine components like the alternator and air conditioning. This issue can cause overheating or reduced performance. If the belt is slipping, check the tensioner for wear or damage. Replace the tensioner or belt as needed to restore optimal performance.

3. Misalignment

If the serpentine belt appears misaligned, it can cause uneven wear and increase the risk of snapping. Misalignment can be caused by a damaged pulley, tensioner, or idler. Inspect these components for wear or damage. If any parts are worn, replace them before installing a new belt to prevent future issues.

4. Worn-out Tensioner Pulley

The tensioner pulley keeps the serpentine belt under the correct tension. If it becomes worn, the belt may not function properly. Check for any noise or wobble coming from the pulley. If there is any, replace the tensioner pulley to ensure proper belt tension and prevent further damage.

5. Improper Installation

Incorrect installation of the serpentine belt can cause it to come off the pulleys or wear unevenly. Ensure that the belt is routed according to the manufacturer’s diagram. Use the correct tools to install the belt, making sure it is seated properly on all pulleys and tensioned correctly.

Regular inspection and maintenance of the serpentine belt in your 2010 Acura TSX can help avoid breakdowns and costly repairs. If you notice any of these issues, address them promptly to keep your vehicle running smoothly.

Step-by-Step Guide to Replace the Serpentine Belt on 2010 Acura TSX

To replace the serpentine belt on your 2010 Acura TSX, follow these steps carefully.

1. Prepare Your Tools

Gather the necessary tools: a socket wrench, ratchet, extension, serpentine belt tool, and a new serpentine belt. Ensure the replacement belt matches the original part number from the owner’s manual or parts store.

2. Locate the Serpentine Belt

Open the hood and locate the serpentine belt at the front of the engine. It wraps around various pulleys including the alternator, power steering pump, and air conditioning compressor.

3. Release the Tension

Find the tensioner pulley. Use a serpentine belt tool or socket wrench to rotate the tensioner counterclockwise, which will loosen the belt. Carefully remove the belt from the pulleys.

4. Compare the Old and New Belts

Before installing the new belt, compare it with the old one to ensure it’s the correct size. Pay attention to the grooves and overall length.

5. Install the New Serpentine Belt

Route the new serpentine belt around the pulleys, following the path shown in the diagram from the owner’s manual. Ensure the belt is positioned correctly on each pulley without slipping off.

6. Apply Tension to the Belt

Use the tensioner tool again to rotate the tensioner pulley and slip the belt into place. Release the tensioner slowly to apply tension to the belt. Make sure the belt is tight but not excessively so.

7. Check the Installation

Double-check that the belt is properly aligned on all pulleys and there is no slack. Rotate the engine manually with a wrench to ensure the belt runs smoothly and correctly.

8. Close the Hood

After confirming the belt is correctly installed, close the hood and start the engine. Listen for any unusual noises, indicating improper installation. If everything sounds normal, the job is complete.
