Serpentine Belt Diagram for 5.7 Hemi Engine with Detailed Routing Instructions

Understanding the serpentine belt layout for a 5.7 Hemi engine is straightforward once you know how each component is connected. The serpentine belt plays a key role in powering various accessories like the alternator, power steering pump, air conditioning compressor, and water pump. A correct diagram helps ensure proper installation and maintenance, preventing costly repairs down the line.

The serpentine belt diagram for the 5.7 Hemi engine typically includes a single belt routing around a series of pulleys. Pay close attention to the tensioner pulley, which keeps the belt at the correct tension. The belt must be routed around all pulleys in the proper sequence to maintain engine efficiency and to avoid slipping or premature wear.

When replacing or inspecting the serpentine belt, make sure it runs smoothly across all pulleys without any misalignments. Look for signs of wear, cracks, or fraying on the belt. If you notice any damage, it’s important to replace the belt before it breaks, as this could lead to engine damage or the failure of essential components.

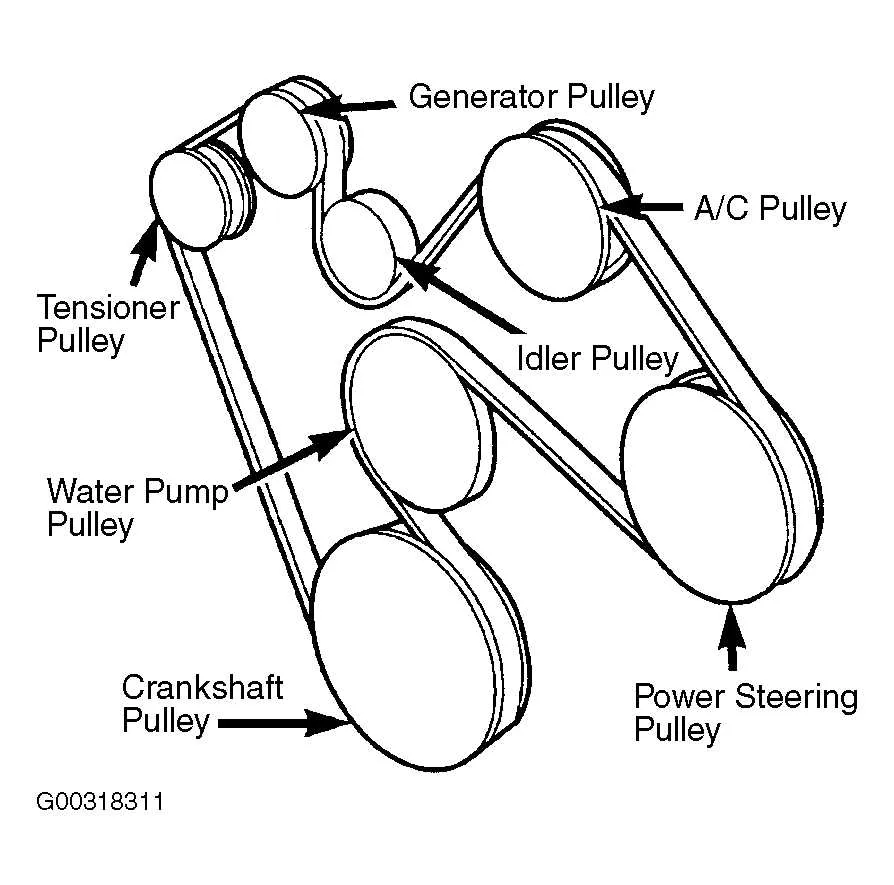

Serpentine Belt Diagram 5.7 Hemi

When replacing or inspecting the serpentine belt on a 5.7 Hemi engine, it’s crucial to follow the correct routing path. The diagram ensures the belt moves smoothly across all components, such as the alternator, power steering pump, and AC compressor, without slipping or causing damage.

Start by locating the tensioner pulley, which will allow you to loosen the belt and remove it. From there, refer to the diagram for the exact routing order. The belt should pass over the crankshaft pulley first, followed by the water pump, and loop over the alternator and power steering pump. Ensure the belt is properly seated in each pulley groove to avoid slippage.

If you’re replacing the serpentine belt, check the condition of the pulleys as well. A worn pulley can lead to premature belt wear and cause alignment issues. It’s a good idea to inspect the idler pulley and tensioner before installing the new belt. Always use the recommended belt size for your specific model to maintain proper engine performance.

Double-check the routing once the new belt is installed. A misrouted belt could cause engine components to malfunction. Take a final look at the tensioner to ensure it’s maintaining the correct amount of tension on the belt.

How to Read a Serpentine Belt Diagram for a 5.7 Hemi Engine

Start by identifying the main components in the serpentine belt system. On a 5.7 Hemi engine, this typically includes the alternator, power steering pump, water pump, tensioner, idler pulley, and the A/C compressor. The diagram will show the path the belt follows around each of these components.

The diagram uses arrows to indicate the direction of the belt’s movement. Each pulley is labeled with its specific function. Pay attention to the placement of the tensioner pulley, as it controls the belt’s tightness. The direction of the arrows will help you understand how the belt should loop around each part.

If the diagram includes a “reversed” or “backward” diagram, it means the belt needs to be flipped for installation. This often happens when the engine configuration requires a different belt path for the serpentine system to run efficiently.

• Locate the main drive pulley (usually at the crankshaft). It serves as the starting point for the belt routing.
• Follow the belt’s path from the crankshaft pulley through each component. Make sure you understand where the belt loops and where it should be tight or slack.
• The diagram may also show belt tensioner marks. Check for alignment with the pulley to ensure the belt is correctly tensioned.

Double-check the routing before starting the engine. A misrouted belt can cause engine damage or performance issues. After ensuring the belt is correctly routed, verify the tensioner moves smoothly, and the belt remains tight across all pulleys.

Common Issues with Serpentine Belts on 5.7 Hemi and How to Fix Them

Slipping Serpentine Belt is a frequent issue. If the belt is slipping, it often causes squealing noises or poor performance from accessories like the alternator or power steering. Check the belt tension. If it’s too loose, adjust or replace the tensioner. If the belt is worn, replace it. Make sure the pulleys are aligned correctly.

Cracks and Wear appear over time due to heat and friction. If you notice visible cracks or fraying, it’s a sign that the belt has worn down. Inspect the belt regularly, especially at the 60,000 to 100,000-mile mark. Replace it at the first sign of damage to avoid unexpected failure.

Misalignment of the serpentine belt often leads to uneven wear. Check the pulleys and tensioner for damage or misalignment. Sometimes, the serpentine belt could be misaligned due to a failed pulley or an issue with the water pump or alternator. Replacing the faulty part will fix the alignment.

Loose or Worn Tensioner can cause the serpentine belt to slip. The tensioner applies the right amount of tension to the belt, so if it’s worn out, the belt won’t maintain proper tension. Test the tensioner for stiffness or wear and replace it if necessary.

Contaminants like oil, coolant, or dirt can damage the serpentine belt. If the belt gets contaminated, it can lose its grip on the pulleys and fail. Clean or replace the contaminated belt, and check for any leaks from surrounding components that could be dripping onto the belt.

Noise such as squealing or chirping is common with a worn belt or faulty pulley. Inspect the belt for wear and the pulleys for damage. If the tension is correct and the belt is in good condition, but the noise persists, it may be time to replace the pulleys or the tensioner.

Premature Belt Failure often occurs if the belt isn’t replaced in a timely manner. Regularly inspect the belt for signs of wear. If it’s been in service for several years, it may be time for a new one, even if it appears to be fine. Replacing it on schedule prevents sudden breakdowns.

Step-by-Step Guide to Replacing the Serpentine Belt on a 5.7 Hemi

Begin by disconnecting the negative battery terminal to avoid any electrical accidents. Use a 15mm wrench or socket to loosen the bolt on the battery terminal. Secure the cable to the side, making sure it doesn’t touch any metal surfaces.

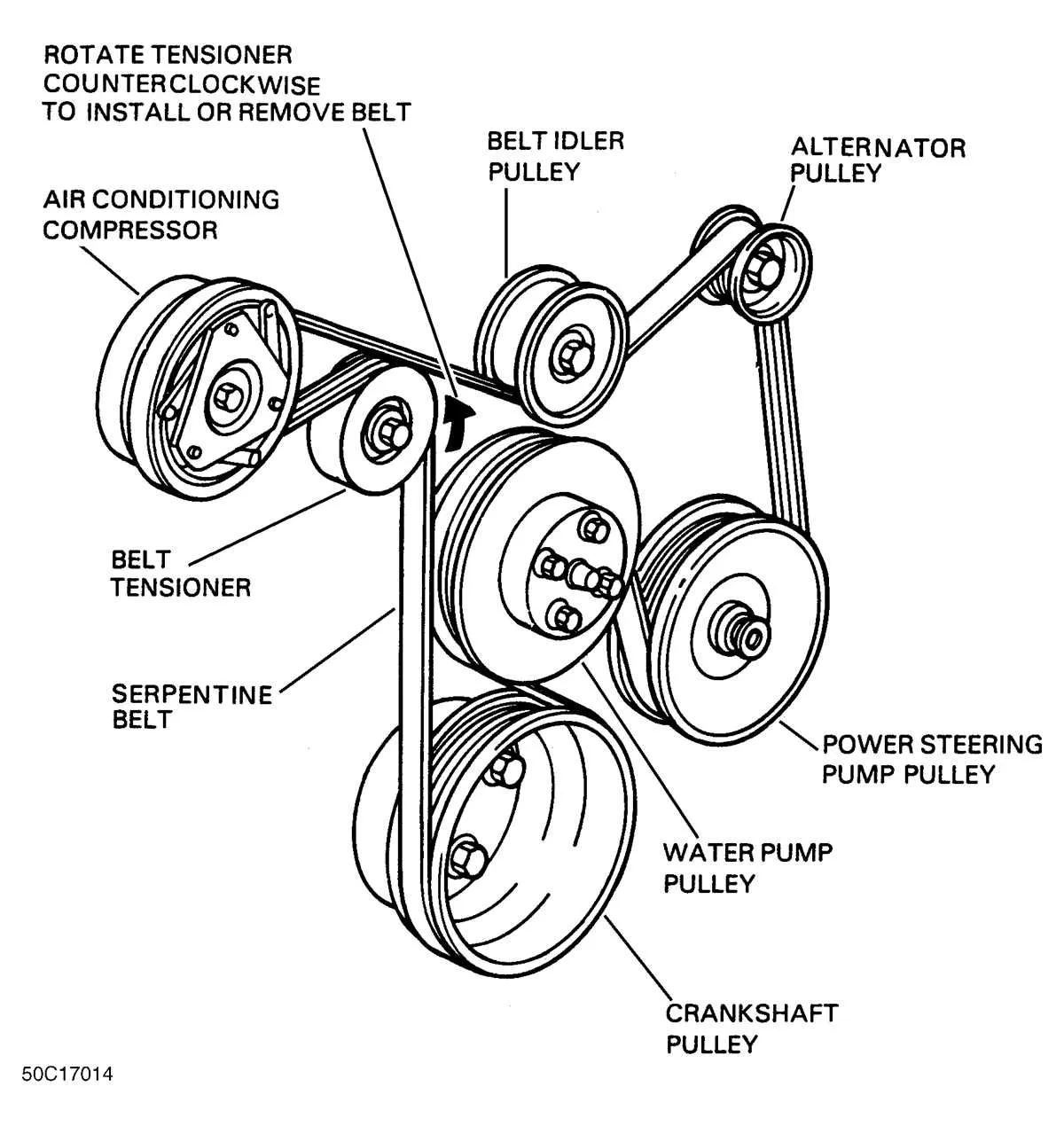

Locate the serpentine belt tensioner. Use a 3/8-inch drive ratchet or breaker bar to relieve tension on the belt. Insert the tool into the tensioner’s bolt and rotate it counterclockwise. This will loosen the belt and allow you to remove it from the pulleys. Keep the tensioner in place after removing the belt.

Inspect the belt routing diagram under the hood to ensure the new belt is installed correctly. Make sure to follow the exact path that the old belt followed. If the diagram is missing, consult the vehicle’s manual for details.

Place the new serpentine belt on the pulleys, starting with the crankshaft pulley and working your way around the system. Pay attention to the ribbed side of the belt, as it should align with the grooves on the pulleys. If the belt is difficult to fit, use the tensioner to give extra slack as needed.

Once the new belt is installed, use the ratchet to rotate the tensioner again. This will allow the tensioner to apply the correct amount of pressure to the new belt. Make sure the belt sits evenly in the grooves of all pulleys and isn’t twisted.

Recheck the routing and the tension of the new belt. Once satisfied, reconnect the negative battery terminal and check for any unusual noises or issues when starting the engine. If everything runs smoothly, the installation is complete.
