2008 Mercedes E350 Serpentine Belt Diagram and Routing Information
The 2008 Mercedes E350 uses a serpentine belt system to drive multiple engine accessories like the alternator, power steering pump, and air conditioning compressor. To ensure proper functioning of these components, the belt must be routed correctly. If you’re looking for a clear, easy-to-follow belt diagram, this is where you’ll find it.
The serpentine belt routing diagram for the 2008 E350 is typically located on the engine compartment’s radiator support or on the fan shroud. However, it’s crucial to verify the routing if you’re replacing or re-installing the belt. The proper belt routing ensures smooth operation of your engine’s auxiliary components without causing undue stress on the system.
If the belt is worn or damaged, it can cause performance issues such as battery charging problems or difficulty with power steering. A quick inspection of the belt for wear and proper tension can save you from unnecessary repairs. When replacing the belt, double-check the diagram to avoid installation mistakes. This guide will walk you through the necessary steps for a successful belt replacement.
Refer to the following diagram for the correct belt routing and maintenance tips for your 2008 Mercedes E350. Keeping the system in top condition will improve engine performance and longevity.

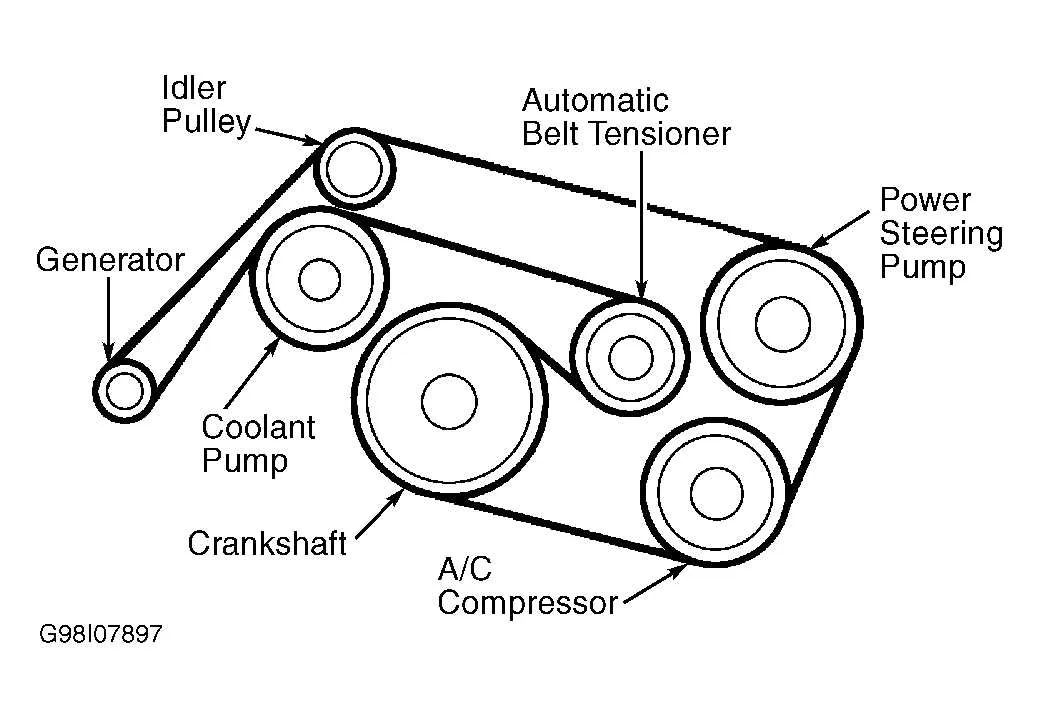

2008 Mercedes E350 Belt Diagram
For accurate belt routing on the 2008 Mercedes E350, it’s critical to follow the correct diagram. This model uses a serpentine belt system that drives several components, including the alternator, power steering pump, water pump, and air conditioning compressor. The belt is routed around various pulleys to ensure smooth operation of these systems.
Before replacing or servicing the serpentine belt, check the routing diagram specific to the 2008 E350. The diagram should be located under the hood, near the front of the engine. If it’s worn or missing, refer to the owner’s manual or service guides for a detailed diagram. Using the correct routing pattern is key to preventing belt slippage and ensuring the longevity of your vehicle’s engine components.
Always verify the belt’s tension and condition when servicing. If it shows signs of wear like cracks or fraying, replace it immediately. A loose or damaged belt can lead to engine overheating or electrical failures.
For belt replacement, begin by releasing the tension on the tensioner pulley. This will allow you to remove the old belt and install a new one following the exact routing pattern. Ensure all pulleys are aligned and free of debris before reinstalling the new belt.
Understanding the Drive Belt Configuration for 2008 Mercedes E350
The 2008 Mercedes E350 utilizes a serpentine belt system to drive multiple engine accessories. The configuration involves one main serpentine belt that powers the alternator, power steering pump, water pump, air conditioning compressor, and the crankshaft pulley. The belt is routed through a series of pulleys, including a tensioner pulley, which maintains the correct belt tension to ensure smooth operation of the engine components.
When replacing the drive belt, it’s essential to follow the proper routing diagram. The belt should be installed in the exact path as shown in the factory diagram to prevent damage to engine components or improper functioning. The tensioner must also be inspected and replaced if it’s worn out, as it plays a critical role in maintaining the proper belt tension.
For optimal performance and longevity, inspect the belt regularly for signs of wear such as cracking or fraying. If the belt shows significant damage, replace it immediately to avoid the risk of it snapping or slipping off during operation, which could lead to engine failure or costly repairs.
Consult your vehicle’s manual for detailed instructions and specifications related to the belt, or seek a professional mechanic for installation and maintenance if needed.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Mercedes E350
To replace the serpentine belt on your 2008 Mercedes E350, follow these detailed steps. This procedure ensures smooth engine operation and avoids unnecessary wear on your vehicle’s components.
- Gather the Necessary Tools:
- Socket wrench with a long extension
- Serpentine belt tool (or breaker bar with a socket)
- New serpentine belt (check the vehicle manual for the correct part number)
- Torque wrench
- Locate the Serpentine Belt Tensioner:
The serpentine belt tensioner on the 2008 E350 is located on the front of the engine. It’s a small pulley with a bolt in the center. You will need to relieve the tension on the belt by rotating the tensioner.
- Release Tension on the Belt:
Use the serpentine belt tool or a breaker bar to rotate the tensioner pulley counterclockwise. This action loosens the belt, making it easier to remove. Ensure the tensioner is fully relaxed before attempting to slide off the belt.
- Remove the Old Belt:
Once the tension is released, carefully remove the belt from the pulleys. Pay attention to the belt routing before you remove it to ensure correct installation of the new one.
- Inspect Pulleys and Components:
Before installing the new belt, inspect all pulleys and components for wear. Look for cracks or damage on pulleys, the tensioner, and the idler pulley. Replace any parts that show signs of wear to prevent future issues.
- Install the New Serpentine Belt:
Position the new belt over the pulleys according to the routing diagram found in your owner’s manual. Double-check the belt’s alignment before proceeding.
- Re-engage the Tensioner:
With the belt properly routed, use the serpentine belt tool or breaker bar to rotate the tensioner counterclockwise again and slide the belt into place. Slowly release the tool and allow the tensioner to apply the correct tension to the new belt.
- Check Belt Alignment and Tension:
Ensure the belt is seated correctly on all pulleys. Use a torque wrench to check the tension, adjusting as needed according to your vehicle’s specifications.
- Test the Engine:
Start the engine and observe the belt’s operation. Listen for unusual noises, and confirm that the belt runs smoothly without slipping or misalignment. If everything appears in order, turn off the engine and double-check the belt placement one final time.
By following these steps, you’ll have successfully replaced the serpentine belt on your 2008 Mercedes E350, ensuring reliable performance for your vehicle.
Common Issues with the Belt System on 2008 Mercedes E350 and How to Fix Them
The most common issue with the belt system on the 2008 Mercedes E350 is belt wear and tension loss. Over time, belts can crack, stretch, or slip off due to tensioner failure. If you hear squealing noises coming from the engine bay, it may indicate belt slippage or misalignment.
Belt Wear and Cracking: Over time, the serpentine belt can become brittle and crack, especially under extreme heat or regular wear. If you notice visible damage, replace the belt immediately. The symptoms of a cracked belt include squealing sounds and noticeable vibrations. It’s recommended to inspect the belt every 30,000 to 50,000 miles to avoid unexpected failures.
Loose or Worn Tensioner: A worn-out tensioner can lead to improper belt tension. This causes the belt to slip off or wear unevenly. If you experience fluctuating power steering or alternator performance, check the tensioner. A faulty tensioner should be replaced to maintain proper belt tension. Ensure the spring mechanism is intact and functions smoothly when replacing it.
Pulley Misalignment: If one of the pulleys becomes misaligned, the belt may wear unevenly or even snap. Pulleys can become damaged or worn, which puts extra strain on the belt. Inspect the pulleys for any signs of damage or wobbling. If a pulley is malfunctioning, replacing it will prevent further damage to the belt system.
Incorrect Belt Routing: Incorrectly routed belts can cause excessive wear and tear. Double-check the belt routing diagram to ensure the belt is properly aligned. Incorrect routing can lead to misalignment of the pulleys, which accelerates belt damage. Always follow the manufacturer’s specifications to avoid mistakes.
Fixing the Issues: If you detect any of the issues mentioned, follow these steps to resolve them:
1. Inspect the belt: Check for cracks, fraying, or signs of wear. Replace the belt if it shows any damage.
2. Check the tensioner: If the tensioner is not holding the correct tension, replace it. Pay attention to the spring-loaded mechanism to ensure it functions properly.
3. Examine pulleys: Look for any misalignment, wear, or damage. If a pulley is defective, replace it immediately to avoid further issues.
4. Verify belt routing: Confirm the belt is routed correctly according to the vehicle’s diagram. This ensures all components run smoothly and the belt doesn’t slip or wear prematurely.
By addressing these common belt system problems on your 2008 Mercedes E350, you can prevent major engine damage and improve overall vehicle reliability.
