Troy Bilt Mustang 50 Deck Belt Diagram and Replacement Guide

To replace or adjust the deck belt on your Troy Bilt Mustang 50 mower, understanding the belt diagram is key. Start by ensuring the mower is on a flat surface and the engine is off. You’ll need to remove the deck and properly route the new belt according to the diagram for smooth operation.

The deck belt on the Mustang 50 runs through a series of pulleys, driving the cutting blades. A correct installation is crucial for consistent blade speed and overall mowing performance. Refer to the belt diagram to confirm the belt routing. Make sure the belt is threaded through all pulleys in the right order, including the tensioner, idler pulleys, and blade spindles. Any misstep here could cause slippage or excessive wear.

Ensure that the belt has the correct tension. If it’s too tight, it may wear prematurely; too loose, and it may slip off or fail to power the blades properly. Regular inspection of the belt and pulleys for wear or damage is recommended to keep your mower running smoothly.

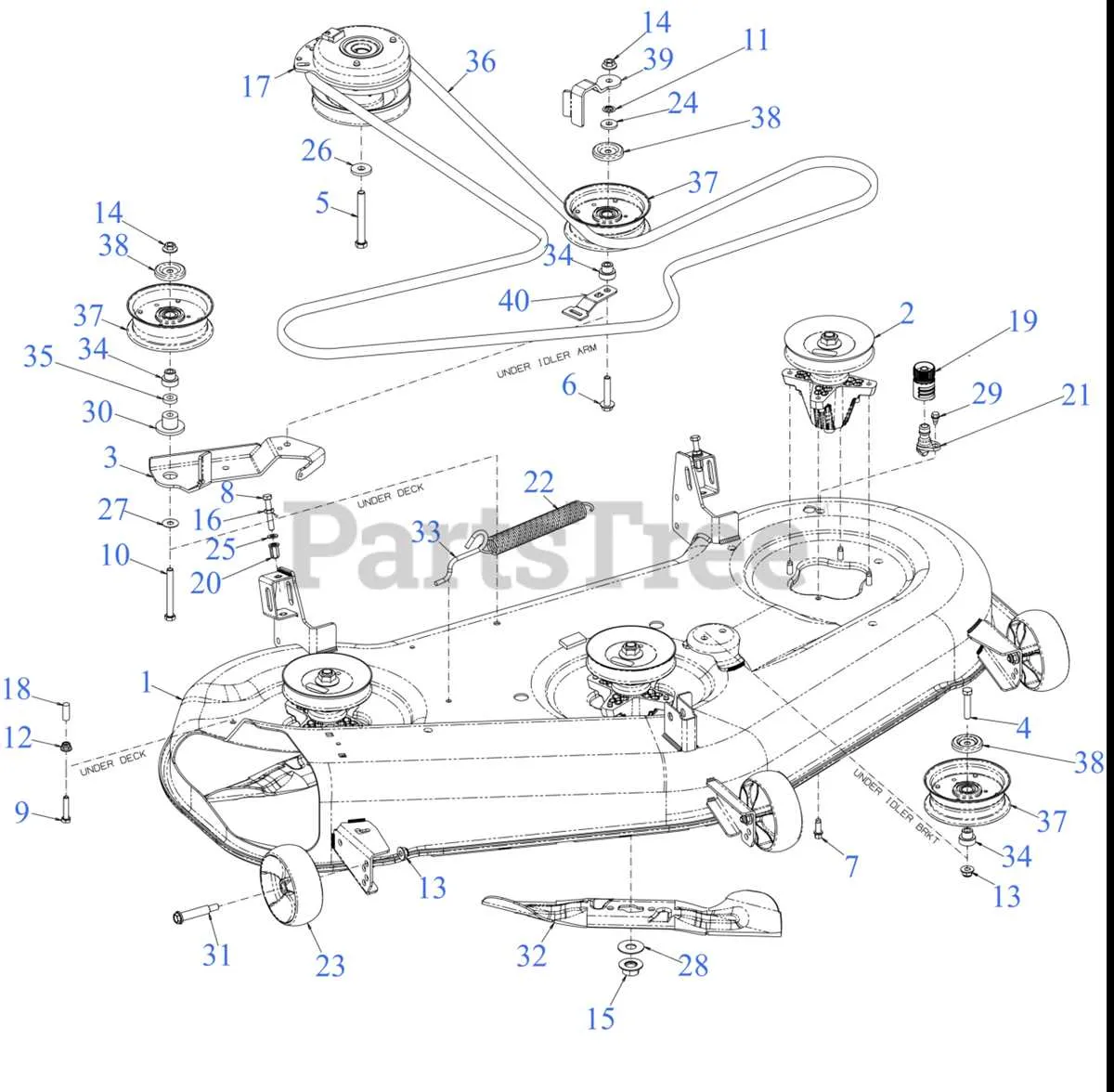

Troy Bilt Mustang 50 Deck Belt Diagram

To replace or inspect the deck belt on a Troy Bilt Mustang 50, follow the diagram closely to ensure proper belt routing. This belt transfers power from the engine to the mower deck, ensuring smooth operation of the blades. Here’s how to do it:

Start by removing the old belt or preparing the new one for installation. The belt should loop over the engine pulley, then around the idler pulleys, and finally around the deck pulleys. Ensure that the belt sits properly in the grooves of all pulleys to prevent slippage or wear.

Pay attention to the tensioner pulley; it keeps the belt tight for efficient power transfer. Check that the tensioner moves freely and doesn’t cause excessive friction. Recheck the belt routing after installation, making sure it matches the diagram in the user manual.

If you don’t have the manual, here’s a quick overview of the routing sequence: the belt runs from the engine pulley to the idler pulley, which then leads it to the deck pulleys. The tensioner pulley will apply pressure to maintain the correct tension on the belt.

After installation, manually rotate the belt to ensure it’s correctly positioned and moves smoothly. Once confirmed, reconnect the battery and test the mower to verify the belt’s performance.

How to Identify the Correct Deck Belt for Your Troy Bilt Mustang 50

Start by checking the model number of your Troy Bilt Mustang 50 mower, typically located on the frame near the engine or under the seat. This will help you find the exact specifications for the deck belt.

Next, verify the size of the deck. The Troy Bilt Mustang 50 typically has a 50-inch cutting deck. You’ll need a belt specifically designed for this deck size, as it differs from smaller or larger models.

Ensure you have the right part number for the belt. The OEM part number for the 50-inch deck belt is often listed in the owner’s manual or on the manufacturer’s website. If you don’t have the manual, a quick search online with your mower’s model number should provide the correct part number.

Inspect the belt’s material and construction. The deck belt is usually made of durable rubber or fabric-reinforced rubber, designed to withstand heavy wear and heat. Choose a belt that matches the material and construction of the original to maintain performance and longevity.

Measure the length and width of the old belt if you have it. Use a tape measure to get an accurate reading, but remember that it’s always best to replace the belt with the recommended OEM part for optimal performance.

If in doubt, consult with a certified Troy Bilt dealer or technician. They can provide the correct part number and further assist with installation tips, ensuring a proper fit.

Step-by-Step Guide to Installing the Deck Belt on a Troy Bilt Mustang 50

Disconnect the spark plug to prevent accidental engine startup. Raise the mower deck to its highest setting to create enough space for belt installation.

Remove the deck from the mower. Start by detaching the two retaining pins on both sides of the deck. Slide the deck out from under the mower after releasing the pins.

Inspect the deck belt to ensure it’s the correct size and in good condition. If it’s worn out, replace it with a new one designed for the Troy Bilt Mustang 50.

Locate the idler pulley and remove any tension by loosening the corresponding bolt or nut. This will allow you to slip the old belt off the pulleys.

Carefully remove the old deck belt, noting its routing through each pulley for reference. Take a close look at the diagram to confirm the belt routing is correct before installing the new one.

Place the new belt over the pulleys, ensuring it follows the same path as the previous one. Double-check the belt’s position in each pulley groove.

Reinstall the idler pulley, securing it back in place. Make sure there’s enough tension on the belt for smooth operation. Tighten the bolts or nuts accordingly to keep the pulley secure.

Once the belt is properly in place, lower the mower deck and reattach it to the mower using the retaining pins. Ensure everything is firmly secured.

Reconnect the spark plug and test the mower to verify the new belt is functioning correctly. Listen for any unusual noises and check the deck’s operation before using the mower regularly.

Common Issues with the Deck Belt and Troubleshooting Tips for the Troy Bilt Mustang 50

Deck belt slippage is a common issue with the Troy Bilt Mustang 50. If the belt is not gripping properly, it can cause the deck to stop rotating or operate inefficiently. Inspect the belt for wear, cracks, or fraying. Replace the belt if you notice any significant damage. Ensure the belt is properly tensioned, as a loose belt can lead to slippage and reduced performance. Adjust the tension if necessary, following the manufacturer’s instructions.

Another issue is the deck belt misalignment. This can occur if the pulleys or the belt itself are not aligned correctly. Misalignment may cause the belt to rub against other parts, creating noise or further damage. Check the pulleys for any signs of wear or debris buildup, which can prevent proper alignment. Clean the pulleys and, if necessary, replace any worn components to restore proper operation.

Debris buildup around the pulleys or belt is another common problem. Grass, leaves, and other debris can get stuck, leading to obstruction and poor belt performance. Regularly clean around the pulleys and belt after each use to prevent this. If debris is lodged between the belt and the pulleys, it may also cause premature wear or fraying of the belt. Regular maintenance can avoid this issue.

If the deck belt is making unusual noises, such as squealing or grinding, inspect the bearings in the pulleys. Worn or damaged bearings can cause the belt to slip or create friction that affects performance. Replace any bearings that are damaged or overly worn to keep the system functioning smoothly.

Occasionally, the belt may break unexpectedly. When this happens, check the tension springs and pulleys for any signs of damage that might have caused excessive strain on the belt. If everything appears to be in good condition, replace the broken belt with a manufacturer-recommended part to ensure proper fit and function.

By routinely checking and maintaining the deck belt system, you can prevent many of these common issues and ensure your Troy Bilt Mustang 50 operates at peak efficiency.
