2008 Altima Serpentine Belt Diagram and Routing Guide
Ensure proper belt placement in your 2008 Nissan Altima by consulting the accurate belt diagram. The diagram is crucial for understanding the layout of serpentine belts and individual accessory drive belts in your vehicle. Correct installation prevents premature wear and ensures that all components function smoothly.
When replacing or servicing the belts, follow the specific routing instructions shown in the diagram. The 2008 Altima uses a serpentine belt that drives multiple accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. Pay close attention to the tensioner placement to avoid belt slippage or improper alignment.
If you’re experiencing issues such as unusual noises or power loss, inspect the belt condition according to the diagram. Look for signs of cracks, fraying, or excessive wear. A damaged belt should be replaced immediately to avoid further damage to your engine or accessories.

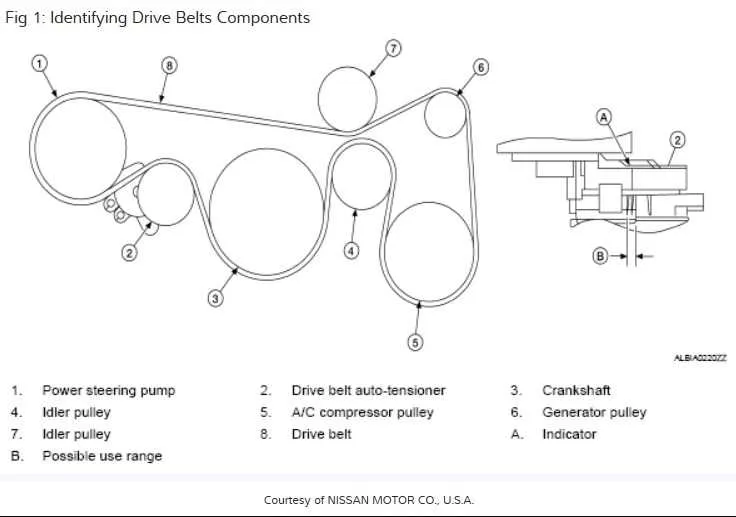

2008 Altima Belt Diagram
The 2008 Altima uses multiple belts to drive essential components such as the alternator, power steering pump, air conditioning compressor, and water pump. The main belt system includes the serpentine belt, which drives these accessories. When replacing or inspecting the belts, make sure to follow the correct routing and tension specifications to ensure optimal performance and prevent damage.
Start by locating the tensioner pulley, which is used to maintain the proper tension on the serpentine belt. If the belt is loose or cracked, it’s important to replace it to avoid further engine damage. Use a socket wrench to relieve the tension on the tensioner, then remove the old belt. Install the new belt by following the routing diagram found under the hood or in the vehicle’s manual.
For troubleshooting belt issues, check for wear signs such as fraying, cracks, or squealing sounds. Make sure the belt is aligned properly and that the pulleys are not damaged. Misalignment or pulley issues can lead to premature wear of the belt. Always use the correct replacement belt size and ensure the tension is within factory specifications to avoid problems.
Identifying the Belt Layout for 2008 Altima Engine
For the 2008 Nissan Altima, understanding the correct belt layout is key to ensuring proper engine function. The engine uses a serpentine belt system to drive various components like the alternator, power steering pump, and air conditioning compressor. Refer to the engine’s belt routing diagram, typically located near the engine bay or in the owner’s manual, for exact placement.
The layout features a single serpentine belt that runs across multiple pulleys. It’s vital to follow the precise path shown in the diagram, making sure the belt runs smoothly over the pulleys without twisting or misaligning. Inspect the belt for any signs of wear such as cracks, fraying, or glazing, as these could indicate the need for replacement.
To correctly identify the layout, check the following components in the 2008 Altima engine bay: the crankshaft pulley, the tensioner pulley, and the idler pulley. The belt loops around these pulleys in a set configuration, maintaining tension through the spring-loaded tensioner. Proper tension is necessary for the belt to function effectively, so ensure it is neither too tight nor too loose during installation.
If you’re unsure about the layout, always refer to the specific diagram for your engine model. Attempting to install the belt incorrectly can lead to engine performance issues or premature wear on components.
Step-by-Step Guide to Replacing the Serpentine Belt
First, ensure the engine is off and the car is on a level surface. Disconnect the negative terminal of the battery to prevent electrical accidents.
Locate the serpentine belt routing diagram. It’s typically found near the engine compartment or on the radiator support. This diagram shows the correct path of the serpentine belt around various pulleys.
Use a wrench or a serpentine belt tool to relieve tension from the tensioner pulley. Turn the tool clockwise to move the tensioner and relieve pressure from the belt. Keep the tensioner in this position while you remove the belt from the pulleys.
Carefully remove the old belt from all pulleys, paying attention to the orientation of the belt for proper installation later. Take note of any worn-out or damaged areas on the belt, as these could indicate other issues.
Inspect the pulleys, tensioner, and idler pulley for wear. If any pulleys feel rough or show signs of damage, replace them before installing the new belt. It’s recommended to check the tensioner for proper spring tension and smooth operation.
Place the new serpentine belt over the pulleys, following the routing diagram. Ensure the belt is properly seated in all pulley grooves and that it is aligned correctly.
Once the belt is in place, release the tensioner slowly to apply tension to the new belt. Ensure the belt is tight and has no slack, but it should still move slightly with finger pressure.
Recheck the belt alignment and ensure it runs smoothly on all pulleys without slipping or misalignment. Verify the routing again before reassembling any components that were removed for access.
Reconnect the battery terminal and start the engine to check the operation of the serpentine belt. Listen for any unusual noises or vibrations that could indicate improper installation.
If everything looks good, close the hood and test drive the car to ensure the belt is functioning properly.
Troubleshooting Common Belt Issues in 2008 Altima
If the serpentine belt in your 2008 Altima starts to slip or make noise, it’s time to check its condition. First, inspect the belt for signs of wear, like cracks, fraying, or glazing. A damaged belt should be replaced immediately to prevent further issues with engine components.
One common issue is belt tension. If the belt appears loose or misaligned, it may be caused by a faulty tensioner. Check the tensioner by manually pressing it and seeing if it moves freely. If it sticks or moves out of alignment, replace it. A malfunctioning tensioner can cause the belt to slip and lose efficiency.
Another frequent problem is belt squeaking, which is often caused by a misaligned pulley. Inspect each pulley along the belt path for damage or wear. A pulley with uneven surfaces can cause the belt to slip, resulting in noise and potential wear. If a pulley is damaged, replace it to avoid further strain on the belt.
Keep an eye out for overheating. If the belt shows signs of heat damage (burn marks, discoloration), check the water pump or alternator for malfunction. Excessive heat from a faulty component can warp the belt, leading to premature wear and failure.
If the engine is losing power or you notice other electrical issues, it may indicate that the alternator belt is not functioning properly. Check the belt for proper tension and alignment, as well as any visible damage. If the belt is intact but the alternator still isn’t charging, further diagnosis of the alternator itself may be necessary.
Regular maintenance of your serpentine belt and components is key to ensuring smooth engine operation. If you notice any of the above symptoms, address them promptly to avoid more serious engine damage.
