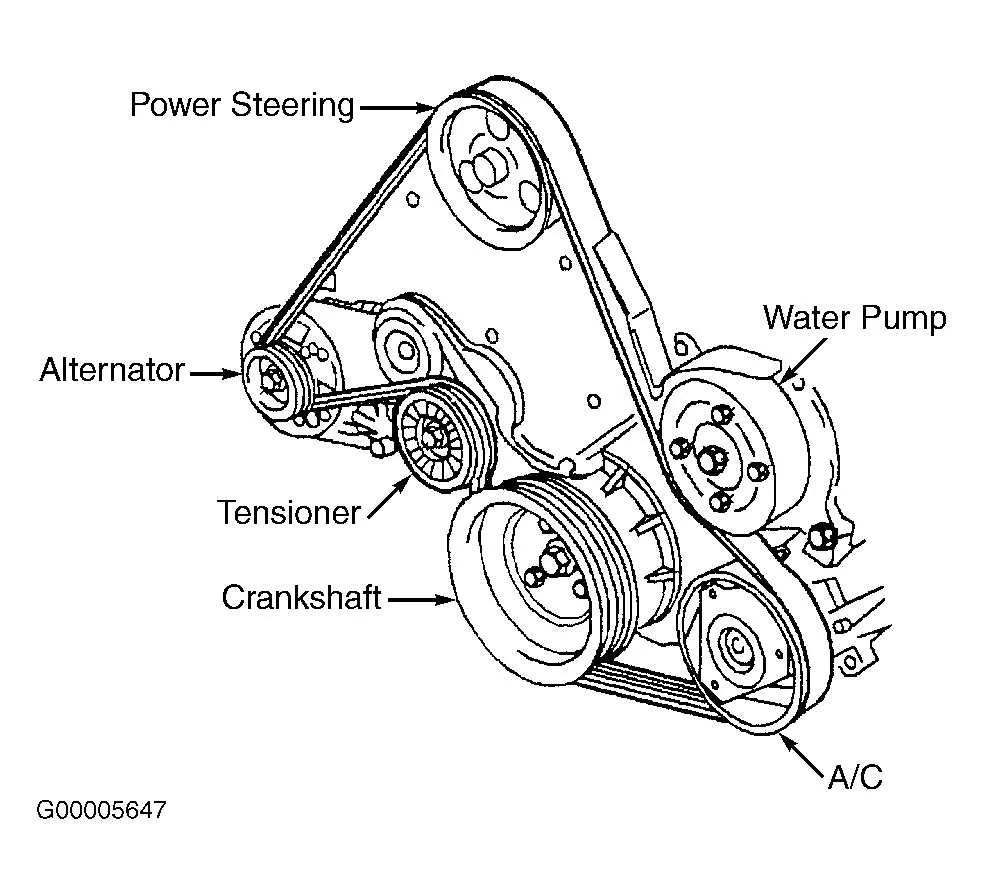

04 Grand Prix Belt Diagram
The 04 Grand Prix belt diagram is critical for understanding the proper routing of belts in the vehicle’s engine system. Ensure the belt is routed correctly to avoid issues such as slippage or premature wear.
Start by identifying the belt components: the tensioner, pulleys, and alternator. Each component must align according to the diagram. A misaligned belt can cause significant damage over time, reducing engine performance.
Follow these steps to confirm the correct belt installation:
- Locate the diagram on the engine compartment or service manual. This provides a clear overview of how the belt should be routed.
- Check the condition of the belt. Look for signs of cracks, fraying, or glazing. If damaged, replace the belt immediately.
- Ensure the tensioner is properly adjusted. A loose belt can lead to slipping, while a tight belt can strain components.
- Check each pulley and the alignment. The belt must run smoothly across all components without deviation.
If the belt is slipping or making noise, inspect the pulleys and tensioner for any wear or damage. It’s often a sign that the components are out of alignment or need replacement.
Regularly inspect the belt and the diagram to ensure longevity and performance of the engine system. Proper maintenance will prevent costly repairs and extend the life of your vehicle.
Understanding the Belt Layout in the 04 Grand Prix
The 04 Grand Prix uses a well-organized belt system to ensure proper power transfer between engine components. Focus on the routing of the serpentine belt and its interaction with pulleys to maintain efficiency. The serpentine belt in this model drives key systems such as the alternator, air conditioning compressor, and power steering pump.

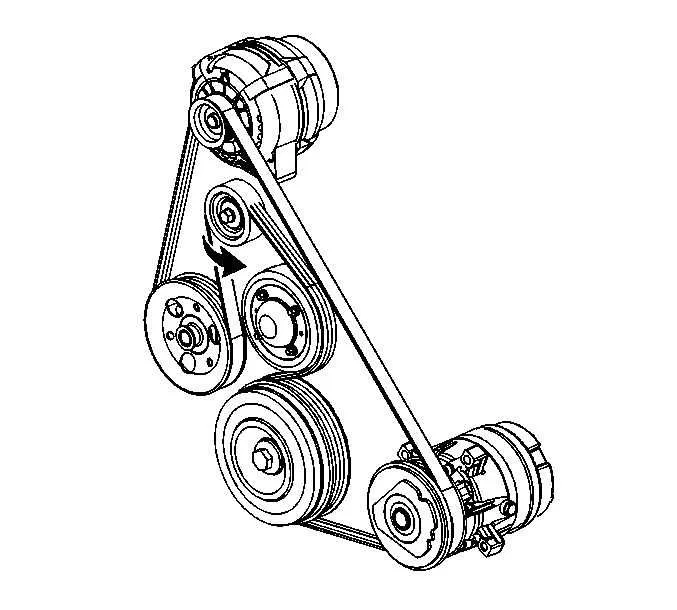

Examine the diagram closely for belt placement. The layout shows how the belt loops around each component, starting from the crankshaft pulley, moving through tensioners, and then to other accessories. Verify that the tensioner maintains correct pressure to prevent slipping or premature wear. Incorrect belt placement or slack can lead to malfunctioning systems, resulting in engine performance issues.
Inspect the belt regularly for signs of wear, like cracks or fraying. If the belt appears damaged or shows excessive stretching, it may be time for replacement. When replacing, always ensure the belt aligns precisely according to the diagram to prevent misalignment that could stress the engine parts.
Step-by-Step Guide for Replacing the Belt on a 04 Grand Prix
To replace the belt on a 2004 Grand Prix, start by ensuring the vehicle is off and the parking brake is engaged. Lift the hood and locate the belt routing diagram, usually found on a sticker or in the owner’s manual. This will guide you in properly reattaching the belt later.
Next, remove any components obstructing access to the belt, such as the engine cover or air intake assembly. Use a wrench to relieve tension from the belt by rotating the tensioner pulley counterclockwise. Once the tension is released, remove the belt from the pulleys. Be careful not to damage any surrounding parts during this process.
Inspect the old belt for signs of wear, such as cracking, fraying, or stretching. Compare it with the new belt to ensure they match in size and shape. Install the new belt by following the routing diagram. Start at the crankshaft pulley and work your way around the other pulleys, ensuring the belt fits snugly and correctly in all grooves.
Once the belt is in place, rotate the tensioner pulley clockwise to apply tension to the new belt. Double-check that the belt is properly aligned and seated on all pulleys. Reinstall any components you removed earlier and close the hood.
Start the engine and let it run for a few minutes. Listen for any unusual noises and check that the belt is running smoothly without slipping. If everything appears to be working correctly, the job is complete.
Troubleshooting Common Belt Issues in the 04 Grand Prix

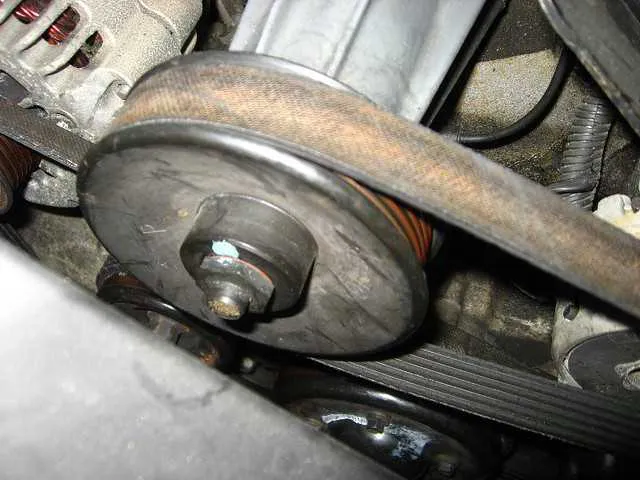

If the serpentine belt in your 04 Grand Prix shows signs of wear, inspect it for cracks, fraying, or glazing. These are common indicators that the belt needs replacement. Pay attention to any squealing or chirping sounds during startup or while the engine is running. Such noises often suggest the belt is slipping or misaligned.
A loose or slack belt may cause erratic performance of the alternator, power steering, or air conditioning. Check the tensioner pulley to ensure it is functioning properly and keeping the belt tight. If the tensioner appears worn or damaged, replace it immediately to avoid further issues.
Misalignment of the belt can lead to rapid wear and may damage other components. Inspect the pulleys for any signs of damage or misalignment. If a pulley is out of line, it should be realigned or replaced to ensure proper belt operation.
If your vehicle’s accessories are not functioning as expected (e.g., the AC or alternator), it may be due to the belt not turning the pulleys correctly. Check the belt routing against the factory diagram to confirm it is installed properly. Misrouting the belt can cause it to skip or fail to engage components fully.
A cracked or worn belt should be replaced immediately to prevent further damage. Keep in mind that it’s better to replace the belt before it snaps completely. Regular maintenance checks are key to ensuring the longevity of the serpentine belt and other associated components.
