2007 Acura MDX Serpentine Belt Diagram and Routing Guide
To replace or inspect the belts in your 2007 Acura MDX, it’s important to understand the correct routing and placement. The serpentine belt system plays a significant role in powering various engine components, including the alternator, power steering pump, and air conditioning compressor. A proper belt diagram ensures these components function smoothly and avoids potential damage to the engine.
Begin by locating the engine’s belt routing diagram, which is typically found on the hood or near the front of the engine bay. It provides clear guidance on how the belt should be threaded through the pulleys. Refer to this diagram when replacing the serpentine belt or troubleshooting any issues with the belt system. Pay close attention to the orientation of each pulley to ensure proper installation.
When replacing the serpentine belt, check for any signs of wear or damage. Cracks, fraying, or glazing on the surface of the belt are indicators that it’s time for a replacement. If the belt tensioner is worn, it can lead to improper tension, causing the belt to slip or make noise. Replace the tensioner if necessary to prevent future issues and ensure the system runs smoothly.
2007 Acura MDX Belt Diagram
The 2007 Acura MDX uses a serpentine belt system to drive multiple components like the alternator, power steering pump, and air conditioning compressor. Understanding the belt routing is crucial for proper maintenance and repair.
The belt routing diagram for the 2007 Acura MDX ensures that each component is powered correctly. To check the diagram, refer to the engine bay area or the vehicle’s manual for precise details. Here’s how to approach belt maintenance:
- Always inspect the belt for signs of wear such as cracks or fraying.
- If the belt is worn or damaged, replace it immediately to avoid damage to the engine components.
- Make sure the belt tension is within the recommended range; too tight or too loose can cause issues.
To replace the belt, follow these steps:
- Locate the tensioner pulley and relieve the tension by rotating the pulley with a wrench.
- Remove the old serpentine belt carefully without damaging other components.
- Install the new belt by following the diagram, ensuring it sits properly on all pulleys.
- Test the belt’s tension and ensure it operates smoothly without slipping.
For best results, refer to the specific belt diagram provided in the vehicle manual to ensure proper routing during replacement.
How to Read the 2007 Acura MDX Belt Diagram
To accurately interpret the 2007 Acura MDX belt diagram, begin by locating the serpentine belt layout. The diagram provides a clear path that each belt must follow around the engine components. Identify the main components such as the alternator, power steering pump, air conditioning compressor, and the water pump.
Focus on the direction of the arrows, which indicate how the belt should route around the pulleys. Pay attention to any specific details regarding the tensioner pulley–this pulley keeps the belt tight and is often shown with a special symbol or indication. Make sure the belt aligns correctly with all pulleys to avoid any misalignment, which could cause performance issues.
Next, note the position of the tensioner and the idler pulley. The tensioner typically requires a special tool to adjust, while the idler pulley helps maintain belt tension in certain spots. Understanding how these components interact ensures that you don’t misplace the belt during installation or maintenance.
Always refer to the diagram when reinstalling or replacing the serpentine belt to prevent incorrect installation. If you’re unsure, cross-reference the diagram with your vehicle’s manual for confirmation of exact pulley positions and belt sizes.

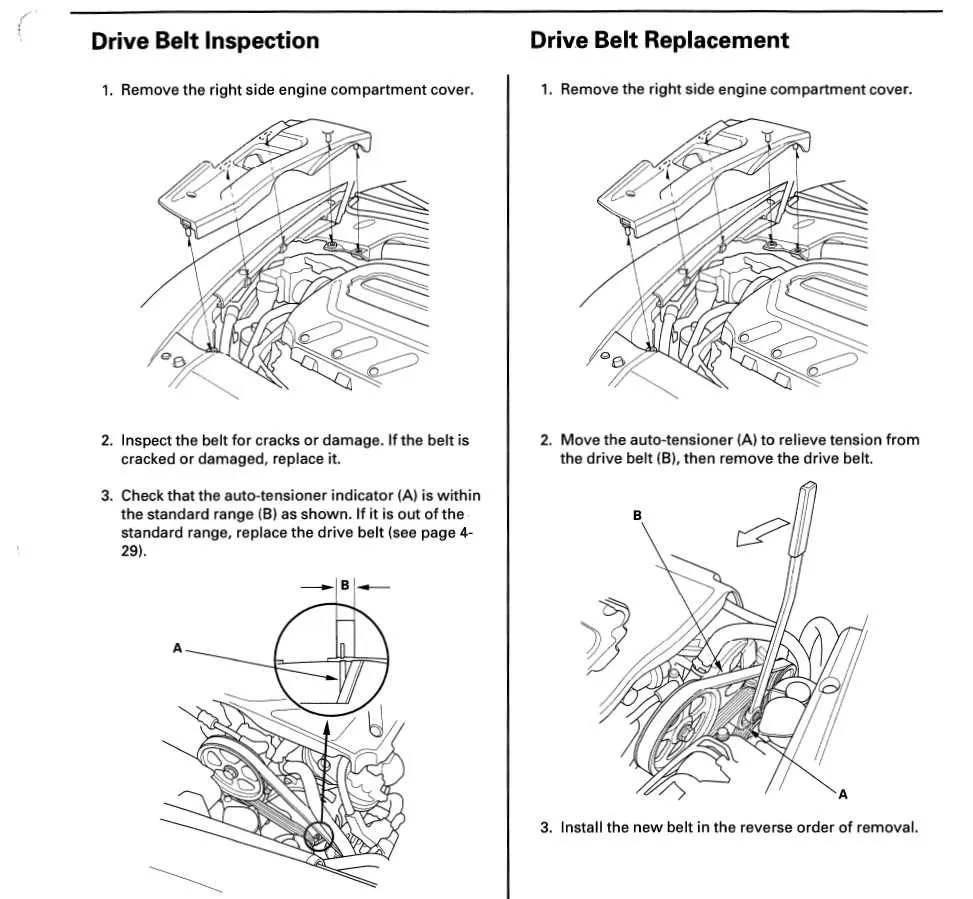

Step-by-Step Guide to Replacing the Serpentine Belt on a 2007 Acura MDX
To replace the serpentine belt on your 2007 Acura MDX, follow these steps carefully. The serpentine belt powers multiple components of your engine, and timely replacement can prevent serious damage.
1. Prepare the Necessary Tools: You will need a wrench, serpentine belt tool, socket set, and possibly a new serpentine belt if replacement is needed.
2. Locate the Serpentine Belt: Open the hood and locate the serpentine belt. It runs across the front of the engine, connecting various pulleys, including the alternator, power steering pump, and air conditioning compressor.
3. Release Tension on the Belt: Use the serpentine belt tool or a wrench to relieve tension on the belt by turning the tensioner pulley clockwise. This will loosen the belt so you can remove it.
4. Remove the Old Belt: Carefully slide the belt off the pulleys. Pay attention to the routing, as you will need to install the new belt in the same pattern.
5. Inspect the Pulleys and Components: Before installing the new belt, check the condition of the pulleys and other components. Look for any damage, wear, or irregularities that could cause premature belt wear.
6. Install the New Serpentine Belt: Position the new serpentine belt over the pulleys, following the correct routing diagram. Ensure the belt sits properly on each pulley, with no slack or misalignment.
7. Reapply Tension: Once the belt is in place, use the serpentine belt tool to reapply tension to the tensioner pulley. Make sure the belt is tight and properly aligned on all pulleys.
8. Check Belt Alignment: Rotate the engine by hand, if possible, to ensure the belt is moving smoothly and correctly. Look for any signs of slipping or misalignment.
9. Reassemble and Test: Close the hood and start the engine. Listen for any unusual noises and check that the components powered by the belt (alternator, power steering, etc.) are functioning properly.

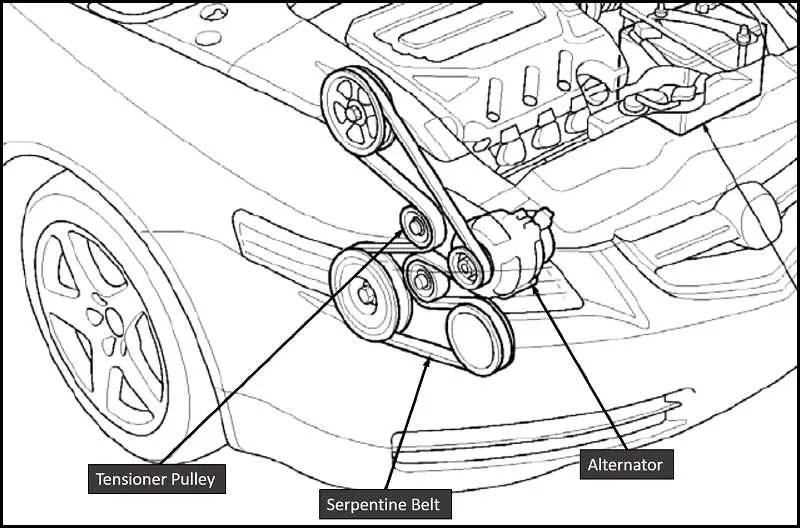

Belt Routing Diagram for 2007 Acura MDX
| Pulley Component | Location |
|---|---|
| Alternator | Upper left of engine |
| Power Steering Pump | Middle of engine |
| Air Conditioning Compressor | Bottom right of engine |
| Tensioner Pulley | Near the top of the engine |
| Idler Pulley | Near the bottom left of engine |
Common Issues with the 2007 Acura MDX Belt System and How to Address Them
One common issue with the 2007 Acura MDX belt system is belt wear. Over time, the serpentine belt can become cracked, frayed, or stretched, leading to slipping and loss of power for accessories like the alternator, power steering pump, and air conditioning. To address this, inspect the belt regularly for visible signs of wear. Replace it immediately if any damage is found. Keep an eye on the belt tension as well, as improper tension can also cause slipping or premature wear.
Another issue is pulley misalignment. Misalignment can cause the belt to rub against components, resulting in noise and potential damage. Check the pulleys for signs of wear, and make sure they are aligned properly. If necessary, replace worn-out pulleys or adjust their positioning to restore proper alignment.
In some cases, the tensioner may fail. A faulty tensioner will cause the belt to sag or over-tighten, which can lead to performance issues or belt failure. If you notice inconsistent tension or if the belt is making noise, inspect the tensioner for wear. Replace it if it no longer maintains the correct tension.
Lastly, the idler pulley can wear out, leading to unnecessary friction and belt wear. If you hear a squealing or grinding sound from the belt area, it may be due to a damaged idler pulley. Inspect the pulley for smooth rotation and replace it if necessary to prevent further issues with the belt system.
