Detailed Belt Routing Diagram for 2006 Mustang GT Engine Components

Consult the belt diagram directly when replacing or inspecting your 2006 Mustang GT serpentine belt to ensure proper routing. The diagram clearly shows the path over the alternator, power steering pump, water pump, and air conditioning compressor, reducing the risk of misalignment and belt slippage.

Follow the diagram carefully to avoid twisting or crossing the belt, which can cause premature wear. Each pulley is labeled with its exact position, allowing you to verify tensioner placement and maintain consistent tension throughout the system. Check the tensioner pulley for smooth rotation before installing the belt.

For maintenance, the diagram helps identify the sequence for removing and reinstalling components without disconnecting multiple accessories. By referencing it, you can replace the belt without adjusting other parts, saving time and minimizing errors. Keep a printed copy of the diagram in your garage for future inspections or replacements.

Using the belt diagram also aids in troubleshooting noise or slipping issues. Misrouted belts often produce squealing or abnormal wear, and the diagram highlights the correct alignment. Regularly comparing the installed belt with the diagram ensures optimal performance and prolongs the lifespan of your 2006 Mustang GT components.

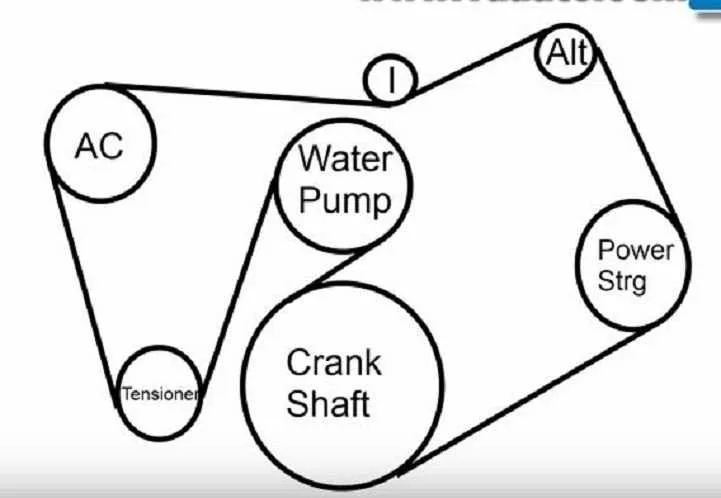

2006 Mustang GT Belt Diagram

Refer to the 2006 Mustang GT belt diagram to accurately route the serpentine belt around the engine components. Start at the crankshaft pulley, moving the belt clockwise around the water pump, alternator, power steering pump, and tensioner. The diagram shows the belt crossing over the A/C compressor pulley in a figure-eight pattern, ensuring proper alignment and tension.

Use the tensioner to apply pressure while sliding the belt into place. The tensioner should hold the belt firmly without slack. Check the alignment visually; misalignment can cause squealing or premature wear. For 4.6L V8 engines, the belt measures approximately 6 ribs and 98 inches long, but always confirm with the part number stamped on the replacement belt.

Maintain correct routing by consulting the diagram whenever replacing or removing accessories. Each pulley must rotate freely and remain clean from oil or debris. A properly installed belt ensures smooth operation of the alternator, A/C, and power steering system.

After installation, start the engine briefly and inspect the belt under load. Adjust tension if necessary. Keeping a copy of the belt diagram in the glove compartment helps with future maintenance and prevents incorrect installation.

Identifying Each Belt and Its Function in the 2006 Mustang GT

Locate the serpentine belt at the front of the engine–it drives multiple accessories simultaneously. The belt wraps around the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor.

• Crankshaft Pulley: This pulley powers the entire belt system. Ensure it rotates smoothly to maintain correct tension.
• Alternator Belt Section: This segment powers the alternator, supplying electricity to the battery and vehicle electronics. Check for cracks or fraying to prevent charging issues.
• Power Steering Pulley: Drives the power steering pump for smooth steering response. Listen for squealing noises, which indicate wear or misalignment.
• Water Pump Pulley: Circulates coolant through the engine to regulate temperature. Inspect the belt for glazing, which reduces cooling efficiency.
• Air Conditioning Pulley: Operates the A/C compressor. Ensure the belt is tight enough to avoid slipping, which reduces cooling performance.

The 2006 Mustang GT also has smaller accessory belts, including the tensioner and idler pulleys. Tensioners maintain proper belt tension and prevent slack, while idler pulleys guide the belt along its path. Verify that these pulleys spin freely and show no wobble or wear.

Follow the belt routing diagram specific to your engine type. Correct installation prevents noise, overheating, and accessory failure. Replace any belt showing cracks, fraying, or glazing immediately to maintain reliable operation of all components.

Step-by-Step Guide to Locating the Serpentine Belt Path

Identify the serpentine belt routing diagram stamped on the underside of the hood or near the radiator support. This diagram shows the exact path over each pulley for the 2006 Mustang GT.

Locate the crankshaft pulley at the bottom of the engine; the belt starts here. Follow it around the alternator pulley on the passenger side, ensuring it sits correctly in the grooves.

Move the belt toward the power steering pump, positioned above and slightly left of the crankshaft pulley. Check that the belt wraps smoothly without twists, maintaining proper tension.

Guide the belt over the water pump pulley, which sits centrally at the front of the engine. Confirm the direction of rotation aligns with the diagram markings.

Route the belt around the A/C compressor pulley on the driver’s side, ensuring it remains in the grooves. Then, pass it over the tensioner pulley, which applies proper tension automatically.

Double-check the entire path against the diagram. The belt should touch all pulleys as illustrated, with no misalignment or slack. Adjust the tensioner if necessary to secure the belt firmly.

Replacing the Belt: Tools, Torque Specs, and Alignment Tips

Use a serpentine belt tool or a long ratchet to relieve tension on the 2006 Mustang GT belt tensioner. This allows safe removal of the old belt without straining surrounding components.

Required tools include: a 3/8-inch drive ratchet, a serpentine belt tool or breaker bar, a torque wrench, and a set of metric sockets (10mm and 15mm most commonly). Keep a belt routing diagram handy to match the new belt precisely to pulleys.

Tighten the tensioner bolt to 30–35 ft-lbs using a calibrated torque wrench. Over-tightening can damage the tensioner arm, while under-tightening may cause the belt to slip, creating noise or reducing alternator output.

Check pulley alignment visually and with a straightedge. Misaligned pulleys can accelerate belt wear and cause squealing. Ensure all pulleys are flush and the belt sits evenly across each groove.

Route the new belt carefully according to the diagram, starting from the crank pulley. Keep the belt centered in each groove and avoid twisting. Rotate the crank twice manually to seat the belt before tightening the tensioner fully.

After installation, inspect the belt after 100 miles for proper tension and alignment. Minor adjustments may be needed if the belt appears slightly off-center or if a pulley shows slight wobble.
