Kubota Z421 drive belt diagram with detailed parts layout and installation guide
Check the drive belt diagram of your Kubota Z421 before replacing or adjusting the belt. This visual guide helps you trace the correct routing across pulleys and tensioners, ensuring the mower deck operates smoothly without unnecessary strain on the engine.
The Z421 uses a durable belt system that connects the engine power to the cutting deck. By following the diagram, you can confirm the proper placement around the spindle pulleys and idlers, which reduces the risk of premature wear and uneven cutting performance.
Use the diagram as a step-by-step reference during maintenance. Align the belt with each pulley groove, apply the correct tension, and double-check that no twists remain. Correct installation not only extends belt life but also keeps the mower reliable during long cutting sessions.
Keep a printed or digital copy of the drive belt diagram close to your workspace. This simple precaution makes servicing faster and helps prevent common mistakes that often lead to costly repairs.
Kubota Z421 Drive Belt Diagram

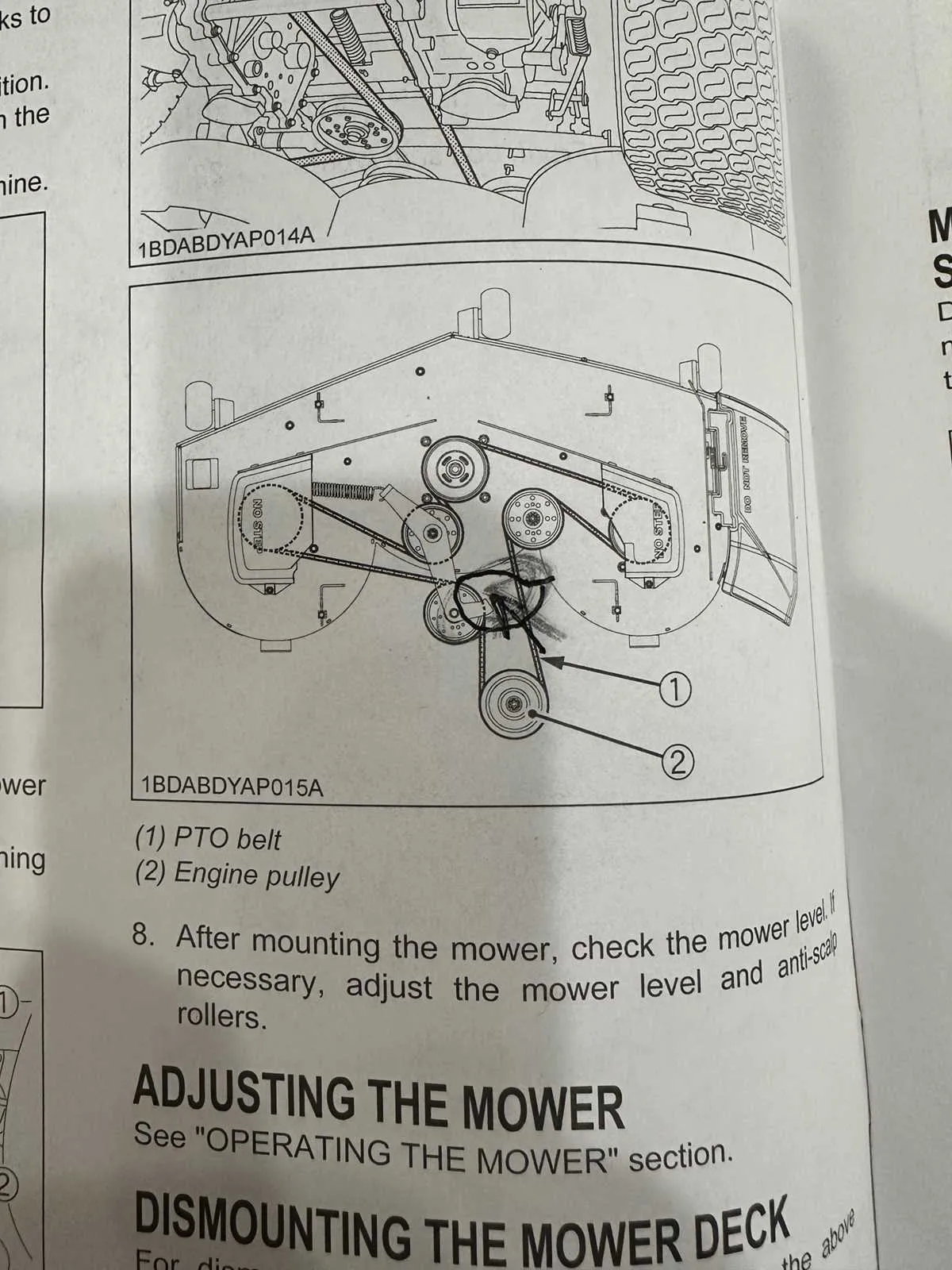

Check the belt routing against the diagram under the mower deck cover before reinstalling any part. The Kubota Z421 uses a primary drive belt that runs from the engine pulley to the deck spindle pulleys, and a secondary belt that powers the blades. Each pulley has a fixed position, so proper tension depends on correct alignment rather than manual adjustment.
Place the belt around the PTO pulley first, then guide it over the idler pulleys, finishing with the spindle pulleys. Ensure the flat side of the belt contacts flat idlers, while the V-shaped side fits into the spindle grooves. Misplacing the belt on the wrong pulley side causes slippage and premature wear.

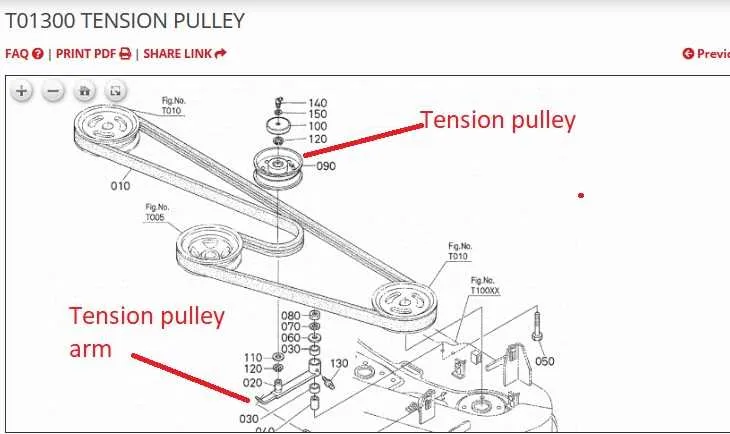

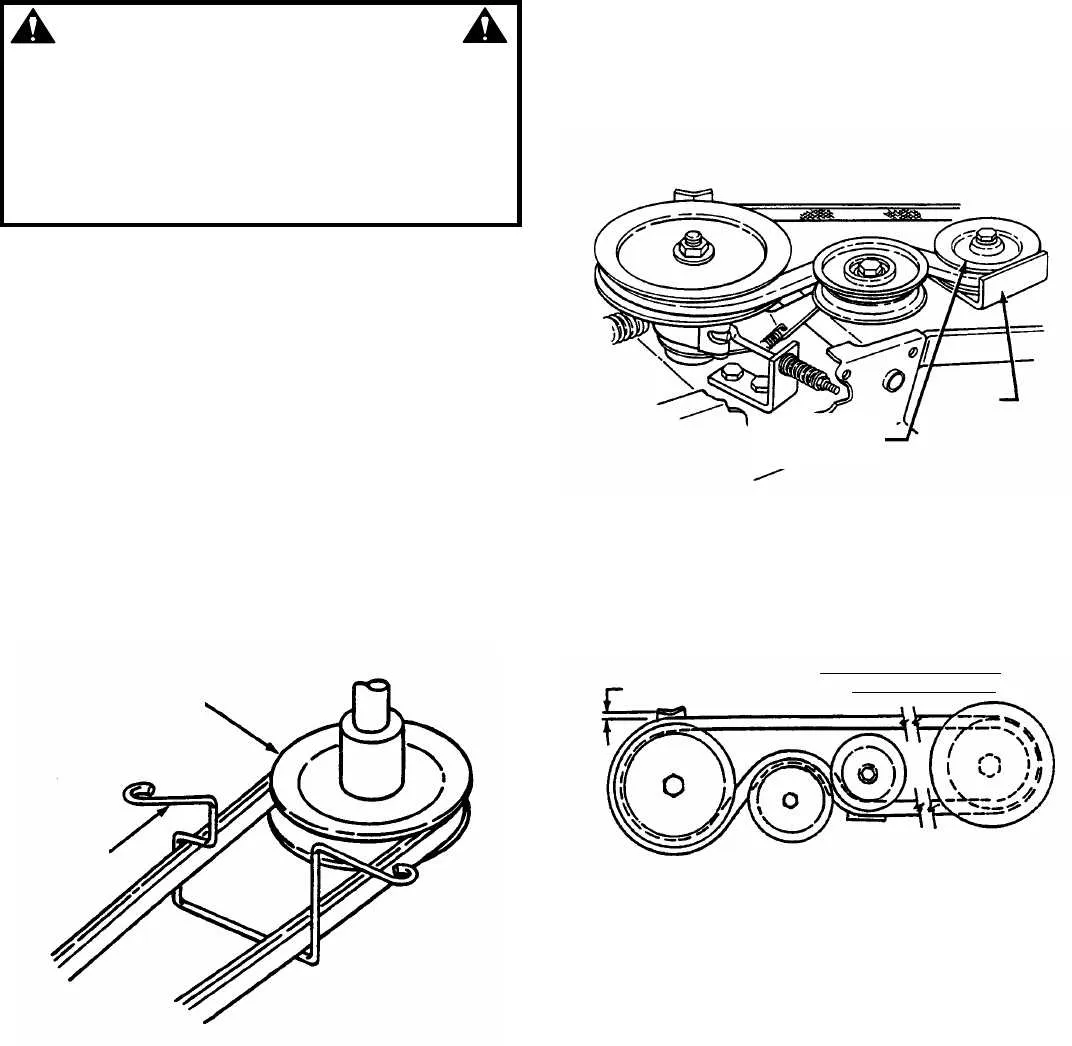

Inspect the spring-loaded tensioner arm shown on the diagram. The arm must move freely without binding. If the belt sits loosely after installation, replace the tension spring instead of overtightening, as incorrect tension damages the spindle bearings. Follow the directional arrows on the diagram to confirm the belt path before engaging the mower deck.
Locating and Identifying the Drive Belt Components
Check the area under the mower deck first, since the primary drive belt loops around the pulleys that transfer power from the engine to the blades. Position the mower on a flat surface, engage the parking brake, and lift the deck slightly for easier access.
- Engine Pulley: Mounted directly under the engine, this pulley drives the belt and is the starting point for tracing its path.
- Deck Pulleys: Found on top of the mower deck, these pulleys route the belt to each blade spindle. Inspect them for alignment and wear.
- Idler Pulleys: Located along the belt’s path, they keep tension consistent. On the Z421, you’ll find both flat and V-groove idlers.
- Tensioner Arm: A spring-loaded arm that pushes an idler pulley against the belt. Release its tension carefully before removing or installing the belt.
- Belt Guides: Small metal tabs near pulleys that prevent the belt from slipping off during operation.
Follow the belt from the engine pulley through each idler and deck pulley to confirm proper routing. Pay attention to V-side contact points, as the belt should sit securely inside the pulley grooves without twisting. If any pulley feels loose or produces noise while rotating by hand, plan to service or replace it before installing a new belt.
Step-by-Step Process for Reading the Diagram
Locate the drive belt path on the Kubota Z421 diagram and identify the starting point at the engine pulley. This pulley delivers power, so confirming its position gives context for the rest of the routing.
Follow the belt direction line by line, paying attention to the arrows that indicate movement. Check whether the belt travels around flat idler pulleys or V-shaped pulleys, since the contact side differs: the flat side of the belt rests on idlers, while the ribbed side sits inside V-pulleys.
Trace the belt toward the deck spindles. Each spindle pulley must be aligned with the others, so confirm that the belt passes smoothly without twisting. The diagram highlights this path clearly, making it easier to spot any incorrect routing.
Review tensioner placement. The spring-loaded tensioner pulley applies pressure to keep the belt tight. Identify it in the diagram and verify the belt’s contact point, as improper routing here causes slack and premature wear.
End the check at the mower deck pulleys and confirm the full loop back to the engine pulley. Reading the diagram in this order ensures that every contact point is reviewed logically without missing any detail.
Troubleshooting Common Drive Belt Alignment Issues
Check pulley grooves for debris and wear before adjusting alignment. Even a small buildup of grass or dirt can tilt the belt and cause it to ride unevenly.
Verify that the tensioner arm moves smoothly without sticking. A frozen or weak spring shifts the belt off-center, creating noise and premature wear.
Inspect spindle shafts with a straightedge. A bent shaft changes pulley angle, which forces the belt sideways. Replace any visibly warped components instead of attempting adjustment.
Align idler pulleys so their faces match the drive pulleys. Misaligned idlers drag the belt outward, especially at higher RPMs.
If the belt repeatedly walks off, measure pulley spacing. Incorrect distance between centers creates a twist in the belt path.
| Issue | Check | Solution |
|---|---|---|
| Belt rides one side of pulley | Pulley groove cleanliness | Clean and replace worn pulleys |
| Constant squealing | Tensioner movement | Lubricate or replace tensioner arm |
| Belt slipping off | Shaft alignment | Replace bent spindle or pulley shaft |
| Uneven belt wear | Idler pulley angle | Adjust or replace idler pulleys |
| Frequent belt walk | Center-to-center pulley distance | Reset spacing to factory specification |
Recheck alignment after each adjustment by rotating the belt manually through a full cycle. Smooth tracking without drift confirms the issue is resolved.
