2005 Scion tC belt diagram with clear routing details for maintenance and replacement
If you need a quick reference for the 2005 Scion tC belt diagram, focus first on the serpentine belt layout. This model uses a single belt to power the alternator, water pump, power steering pump, and air conditioning compressor, so correct routing is necessary for proper engine performance.
The belt travels around multiple pulleys, starting at the crankshaft and looping through the tensioner before aligning with the accessory components. A misaligned or incorrectly installed belt can cause squealing noises, overheating, or charging issues, so checking the diagram before installation prevents common mistakes.
When replacing the belt, inspect the tensioner and pulleys for wear. A weak tensioner may lead to belt slippage, while damaged pulleys can shorten the lifespan of a new belt. Using the diagram as a guide makes the process straightforward and reduces the risk of errors during reassembly.
Keep a copy of the belt diagram nearby while working on your Scion tC. It serves as a reliable reference, especially if you remove the old belt before tracing its exact path. This way, you maintain proper routing and avoid repeated adjustments after installation.
2005 Scion tC Belt Diagram
Use the belt diagram of the 2005 Scion tC to check proper routing before installing a new serpentine belt. The 2.4L engine uses a single belt that drives the alternator, power steering pump, and A/C compressor from the crankshaft pulley.
From the crankshaft pulley, the belt runs upward to the A/C compressor, then across to the power steering pump. It continues around the alternator and tensioner pulley before looping back to the crankshaft. The automatic tensioner keeps the belt tight, so no manual adjustment is required after installation.
Before replacing the belt, inspect pulleys for wear or misalignment. A chirping or squealing noise usually points to a failing tensioner or worn pulley bearing rather than the belt itself. Always release tension with a breaker bar on the tensioner arm, then route the new belt according to the diagram for proper fit.
Identifying Belt Routing for 2005 Scion tC
Follow the serpentine belt path by locating the crankshaft pulley at the bottom center of the engine bay. From there, the belt moves upward to the A/C compressor on the passenger side, then continues around the alternator above it.
Next, trace the belt as it passes over the water pump pulley located at the center-top, then wraps around the power steering pump on the driver’s side. Finally, the belt travels down to the tensioner pulley, which maintains proper alignment and tension before returning to the crankshaft.
Confirm that the ribbed side of the belt sits inside the grooved pulleys and the smooth side runs against the flat pulleys. A quick check after installation–rotating the belt by hand–helps ensure correct seating and prevents misalignment.
Steps to Access and Inspect the Serpentine Belt
Park the vehicle on a flat surface, switch off the engine, and allow it to cool before touching any components.
- Open the hood and locate the serpentine belt on the front side of the engine. On the 2005 Scion tC, it wraps around the alternator, power steering pump, water pump, and A/C compressor.
- Remove the plastic engine cover if present. This provides clear access to the belt path.
- Use a flashlight to trace the belt around each pulley. Look for missing ribs, cracks, glazing, or fraying along the edges.
- Press down gently on the belt midway between two pulleys. It should only deflect about half an inch. Excessive slack suggests tensioner wear.
- Check the automatic tensioner and idler pulleys. Listen for squeaks or grinding when rotating them by hand, as these noises indicate bearing damage.
- If inspection reveals cracks or uneven wear, mark the belt routing with chalk or take a quick photo before removal to ensure correct installation later.
Consistent inspection prevents unexpected failures and helps maintain reliable accessory operation.
Replacing the Belt with Correct Tension Adjustment

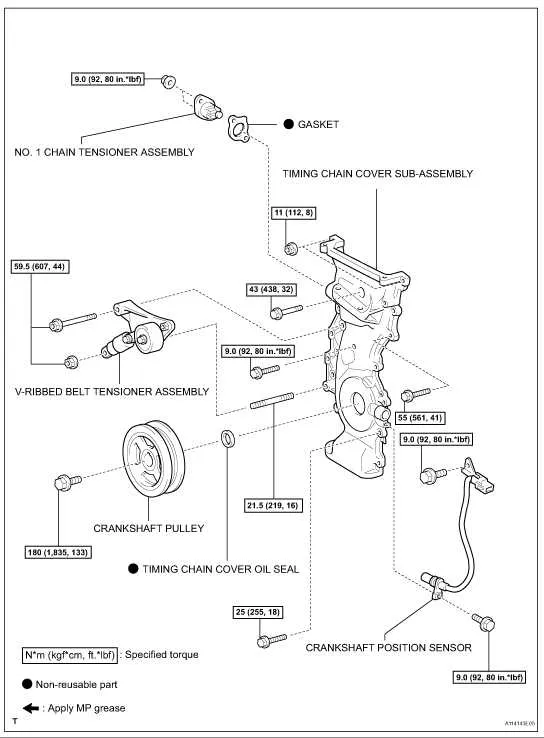

Loosen the tensioner bolt with a 14 mm wrench and rotate the tensioner clockwise to release the old belt. Slide the belt off the pulleys, making sure to note their routing according to the 2005 Scion tC diagram.
Place the new serpentine belt around the crankshaft pulley first, then guide it over the alternator, power steering pump, and water pump. Keep the belt ribs aligned in the grooves to prevent slippage.
While holding the tensioner in the released position, slip the belt over the tensioner pulley. Slowly let the tensioner return to its position so the spring applies pressure on the belt.
Check belt tension by pressing down midway between pulleys; about 1/4 inch deflection is correct. If the belt feels loose, reapply the wrench to the tensioner and reposition carefully until the alignment is perfect.
Run the engine for a few minutes and observe the belt tracking. Shut it off and recheck alignment before closing the hood. A properly adjusted belt eliminates squealing and protects pulley bearings from premature wear.
