09 Buick Enclave Serpentine Belt Diagram and Routing Guide

If you’re troubleshooting or replacing the serpentine belt on a 2009 Buick Enclave, having a clear and accurate belt diagram is a must. This diagram ensures that the belt is routed correctly and functions smoothly, avoiding costly mistakes during installation. Knowing the proper routing is key to preventing engine damage and ensuring the belt drives all necessary components, like the alternator, power steering pump, and air conditioning compressor.

The 2009 Buick Enclave uses a serpentine belt system that powers multiple accessories. The belt travels around several pulleys, with the tensioner keeping it taut. A detailed belt diagram outlines each component in the system, making it easy to follow the correct path. When replacing the belt, check the pulleys for wear or damage. If any pulleys are misaligned or damaged, they could cause premature belt failure.

To ensure a proper fit, refer to the diagram before attempting to install the new belt. Double-check the tensioner’s position and make sure the new belt is tightened correctly. Running the engine briefly after installation will help you spot any unusual noises or issues, allowing you to make adjustments before driving regularly.

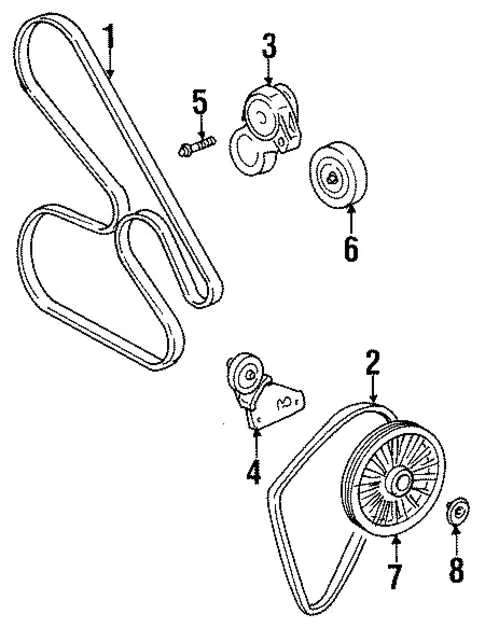

09 Buick Enclave Belt Diagram

For the 2009 Buick Enclave, the serpentine belt diagram is essential for proper engine operation. The serpentine belt drives key components, such as the alternator, power steering pump, air conditioning compressor, and water pump. It is critical to ensure the belt is routed correctly to avoid any malfunction or damage to the engine components.

To get started, locate the serpentine belt routing diagram on the front of the engine. It’s usually found on the engine cover or a label near the radiator area. This diagram outlines the exact path the belt should take, looping around each pulley. Ensure the belt follows this route precisely, as misalignment can cause premature wear or even belt failure.

The key pulleys involved in this diagram include the crankshaft pulley, tensioner pulley, idler pulley, and accessory pulleys. The crankshaft pulley is where the belt starts, with the tensioner pulley adjusting the belt’s tightness. The belt should loop around the other pulleys based on the diagram to keep the engine’s systems running smoothly.

Before replacing the belt, inspect the pulleys for any signs of damage, wear, or looseness. If any of the components seem faulty, replace them immediately to prevent further complications. Always ensure the new serpentine belt has the correct size and tension to avoid premature failure.

For accurate and detailed instructions, refer to the vehicle’s service manual. If you’re unfamiliar with this process, it’s wise to seek professional assistance to ensure the belt is installed correctly and securely.

Understanding the Routing of the Serpentine Belt in 09 Buick Enclave

Ensure the serpentine belt on your 2009 Buick Enclave is routed correctly by following the manufacturer’s diagram. The belt powers multiple components including the alternator, air conditioning compressor, and power steering pump. If routed incorrectly, these systems won’t function properly, leading to potential damage.

The first step is identifying the belt’s path from the crankshaft pulley. The belt loops around the main components in a specific order. It passes around the tensioner pulley, which maintains proper tension, and then routes around the alternator and air conditioning compressor. From there, it moves to the power steering pump and the idler pulley before returning to the crankshaft pulley.

Check the belt for signs of wear like cracks, fraying, or glazing before installation. If the belt is damaged, it may not grip properly, causing slippage or overheating. Tighten the belt to the recommended specifications to avoid unnecessary stress on the components.

While routing, ensure the belt follows the correct path as outlined in the diagram, paying special attention to pulleys’ orientation. Incorrect routing can lead to the belt slipping off or damaging surrounding parts.

Always replace the serpentine belt if it shows signs of wear. A belt failure could result in complete engine shutdown. For reference, ensure you have the right tension and belt size before proceeding with any repairs. If uncertain, consult a repair manual for your 2009 Buick Enclave to avoid potential mistakes.

How to Identify Common Issues with the Belt System in 09 Buick Enclave

Inspect the serpentine belt regularly for cracks, fraying, or glazing. These signs indicate wear and may cause belt slippage, leading to poor engine performance.

Check for unusual squealing or chirping noises. This could signal belt misalignment or tension issues. A misaligned pulley or worn tensioner may cause uneven wear, reducing belt lifespan.

Verify that the belt maintains proper tension. A loose belt can slip, causing alternator or power steering failure. If the belt is too tight, it may put strain on the pulleys and the engine components.

Examine the pulleys for any signs of wear or damage. A worn-out pulley bearing can affect the belt’s movement, causing excessive friction and premature belt wear.

Look for oil or coolant leaks around the belt. Fluids can break down the rubber, weakening the belt and causing it to fail prematurely. Replace seals or gaskets that may be leaking.

Monitor engine performance. If the vehicle experiences power steering issues, overheating, or electrical malfunctions, these could be linked to a faulty belt system.

Step-by-Step Guide to Replacing the Serpentine Belt in 09 Buick Enclave

Start by securing the vehicle. Park on a flat surface and engage the parking brake. Disconnect the negative terminal of the battery to avoid electrical issues during the process.

Locate the serpentine belt diagram. This can usually be found under the hood on a sticker or label. It will show how the belt should be routed around the pulleys. If it’s not visible, consult the owner’s manual for reference.

Remove any components obstructing access to the serpentine belt. This could include air intake hoses, engine covers, or other parts. Use a wrench or socket set to remove these items if necessary.

Identify the tensioner pulley. It’s typically spring-loaded and will need to be released to remove the belt. Use a ratchet wrench to turn the tensioner in the direction indicated on the diagram. This will relieve the tension on the belt.

Carefully slide the belt off the pulleys. Pay attention to its routing as you remove it, referencing the diagram you located earlier.

Inspect the old belt for signs of wear, such as cracks or fraying. It’s also a good idea to check the pulleys for damage or misalignment. Replace any faulty pulleys before installing the new belt.

Install the new serpentine belt. Begin by following the routing diagram exactly. Make sure the belt sits correctly in all grooves and is positioned properly on each pulley.

Use the ratchet wrench to move the tensioner back into place, allowing the belt to fit snugly. Double-check the belt’s alignment on all pulleys.

Reinstall any components you removed earlier, such as the air intake or engine covers. Tighten any fasteners securely to ensure they don’t come loose.

Reconnect the negative battery terminal and start the engine. Let it run for a few minutes while observing the belt. Ensure it operates smoothly without any unusual noise or slipping.

If everything looks good, you’ve successfully replaced the serpentine belt! Test drive the vehicle to confirm the repair is complete and there are no issues with the belt system.
