2010 Kia Soul 2.0 Engine Belt Diagram and Routing Guide
Consult the belt diagram before performing any maintenance on the 2010 Kia Soul 2.0 engine. This diagram clearly shows the routing of the serpentine belt, including the alternator, power steering, and air conditioning pulleys. Following the exact path ensures proper operation and avoids slippage or premature wear.
Check belt tension with a reliable gauge or by following the manufacturer’s recommended pressure. Over-tightening can damage bearings, while a loose belt reduces accessory performance. The diagram helps identify the tensioner pulley and its correct positioning for optimal alignment.
Replace the belt at the first sign of cracks, fraying, or glazing. Using the diagram as a reference makes installation faster and reduces the risk of twisting or misrouting. Accurate alignment prevents noise and extends the lifespan of both the belt and connected components.
Keep the diagram accessible during routine inspections. Even small adjustments, like rotating the tensioner or checking pulley wear, are easier when the belt routing is clearly visualized. This proactive approach maintains reliable engine performance and avoids unexpected failures.
2010 Kia Soul 2.0 Belt Diagram Detailed Guide for Accurate Installation
Begin by positioning the engine at TDC (Top Dead Center) to ensure proper alignment of the timing components. Verify that the crankshaft pulley and camshaft sprockets match the marks indicated in the factory diagram.

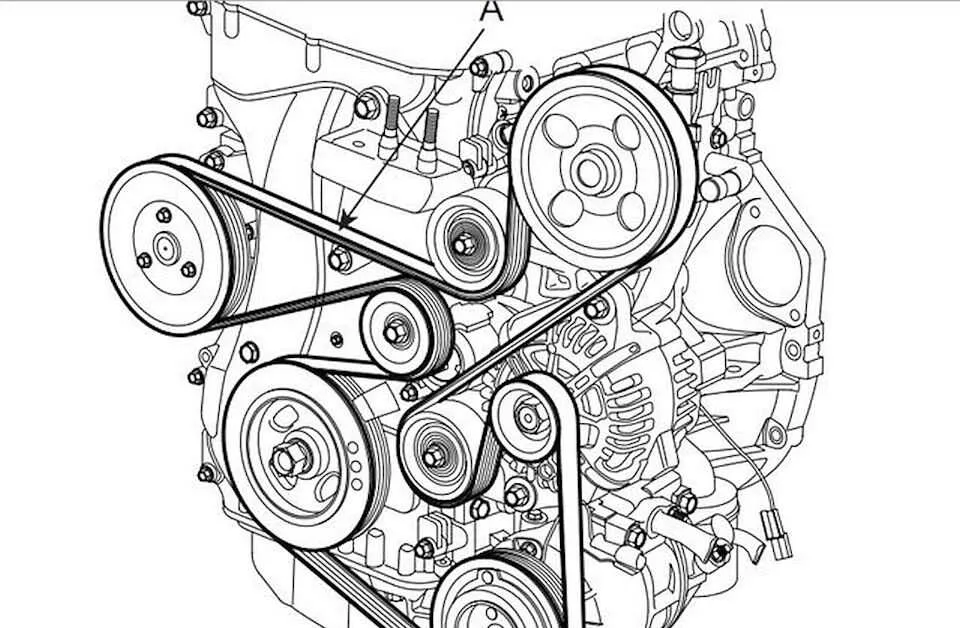

Use the correct serpentine belt routing: the belt wraps around the crankshaft pulley, alternator, power steering pump, idler pulley, and A/C compressor. Follow the diagram carefully to avoid misrouting, which can cause belt slippage or accessory failure.
Check the tensioner before installation. For the 2010 Kia Soul 2.0, apply the proper force to the automatic tensioner using a wrench on the tensioner arm. Ensure the belt sits fully in each pulley groove without twisting or overlapping.
Inspect all pulleys for wear or damage. Replace any worn idlers or pulleys to maintain consistent belt tracking. Lubricate the tensioner pivot lightly if necessary to allow smooth movement.
After routing the belt, rotate the engine manually two full revolutions to confirm the belt remains aligned and tensioned. Recheck all marks on the camshaft and crankshaft to verify timing accuracy. Tighten the tensioner and secure any brackets according to torque specifications provided in the service manual.
Run the engine at idle and observe the belt for smooth operation, listening for squeals or vibrations. Reinspect tension and alignment after the initial test drive to confirm stability.
Identifying All Engine Belts and Their Functions on 2010 Kia Soul 2.0
Locate the serpentine belt at the front of the engine; it drives the alternator, power steering pump, and air conditioning compressor. Check the belt for cracks or fraying before removal.
The timing belt sits behind the engine cover and coordinates the rotation of the crankshaft and camshaft. Replace it according to the mileage schedule to prevent engine damage.
The accessory belt handles smaller components like the water pump on certain configurations. Inspect tension and alignment carefully during maintenance.
Use the belt diagram printed in the engine bay or the service manual to identify each belt’s routing. Label each pulley to avoid confusion during reinstallation.
Adjust the tensioner pulley to ensure proper belt tension. Too loose or too tight can cause slipping or premature wear, affecting engine performance.
Confirm that all belts are seated correctly in their grooves after installation. Rotate the engine manually to verify smooth operation and correct alignment across all pulleys.
Step-by-Step Routing Instructions for Serpentine and Accessory Belts
Begin by locating the serpentine belt tensioner on the 2010 Kia Soul 2.0 engine. Use a 14mm wrench to rotate the tensioner clockwise, relieving tension on the belt.
Inspect the belt for wear or cracks before installation. Position the new belt around the crankshaft pulley first, ensuring it sits fully in the pulley grooves.
- Route the belt around the alternator pulley, maintaining alignment in the grooves.
- Guide the belt over the idler pulley closest to the alternator.
- Loop the belt around the power steering pump pulley, confirming it is seated correctly.
- Pass the belt over the water pump pulley, keeping tension minimal but controlled.
- Wrap the belt around the air conditioning compressor pulley.
- Return the belt to the tensioner pulley and release the tensioner slowly, allowing it to apply pressure evenly.
Verify that the belt rests correctly in all pulley grooves without twisting. Turn the engine manually using the crankshaft bolt for two full revolutions to confirm smooth operation.
For accessory belts, follow a similar process: identify each pulley, route the belt according to the diagram, apply tension via the dedicated tensioner or adjuster, and double-check alignment.
- Ensure no pulleys are loose or misaligned before final operation.
- Check the belt path against the engine’s diagram to avoid misrouting.
- Inspect belt tension and adjust if necessary after initial engine run.
Recheck all connections and ensure no contact with sharp edges or moving components. A correctly routed belt maximizes performance and longevity of engine accessories.
Troubleshooting Belt Wear, Tension Issues, and Alignment Problems
Inspect the serpentine belt visually for cracks, fraying, or glazing along the ribbed side. Replace the belt immediately if any signs of wear appear to prevent slippage or engine accessory failure.

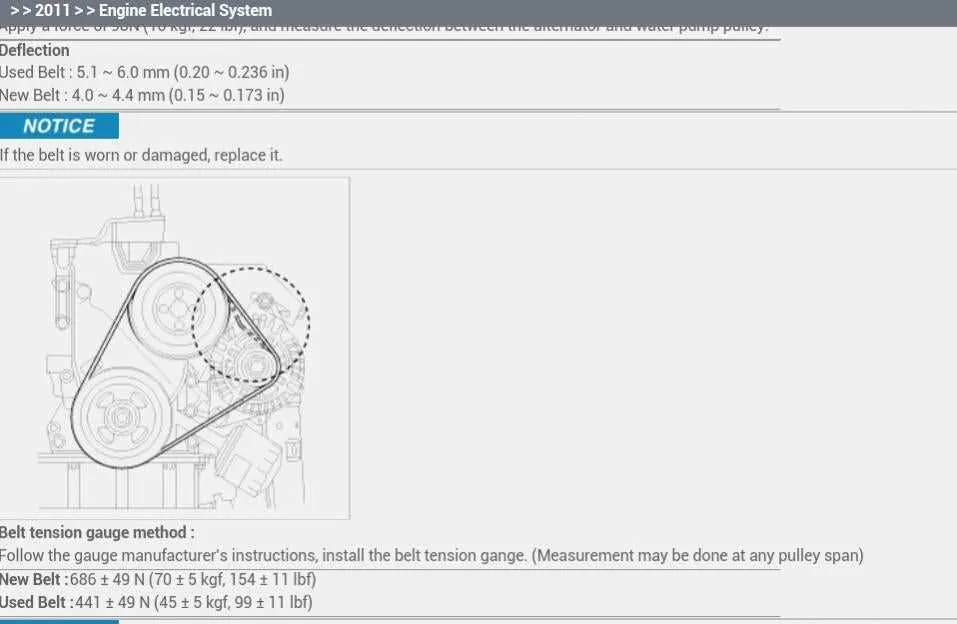

Check belt tension using a tension gauge or by applying moderate finger pressure at the midpoint between pulleys. The belt should deflect about half an inch under firm pressure; excessive slack indicates a worn tensioner or misadjusted belt.
Examine pulley alignment by sighting along the belt path or using a straightedge across adjacent pulleys. Misaligned pulleys can cause uneven wear, squealing, and premature belt failure.
Rotate the crankshaft by hand to observe the belt tracking on each pulley. Listen for unusual noises such as chirping or squeaking, which often indicate tension problems or misalignment.
If the belt shows uneven wear patterns, inspect pulleys for damage, buildup of debris, or bearing play. Replace any defective pulleys and clean surfaces before installing a new belt.
When replacing the belt, ensure it follows the manufacturer’s routing diagram precisely. Confirm tensioner movement is smooth and that the belt sits evenly within each pulley groove without twisting.
After installation, run the engine at idle and monitor the belt under load. Recheck tension and alignment after a short test drive to confirm the system operates quietly and the belt maintains proper contact across all pulleys.
