01 Buick LeSabre Serpentine Belt Diagram and Routing Guide
If you’re working on your 01 Buick LeSabre, understanding the belt diagram is key to diagnosing issues or replacing components. This diagram outlines the path that each belt takes through the engine, ensuring that accessories like the alternator, power steering pump, and air conditioning compressor run smoothly.
Begin by locating the tensioner and idler pulleys. These play an important role in maintaining the correct tension on the belts, preventing slippage and ensuring they don’t wear prematurely. Pay close attention to the direction of the belt routing, especially if you’re working with a serpentine belt system, as a slight misalignment can lead to operational problems.
For an accurate replacement or repair, double-check the diagram to verify that all pulleys are accounted for. It’s easy to overlook small components like the belt tensioner, which is why the diagram is your best tool for reference during service.
By following the correct belt path, you’ll not only prevent unnecessary wear but also keep the engine running smoothly for the long haul.
01 Buick LeSabre Belt Diagram

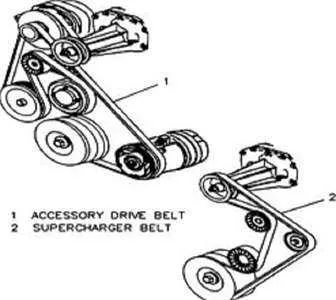

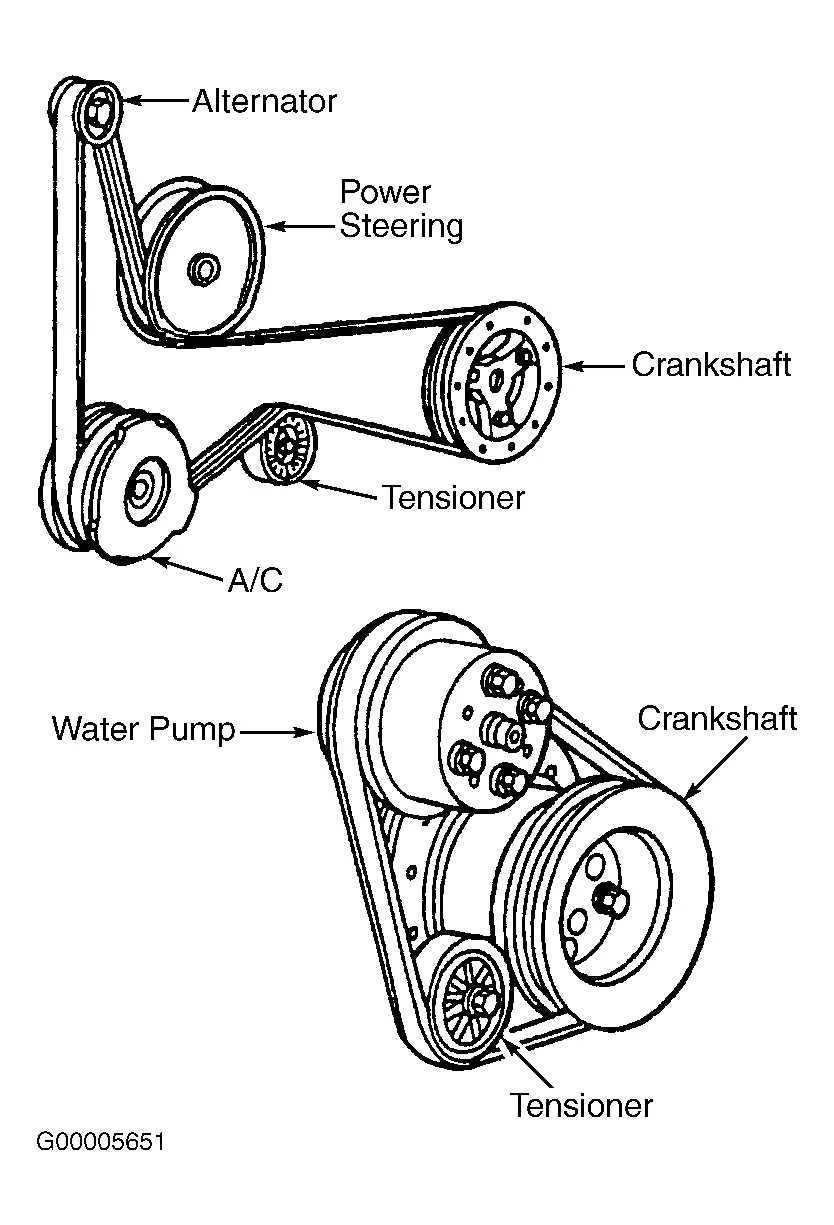

The 2001 Buick LeSabre belt diagram shows the proper routing of the serpentine belt, which powers various components like the alternator, power steering pump, and air conditioning compressor. Make sure to follow the diagram closely to avoid any issues with your vehicle’s accessories.
Start by locating the tensioner pulley, which keeps the belt tight. Use a wrench to relieve the tension and remove the old belt. Then, check all pulleys for any wear or damage. It’s also a good idea to inspect the belt for cracks or fraying before installing the new one. The belt should pass over the alternator, water pump, and air conditioner compressor in the correct sequence, as shown in the diagram.
If you’re not sure how to locate the tensioner, it’s usually positioned near the bottom of the engine, on the driver’s side. The diagram will help you see the exact path the belt follows, making installation easier and preventing mistakes.
Once the belt is in place, release the tensioner to apply the necessary tension to the belt. Double-check that everything is aligned correctly before starting the engine.

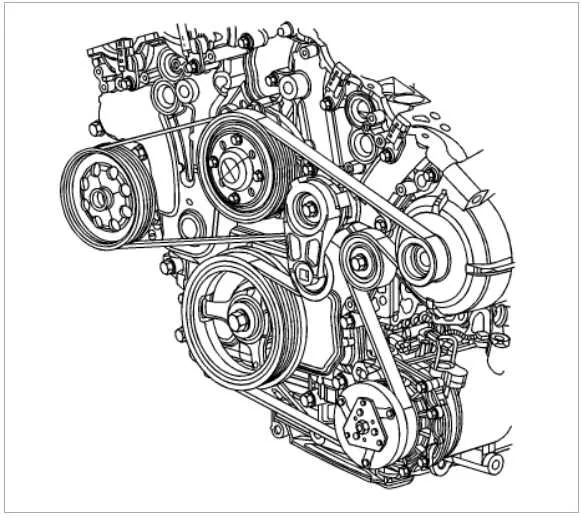

Identifying the Correct Belt Routing for 2001 Buick LeSabre
For the 2001 Buick LeSabre, correct belt routing is vital to ensure smooth operation and prevent engine damage. Follow these steps to identify the proper path for the serpentine belt:
- Locate the belt diagram: The belt routing diagram is usually found on a label near the engine bay. Look for a sticker on the radiator support or the underside of the hood.
- Examine the components: The belt typically runs over the alternator, power steering pump, air conditioning compressor, and water pump. Identify each part that the belt interacts with.
- Check the tensioner: The tensioner pulley keeps the belt tight. It is located near the top of the engine. Ensure the belt loops over this pulley for proper tension.
- Align the belt: Starting from the crankshaft pulley, route the belt through the pulleys, following the diagram for the correct path. Make sure the belt is seated properly in the grooves of each pulley.
- Double-check the routing: Verify the belt runs without twists or misalignments. The belt should lay flat across all pulleys without any slack.
When replacing or adjusting the belt, make sure the tensioner is operating smoothly and the belt is not cracked or worn. Regular inspection of the belt’s condition can prevent costly repairs down the road.
Common Issues with Belt Alignment and Tension on 01 Buick LeSabre
Check belt tension regularly to avoid premature wear. Loose or tight belts can cause performance issues. A loose belt may slip, while an overly tight belt can strain the engine components. Inspect the belt’s alignment to ensure it runs smoothly across all pulleys. Misalignment can lead to belt damage and further complications with engine components.
If you notice squealing or a whining noise, it’s often due to improper belt tension or misalignment. Inspect the pulleys for wear, especially the tensioner pulley. A worn or failing tensioner can result in inconsistent tension, leading to slipping or poor performance. Replacing the tensioner is a quick fix for this issue.
Check for signs of belt glazing or cracking. This could indicate excessive heat caused by incorrect tension or misalignment. Ensure all pulleys are in proper condition, and replace them if needed. A smooth, correctly tensioned belt will last longer and perform better.
When replacing the belt, use the correct size and type specified for your 01 Buick LeSabre. Incorrect belt specifications can cause improper fitment, leading to alignment issues. Pay attention to the routing diagram to ensure the belt is installed correctly.
Lastly, if the problem persists after adjusting the tension or replacing the belt, inspect the harmonic balancer. A damaged balancer can lead to belt misalignment, causing ongoing issues despite belt replacements and adjustments.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2001 Buick LeSabre
First, disconnect the negative terminal of the battery to avoid any electrical issues during the replacement process. Locate the serpentine belt on the front of the engine, and use a socket wrench to release tension from the tensioner pulley. You’ll need to rotate the pulley counterclockwise to loosen the belt.
Next, carefully remove the old belt by pulling it off the pulleys. It’s helpful to take a photo or note the belt routing before removal to ensure proper installation of the new one. This step is key to preventing any mistakes later.
Before installing the new belt, compare it with the old one to ensure the size and pattern match. Now, route the new belt according to the diagram or your reference photo. Start by placing it over the largest pulleys, then work your way around the smaller ones, making sure the belt fits snugly in each groove.
Once the belt is in place, use the socket wrench to rotate the tensioner pulley again, allowing the belt to slip into position. Double-check the alignment of the belt on all pulleys. It should be centered and properly tensioned without any slack or signs of misalignment.
Reconnect the negative terminal of the battery, start the engine, and observe the belt’s movement. Listen for any unusual noises, and make sure the belt is running smoothly across all pulleys. If everything looks good, the replacement is complete.
