2014 Kia Optima 24 Engine Belt Layout and Routing Diagram for Reference
Consult the belt diagram before attempting any maintenance on your 2014 Kia Optima 2.4L engine. The serpentine belt routes around the alternator, power steering pump, water pump, and A/C compressor, maintaining proper tension and alignment. Misrouting can lead to engine overheating, battery discharge, or accessory failure.
Follow the diagram carefully to position the belt over each pulley correctly. Use a wrench to relieve tension from the automatic tensioner, then slide the belt into place starting with the crankshaft pulley. Double-check the routing against the diagram to prevent skipping or misalignment that could damage components.
Inspect the belt for cracks, fraying, or glazing while installing. Replace it immediately if any damage is found. Proper alignment ensures smooth operation, reduces noise, and extends the life of the belt and connected accessories. Keep the diagram accessible for future reference during routine maintenance.

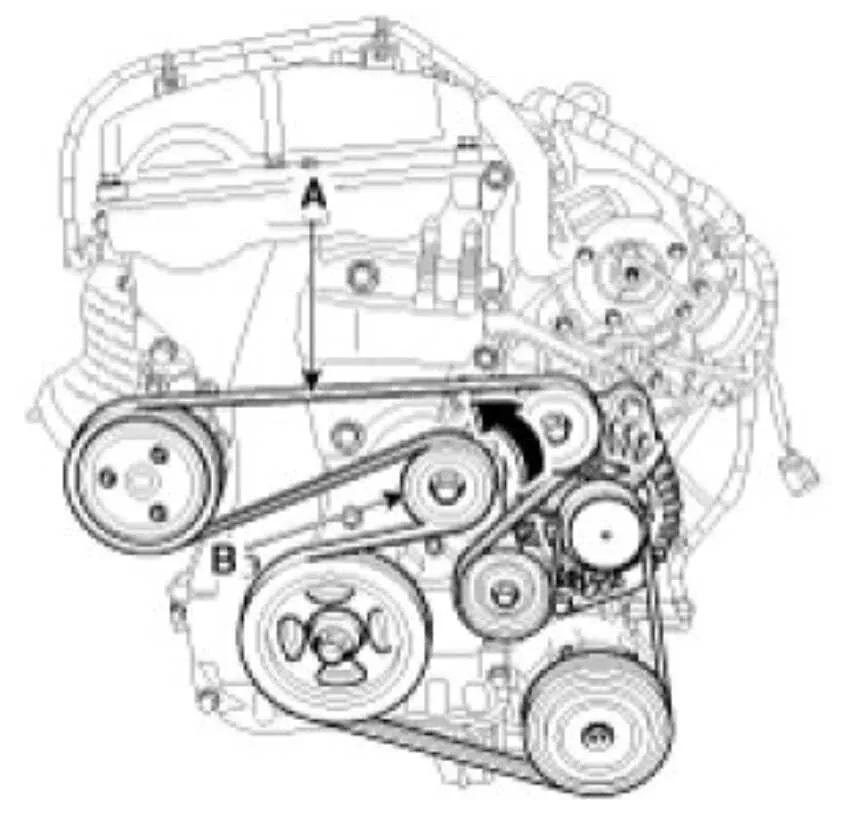

2014 Kia Optima 2.4 Belt Diagram
Consult the belt routing diagram located on the engine cover before replacing the serpentine belt. For the 2014 Kia Optima 2.4L, the belt runs clockwise from the crankshaft pulley, looping around the alternator, idler pulley, water pump, and power steering pump. Ensure each pulley rotates freely and shows no signs of wear before installation.
Align the belt with the grooves on every pulley to prevent slipping. Use a tensioner tool to relieve tension from the automatic tensioner, carefully sliding the belt into place. Double-check that the belt sits correctly in all pulley grooves after releasing the tensioner.
Inspect the belt for cracks, fraying, or glazing during installation. Replace the tensioner or idler pulleys if any bearing noise or wobble is detected. Torque all fasteners according to manufacturer specifications to maintain proper alignment.
Run the engine briefly after installation and observe the belt movement. Any misalignment or unusual noise indicates adjustment is needed. Recheck tension and pulley alignment before driving to prevent premature wear or failure.
Locating the Serpentine Belt Routing on a 2014 Kia Optima 2.4
Check the engine’s front side near the crankshaft pulley to locate the serpentine belt. Look for a single continuous belt that winds around the alternator, water pump, power steering pump, and air conditioning compressor. The belt tensioner sits close to the center of this assembly and can be moved to release or install the belt.
Use the diagram printed on the radiator shroud or under the hood, usually on a sticker, for the exact routing pattern. The belt follows a clear path: from the crankshaft pulley, it moves to the alternator, then wraps around the tensioner, continues to the air conditioning compressor, circles the idler pulley, and returns to the crankshaft. Each pulley has a designated groove alignment to prevent slipping.
If the sticker is missing, trace the belt manually by noting the rotation direction of each pulley. Start at the crankshaft and move clockwise or counterclockwise depending on engine orientation. Mark each pulley with chalk or tape to remember the correct sequence. Double-check alignment before tensioning to avoid misrouting and potential damage.
Release the tensioner using a wrench on the designated bolt, slide the belt over the pulleys, and slowly let the tensioner apply pressure. Rotate the engine manually one full turn after installation to confirm proper seating and smooth operation. Inspect for cracks or fraying during installation and replace the belt if any wear appears.
Step-by-Step Visual Guide for Removing and Installing the Belt
Loosen the tensioner using a 14mm wrench to release the serpentine belt on the 2014 Kia Optima 2.4. This allows the belt to slide off smoothly from the pulleys.
- Inspect the belt routing: Take a clear photo or draw a diagram of the belt path across the alternator, power steering, AC, and crankshaft pulleys.
- Remove the old belt: Move the tensioner away from the belt, then carefully lift the belt off each pulley one by one, starting with the easiest accessible pulley.
- Check pulleys and tensioner: Rotate each pulley by hand to confirm smooth operation. Replace any pulley that feels rough or has play.
- Install the new belt: Follow your diagram or photo to loop the belt around each pulley, leaving the tensioner for last. Ensure the belt sits correctly in all grooves.
- Set belt tension: Use the wrench to move the tensioner and slide the belt onto it. Slowly release the tensioner, confirming that the belt seats properly and aligns with every pulley.
- Double-check alignment: Spin the crankshaft pulley by hand. Watch the belt track to make sure it does not slip or rub against any edges.
- Test engine operation: Start the engine and observe the belt at idle. Ensure smooth motion with no squealing or vibration.
Keep a hand on the tensioner while releasing it, and avoid forcing the belt over pulleys. This prevents damage to the belt or tensioner arm.
Always replace the belt if any cracks or fraying are visible. Using the correct 2.4L serpentine belt for the 2014 Kia Optima ensures proper tension and long service life.

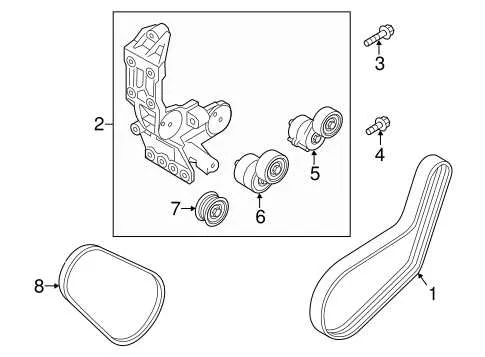

Identifying Tensioner and Pulley Positions for Accurate Alignment
Locate the belt tensioner on the front of the 2014 Kia Optima 2.4 engine near the alternator bracket. Apply a 14mm wrench to rotate the tensioner clockwise, releasing tension from the serpentine belt. Check the tensioner pulley for smooth rotation; a rough or wobbly pulley indicates wear and requires replacement.
Identify the crankshaft pulley at the bottom center of the engine. Ensure the belt sits securely in the pulley groove without twisting. The idler pulley sits above the water pump and guides the belt toward the A/C compressor. Verify that the idler pulley spins freely and aligns with the belt path.
Follow the belt diagram stamped on the engine cover or printed in the service manual. Route the belt around each pulley, starting with the crankshaft, then the tensioner, alternator, water pump, idler, and A/C compressor. Confirm that each pulley aligns precisely with the belt’s ribbed grooves before releasing the tensioner to hold the belt in place.
After installation, rotate the engine manually two full revolutions using the crankshaft bolt. Observe the belt movement and pulley alignment. Any misalignment or slippage requires adjusting the belt path or replacing worn pulleys to prevent premature wear or noise.
