2015 Nissan Rogue Serpentine Belt Diagram and Maintenance Guide

If you’re troubleshooting or replacing the serpentine belt on your 2015 Nissan Rogue, having the correct belt diagram is key to a smooth and efficient process. This diagram outlines the specific routing for the serpentine belt, ensuring all components such as the alternator, power steering pump, air conditioning compressor, and crankshaft pulley work together seamlessly.

Refer to the belt diagram before beginning the installation. The belt should be routed through the various pulleys and tensioners in a specific order, as shown in the diagram. Make sure the tensioner is properly adjusted after installation to avoid unnecessary wear or belt slippage. A properly installed belt will improve the overall performance of your engine and prevent premature failure of critical components.

For those replacing the serpentine belt for the first time, pay attention to the specific markings on the diagram and verify that the belt matches the size and specifications recommended for the 2015 Rogue. Incorrectly routing the belt can lead to serious damage and costly repairs, so double-check your work carefully before starting the engine.

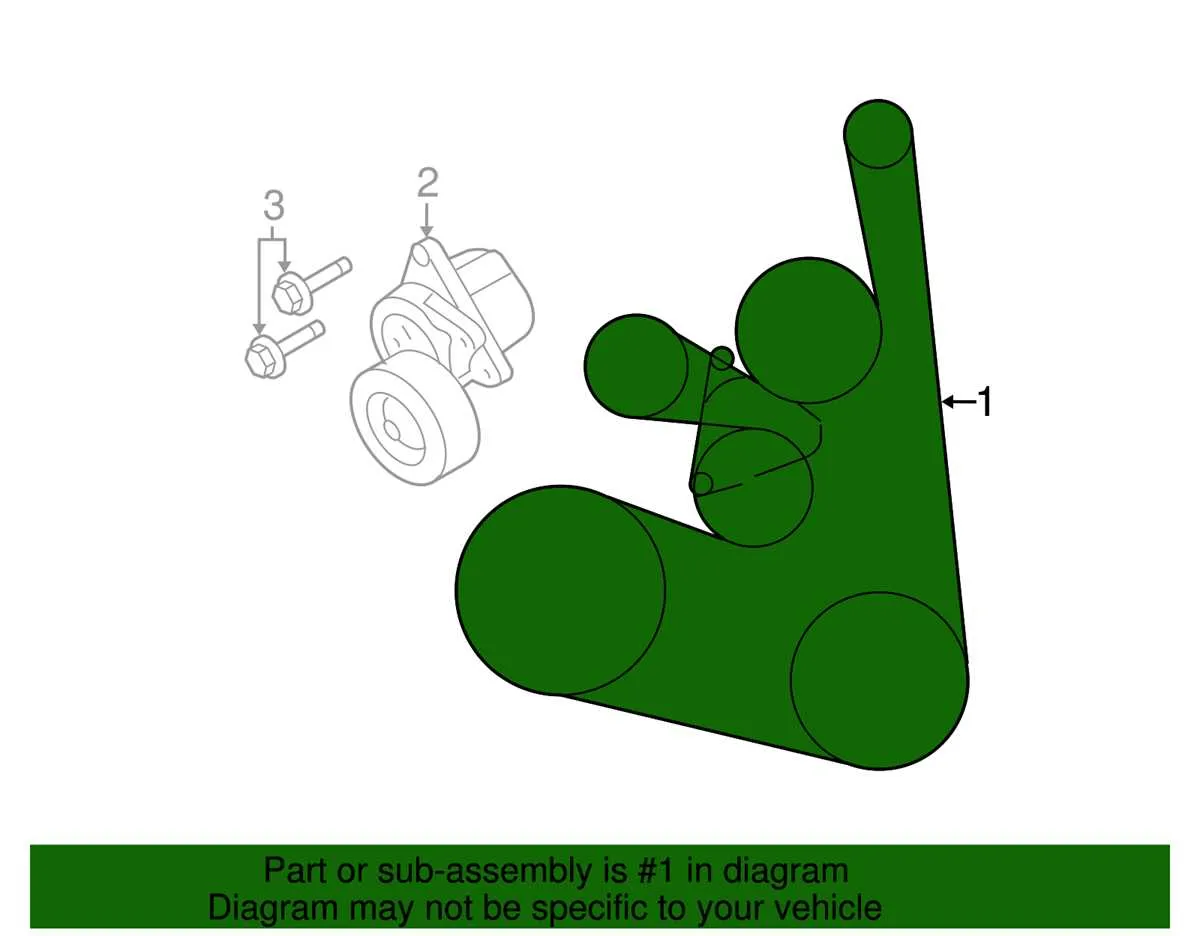

2015 Nissan Rogue Belt Diagram

To replace the serpentine belt on your 2015 Nissan Rogue, refer to the belt routing diagram for accurate installation. The serpentine belt powers multiple accessories, including the alternator, air conditioning compressor, and power steering pump. Ensure the belt is installed with the correct tension to prevent slippage or damage.

The belt diagram for the 2015 Nissan Rogue shows a clear routing path that loops over the pulleys of the engine. Start by locating the belt tensioner. Using a wrench or socket, relieve the tension to remove the old belt. Take note of the pulleys it runs over, as the diagram details the exact order and direction for a proper fit.

Once the old belt is removed, align the new belt according to the diagram, ensuring that it follows the same path around all the pulleys. Pay close attention to the direction of rotation for each pulley and the specific routing for the air conditioning compressor and alternator. These are critical components that must be properly connected to avoid belt misalignment.

After installation, check the belt’s tension. If it feels too loose or tight, adjust the tensioner to achieve the correct fit. It’s also advisable to inspect the belt for signs of wear, such as cracking or fraying, and replace it at regular intervals to avoid unexpected breakdowns.

By following the belt routing diagram closely, you’ll ensure smooth operation of the vehicle’s systems and prevent unnecessary repairs. Always double-check the routing before starting the engine to confirm that everything is aligned correctly.

How to Read the 2015 Nissan Rogue Belt Diagram for Maintenance

Start by identifying the components on the diagram: the alternator, power steering pump, air conditioning compressor, water pump, and the crankshaft pulley. Each of these parts plays a specific role in the engine’s operation, and the belt routes power from the crankshaft to them.

The diagram typically includes a schematic view of the belt’s path around these components. Look for arrows indicating the belt’s direction, which helps you understand how it moves across the pulleys. The belts are usually routed through a series of pulleys, and the tensioner pulley maintains the correct tension on the belt. Pay attention to any notes on the diagram about belt routing, as mistakes can lead to serious engine damage.

Ensure that the belt lines up with the correct pulleys. If a belt is misaligned, it could wear out prematurely or even break. Use the diagram to confirm that the new belt fits the same path as the original. For proper maintenance, check the belt for signs of wear such as cracks or fraying at least once every 30,000 miles.

If you’re replacing the belt, make sure the tension is correctly set. A loose belt can slip and cause poor performance, while a tight belt can lead to over-stressing the engine components. Adjust the tension using the tensioner pulley, and verify the alignment of all pulleys to avoid issues down the line.

After installation, always double-check the diagram to make sure everything is correctly installed. The belt should be snug but not overly tight, with even contact across all pulleys. Regular inspection and proper installation are key to keeping the engine running smoothly.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2015 Nissan Rogue

To replace the serpentine belt on your 2015 Nissan Rogue, you’ll need a few tools: a 3/8-inch drive ratchet, a socket set, and a new serpentine belt. Follow these steps for a smooth replacement process.

1. Locate the Serpentine Belt and Tensioner

Open the hood and find the serpentine belt at the front of the engine. It loops around several pulleys, including the alternator, power steering pump, and AC compressor. The tensioner pulley, which keeps the belt tight, will be nearby.

2. Release Tension on the Belt

Use the 3/8-inch drive ratchet to fit into the square hole on the tensioner pulley. Rotate the tensioner counterclockwise to relieve tension on the belt. With the tension released, carefully remove the belt from the pulleys.

3. Remove the Old Serpentine Belt

Once the tension is off, remove the belt from the engine. Take note of how the belt routes around the pulleys, as you’ll need to follow this pattern when installing the new one. You can use a diagram (often found on a label in the engine bay) as a reference.

4. Install the New Serpentine Belt

Take the new serpentine belt and route it around the pulleys exactly as the old one was. Pay attention to the correct direction of the belt, as it must follow the grooves of each pulley correctly.

5. Reapply Tension on the Belt

With the belt in place, rotate the tensioner counterclockwise again to allow the belt to fit snugly onto the pulleys. Once in place, release the tensioner and double-check that the belt is seated properly.

6. Test the Installation

Start the engine and visually inspect the belt to ensure it runs smoothly on the pulleys. Listen for any unusual sounds that could indicate an improper installation. If everything looks good, you’ve successfully replaced the serpentine belt!

Make sure to dispose of the old belt responsibly. Regularly check the belt for signs of wear, and replace it as needed to avoid engine issues down the road.

Troubleshooting Common Belt Issues in the 2015 Nissan Rogue

Check the serpentine belt for visible cracks, fraying, or wear. If you notice any of these signs, replacing the belt is crucial to avoid further damage to engine components. A damaged belt can also lead to poor performance of accessories like the alternator, power steering, and air conditioning.

Check the belt tensioner. A worn or loose tensioner can cause the belt to slip, leading to squeaking noises or overheating. If the belt tensioner appears misaligned or feels loose when you press on it, it should be replaced immediately.

If your 2015 Nissan Rogue is making a whining or squealing noise, it’s likely the result of a loose or misaligned belt. Inspect the alignment of the pulleys and the condition of the tensioner to address the issue.

If your vehicle starts to overheat or shows electrical issues, the problem may be linked to the serpentine belt slipping or failing to drive key systems such as the water pump or alternator. Testing the belt for tightness and inspecting the pulleys is a quick way to diagnose these issues.

• Inspect pulleys for damage or wear. They should rotate smoothly and without wobble.
• Look for oil or coolant leaks near the belt. These fluids can deteriorate the belt material.
• If the belt seems stretched, it’s time for a replacement. A stretched belt may fail to provide adequate tension to the pulleys.

Ensure proper belt routing according to the belt diagram. Incorrect routing can cause premature wear and even lead to failure. Always refer to the 2015 Nissan Rogue’s belt diagram to ensure the belt is correctly placed.

If you’re unsure about the belt’s condition or the cause of issues, it’s wise to seek a professional mechanic’s help for a thorough inspection. This prevents more extensive damage and ensures your vehicle runs smoothly.
