2014 Ford Fusion 1.5 Serpentine Belt Routing Diagram and Repair Tips
When replacing the serpentine belt on your 2014 Ford Fusion 1.5, it’s crucial to follow the correct routing to avoid damage to the engine components. The serpentine belt drives multiple systems, such as the alternator, power steering pump, air conditioning compressor, and water pump. Ensuring proper belt placement ensures efficient engine function and prevents premature wear on other components.
Refer to the diagram to verify the exact path for your serpentine belt. Pay attention to any tensioners and pulleys, as these play a key role in maintaining proper belt tension. The tensioner should be adjusted correctly to prevent the belt from slipping or becoming too tight, both of which can cause engine performance issues.
Before starting, make sure the engine is off and cool. Use the appropriate tools to release tension from the tensioner pulley, and then carefully remove the old belt. Follow the diagram step-by-step to install the new belt, ensuring it sits correctly on each pulley. Double-check the belt’s alignment after installation to guarantee it’s functioning properly.

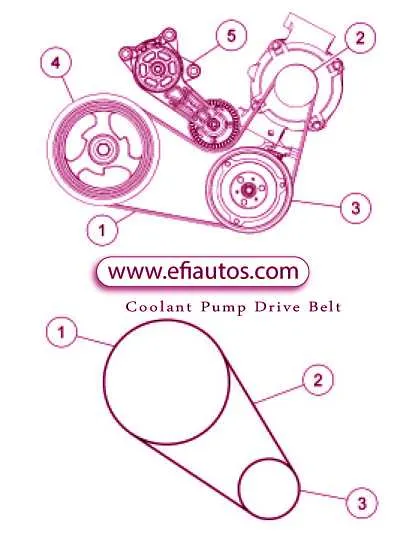

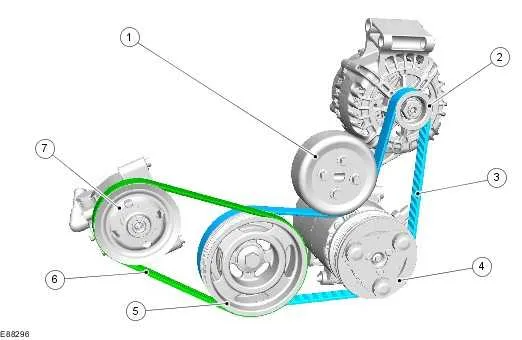

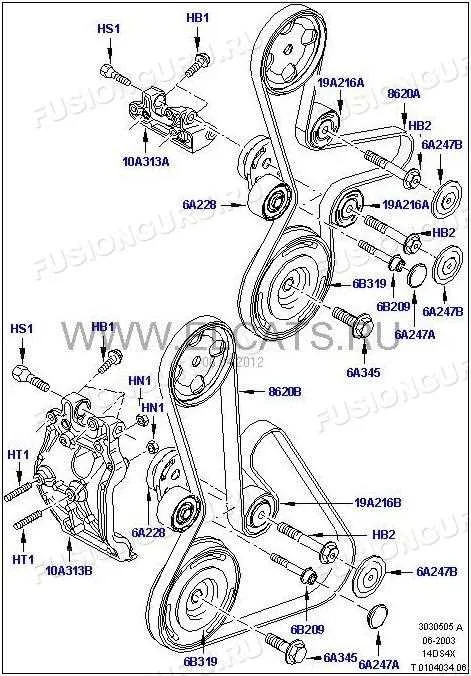

2014 Ford Fusion 1.5 Serpentine Belt Diagram
For the 2014 Ford Fusion 1.5, the serpentine belt plays a crucial role in driving multiple engine accessories, such as the alternator, power steering pump, and air conditioning compressor. To ensure your belt functions properly, refer to the specific routing diagram. This visual guide will help you replace or inspect the belt with ease, ensuring everything is aligned correctly.
The serpentine belt for this model runs around the crankshaft pulley, which drives the alternator, air conditioning compressor, and power steering pump. Check the routing for the correct sequence, making sure the belt is snug against all pulleys without any slack. A misrouted or damaged belt can cause engine components to malfunction, so double-check the diagram before installation.
If you’re replacing the serpentine belt, make sure to inspect the pulleys for any signs of wear or damage. A faulty pulley can cause premature wear on the new belt, leading to further issues down the line. The tensioner pulley is responsible for maintaining proper tension, so ensure it moves freely and is not stuck or loose.
For the 2014 Ford Fusion 1.5, the tensioner arm is spring-loaded, and the belt tension can be adjusted by using a suitable tool to release tension and remove the old belt. Once the new belt is in place, ensure it’s routed exactly as shown in the diagram and test the belt’s movement by rotating the engine manually before starting the vehicle.
Always use a high-quality replacement serpentine belt to avoid premature failure. The right belt will reduce stress on the engine and keep accessories working efficiently. Proper installation is key to preventing issues down the road, so take your time and follow the diagram step by step.
How to Read the 2014 Ford Fusion 1.5 Serpentine Belt Diagram
To read the serpentine belt diagram for the 2014 Ford Fusion 1.5, identify the components and their positions. Start by locating the engine accessories that the belt powers–alternator, power steering pump, air conditioning compressor, and water pump. Each part will be represented by a symbol or abbreviation on the diagram.
Next, focus on the routing path. This shows the exact order in which the belt travels over the pulleys. The diagram will also indicate the tensioner and how the belt loops around it. Understanding the direction of the belt’s movement can help avoid installation mistakes.
Take note of the pulley sizes and positioning. Larger pulleys are typically for the accessories, while smaller ones are usually tensioners or idlers. The diagram will mark these clearly to help you differentiate between them.
Pay attention to any arrows or markings that show the belt’s direction, especially if you’re replacing the belt. A few diagrams may include specific instructions for belt tension, which is crucial for proper operation.
Lastly, verify that the diagram matches the specific configuration of your engine model. Some Ford Fusion engines may have slight variations in layout, so always cross-reference the diagram with your actual setup.
Common Issues with the Serpentine Belt in 2014 Ford Fusion 1.5 and How to Solve Them
The serpentine belt in your 2014 Ford Fusion 1.5 can face a few common problems that impact its performance. Regularly inspecting the belt can help prevent issues, but it’s crucial to recognize the signs early to avoid bigger engine troubles.
1. Belt Wear and Cracks
After prolonged use, the serpentine belt may show visible signs of wear, including cracks or fraying. This is a clear indicator that the belt needs replacement. If you notice this issue, replace the belt as soon as possible. Failure to do so can result in the belt snapping, which will stop essential engine components from operating.
2. Squeaking or Squealing Noise
If you hear a high-pitched squeak or squeal coming from the engine bay, it could mean that the serpentine belt is slipping or misaligned. The noise typically occurs when the belt loses grip on pulleys, often due to wear or if the tensioner is faulty. Tightening or replacing the belt will usually resolve this problem.
3. Tensioner Failure
A worn or failing tensioner is another reason for belt slippage. The tensioner maintains the correct tension in the serpentine belt. If it wears out, the belt may not stay tight enough, causing slippage or misalignment. If you notice the belt is loose, the tensioner might need to be replaced.
4. Misalignment of Pulleys
Sometimes the issue stems from misaligned pulleys that cause uneven wear on the belt. This can happen if a pulley bearing fails or if the pulley is damaged. Check the pulleys to ensure they are properly aligned, and replace any faulty pulleys to prevent further damage to the belt.
5. Accumulation of Dirt and Debris
Dirt, debris, and oil on the serpentine belt can cause it to wear out prematurely or slip. Regular cleaning and keeping the engine bay free from contaminants can help extend the belt’s life. If oil leaks or dirt build-up are observed, address the root cause to avoid recurring issues.
Regular inspection and maintenance of the serpentine belt will keep your 2014 Ford Fusion running smoothly and prevent unexpected breakdowns.
Step-by-Step Guide to Replacing the Serpentine Belt on a 2014 Ford Fusion 1.5
To replace the serpentine belt on your 2014 Ford Fusion 1.5, follow these steps carefully for a smooth and safe process.
- Gather Necessary Tools: Before starting, ensure you have a ratchet wrench, a socket set, a belt tensioner tool, and a replacement serpentine belt that fits your model.
- Locate the Serpentine Belt: Open the hood and find the serpentine belt on the front of the engine. You should see the belt running across various pulleys, including the alternator, power steering pump, and air conditioning compressor.
- Release Tension on the Belt: Use the belt tensioner tool to relieve tension from the serpentine belt. This typically involves rotating the tensioner pulley counterclockwise. Once released, remove the belt from the pulleys.
- Remove the Old Belt: After the belt is loose, carefully remove it from the pulleys. Take note of the belt’s routing, as you’ll need to install the new belt in the same pattern. It’s a good idea to take a photo for reference.
- Install the New Belt: Begin by routing the new serpentine belt around the pulleys, following the same path as the old belt. Make sure the belt sits properly in the grooves of each pulley.
- Reapply Tension: Once the new belt is in place, use the tensioner tool to apply the necessary tension. The belt should be snug but not overly tight. Double-check that the belt is aligned and securely seated.
- Test the Installation: Start the engine and observe the serpentine belt in action. Ensure it runs smoothly and that there are no squeaks or unusual sounds. If everything is functioning correctly, the installation is complete.
Replacing the serpentine belt is a simple task, but following the correct steps ensures a smooth operation for your engine components. Always check the belt for wear and replace it promptly when necessary to avoid engine damage.
