2015 Nissan Altima 2.5 Engine Belt Routing and Diagram for Accurate Maintenance
Locate the serpentine belt routing immediately: On the 2015 Nissan Altima 2.5, the belt runs over the alternator, water pump, and A/C compressor in a specific pattern. Following the diagram precisely prevents misalignment and potential engine damage.
Check tensioner placement carefully: The automatic tensioner keeps the belt tight across all pulleys. Identify its position relative to the crankshaft pulley and the idler pulley to ensure correct installation and consistent engine performance.

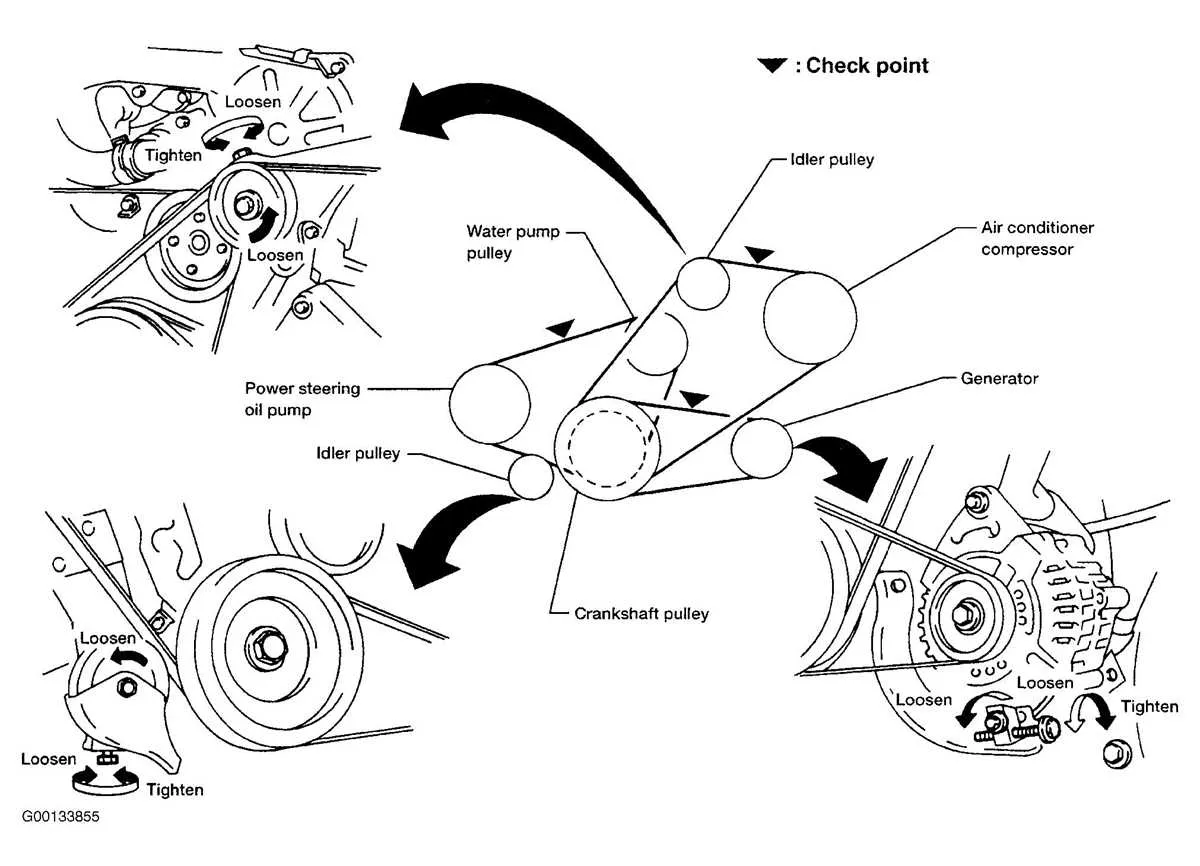

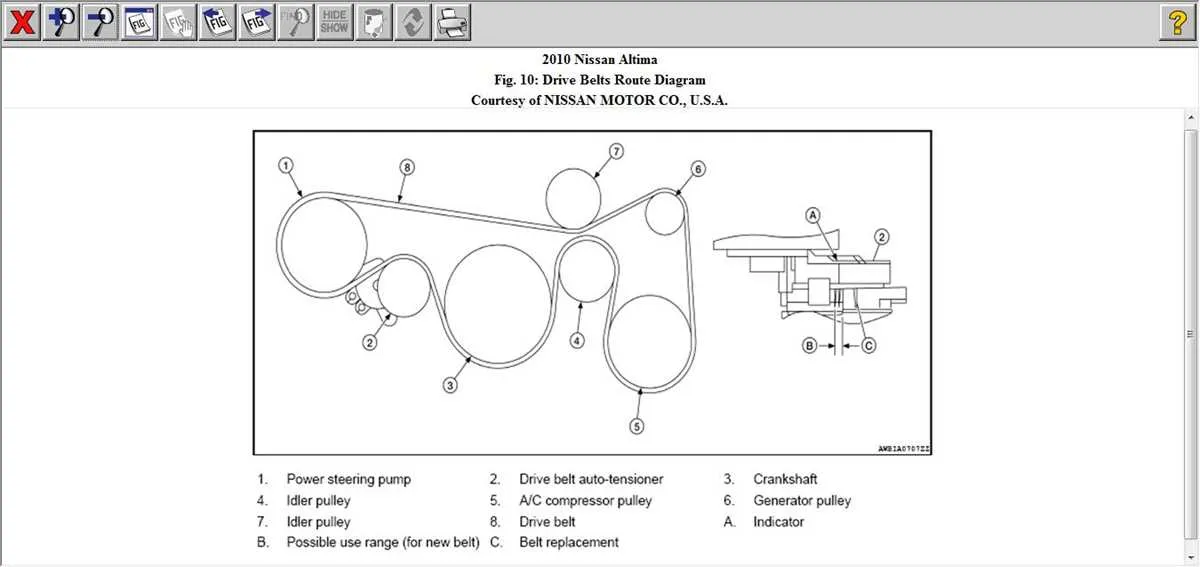

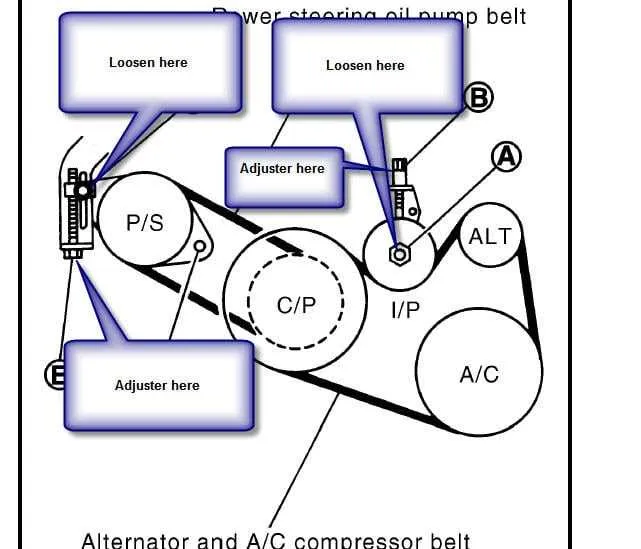

Reference the layout visually: A printed or digital diagram shows the belt’s path around each component. Note the routing over the harmonic balancer at the crankshaft, around the alternator, and looping under the A/C compressor pulley.
Replace worn components during belt installation: Inspect the pulleys and tensioner for wear or noise. Replacing these parts along with the belt avoids premature failure and maintains smooth engine operation.
Follow torque specifications: When securing the tensioner or idler bolts, use the manufacturer’s recommended torque values. Proper torque prevents loosening during engine operation and ensures the belt stays aligned.
Locating and Identifying the Serpentine Belt Components
Locate the serpentine belt on the front of the engine, looping around multiple pulleys. Begin at the crankshaft pulley, which is the largest and sits at the bottom center of the engine. Trace the belt upwards to the alternator pulley, typically positioned on the upper passenger side.
Identify the tensioner pulley, a spring-loaded component that keeps the belt tight. It usually sits near the center of the belt path and has a smooth or slightly grooved surface. Next, locate the idler pulleys; these guide the belt and maintain alignment without driving accessories. They are smaller than the tensioner and positioned strategically along the belt route.
Spot the water pump pulley along the belt, generally on the driver’s side, connected to the cooling system. The power steering pump pulley appears near the top driver-side section, distinguishable by its connection to the fluid reservoir. The air conditioning compressor pulley is often on the lower passenger side, featuring a slightly larger diameter and visible clutch mechanism.
Follow the belt around each pulley slowly, checking for grooves and alignment. The ribbed side of the belt must match the grooved pulleys, while the smooth side rides over the tensioner and idlers. Use a belt routing diagram for the 2015 Nissan Altima 2.5 to confirm each component’s position before any removal or adjustment.
Step-by-Step Belt Replacement Process
Loosen the tensioner using a 14mm socket to relieve pressure on the serpentine belt. Slide the old belt off the pulleys, noting its routing for reference. Avoid twisting or forcing the belt as it may damage the tensioner or pulleys.
- Inspect all pulleys for wear, cracks, or wobble. Replace any damaged components before installing the new belt.
- Compare the new belt to the old one, ensuring the length, rib count, and width match precisely.
- Route the belt according to the diagram specific to the 2015 Nissan Altima 2.5. Verify the belt sits correctly in all pulley grooves without misalignment.
- Rotate the tensioner slowly back into position to apply pressure on the new belt. Check that the belt remains seated on every pulley.
- Manually spin the crankshaft pulley two full rotations. Observe belt tracking to confirm smooth movement and proper tension.
- Tighten any tensioner bolts if required and ensure no pulleys are loose or noisy.
Test the vehicle by starting the engine and letting it idle for a few minutes. Listen for squealing or slipping, adjusting tension if necessary. Perform a visual check under the hood to confirm the belt maintains alignment during operation.
Keep a serpentine belt routing diagram accessible in the engine compartment for future maintenance or troubleshooting.
Checking Tensioner and Pulley Alignment for Proper Operation
Inspect the belt tensioner by applying moderate pressure with a wrench to its arm; it should move smoothly and return to its original position without hesitation. Any sticking or grinding indicates worn bearings or a weakened spring that requires replacement.
Examine all pulleys for lateral wobble by spinning them by hand. They must rotate evenly without resistance, grinding, or visible play. Replace pulleys showing misalignment or rough rotation to prevent premature belt wear.
Measure the belt deflection at the midpoint between pulleys. For a 2015 Nissan Altima 2.5, the deflection should be approximately 0.5 to 0.7 inches with moderate finger pressure. Excessive slack signals tensioner failure, while overly tight belts stress bearings.
Check pulley alignment using a straightedge or laser tool along the face of adjacent pulleys. All grooves must line up precisely; any offset can cause belt noise or accelerated deterioration. Adjust brackets or replace misaligned components as needed.
Listen for abnormal sounds during engine operation after adjustment. Squealing or chirping often points to improper tension or slight pulley misalignment. Fine-tune the tensioner or replace faulty pulleys until rotation is smooth and quiet.
