Honda Accord 2004 Serpentine Belt Diagram and Routing Guide

For the 2004 Honda Accord, understanding the belt system is crucial for smooth engine operation. The serpentine belt, which powers various accessories like the alternator, power steering, and air conditioning, plays a central role. If you’re looking to replace or inspect the belts, knowing the layout can save time and ensure accuracy during the process.

The diagram for the 04 Honda Accord typically includes the main serpentine belt, along with the tensioner and idler pulleys. The correct routing is essential to prevent slipping or wear, and a simple mistake can lead to unnecessary repairs. Be sure to follow the exact path shown in the diagram for optimal belt function.

When replacing the belts, double-check the condition of the tensioner. Over time, it can wear down, leading to improper tension and potentially causing the belt to slip. Replacing the belt while inspecting these components together will prevent future issues and enhance the longevity of your Accord’s engine components.

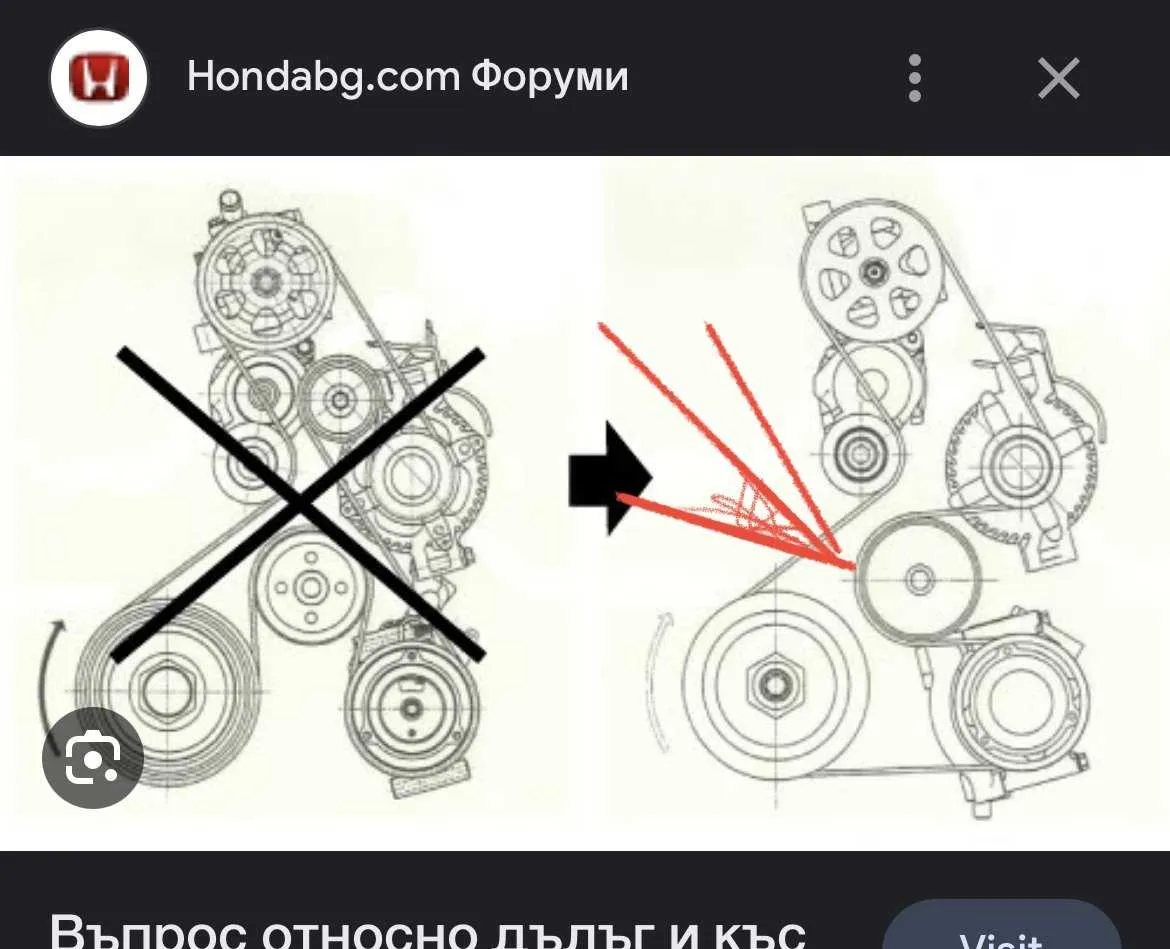

04 Honda Accord Belt Diagram

The 2004 Honda Accord uses a specific belt configuration for its engine components. The serpentine belt is responsible for driving several accessories, including the alternator, power steering pump, air conditioning compressor, and water pump. It’s crucial to replace the belt if it shows signs of wear, like cracks or fraying, to avoid breakdowns.

The belt routing is straightforward but can be tricky for those unfamiliar with the layout. The serpentine belt wraps around the crankshaft pulley, the tensioner, and each accessory pulley in a specific order. The tensioner helps maintain the proper belt tension, ensuring it doesn’t slip or stretch out prematurely.

For a smooth replacement process, ensure that the tensioner is relieved before removing the belt. Use a socket wrench to turn the tensioner and loosen the belt from the pulleys. It’s helpful to take a picture of the routing before removal, or refer to a diagram to avoid confusion when installing the new belt.

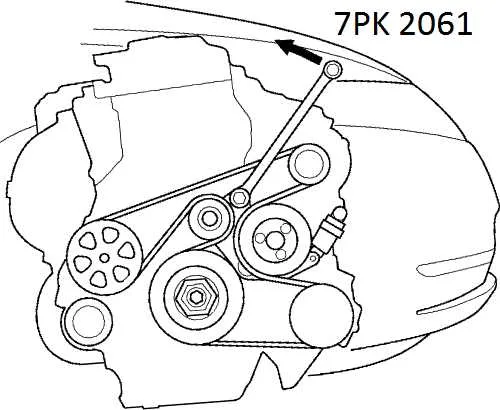

Here’s the basic routing for the 2004 Honda Accord’s serpentine belt:

• The belt starts at the crankshaft pulley and runs up to the tensioner.
• It then loops over the alternator pulley, followed by the air conditioning compressor.
• The belt continues to the power steering pump, then over the water pump pulley.
• Finally, it returns back to the crankshaft pulley.

Ensure you are using the correct belt length for your specific model. A belt that is too long or too short will cause premature wear or failure. After installation, check for proper belt tension by pressing down on the belt between pulleys. The belt should deflect slightly under pressure but not be loose.

If the belt appears damaged or cracked, it’s best to replace it sooner rather than later to prevent further engine complications. Replacing the serpentine belt on time can save you from costly repairs down the road.

How to Identify and Replace the Serpentine Belt on a 2004 Honda Accord

The serpentine belt on a 2004 Honda Accord powers several key components like the alternator, air conditioning, and power steering. Over time, it can wear out or crack, affecting the performance of these systems. Here’s how to identify and replace it.

Step 1: Locate the Serpentine Belt

The serpentine belt runs across the front of the engine, connecting various pulleys. On the 2004 Honda Accord, you’ll find it near the front of the engine bay, passing over the alternator, power steering pump, and air conditioning compressor. Use the belt diagram under the hood to ensure you’re following the correct path.

Step 2: Inspect the Belt

Look for visible signs of damage such as cracks, fraying, or wear on the belt. You should also check for any signs of slipping or squealing noise when the engine is running. If the belt is damaged, it’s time for a replacement.

Step 3: Loosen the Tension

Before removing the belt, you’ll need to relieve the tension on it. Use a socket wrench to rotate the tensioner pulley clockwise or counterclockwise (depending on your model) and release the tension on the belt. This will allow you to remove it easily from the pulleys.

Step 4: Remove the Old Belt

With the tension released, carefully remove the serpentine belt from the pulleys. Take note of the belt’s routing on the pulleys as you remove it. It’s helpful to take a picture beforehand or refer to the belt diagram.

Step 5: Install the New Belt

Place the new serpentine belt over the pulleys according to the belt diagram. Ensure it sits properly in the grooves of each pulley. Once in place, use the tensioner to apply the necessary tension to the belt, ensuring it’s securely tightened.

Step 6: Check the Installation

After the belt is installed, double-check its position on all pulleys and ensure the tension is correct. Start the engine and listen for any unusual sounds. If everything is functioning smoothly, the replacement is complete.

Step-by-Step Guide to Understanding the Timing Belt Layout for 2004 Honda Accord

Check the alignment of the timing belt marks before starting the installation. Accurate alignment ensures proper engine function and prevents damage. The 2004 Honda Accord uses an interference engine, meaning improper belt tension or misalignment can cause serious issues.

Start by locating the timing belt cover. It’s typically on the front of the engine. Remove any obstructions like the engine mount or accessories blocking access. Once you have a clear view, you’ll see the crankshaft pulley and timing marks on the camshaft pulleys.

The next step is to rotate the crankshaft to align the timing marks. Use a wrench to turn the crankshaft in the direction of engine rotation. Align the crankshaft timing mark with the mark on the engine block. The camshaft marks should also line up with the top of the cylinder head.

Check the timing belt tension. Use a tension gauge or a similar tool to make sure the belt has the correct amount of tension. Too much slack can lead to skipping teeth, while excessive tension can damage the bearings and other components.

Install the new timing belt, starting at the crankshaft pulley. Make sure the teeth of the belt align with the teeth on the pulleys. Pay close attention to the direction of the belt’s teeth; they should match the pulleys’ grooves precisely.

Once the belt is in place, recheck the timing marks to ensure everything is aligned correctly. Rotate the crankshaft by hand at least two full rotations to verify that the timing is accurate and the engine runs smoothly.

Reinstall the timing belt cover and any components you removed earlier. Double-check all bolts and fasteners to ensure they are tightened to the specified torque.

Finally, start the engine and listen for any unusual noises or vibrations. If everything sounds normal, the timing belt is correctly installed, and the engine is ready for use.

Common Belt-Related Issues and Troubleshooting for 2004 Honda Accord

If you hear squeaking, squealing, or grinding noises coming from the engine bay, it’s likely a sign of a belt issue. Here’s how to handle some of the most common problems related to the drive belts in your 2004 Honda Accord.

• Cracked or Worn Belts: A belt that’s cracked, frayed, or worn down can fail unexpectedly, leading to loss of power steering, air conditioning, or alternator function. Inspect the belt regularly for signs of wear. Replace it if you notice any visible damage. Check the tension as well, as a loose belt can also cause slippage.
• Squealing Noises: Persistent squealing, especially during cold starts, typically points to a loose or worn-out belt. Tightening the belt or replacing it if it’s too old can eliminate this sound. Ensure the tension is within the recommended range, as per the manual.
• Misalignment: If the belt is misaligned, it can cause irregular wear, leading to premature failure. Ensure that the pulleys are properly aligned, and check for any damage to the pulleys themselves, such as rust or debris buildup.
• Cracked or Damaged Pulleys: The condition of the pulleys directly impacts belt life. If a pulley is cracked, misaligned, or has a worn bearing, the belt can wear unevenly. Inspect each pulley for smooth movement and replace if necessary.
• Slipping Belts: A slipping belt can cause a loss of power to essential components, such as the alternator or power steering pump. Check for proper tension. If the belt is slipping even after adjustment, it may need replacement, or there could be an issue with the tensioner pulley.
• Failed Tensioner Pulley: A faulty tensioner pulley can cause the belt to become too loose or too tight, leading to improper operation. If the belt seems excessively tight or loose, the tensioner might need replacement.
• Uneven Wear Patterns: Inspect the belt for signs of uneven wear, which could point to an issue with the alignment of the belt or pulley system. Uneven wear can lead to slipping or a damaged belt. Ensure the belt is seated properly and not twisted.

Regular belt checks and maintenance can prevent major problems and keep your 2004 Honda Accord running smoothly. Always use high-quality replacement parts and follow manufacturer recommendations for belt maintenance intervals.
