2014 Nissan Rogue Serpentine Belt Diagram and Routing Guide
To replace or inspect the serpentine belt on a 2014 Nissan Rogue, refer to the diagram below for accurate routing. This diagram helps you identify the exact path the belt takes through various pulleys, ensuring smooth operation of components like the alternator, power steering pump, and air conditioning compressor.
The serpentine belt layout is crucial for maintaining proper tension and alignment. If the belt is misrouted or worn, it can lead to a number of engine performance issues. By following the diagram precisely, you can avoid unnecessary damage to the components driven by the belt. The diagram clearly shows the routing direction, making it easier to reinstall or replace the belt correctly.
For a hassle-free replacement process, start by loosening the tensioner pulley to relieve the belt tension. Once the tension is released, remove the old belt and compare it to the new one to ensure the proper size and length. Carefully follow the serpentine belt diagram for reinstallation, ensuring the belt sits snugly in each pulley groove.

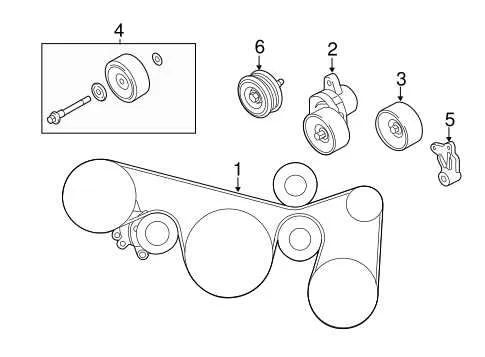

2014 Nissan Rogue Serpentine Belt Diagram
The serpentine belt on the 2014 Nissan Rogue is crucial for driving various engine components like the alternator, air conditioning compressor, power steering pump, and water pump. A clear understanding of the belt routing is important for correct installation and maintenance.
For this model, the serpentine belt follows a specific path around the pulleys. The diagram helps ensure that the belt is properly aligned and tensioned. Pay attention to the direction of the belt’s twist when routing it, as incorrect installation can cause premature wear or failure.
The belt routing begins from the crankshaft pulley, loops around the air conditioning compressor pulley, and passes over the alternator pulley. It then moves towards the power steering pump pulley, goes around the water pump pulley, and finally returns to the crankshaft pulley. Each of these pulleys should be inspected for damage or wear before installing the new belt.
If you’re replacing the serpentine belt, it’s a good idea to check the condition of all pulleys and idler bearings. The belt tensioner should also be evaluated to ensure it’s functioning correctly. If the belt feels loose, it might need tension adjustment or replacement.
Ensure that the new serpentine belt matches the required specifications for the 2014 Nissan Rogue, such as the correct length, width, and thickness. Using a belt that doesn’t fit properly can lead to slippage, premature wear, or even breakage.
How to Identify the Serpentine Belt Routing on 2014 Nissan Rogue
Locate the serpentine belt routing diagram on the 2014 Nissan Rogue by checking the engine bay. The diagram is usually on a label near the radiator or on the underside of the hood. If the diagram is missing or damaged, refer to the vehicle’s service manual for a detailed routing guide.
The serpentine belt typically runs over the alternator, power steering pump, air conditioning compressor, and water pump. First, identify the tensioner pulley, as it plays a key role in maintaining belt tension. Next, check how the belt loops around the crankshaft pulley, which is the main source of power for the belt system. The belt should loop around the other components in a specific order, ensuring that all pulleys are aligned and turning as required.
If you’re replacing the belt, rotate the tensioner pulley counterclockwise to relieve tension and remove the old belt. Ensure that the new belt follows the exact routing pattern shown in the diagram to avoid damaging engine components or reducing efficiency.
For accurate identification, it may also be helpful to take a picture of the routing before removing the old belt. This will serve as a reference for the installation of the new one.
Common Issues with Serpentine Belt on 2014 Nissan Rogue and Their Fixes
The serpentine belt on a 2014 Nissan Rogue can face several issues that affect its performance. One common problem is belt wear and cracking. Over time, exposure to heat and friction can cause the belt to deteriorate, leading to visible cracks. If you notice cracks or fraying, it’s important to replace the belt to avoid a sudden failure that could damage other components.
Another issue arises from improper tensioning. A belt that’s too tight or too loose can cause squeaking or slipping. A loose belt might also fail to drive accessories such as the alternator, while a tight one puts unnecessary strain on the components. To fix this, you should check the tensioner and adjust it as needed. If the tensioner is worn out, replacing it will restore proper function.
Alignment problems can also cause the serpentine belt to wear unevenly. Misalignment typically results from damaged pulleys or a faulty tensioner. If the pulleys are not aligned, the belt may slip off or wear down quickly. Inspecting the alignment and replacing damaged pulleys or tensioners can fix this issue.
Finally, environmental conditions like oil or coolant leaks can cause the serpentine belt to slip or degrade faster. If any fluid leaks onto the belt, clean it off immediately, and inspect the belt for damage. If contamination is significant, replacing the belt is necessary.
Regular inspection of the serpentine belt and related components can help prevent major issues and extend the life of your 2014 Nissan Rogue’s engine accessories.
Step-by-Step Guide to Replacing the Serpentine Belt on 2014 Nissan Rogue
Replacing the serpentine belt on your 2014 Nissan Rogue can be done in a few clear steps. Here’s how to do it yourself:
- Gather the necessary tools: You’ll need a 3/8″ ratchet wrench, serpentine belt tool, a new serpentine belt, and safety gloves.
- Lift the vehicle: Use a jack to raise the front of the car and secure it with jack stands. Ensure the car is stable before starting.
- Locate the serpentine belt: Open the hood and find the serpentine belt on the front of the engine. It runs around pulleys and drives multiple components like the alternator, power steering pump, and air conditioning compressor.
- Release tension from the belt: Use a serpentine belt tool to relieve the tension from the tensioner pulley. Rotate the tool counterclockwise to loosen the belt. Once the tension is off, slide the belt off the pulleys.
- Remove the old serpentine belt: Carefully remove the belt from the remaining pulleys, taking note of how it is routed for reinstallation.
- Install the new belt: Position the new serpentine belt over the pulleys, following the original routing pattern. Make sure the belt sits properly in the grooves of each pulley.
- Apply tension to the belt: Rotate the tensioner pulley with the serpentine belt tool to add tension to the new belt. Once the belt is tight, release the tool and check the belt’s tension by pressing on it. It should be firm but have a slight give.
- Inspect the installation: Double-check the belt’s positioning and ensure it’s securely in place on all pulleys.
- Test the vehicle: Start the engine and observe the serpentine belt in action. Listen for any unusual noises and ensure the belt is moving smoothly around the pulleys.
That’s it! With these steps, your serpentine belt replacement should be complete and your 2014 Nissan Rogue will be good to go.
