Cub Cadet LT50 Belt Diagram and Maintenance Guide

For quick and accurate repairs, knowing the belt diagram of your Cub Cadet LT50 is crucial. It allows for smooth replacement and helps avoid costly mistakes. Understanding the proper routing of the belts ensures the mower operates efficiently without unnecessary wear.

The diagram typically shows the exact path for each belt, including the drive, deck, and blade belts. Follow it closely to prevent tension issues or belt slippage. The drive belt should be routed around the engine pulley, idler pulleys, and transmission. Blade belts are routed to engage the mower blades, which must align with the spindle pulleys for a consistent cutting performance.

Once you’ve located the diagram in the owner’s manual or on the machine, double-check the positioning of the belts. They should be snug, but not overly tight. A loose or improperly routed belt can affect the mower’s performance and potentially damage the components over time.

When replacing the belts, always ensure they match the specifications for the Cub Cadet LT50 model. Using the wrong belt can cause slipping, reduced power transmission, and premature wear.

Cub Cadet LT50 Belt Diagram

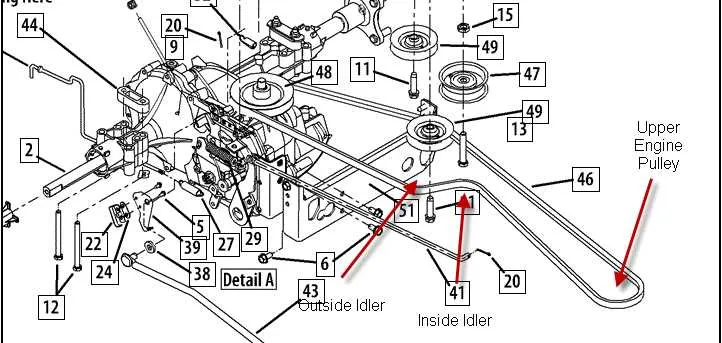

To replace or adjust the belts on your Cub Cadet LT50, refer to the belt diagram for accurate positioning. This diagram helps ensure the belts are routed properly, preventing wear and maintaining optimal performance. Here is a detailed guide for the drive belt setup:

1. Drive Belt Routing

The drive belt connects the engine to the transmission, providing power to the wheels. Ensure the belt loops around the pulleys, including the engine pulley, tension pulley, and transmission pulley. The tension pulley should keep the belt tight to prevent slipping. Make sure the belt is correctly aligned to avoid damage and unnecessary wear.

2. Deck Belt Setup

The deck belt operates the cutting blades. When replacing the deck belt, ensure it runs smoothly around the idler pulleys, blade spindles, and the engine pulley. If the belt is too loose, it may cause the blades to operate inefficiently, and if too tight, it may strain the engine.

3. Maintenance Tips

Inspect the belts regularly for signs of cracking, fraying, or excessive wear. Replace damaged belts immediately to prevent further damage to your mower. Tighten or replace the tension pulley if you notice the belt slipping or making unusual noises.

4. Diagram Reference

Use the belt diagram for the Cub Cadet LT50 model to verify that all components are connected correctly. If you don’t have the diagram, it’s available in your owner’s manual or from the Cub Cadet website for easy reference.

Proper belt alignment is key to maintaining the longevity and efficiency of your Cub Cadet LT50. Always consult the diagram before any repair or replacement task.

Identifying the Key Components of the LT50 Belt System

To properly maintain or repair the Cub Cadet LT50 belt system, it’s crucial to identify each component and understand how they interact. Here’s a guide to help you pinpoint the key parts:

• Drive Belt – The main component transferring power from the engine to the transmission. This belt is the core of the system and often the first to wear out due to regular use.
• Pulley System – Includes the engine pulley, transmission pulley, and idler pulleys. These components guide the belt’s movement, ensuring smooth operation. If any pulleys are damaged or misaligned, the belt will wear unevenly.
• Idler Arm and Tensioner – The tensioner keeps the drive belt tight and maintains proper tension. A malfunctioning tensioner can lead to a loose belt, causing slipping or poor performance.
• Deck Belt – Connects the engine to the mower deck, powering the blades. It is separate from the drive belt but equally important for operation. Ensure this belt is not frayed or stretched.
• Brake System – Often overlooked, the brake system can interfere with the belt if not functioning correctly. Ensure that the brake is properly disengaged during operation to avoid unnecessary tension on the belt.

Regular inspections and timely replacements of these components will ensure that your LT50 mower runs smoothly. Always consult the user manual for specific guidelines on the belt diagram and component specifications.

Step-by-Step Guide for Replacing the LT50 Mower Belt

Lift the mower deck using the appropriate lift lever to gain better access to the belt area. Disconnect the battery to prevent any accidental starts during the process.

Locate the old belt and examine the routing path. Take note of the belt’s current position, as you will need to route the new one exactly the same way.

Remove any parts that obstruct access to the belt, such as the mower deck or shield, using the proper tools. Loosen the tension on the existing belt by adjusting the idler pulley or tensioner.

Carefully remove the old belt from the pulleys, taking care to avoid damaging any surrounding components. Ensure you release all tension before removing it completely.

Place the new belt around the pulleys in the same routing configuration as the old belt. Make sure the belt is seated properly on each pulley to avoid slippage or misalignment.

Reinstall any parts you previously removed and ensure the mower deck is securely reattached. Tighten the tension on the new belt using the tensioner or idler pulley, ensuring there is enough slack for proper movement but not too loose to cause slippage.

Reconnect the battery and test the mower by engaging the blade to confirm proper belt operation. Adjust the tension if necessary.

Common Issues with the LT50 Belt and How to Resolve Them

If the LT50 belt starts slipping, check for improper tension. Adjust the belt tensioner to ensure it’s neither too tight nor too loose. A loose belt can cause slippage, while a tight one can put unnecessary strain on the system.

If the belt is misaligned, inspect the pulleys and guide systems. Realign them to ensure smooth belt operation. Misalignment can lead to uneven wear and premature failure.

Excessive wear on the belt is often caused by debris accumulation or improper tension. Regularly clean the belt and surrounding areas. Replace the belt when you notice significant signs of wear or cracking.

Noise or squeaking sounds may indicate a worn-out pulley or a loose belt. Inspect the pulleys for damage or wear, and replace them if necessary. Tighten the belt if it’s too loose or adjust the tensioner accordingly.

If the belt keeps coming off, check the condition of the belt guides and pulleys. Worn guides can cause the belt to slip off. Replace any worn components and recheck the alignment to prevent recurrence.
