2012 Nissan Sentra Serpentine Belt Diagram and Routing Guide

To replace the serpentine belt on your 2012 Nissan Sentra, start by identifying the correct belt routing. The serpentine belt drives several essential components, such as the alternator, power steering pump, and air conditioning compressor. A proper understanding of its layout will save time during installation and reduce the chances of improper fitting.

The serpentine belt diagram is crucial when replacing or inspecting the belt. Ensure you have access to the engine bay, and refer to the diagram to confirm the exact path the belt should follow. It is recommended to check for any signs of wear, such as cracks or fraying, before proceeding with replacement.

If you need to remove the old belt, use a socket wrench to release tension from the tensioner pulley. Once removed, compare the new belt to the old one to verify correct length and width. Ensure the new belt is installed according to the manufacturer’s diagram to prevent damage to the engine components.

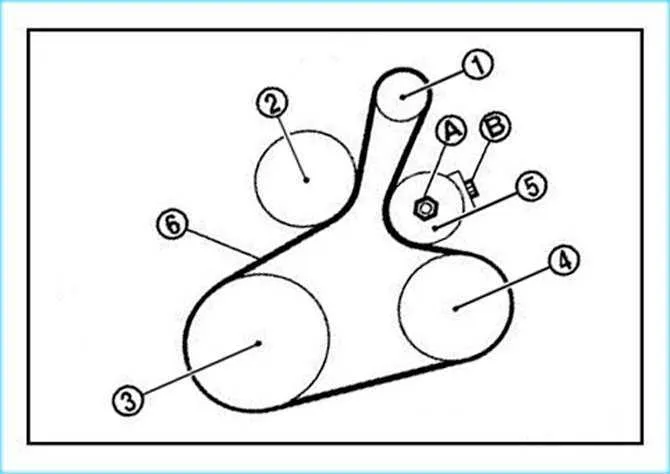

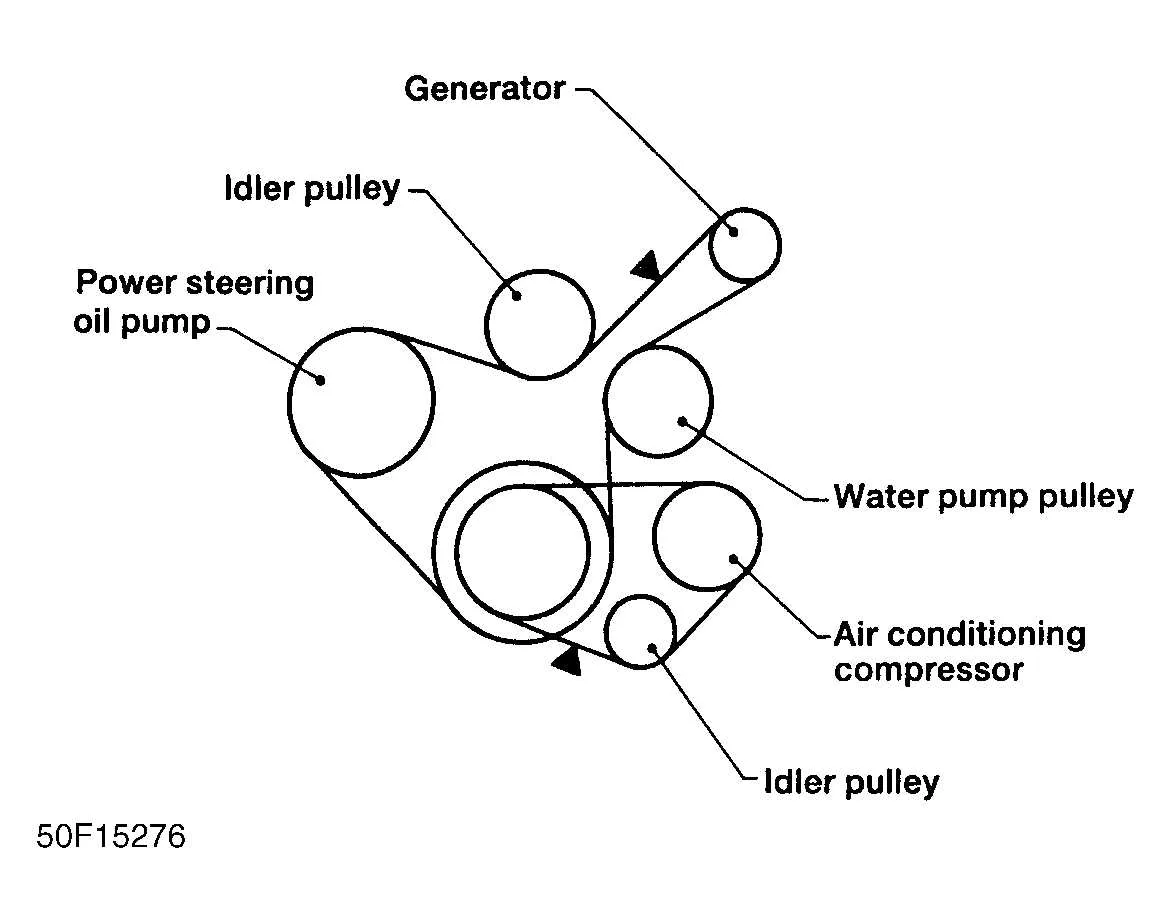

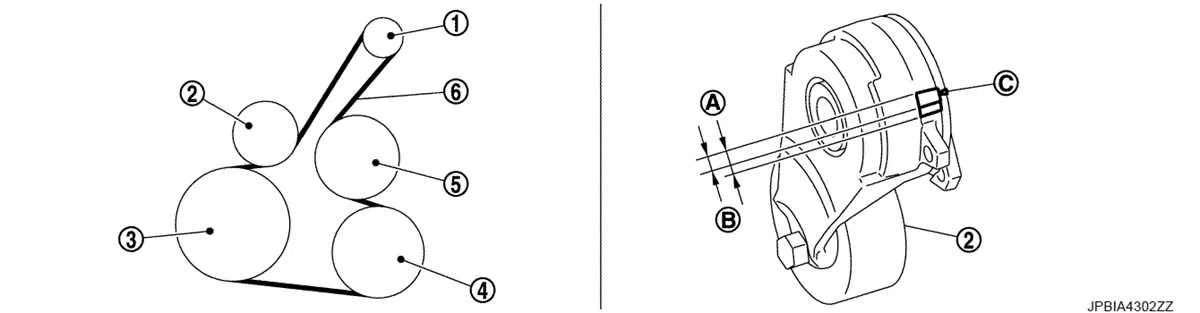

2012 Nissan Sentra Belt Diagram

The 2012 Nissan Sentra uses a serpentine belt system to power various engine components. The belt routes through several pulleys, providing power to the alternator, air conditioning compressor, power steering pump, and other accessories.

To ensure proper function, always verify the belt’s path. A worn or damaged serpentine belt can lead to overheating, power loss, and complete engine failure if not addressed.

• The belt should be routed around the crankshaft pulley, the alternator, the power steering pump, and the air conditioning compressor, according to the factory belt diagram.
• Ensure the tensioner pulley is in good condition, as it maintains the proper tension needed for efficient belt performance.
• Check for any signs of wear such as cracks, fraying, or glazing. If the belt shows any damage, replace it immediately to prevent more severe issues.

Refer to your car’s service manual or the under-hood label for the correct diagram and belt routing. This ensures proper alignment and belt tension during installation.

Identifying the Components of the Serpentine Belt System

Inspect the serpentine belt system by focusing on its main components. The serpentine belt itself is a long, continuous belt that drives multiple engine accessories. It is essential to examine the belt for any visible wear, cracks, or damage. Look for proper tension, ensuring the belt isn’t too loose or too tight.

The pulley system includes the main pulleys that the serpentine belt wraps around. These pulleys are connected to components such as the alternator, power steering pump, and air conditioning compressor. Check each pulley for any wobbling or unusual noises, which could indicate wear or misalignment.

The tensioner keeps the serpentine belt under the correct amount of tension. It’s important to ensure the tensioner is functioning properly, as a malfunctioning tensioner can lead to belt slippage or damage. A properly working tensioner will maintain consistent pressure on the belt throughout its use.

The idler pulley helps guide the serpentine belt and keep it in place. Like the tensioner, it should move smoothly without any resistance or noise. If you notice any rough movement, it could signal the need for replacement.

Finally, inspect the accessory components driven by the serpentine belt. These include the alternator, air conditioning compressor, and power steering pump. Any of these parts failing could cause the belt to slip or wear prematurely. Always verify the proper function of each component connected to the belt system to ensure the belt’s longevity.

Step-by-Step Guide to Replacing the Serpentine Belt

1. Locate the serpentine belt: The serpentine belt runs along the front of the engine and is connected to several components like the alternator, power steering pump, and air conditioning compressor. Use the belt diagram specific to your 2012 Nissan Sentra to identify the correct path of the belt.

2. Release tension on the belt: Use a ratchet wrench and a socket to rotate the tensioner pulley, relieving tension on the belt. This allows you to remove the belt without damaging any components.

3. Remove the old belt: Once the tension is released, slide the belt off the pulleys. Take note of the belt’s routing to ensure the new belt is installed correctly.

4. Compare the new belt: Before installation, compare the new serpentine belt with the old one to confirm the length, width, and ribbing match. This ensures proper functionality.

5. Install the new belt: Begin by looping the belt around the main components as indicated in the diagram. Carefully follow the correct routing path. Make sure the belt sits properly on all pulleys.

6. Reapply tension: Use the wrench to rotate the tensioner pulley and reapply tension on the new belt. Ensure the belt is tight, but not excessively so.

7. Check belt alignment: Spin the engine manually or start the car briefly to ensure the belt is running smoothly and aligned correctly with all pulleys.

8. Final inspection: Once the belt is in place, double-check the tension and alignment. Listen for any unusual noises or signs of improper installation.

Troubleshooting Common Belt Issues on a 2012 Nissan Sentra

If the serpentine belt on your 2012 Nissan Sentra is squealing, it’s likely due to wear or improper tension. Inspect the belt for cracks, fraying, or signs of glazing. A worn-out belt should be replaced immediately to prevent further damage to other components.

In case of a squeaking noise when starting the car, the tensioner or pulley could be worn. Check the tensioner for movement and ensure the pulleys are aligned correctly. Misaligned or damaged pulleys should be replaced to avoid causing additional strain on the belt.

For issues with the belt slipping off, verify that the belt is properly routed according to the diagram. Incorrect routing is often the cause of this problem. Also, inspect the tensioner for adequate pressure, as a weak tensioner may fail to keep the belt tight, leading to slippage.

If the belt is completely worn or snapped, check for signs of engine overheating. A failed serpentine belt can cause the water pump or alternator to stop functioning, leading to serious engine damage. Ensure all components are functioning before installing a new belt.

Lastly, if the engine runs rough or there’s a loss of power steering, the serpentine belt may be loose. Tighten or replace the belt as necessary and check the power steering pump for any leaks or issues.
