2011 Chevy Traverse Serpentine Belt Routing Diagram and Installation Guide

If you’re facing issues with your 2011 Chevy Traverse serpentine belt, knowing the exact routing diagram is key to getting the job done right. This diagram shows how the belt interacts with the engine’s pulleys, helping to power components like the alternator, power steering pump, and air conditioning compressor. It’s critical for keeping the vehicle running smoothly and avoiding costly repairs.

The serpentine belt in the 2011 Traverse routes around several pulleys, each serving a specific function. The diagram will guide you in understanding how the belt runs through these pulleys, ensuring proper tension and alignment. If you’re replacing or inspecting the belt, follow the exact routing as outlined in the diagram to prevent damage to the engine’s components.

Before starting, make sure you have the correct tools and take the time to double-check the belt’s condition. Inspect it for cracks or wear that may indicate it’s time for a replacement. Keeping the serpentine belt in good condition will save you from engine malfunctions and costly repairs down the line.

By understanding the serpentine belt’s role and how to correctly route it, you’ll be able to keep your 2011 Chevy Traverse in great working condition for the long run.

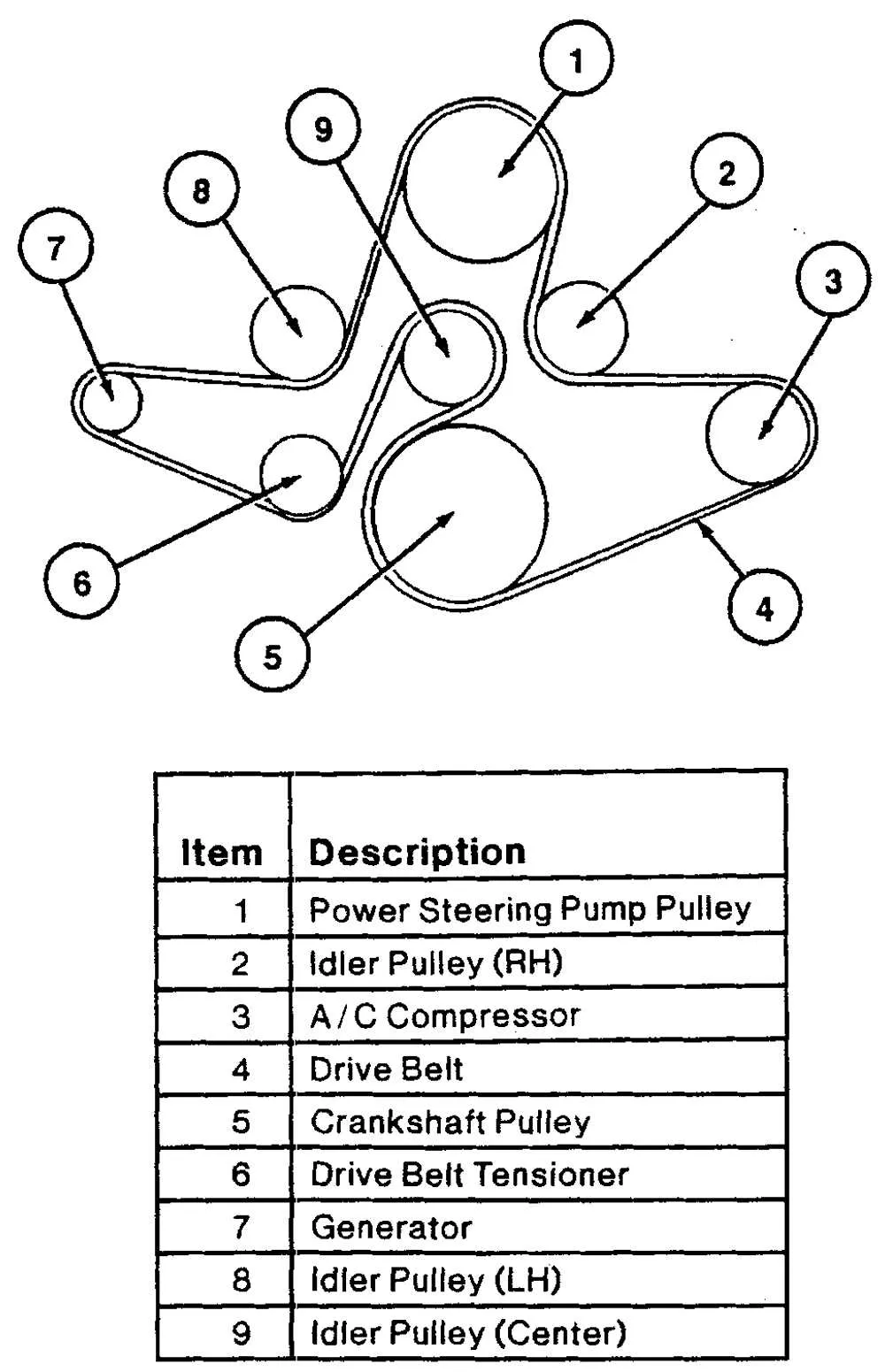

2011 Chevy Traverse Serpentine Belt Diagram

If you’re looking to replace or inspect the serpentine belt on your 2011 Chevy Traverse, having the correct diagram is key. The serpentine belt system is responsible for powering various components like the alternator, power steering pump, air conditioning compressor, and water pump. Here’s a simplified view of the serpentine belt routing for the 2011 Traverse.

The serpentine belt on the 2011 Traverse is routed in a way that it loops around multiple pulleys. The belt should start at the crankshaft pulley, then route through the power steering pump, alternator, and air conditioning compressor. After that, it passes through the water pump and tensioner pulley before returning to the crankshaft pulley. The tensioner ensures the belt stays tight and prevents slipping.

Key steps to follow when replacing the serpentine belt:

• Start by relieving tension on the belt using a wrench or serpentine belt tool to rotate the tensioner pulley counterclockwise.
• Remove the old belt and compare it with the new one to ensure proper size and fit.
• Route the new belt exactly as per the diagram, ensuring it fits securely in all grooves.
• Check the belt’s tension to ensure it’s tight enough, but not over-tightened, as this can cause premature wear.

Diagram Reference: Refer to your vehicle’s manual for a more detailed diagram, or consult online resources that provide specific images for the 2011 Chevy Traverse serpentine belt routing. Accurate routing is vital to prevent damage to your engine and accessories.

Lastly, regularly inspect the belt for signs of wear, such as cracks or fraying. This will help prevent unexpected breakdowns and ensure the longevity of your engine components.

How to Read the 2011 Chevy Traverse Serpentine Belt Diagram

Start by identifying the components listed on the diagram, such as pulleys, tensioners, and the alternator. The diagram typically shows how the serpentine belt loops around these components, providing crucial information on belt routing.

Next, focus on the direction of the arrows, which indicate how the belt should be positioned. These arrows are essential for proper alignment to avoid belt misrouting, which can lead to damage or improper operation of your vehicle’s systems.

Check for any notation about the tensioner. The diagram will often highlight how the tensioner should be engaged to ensure the belt remains tight during operation. This helps prevent slippage and wear.

Ensure that the diagram’s order matches the physical layout in your engine bay. Compare each part in the diagram to the actual parts under the hood to confirm the correct installation path.

If the diagram includes any part numbers, use them to confirm you’re using the correct replacement parts. This step ensures you choose a belt that fits properly and matches the required specifications for your Traverse.

Common Issues with Serpentine Belts in the 2011 Chevy Traverse

One of the main problems with serpentine belts in the 2011 Chevy Traverse is premature wear. This can lead to belt slippage, causing issues with various engine components like the alternator, power steering pump, and air conditioning compressor.

Here’s a breakdown of common issues:

• Cracking and Fraying: Over time, the serpentine belt can develop cracks or start to fray, which is a sign that the belt is losing its flexibility. This often results from exposure to extreme heat, humidity, or old age.
• Loss of Tension: If the tensioner fails or weakens, the belt may not stay tight enough, leading to slippage. This will reduce the efficiency of engine systems that rely on the belt for power.
• Worn Pulley or Idler Bearings: Worn-out pulleys can cause uneven belt wear, increasing the chances of belt failure. Inspecting pulleys and their bearings regularly can prevent this problem from escalating.
• Noisy Belt: A squeaking or squealing serpentine belt is often a sign of misalignment or inadequate tension. If the belt isn’t aligned properly, it can cause the pulleys to wear down faster and lead to other system failures.
• Oil or Coolant Contamination: Oil or coolant leaking onto the serpentine belt can cause it to degrade much faster, leading to slipping or complete failure. Keeping an eye on fluid leaks around the engine can help you spot this issue early.

If you notice any of these symptoms, it’s important to replace the serpentine belt and inspect related components as soon as possible. A failing serpentine belt can lead to a chain reaction of engine component failures, leaving you stranded or causing expensive repairs down the line.

Steps to Replace the Serpentine Belt in a 2011 Chevy Traverse

1. Gather Tools and Parts

Before you start, ensure you have a new serpentine belt, a ratchet, a socket set, and a belt tensioner tool. Check the condition of other components like pulleys and the tensioner, and replace them if necessary.

2. Locate the Serpentine Belt

The serpentine belt is located at the front of the engine, running across various pulleys. Familiarize yourself with its routing by referring to the diagram under the hood or in the vehicle’s manual.

3. Release the Tension

Use a serpentine belt tool or a wrench to rotate the belt tensioner in a counterclockwise direction. This will relieve the pressure on the belt, allowing you to remove it easily. Be careful not to damage the tensioner while doing this.

4. Remove the Old Belt

Once the tension is released, slide the belt off the pulleys. Take note of how the belt is routed around the pulleys. You will need this information to install the new belt correctly.

5. Install the New Serpentine Belt

Place the new belt over the pulleys, following the routing diagram. Make sure the belt sits properly in the grooves of each pulley and is aligned correctly. Double-check the path before proceeding to the next step.

6. Reapply Tension

Use the tensioner tool to rotate the tensioner again in a counterclockwise direction and slide the belt into place. Slowly release the tensioner, allowing it to press the belt tight against the pulleys. Ensure the belt is securely in place.

7. Inspect the Belt

Check the belt for proper alignment and tension. Make sure it runs smoothly over all the pulleys without any twisting or rubbing against any parts.

8. Start the Engine

Start the engine and observe the serpentine belt while the engine is running. Listen for any unusual noises and make sure the belt is operating as expected. If there’s any sign of slippage or misalignment, stop the engine and correct the issue.
