2012 Nissan Quest Serpentine Belt Diagram and Routing Guide

To properly maintain your 2012 Nissan Quest, understanding the belt system is key. The engine belts are responsible for powering essential components such as the alternator, water pump, and power steering. To ensure the vehicle operates smoothly, you need to inspect and replace the belts at regular intervals. The diagram below will give you a clear representation of the belt routing for this specific model.

The serpentine belt in the 2012 Nissan Quest is typically the main belt that drives multiple accessories. This belt connects the crankshaft to various pulleys, allowing them to function in sync. It is important to check for any signs of wear, such as cracks or fraying, as this could cause the belt to snap and leave you stranded.

Make sure to double-check the routing when replacing or adjusting the belt. The belt diagram for your 2012 Nissan Quest will help you confirm the correct placement of the belt around the pulleys, ensuring everything is aligned properly. If the belt isn’t correctly routed, it can lead to improper functioning of the vehicle’s components or even engine damage over time.

Lastly, ensure that the tensioner is functioning as expected. A faulty tensioner can cause the belt to slip or wear unevenly. If you notice any unusual noises like squealing, it could be a sign that the tensioner or belt needs attention. Consult your vehicle’s manual for the recommended belt replacement intervals, typically around 60,000 to 100,000 miles, depending on your driving conditions.

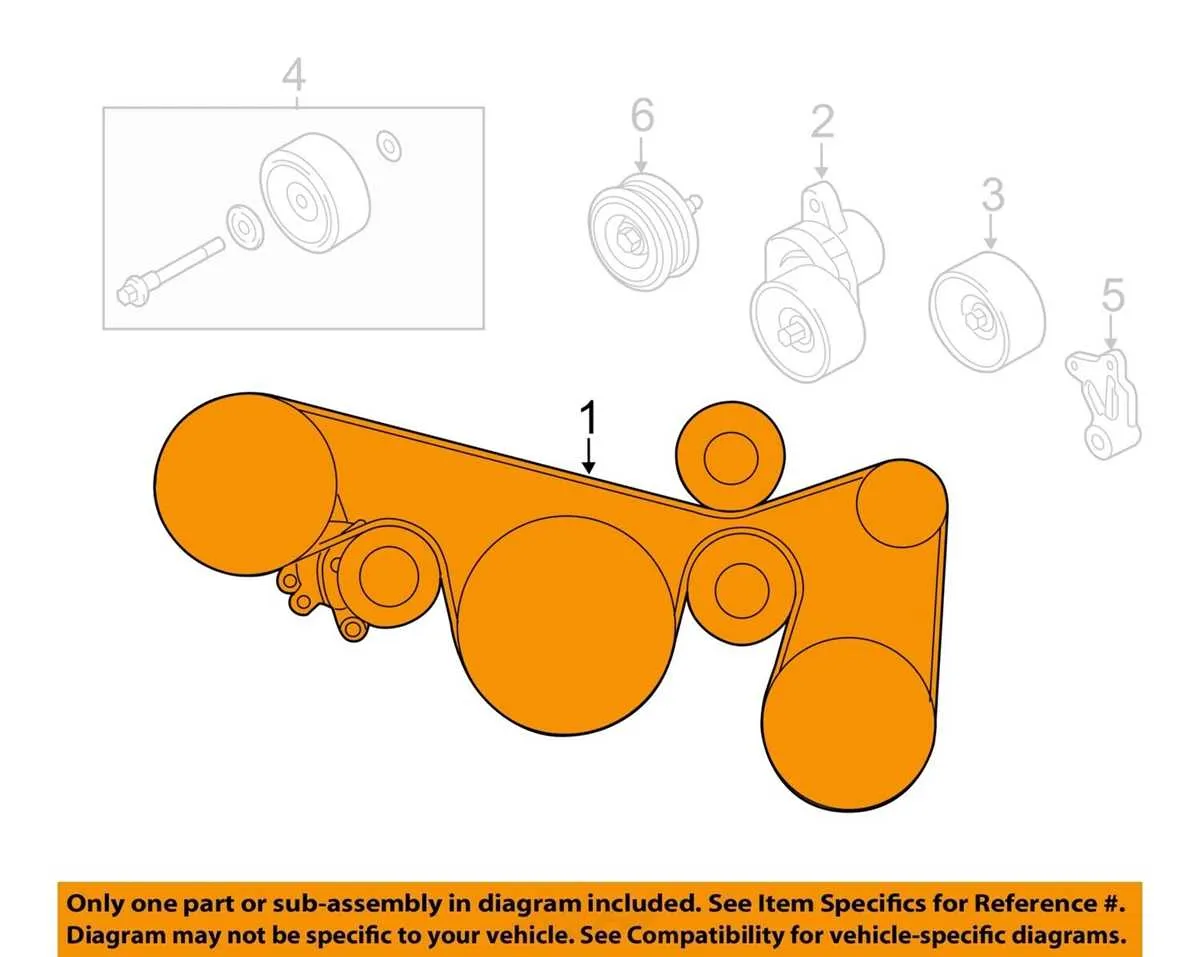

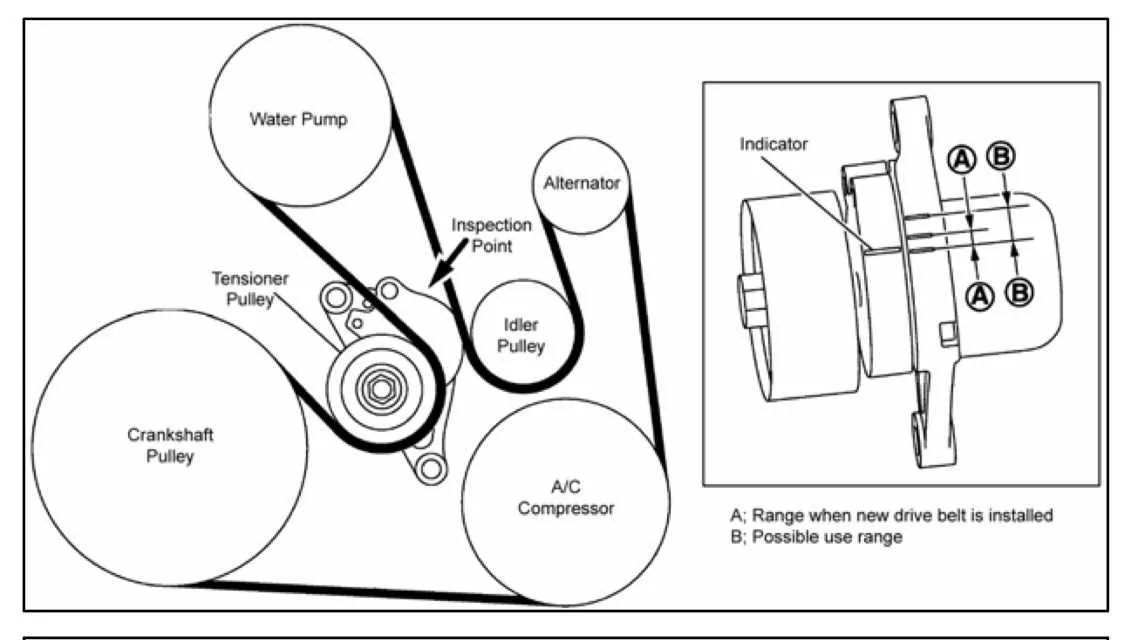

2012 Nissan Quest Belt Diagram

The 2012 Nissan Quest features a serpentine belt system that drives various components of the engine, such as the alternator, power steering pump, and air conditioning compressor. To ensure proper operation, refer to the belt diagram before any maintenance or replacements.

The main serpentine belt runs through the engine, looping around the alternator, power steering pump, water pump, and AC compressor. The tensioner maintains the correct tension on the belt to avoid slipping or excessive wear. If replacing the belt, check the tensioner and pulleys for any damage or wear.

For easy identification, the diagram is typically found under the hood on a sticker or metal plate near the radiator. If the sticker is damaged or missing, refer to the vehicle’s service manual for the exact routing.

Before removing the serpentine belt, relieve tension from the tensioner by using a wrench or socket. Once removed, inspect all pulleys for smooth operation. Any wobbling or noise could indicate an issue with a pulley or bearing, requiring attention.

If the belt is being replaced due to wear or damage, ensure the new belt is routed exactly the same as the old one. Misrouting can cause significant engine issues, such as overheating or loss of power steering. Once installed, check the tension again to ensure the belt is properly seated and tight.

Regular belt checks and replacements, as outlined in the owner’s manual, will help maintain your vehicle’s performance and prevent costly repairs down the road.

How to Read and Understand the 2012 Nissan Quest Belt Diagram

To interpret the 2012 Nissan Quest belt diagram, focus on the belt routing and its components. The diagram shows how each belt fits into the engine system, with arrows indicating the direction of movement. Pay attention to the pulleys, alternator, power steering, air conditioning compressor, and crankshaft. These elements are typically marked to help you visualize the route the belt takes and understand its connection to engine performance.

Start with the main serpentine belt. It runs across multiple pulleys and is usually driven by the crankshaft. The diagram will show the path of this belt, including any twists and loops, ensuring it connects all essential components like the alternator and power steering pump. Check the direction of the arrows to see how the belt should travel. If there’s a tensioner pulley, the diagram will indicate how to adjust the tension to keep the belt tight.

If your vehicle uses a secondary belt (like a timing belt), it will be shown separately in the diagram. This belt works in sync with the crankshaft and camshaft to keep the engine’s timing in check. The diagram should clearly separate the serpentine belt from this, and show where each one goes to avoid confusion.

Look for any notations on the diagram that explain tensioning methods or belt-specific maintenance tips. These might include recommended torque settings or the replacement interval for the belts. Some diagrams will also highlight the recommended belt type or size, which can be helpful if you need to replace it.

Reviewing this diagram will give you a solid understanding of how the belts fit into the engine, how they interact with key components, and where adjustments or replacements are needed. Always double-check that the belt is routed exactly as shown in the diagram before starting the engine, as misalignment can cause serious engine damage.

Step-by-Step Guide to Replacing the Serpentine Belt in a 2012 Nissan Quest

To replace the serpentine belt in your 2012 Nissan Quest, follow these steps carefully. First, gather your tools: a socket set, a serpentine belt tool or ratchet wrench, and a new belt that matches your vehicle’s specifications.

1. Disconnect the negative battery terminal to prevent any electrical mishaps.

2. Locate the serpentine belt. On the 2012 Nissan Quest, it runs across the front of the engine, passing over several pulleys including the alternator, power steering pump, and air conditioning compressor.

3. Use a serpentine belt tool or ratchet wrench to release tension from the tensioner pulley. This pulley maintains pressure on the belt. Turn the tensioner clockwise to relieve the tension.

4. While holding the tensioner in place, slide the belt off the pulleys. Take note of the belt’s routing; it’s crucial to install the new one in the same pattern. You can refer to the diagram in your vehicle’s manual or on a label under the hood.

5. Install the new serpentine belt. Start by positioning it over the pulleys, ensuring it follows the same path as the old one. Double-check the routing to avoid mistakes.

6. Reapply tension to the tensioner pulley, allowing it to grip the new belt. Make sure the belt is seated properly in all the grooves of the pulleys.

7. Inspect the belt for proper alignment and tension. It should be snug but not overly tight. Rotate the pulleys by hand to ensure smooth movement.

8. Reconnect the negative battery terminal.

9. Start the engine and monitor the belt in action. Listen for unusual noises and make sure the belt is functioning as expected.

After completing these steps, your serpentine belt will be successfully replaced. Regular maintenance and timely replacement of this belt can prevent engine damage and ensure optimal performance of your Nissan Quest.

Troubleshooting Common Issues with the 2012 Nissan Quest Belt System

If your 2012 Nissan Quest belt system shows signs of trouble, addressing common problems early can save you time and money. Here’s how to handle some of the most frequent issues:

• Squealing or High-Pitched Noises: This often indicates a worn or loose serpentine belt. Inspect the belt for visible signs of wear, such as cracks or fraying. If the belt appears damaged, replace it. Ensure the tensioner is providing proper tension; if not, it may need to be replaced.
• Belt Slipping: If the belt is slipping, it may be due to worn-out pulleys or a failing tensioner. Check the tensioner for signs of wear and replace it if necessary. Also, examine the pulleys for misalignment or damage, which could cause the belt to slip off its path.
• Engine Overheating: A malfunctioning serpentine belt can lead to the loss of cooling system functionality. If the water pump isn’t turning due to a broken belt, the engine may overheat. Inspect the belt for any visible issues, and replace it if it’s compromised.
• Warning Lights on Dashboard: If the battery warning light or other alerts show up on your dashboard, the serpentine belt may not be turning the alternator properly. Check the belt for any slippage or signs of wear, and replace it if necessary. Ensure the alternator pulley is not damaged.
• Visible Wear and Tear: If you see any cracks, glazing, or fraying on the belt, it’s time for a replacement. These issues are often the result of age, heat, or poor tensioning, and can lead to belt failure if not addressed.

Regularly check the belt tension and condition to avoid sudden failures. Use a belt tension gauge to ensure it’s properly tightened, or have a professional check it during routine maintenance.
