2010 Nissan Altima Serpentine Belt Diagram and Routing Information
The 2010 Nissan Altima uses a specific belt configuration that ensures proper functioning of key engine components. Understanding the belt layout is crucial for performing maintenance tasks, such as replacing worn-out belts or troubleshooting issues related to the serpentine belt, alternator, power steering pump, and other systems.
To simplify the process, refer to the official Nissan service manual for an accurate diagram of the belt routing. Typically, the serpentine belt is the most common replacement part, as it powers multiple accessories. The diagram will clearly show how the belt loops around various pulleys and tensioners, making it easy to identify wear points.
In addition, it’s important to check the belt tensioner during maintenance. The diagram provides insight into the correct position of the tensioner, ensuring the belt remains tight and doesn’t slip during operation. If your vehicle is experiencing belt noise or power loss, the diagram can help pinpoint the cause of the issue, saving time and effort during troubleshooting.
2010 Nissan Altima Belt Diagram
The 2010 Nissan Altima utilizes a serpentine belt system that powers multiple components, including the alternator, power steering pump, air conditioning compressor, and water pump. To ensure proper tension and function, refer to the belt routing diagram found on the engine compartment cover or service manual. Below is a clear layout of the typical belt configuration.

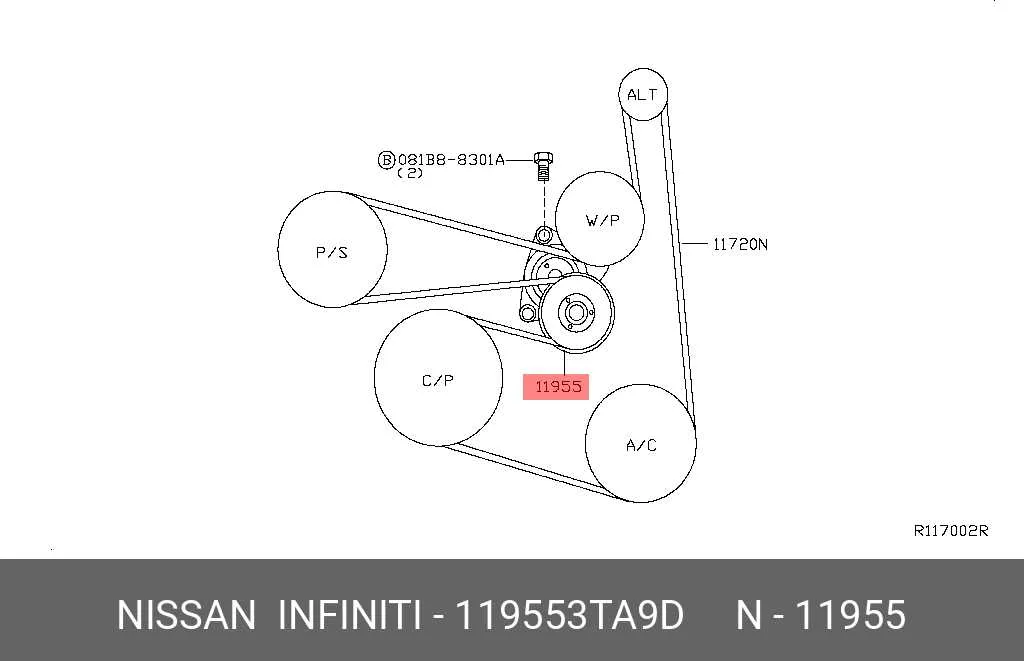

The diagram includes a single serpentine belt that wraps around a series of pulleys, with the crankshaft pulley serving as the primary drive source. The belt loops around the alternator, water pump, air conditioning compressor, and power steering pump. Tension is maintained via an automatic belt tensioner, which adjusts the belt’s slack over time to prevent slippage.
If replacing the belt, check the routing carefully before installation. Use a belt tool to relieve tension from the tensioner, remove the old belt, and install the new one by following the reverse procedure. Always inspect the belt for any signs of wear, such as cracks or fraying, before installation to prevent future issues.
For quick reference, make sure the belt routing diagram is legible, as it will guide you through proper belt alignment. This is vital for the smooth operation of your vehicle’s accessory systems and engine health.
How to Locate and Identify the Belt Layout on a 2010 Nissan Altima
To locate the belt layout on a 2010 Nissan Altima, start by opening the hood and securing it with the prop rod. The drive belts are situated at the front of the engine, near the engine block. You will find the serpentine belt and possibly other accessory belts like the timing belt, depending on your engine configuration.
Look for the belt routing diagram, typically located on a sticker or decal near the radiator, on the fan shroud, or on the underside of the hood. This diagram will show the exact path each belt follows around pulleys and components like the alternator, power steering pump, air conditioning compressor, and water pump.
If the diagram isn’t visible, consult the vehicle’s service manual, which will include a detailed diagram and belt routing instructions. Alternatively, you can look for markings on the engine or pulley system to get an idea of where the belt should be routed.
Before removing or replacing any belts, always ensure the engine is off and cool to avoid injury. You may need a socket wrench or a belt tensioner tool to release the tension on the serpentine belt.
Step-by-Step Guide for Replacing the Serpentine Belt in 2010 Nissan Altima
To replace the serpentine belt in your 2010 Nissan Altima, follow these steps to ensure a smooth process and avoid common mistakes.
- Prepare Your Tools
Gather the following tools: a socket set, a wrench, a serpentine belt tool or a long-handled ratchet, and a replacement belt. You may also need a flashlight for better visibility in tight spaces.
- Locate the Serpentine Belt
The serpentine belt runs along the front of the engine, looping around pulleys for various accessories like the alternator, power steering pump, and air conditioning compressor. You’ll need to remove the engine cover if necessary to access it.

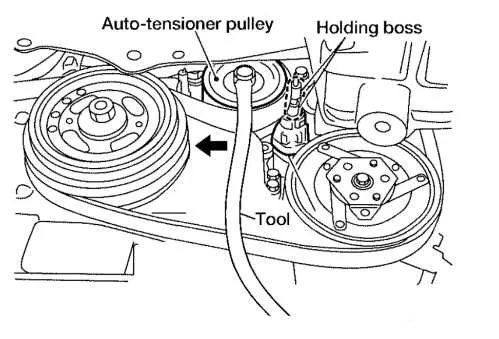

- Release Tension from the Belt
Use the serpentine belt tool or a ratchet to rotate the tensioner pulley counterclockwise. This will relieve pressure on the belt, allowing you to remove it easily. Be cautious while applying force to avoid damaging the tensioner.
- Remove the Old Belt
Once the tension is released, slip the belt off the pulleys, starting with the idler pulley. Keep track of the belt’s routing; the diagram under the hood will be helpful for proper installation of the new belt.
- Inspect the Pulleys
Before installing the new belt, check the pulleys for wear, damage, or debris. Make sure the tensioner moves smoothly and that the pulleys rotate freely. Any faulty parts should be replaced before continuing.
- Install the New Belt
Position the new serpentine belt over the pulleys following the diagram. Start by placing it around the crankshaft pulley, then work your way around the other pulleys. Make sure the belt sits evenly in the grooves of each pulley.
- Reapply Tension
Once the belt is in place, use the serpentine belt tool or ratchet to rotate the tensioner pulley again, allowing it to tighten the belt. The belt should feel snug but not excessively tight. Check the belt’s alignment and adjust if necessary.
- Test the Installation
Start the engine and observe the belt in motion. Listen for any unusual sounds or squeaks, which could indicate improper installation or a worn pulley. If everything seems fine, the installation is complete.
Troubleshooting Common Belt Issues in the 2010 Nissan Altima
If you hear a squealing noise when starting your Altima, the serpentine belt might be loose or worn. Check the belt tensioner to ensure it’s providing the correct amount of pressure. If the belt is cracked, frayed, or visibly damaged, replacing it is necessary. Over time, belts can stretch, causing improper alignment or slipping. Inspect the belt for signs of wear, like glazing or missing ribs. Replacing the belt is a quick fix to avoid further damage to the engine components.
Another common issue is belt misalignment, often due to a malfunctioning pulley. If you notice unusual vibrations or the belt sliding off, inspect the pulleys for wear and ensure they’re properly aligned. Misalignment can lead to rapid wear of the belt and a drop in performance. Tightening or replacing faulty pulleys might be the solution.
Sometimes, the tensioner may be the source of the problem. A faulty tensioner can fail to keep the proper amount of tension on the belt, leading to slippage or irregular operation. If your tensioner is damaged, it’s essential to replace it before it causes belt issues that could affect other engine components.
Another issue could be the alternator or power steering pulleys, which can become worn out over time. Check the pulleys for any wobble or unusual movement, which can cause the belt to wear unevenly. Replacing the damaged pulley can help prevent further damage to the belt and other associated parts.
Finally, ensure the belt routing matches the diagram for the 2010 Nissan Altima. Incorrect belt routing can result in the belt slipping off or not functioning efficiently. If you’ve recently replaced the belt or any related parts, double-check the diagram to confirm everything is aligned properly.
