Dodge Journey 2.4 Belt Diagram and Routing Guide

The Dodge Journey 2.4 belt system plays a significant role in the vehicle’s performance. The main drive belt transfers power from the engine to critical components like the alternator, power steering, and air conditioning system. A clear understanding of the belt routing and its tension is essential for maintaining smooth operation.

Ensure the proper installation of the belt by following the manufacturer’s recommended diagram. The belt routing diagram provides a clear guide on how to place the belt around pulleys and other components. Pay attention to the direction of the grooves on the belt, as incorrect placement can lead to premature wear or damage.

After installation, always check the belt’s tension. A belt that is too tight or too loose can cause unnecessary strain on the engine and other components, leading to potential breakdowns. Make adjustments as needed to prevent any misalignment or issues with the drive system.

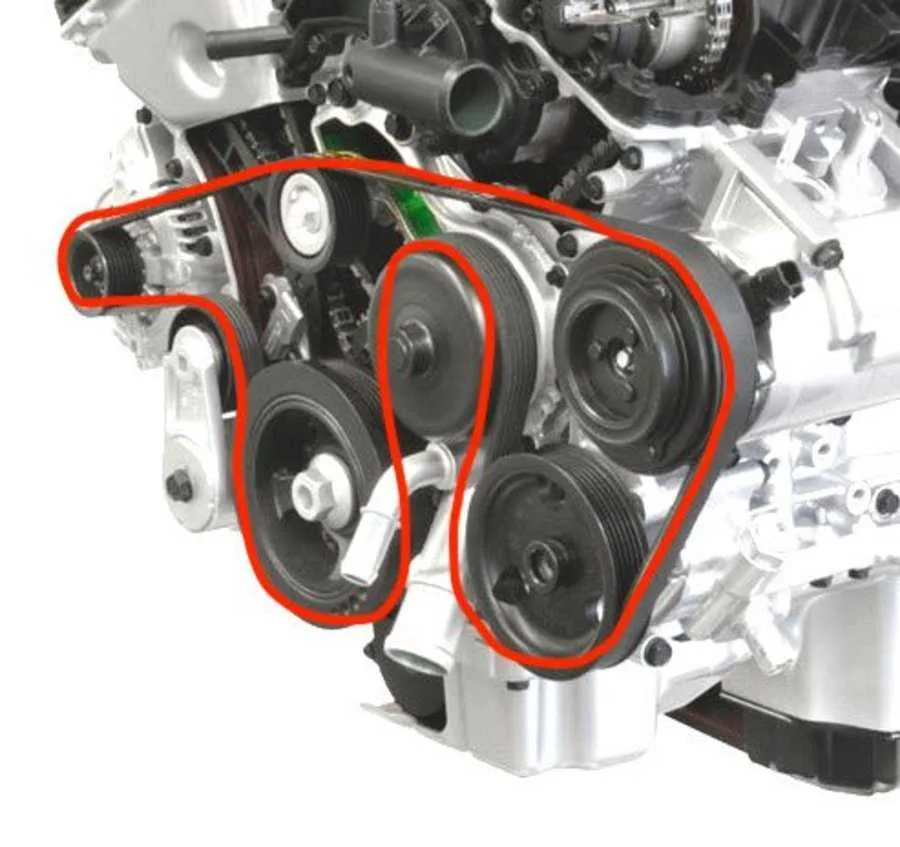

Dodge Journey 2.4 Belt Diagram

To ensure proper engine function, it is important to follow the correct belt routing. The serpentine belt for the Dodge Journey 2.4 engine should be routed according to the factory specifications. Start by locating the crankshaft pulley, which serves as the base point for the routing process. From here, the belt must pass around the water pump, power steering pump, and alternator pulleys. Make sure to position the belt on the tensioner pulley correctly, ensuring the belt is under the right amount of tension.

For installation, double-check that the belt is seated properly on each pulley and that no slack exists. The routing diagram can usually be found under the hood or in the service manual. If the belt tensioner is weak or worn, it may not maintain the necessary tension, leading to belt slippage. In that case, replace the tensioner before re-installing the belt.

Before final installation, rotate the engine by hand to ensure the belt moves freely without binding or slipping. After the belt is secured, run the engine for a few minutes while monitoring for any unusual noises or belt movements. This will help confirm the belt is functioning as expected.

Identify the Belt Layout on Dodge Journey 2.4 Engine

To identify the belt layout on the Dodge Journey 2.4 engine, follow the specific routing pattern for the serpentine belt and its components. First, locate the tensioner pulley, which helps maintain the proper belt tension. The serpentine belt routes around the crankshaft pulley, alternator, power steering pump, water pump, and air conditioning compressor. Each component plays a key role in maintaining engine functionality and performance.

Examine the layout carefully to ensure the belt follows the proper path. The routing typically starts from the crankshaft pulley and moves across the other pulleys in a sequence that ensures smooth operation of the engine accessories. A visual diagram can be a helpful reference when installing or replacing the belt. Ensure the belt is properly aligned with each pulley groove to avoid unnecessary wear or damage.

• Crankshaft pulley
• Alternator
• Power steering pump
• Water pump
• Air conditioning compressor
• Belt tensioner

Double-check the belt’s path against the diagram to avoid any errors. If the belt is installed incorrectly, it can cause misalignment, leading to wear and poor engine performance. After installation, check the tension and adjust if necessary. Regularly inspect the belt for signs of wear or damage to maintain optimal engine function.

Steps for Replacing the Serpentine Belt in Dodge Journey 2.4

1. Secure the vehicle by parking on a level surface and engaging the parking brake.

2. Open the hood and locate the serpentine belt. Identify the path it follows around pulleys and the tensioner.

3. Use a socket wrench to rotate the tensioner pulley counterclockwise. This will release tension from the belt.

4. Carefully remove the serpentine belt from the pulleys, taking note of its routing for later installation.

5. Compare the old belt with the new one to ensure they match in size and design.

6. Route the new serpentine belt around the pulleys according to the routing diagram, ensuring it sits properly on each pulley.

7. Rotate the tensioner pulley again to provide slack and slip the new belt into place.

8. Verify the belt is securely seated on all pulleys and that there is no slack or misalignment.

9. Release the tensioner, allowing it to apply the correct tension to the new belt.

10. Check the belt’s alignment and adjust as necessary by rotating the tensioner slightly.

11. Close the hood and start the engine to ensure the belt is functioning properly, listening for any abnormal noises.

Common Issues with Belt Routing and Tension on Dodge Journey 2.4

Incorrect belt routing can cause the belt to slip or wear out prematurely. Always ensure the belt follows the precise path outlined in the manufacturer’s diagram. Any deviation from the correct routing can result in misalignment, which stresses the components and can lead to failure. If the belt is not properly routed, check each pulley and idler for any signs of wear or damage.

Improper tension is another frequent issue. A loose belt can lead to slippage, which affects the performance of systems like the alternator and air conditioning. On the other hand, an overly tight belt can increase wear on the tensioner and pulleys. Use a tension gauge to check that the belt maintains the correct tension as specified in the service manual. If the belt tensioner is faulty, replace it to maintain proper belt tightness.

Listen for any unusual sounds such as squealing or whining, as these often signal issues with either routing or tension. A noisy belt can indicate that the belt is too tight, too loose, or misaligned. Inspect the entire routing system to identify the source of the noise. Additionally, pay attention to any visible signs of wear on the belt itself, such as cracks or fraying.

If the belt is frequently slipping off or showing signs of wear, check the condition of the pulleys. A worn pulley can cause the belt to lose traction, leading to alignment problems. Ensure the pulleys are aligned and free of debris to prevent unnecessary wear on the belt.
