2008 Nissan Altima 35 Engine Belt Routing Diagram and Component Layout Guide
Locate the serpentine belt routing diagram under the hood near the radiator support or on the engine cover. For the 2008 Nissan Altima 3.5L V6, the belt loops around the crankshaft pulley, alternator, power steering pump, water pump, and A/C compressor. Identifying each pulley in the correct order prevents misalignment and reduces wear.
Follow the tensioner carefully when removing or installing the belt. The tensioner sits on the front of the engine and uses a spring-loaded arm. Use a suitable wrench or ratchet to rotate the tensioner clockwise, release tension, and slip the belt off the pulleys smoothly. Releasing too quickly can damage the tensioner or nearby components.
Double-check pulley alignment after routing the belt. Misalignment leads to squealing noises and uneven wear. Compare the installed belt against a printed or labeled diagram from the service manual. Ensure the belt sits fully in the pulley grooves without twisting.
Maintain the belt condition by inspecting it for cracks, fraying, or glazing. A worn belt reduces engine efficiency and can fail suddenly. For the 3.5L engine, replace the belt approximately every 60,000 miles or sooner if visible wear appears.
Keep tools and reference materials ready before starting. A serpentine belt routing diagram, a long-handled ratchet, and proper lighting make the process faster and safer. With the correct diagram, tensioner technique, and attention to alignment, belt replacement on the 2008 Nissan Altima 3.5L becomes straightforward and reliable.

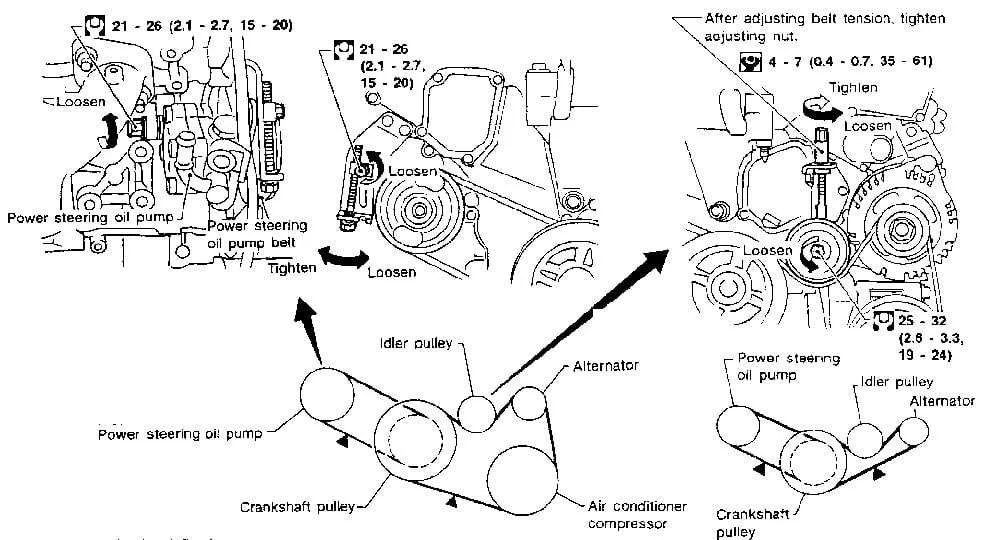

2008 Nissan Altima 3.5 Belt Diagram
Use the belt diagram to ensure correct installation of the serpentine belt on your 2008 Nissan Altima 3.5. Proper routing prevents belt slippage and protects engine components.
The belt wraps around several key components in the following order:
- Crankshaft Pulley: Main drive source at the bottom center of the engine.
- Alternator: Located at the top left, the belt powers the alternator to charge the battery.
- Power Steering Pump: Positioned near the top right, ensure the belt sits correctly on the pulley grooves.
- AC Compressor: Found on the lower left, the belt engages smoothly without slack.
- Idler Pulley: Maintains proper tension and alignment across the belt path.
- Tensioner Pulley: Automatically adjusts tension; release slowly when removing the belt to avoid damage.
Follow these tips for safe replacement:
- Locate the tensioner and use a wrench to relieve tension before removing the belt.
- Compare the new belt length with the old one to confirm proper fit.
- Route the belt according to the diagram, ensuring each pulley groove aligns precisely.
- Rotate the crankshaft by hand once after installation to check for proper tracking.
- Inspect for misalignment, rubbing, or unusual tension before starting the engine.
Keep a printed diagram in the engine bay while installing to avoid mistakes. Correct routing extends belt life and maintains consistent power delivery to all driven accessories.
Locating and Identifying Each Engine Belt
Locate the serpentine belt by standing in front of the engine and identifying the long, continuous belt that loops around multiple pulleys. It drives the alternator, power steering pump, water pump, and air conditioning compressor. Start at the crankshaft pulley, the largest pulley at the bottom center of the engine, and trace the belt upward.
The timing belt sits behind the engine cover on the passenger side. Remove the protective cover to expose the belt. It connects the crankshaft to the camshafts, ensuring valve timing remains synchronized. Look for the toothed pattern that distinguishes it from smooth serpentine belts.
The accessory belt, if separate from the serpentine belt, usually runs only to specific components like the air conditioning compressor. Check the tensioner pulley next to it; it often signals the belt path. Identify each belt by its width, tooth design, and pulley connections.
Use the following table to match each belt to its corresponding component and pulley:
| Belt | Pulley Connections | Location | Notes |
|---|---|---|---|
| Serpentine Belt | Crankshaft, Alternator, Power Steering, Water Pump, AC Compressor | Front of engine | Continuous belt, smooth on one side, ribbed on the other |
| Timing Belt | Crankshaft, Camshafts | Behind engine cover | Toothed design, ensures valve timing |
| Accessory Belt | AC Compressor, sometimes alternator | Front of engine, separate path | Narrower, may require separate tensioner |
Check for any labels or embossed diagrams on the engine cover; these often illustrate the exact routing. Ensure belts align correctly on pulleys and rotate without rubbing against other components.
If you want, I can also create a visual belt routing diagram specifically for the 2008 Nissan Altima 3.5 to accompany this section. It would make the table and instructions much easier to follow. Do you want me to do that?
Step-by-Step Belt Routing Diagram
Locate the crankshaft pulley at the bottom center of the engine; this pulley drives the main serpentine belt. Wrap the belt clockwise around the crankshaft pulley and then route it over the water pump pulley located on the upper left side of the engine bay. Next, guide the belt down to the alternator pulley on the upper right side, ensuring it sits firmly in the grooves.
From the alternator, route the belt across the power steering pump pulley positioned slightly lower and to the left. Continue by directing the belt under the idler pulley near the center of the engine and then loop it around the A/C compressor pulley at the lower right. Keep the belt tension even, and check that it is aligned correctly in each groove to prevent slipping.
Use the tensioner pulley on the lower left to adjust the belt’s tightness. Pull the tensioner with a wrench, slide the belt into position, and slowly release the tensioner to hold the belt securely. Double-check that the belt forms the correct routing pattern: crankshaft → water pump → alternator → power steering → idler → A/C compressor → tensioner. Rotate the engine manually two full turns to confirm smooth movement and proper seating before starting the vehicle.
Common Belt Replacement Tips and Torque Specifications
Replace the serpentine belt on a 2008 Nissan Altima 3.5 every 60,000 miles or if cracks, fraying, or glazing appear. Always use a belt tensioner tool to release tension safely, avoiding damage to surrounding components. Verify the routing using the under-hood belt diagram to prevent misalignment.
Inspect pulleys for smooth rotation and wobble. Replace any pulley showing excessive play or noise before installing a new belt. Apply a light coat of engine oil to accessory pulley bolts only if threads are dry; otherwise, keep them clean.
Tighten accessory bolts to the manufacturer’s torque specifications: alternator mounting bolts to 29–33 ft-lb (39–45 Nm), power steering pump bolts to 21–25 ft-lb (28–34 Nm), and idler pulley bolts to 33–37 ft-lb (45–50 Nm). Ensure the tensioner arm settles fully against the belt, then double-check alignment across all pulleys.
After installation, rotate the engine manually two full turns to seat the belt and confirm proper tracking. Listen for unusual squeaks or rubbing, and recheck tensioner compression. Perform a short test drive under normal load, then inspect the belt one more time for correct tension and alignment.
