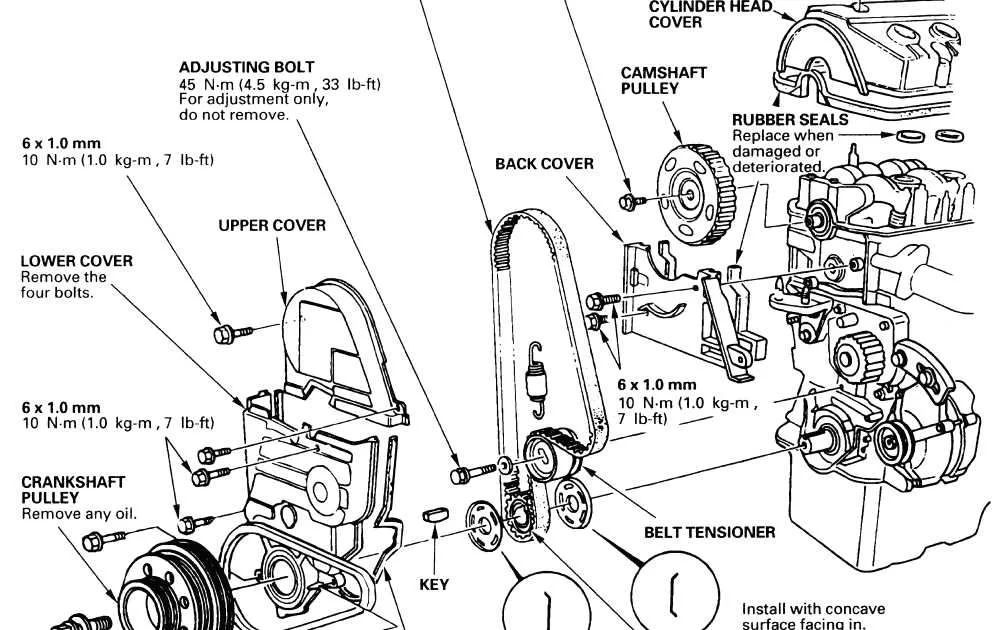

2005 Honda Civic Serpentine and Timing Belt Layout with Component Locations
Locate the serpentine belt routing with precision to avoid misalignment and premature wear. The 2005 Honda Civic uses a single serpentine belt to drive the alternator, power steering pump, and air conditioning compressor. Understanding the exact path helps maintain consistent tension and prevents engine accessory failures.
Follow the diagram carefully: the belt wraps around the crankshaft pulley first, then loops over the alternator, the idler pulley, and the tensioner before reaching the A/C compressor. Each pulley has a designated position that ensures proper load distribution across the belt. Mistaking the sequence can cause slipping or noise, which reduces component lifespan.
Check the belt for cracks, fraying, or glazing while referencing the diagram. Regular inspection combined with accurate installation maintains smooth engine operation. Using a belt tensioner tool can simplify routing and reduce stress on your hands during the replacement process. Aligning the belt according to the diagram guarantees consistent performance and prevents costly repairs down the line.
Keep the diagram accessible during maintenance to cross-reference pulley positions. Comparing the installed belt against the diagram allows quick identification of misrouting or potential interference with adjacent components. Following these steps maintains proper belt function and supports the longevity of your Civic’s engine accessories.
2005 Honda Civic Belt Diagram Guide
Locate the serpentine belt routing diagram on the engine cover or near the radiator support; this provides a precise path for installation. For the 2005 Honda Civic with a 1.7L engine, the belt wraps around the crankshaft pulley, alternator, water pump, power steering pump, and A/C compressor. Follow the diagram carefully to avoid misalignment and premature wear.
Use a wrench to release tension from the tensioner pulley before removing the old belt. Inspect all pulleys and the tensioner for signs of cracks or wobbling. Replace any worn components before installing the new belt to ensure smooth operation and prevent slipping.
Align the belt on each pulley according to the diagram, maintaining proper contact in all grooves. Double-check routing after installation to confirm the belt sits correctly on every pulley. Turn the engine manually two full rotations to verify tension and alignment before starting the car.
Regular inspection of the belt every 30,000 miles helps identify fraying, glazing, or missing ribs early. Keeping the belt in good condition prevents engine overheating and loss of power steering assistance, extending the lifespan of connected accessories.

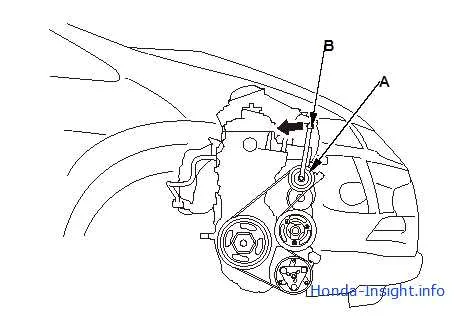

Locating and Identifying Serpentine Belt Components
Locate the serpentine belt by opening the hood and focusing on the front of the engine. It wraps around several pulleys, each driving a specific accessory. Identify the crankshaft pulley at the bottom center; it powers the entire belt system. Above it, the alternator pulley sits slightly to the side, usually on the passenger side, and the tensioner pulley is spring-loaded, allowing adjustment of belt tension.
Trace the belt upward to find the power steering pump pulley on the driver’s side, typically larger than the others. The A/C compressor pulley, often near the front corner of the engine, has a smooth outer edge with a clutch mechanism in the center. The idler pulleys maintain proper belt alignment and are smaller, smooth, and strategically positioned between accessory pulleys. Verify each component by checking the manufacturer’s diagram for the 2005 Honda Civic, matching pulley shapes and locations precisely.
Check the routing direction carefully; the belt wraps clockwise around most pulleys but may vary slightly depending on engine type. Confirm tensioner placement and pulley alignment before attempting removal or replacement. Using a flashlight helps highlight grooves and confirm that the belt sits fully in the pulley channels, preventing slippage and premature wear. Labeling each pulley with masking tape can simplify maintenance and reduce mistakes during reinstallation.
Step-by-Step Belt Removal and Replacement Process
Loosen the tensioner pulley using a 3/8-inch ratchet to relieve pressure on the serpentine belt. Make sure the engine is off and cool before touching any components. Observe the belt routing carefully; snapping a quick photo helps during reinstallation.
- Use the ratchet to rotate the tensioner counterclockwise, then slide the belt off the alternator pulley first.
- Remove the belt from the remaining pulleys one at a time, including the crankshaft, power steering, and A/C pulleys. Keep your hands clear of sharp edges.
- Inspect each pulley for wear or wobble. Replace any that show signs of damage to prevent premature belt failure.
- Compare the old belt with the new one to ensure length and rib alignment match perfectly.
- Route the new belt around the crankshaft pulley, then follow the diagram to loop it over the A/C, alternator, and power steering pulleys.
- Rotate the tensioner again, slip the belt into place, and release the tensioner slowly to apply pressure evenly.
- Double-check that the belt sits properly in all pulley grooves and aligns with the routing diagram. Misalignment can cause noise or wear.
- Start the engine and observe the belt for several seconds. Listen for unusual noises and ensure smooth rotation on all pulleys.
Keep a small wrench nearby to adjust tension if the belt shows slack after initial operation. Tight installation reduces the risk of slipping and extends belt life.
Troubleshooting Common Belt Alignment and Wear Issues
Check belt tension using a reliable gauge; a 2005 Honda Civic serpentine belt should deflect about 1/2 inch under moderate pressure at the longest span. Uneven tension often causes squealing or accelerated wear.
Inspect pulleys for misalignment by running a straightedge across their faces. Even a 1–2 mm offset can lead to fraying or belt slippage. Replace bent or worn pulleys immediately to maintain proper routing.
Look for cracks, glazing, or frayed edges along the belt’s ribbed surface. Micro-cracks indicate aging rubber, while shiny spots suggest slipping against pulleys. Swap the belt at the first sign of deterioration to prevent sudden failure.
Check the tensioner pulley for smooth rotation. A binding or noisy tensioner reduces belt contact with accessory pulleys, increasing heat and wear. Replace tensioners that show roughness or wobble.
Ensure accessory pulleys, such as the alternator, water pump, and A/C compressor, spin freely without lateral play. Bearings with excessive movement will create uneven wear patterns on the belt.
Reinstall the belt following the diagram for a 2005 Honda Civic precisely. Improper routing over pulleys can create abnormal stress points, resulting in premature cracking or shredding.
After installation, run the engine and listen for squeaks. If noise persists, recheck alignment and tension, and verify no debris or foreign objects interfere with pulley rotation.
