2006 Nissan Frontier Serpentine Belt Diagram and Maintenance Guide
To keep your 2006 Nissan Frontier running smoothly, it’s crucial to ensure the correct alignment and condition of its belt system. A clear understanding of the belt diagram helps in identifying the right parts for replacement and troubleshooting any issues. This guide provides an overview of the specific belt layout, helping you avoid common mistakes during repairs.
The engine belts in the 2006 Nissan Frontier include the serpentine belt, which powers various components like the alternator, power steering pump, and air conditioning compressor. It’s important to replace these belts at regular intervals or if you notice signs of wear, such as cracks or fraying.
Before replacing the belts, make sure you have the right diagram. The 2006 Nissan Frontier uses a specific routing for the serpentine belt that differs from other models. Accurate belt routing ensures all components receive the proper power without overloading the system. Always follow the manufacturer’s recommendations to maintain optimal performance.
2006 Nissan Frontier Belt Diagram
The 2006 Nissan Frontier uses multiple belts to drive critical components like the alternator, power steering pump, and air conditioning compressor. To ensure proper operation and avoid unnecessary wear, regularly inspect these belts for damage or tension issues.
The primary belt configuration includes:
- Serpentine belt: This belt powers several accessories, including the alternator, power steering, and air conditioning compressor.
- Timing belt: Connected to the camshaft, it regulates the timing of engine valves and synchronization with the crankshaft.
To replace or adjust the belts, follow these steps:
- Locate the belt tensioner and release it to loosen the tension on the serpentine belt.
- Remove the old serpentine belt and check for signs of wear or cracking.
- Install the new belt, ensuring it follows the proper routing as shown in the diagram.
- Use the tensioner tool to adjust the belt tension until it is firm but not overly tight.
- Inspect the timing belt for wear if it is due for replacement, and follow the manufacturer’s instructions for replacement if necessary.

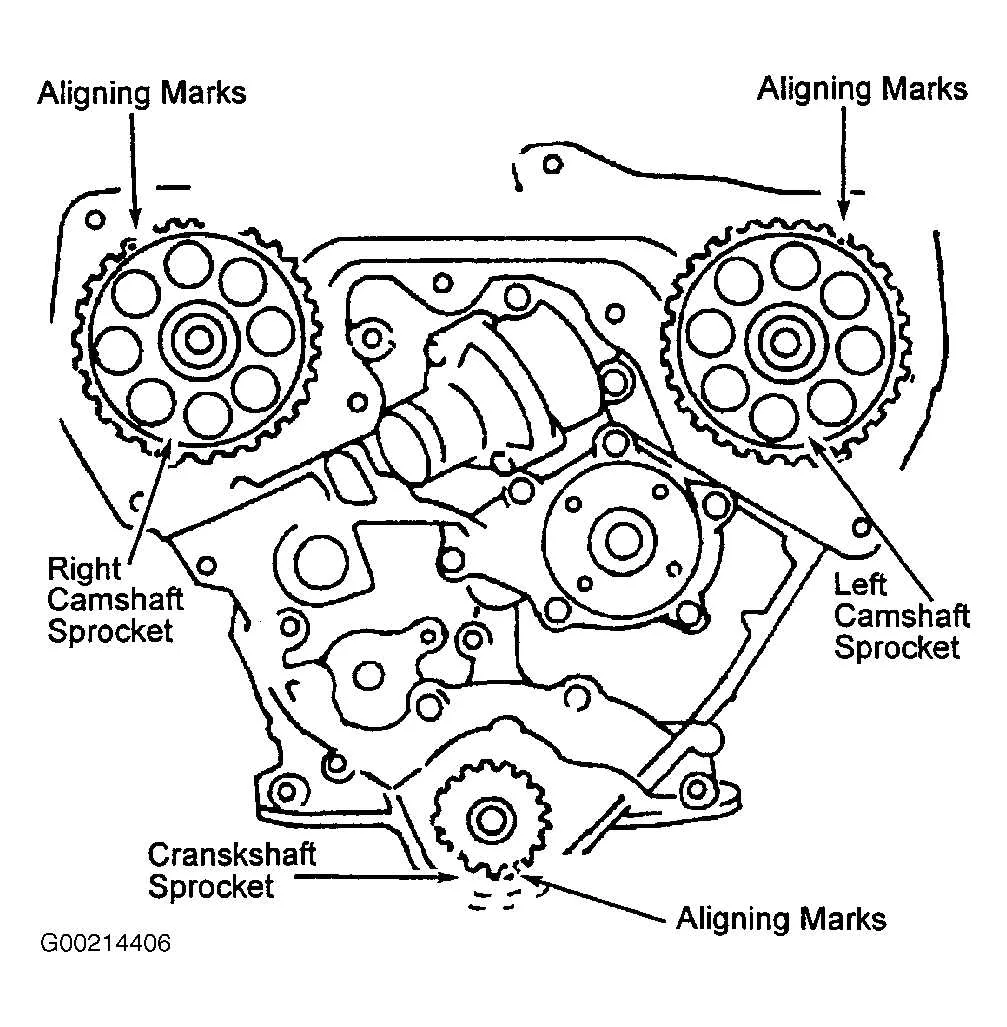

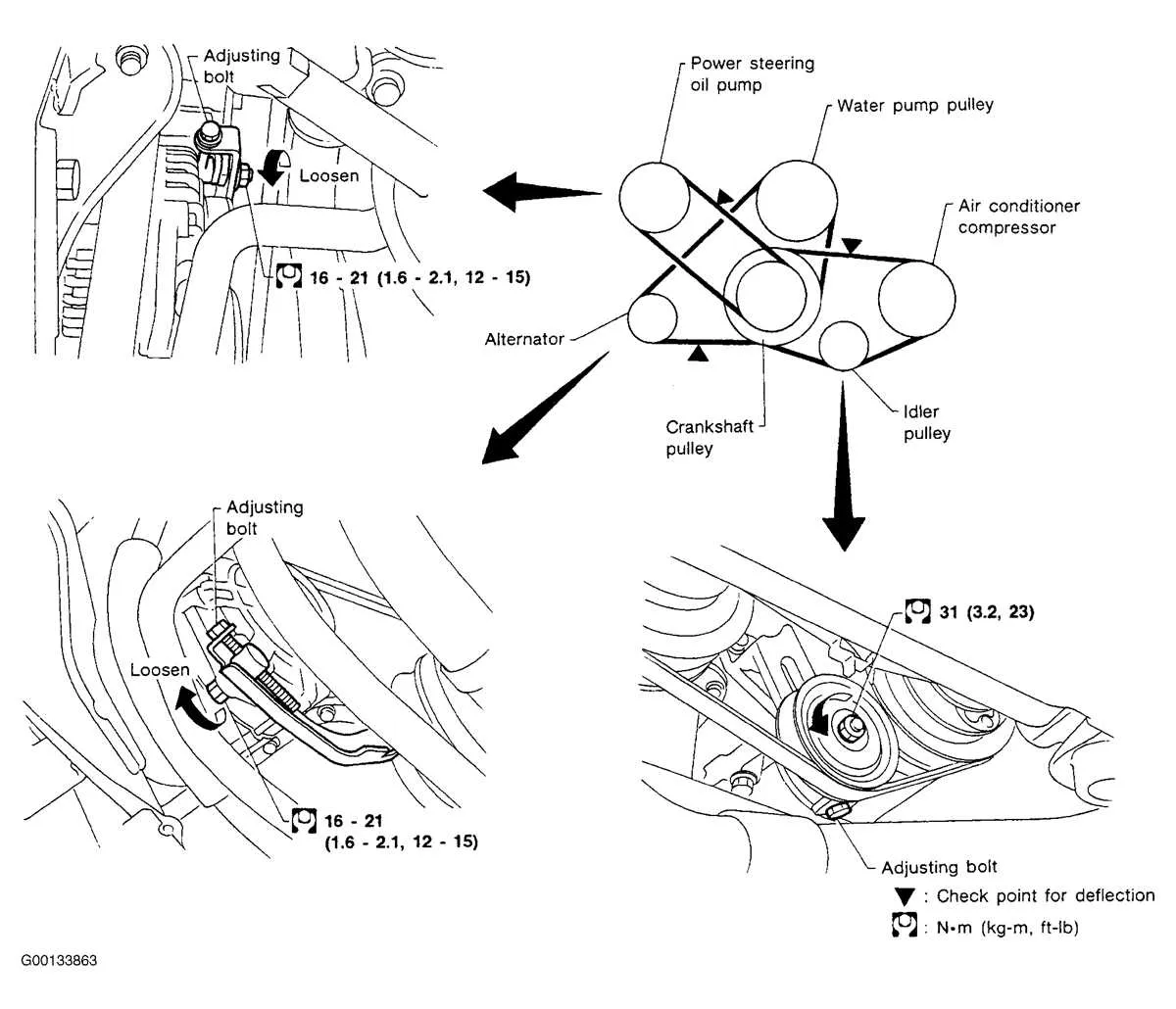

Refer to the 2006 Nissan Frontier belt diagram to confirm the correct routing for the serpentine belt. Incorrect installation can lead to improper belt tension, resulting in accessory failures or engine damage.
Identifying the Components of the 2006 Nissan Frontier Belt System
The 2006 Nissan Frontier belt system consists of several key components that work together to ensure proper engine function. First, locate the serpentine belt, which is the primary drive belt running through the engine. This belt connects the alternator, power steering pump, water pump, and air conditioning compressor, transmitting power from the engine’s crankshaft pulley to these vital components.
The tensioner pulley plays a critical role in maintaining the proper tension on the serpentine belt. A worn-out or damaged tensioner can lead to belt slippage and engine performance issues. Regular inspection of the idler pulley is also recommended, as it supports the movement of the belt and helps guide it along the correct path.
In addition to the primary serpentine belt, the 2006 Frontier may include a timing belt depending on the engine type. This belt controls the timing of the engine’s camshaft and crankshaft, ensuring that the engine’s valves open and close at the correct times. For models with a timing belt, regular replacement according to the manufacturer’s recommended schedule is crucial to prevent engine damage.
Examine the crankshaft pulley as well, which is responsible for transferring power to the belt system. If the crankshaft pulley becomes damaged or misaligned, it can disrupt the entire system, affecting the operation of key engine components.
Finally, check the condition of the belt itself. Look for signs of wear such as cracks, fraying, or glazing. If any of these issues are present, the belt should be replaced promptly to avoid further damage to the system.
How to Inspect and Troubleshoot the Belt on 2006 Nissan Frontier
Begin by visually inspecting the serpentine belt for cracks, fraying, or excessive wear. Look for any signs of glazing, which indicates slipping, or for oil or coolant stains, which could cause the belt to degrade.
Check the belt tension. A loose belt can cause poor performance or squealing noises. Use a belt tension gauge to verify the proper tension, as per the manufacturer’s specifications. Adjust the tension if needed by using the tensioner pulley.
Inspect the pulleys and tensioner. Look for any pulleys that are misaligned, damaged, or have worn bearings. A pulley that’s not rotating smoothly can cause the belt to wear unevenly or fail prematurely.
If the belt is in good condition but you hear squealing or rattling, inspect the belt routing. Make sure the belt is seated correctly on all pulleys. An improperly routed belt can cause misalignment and premature wear.
Test the belt for proper operation by starting the engine and listening for any abnormal noises. A squealing noise might indicate a slipping belt, while a thumping sound could point to a misaligned pulley.
If troubleshooting doesn’t resolve the issue, replace the belt. It’s a good idea to replace it every 60,000 miles to prevent unexpected failure. When replacing, also check for any worn components like the tensioner or pulleys that could cause the new belt to fail prematurely.
Step-by-Step Guide to Replacing the Belt on 2006 Nissan Frontier
1. Gather the necessary tools: Before starting, make sure you have a socket set, belt tensioner tool, and a new belt that matches the part number for your 2006 Nissan Frontier.
2. Disconnect the battery: For safety, disconnect the negative terminal of the battery to prevent any electrical accidents while working on the vehicle.
3. Locate the belt routing diagram: The diagram is usually found near the radiator or on the underside of the hood. It shows the correct belt routing, which is crucial for proper installation.
4. Release the tension on the old belt: Use a belt tensioner tool to relieve the tension on the existing belt. Turn the tensioner counterclockwise to loosen the belt. Remove it from the pulleys and set it aside.
5. Inspect the pulleys: Before installing the new belt, inspect all pulleys for any damage or excessive wear. Spin each pulley by hand to ensure they move freely and quietly. Replace any worn-out pulleys if necessary.
6. Install the new belt: Follow the routing diagram and carefully thread the new belt around the pulleys. Make sure the belt fits snugly in the grooves of the pulleys without being twisted.
7. Apply tension to the new belt: Use the belt tensioner tool to apply tension to the new belt. Ensure the belt is tight, but not overly stretched. Check that the belt is aligned correctly and sits properly in the pulleys.
8. Reconnect the battery: Once the new belt is installed and tensioned, reconnect the negative terminal of the battery.
9. Start the engine: Start the engine and observe the belt in action. Listen for any unusual noises and check for proper movement. If everything is functioning smoothly, you have successfully replaced the belt.
