5.7 Liter Hemi Serpentine Belt Diagram and Routing Guide

To keep your 5.7-liter Hemi engine running smoothly, it’s important to ensure the serpentine belt is properly routed. A misaligned or worn-out belt can lead to engine performance issues, affecting everything from the alternator to the air conditioning system. The diagram below shows the exact routing for your 5.7 Hemi serpentine belt, helping you avoid unnecessary complications during maintenance.

The serpentine belt should be routed in a way that ensures even tension across all components it drives. For the 5.7-liter Hemi, the diagram outlines the path the belt should follow, starting from the crankshaft pulley and looping around various pulleys, including the water pump, power steering pump, and alternator. Pay close attention to the specific pulley placements to avoid misalignment that could cause belt slippage or premature wear.

When replacing or adjusting the serpentine belt, double-check its tension using a belt tension gauge. Over-tightening or under-tightening can both lead to problems such as squealing or reduced component lifespan. A good rule of thumb is to ensure the belt sits snugly without being excessively tight, which is why using the factory diagram is key for accurate installation.

If you’re unsure about the belt condition or routing, consulting the diagram can save time and help avoid costly mistakes. Having this reference on hand during your next maintenance session will ensure that your Hemi runs at its best for years to come.

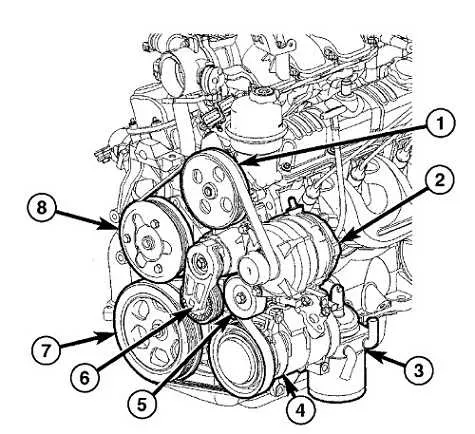

5.7 HEMI Serpentine Belt Diagram

To replace the serpentine belt on a 5.7 HEMI engine, follow the diagram for proper routing. First, locate the tensioner pulley to release the belt’s tension. Use a wrench or socket to rotate the tensioner, and remove the old belt carefully from all pulleys. When installing the new belt, ensure it follows the exact path shown in the diagram, as this ensures proper engine operation and prevents premature wear.

The serpentine belt on the 5.7 HEMI typically drives several components, including the alternator, power steering pump, water pump, and air conditioning compressor. Pay close attention to the routing, as improper installation can cause the belt to slip or get damaged quickly.

After replacing the serpentine belt, verify the tension once more. The belt should be snug but not overly tight. A loose belt will lead to poor performance, while a tight belt can damage engine components. Check the belt for any signs of wear or cracking during routine maintenance.

If you’re unsure about the diagram, consider using a repair manual or online resources specific to your 5.7 HEMI model for a more detailed illustration of the belt routing. It’s always good practice to verify that the correct part number is used for your specific engine model, as there may be slight variations based on year or trim.

How to Identify the Correct Serpentine Belt Routing for 5.7 HEMI

To identify the correct serpentine belt routing for your 5.7 HEMI, first locate the belt routing diagram. This can usually be found on a label near the radiator support or inside the hood. If you can’t find it, check your vehicle’s service manual or online resources for the exact diagram based on your specific model year.

Next, visually inspect the belt’s path. The serpentine belt typically loops around various engine components such as the alternator, power steering pump, water pump, air conditioning compressor, and tensioner pulley. Ensure the belt follows the correct sequence, as even a slight misalignment can lead to premature wear or malfunction.

• Start by aligning the belt with the crankshaft pulley, ensuring it moves in the direction indicated in the diagram.
• Route the belt over the alternator, power steering pump, and water pump, making sure it fits snugly on each pulley.
• Double-check the path through the tensioner pulley and A/C compressor, ensuring the belt is routed as shown in the diagram.

If the belt has been removed or is being replaced, compare its current routing with the diagram before installing a new one. Incorrect installation can cause the belt to slip or wear out faster, leading to performance issues or engine damage.

When installing the new serpentine belt, apply steady pressure on the tensioner pulley to create slack. Slide the belt into place, making sure it sits properly on all pulleys without any twists. Finally, release the tensioner to tighten the belt.

Common Issues with 5.7 HEMI Serpentine Belt and How to Fix Them

One of the most common problems with the 5.7 HEMI serpentine belt is premature wear caused by misalignment. If the belt starts to squeal or show visible signs of cracking, the tensioner or pulleys may be misaligned. Inspect the pulleys and tensioner for any damage or wear, and replace them as necessary to prevent further issues.

Another issue is the buildup of dirt and debris on the belt or pulleys. This can cause the belt to slip, leading to loss of power and potential damage to other engine components. Regularly clean the pulleys and the belt itself to remove any accumulated debris. If the belt is worn down or damaged, it’s best to replace it promptly to avoid further strain on the engine.

Worn-out or faulty tensioners are also a frequent problem with the serpentine belt. If the belt is loose or frequently slips off, the tensioner might not be maintaining the correct tension. Replacing the tensioner with a new, high-quality part is the best solution to maintain proper belt function and prevent further damage.

Finally, a stretched or cracked belt is another sign that the serpentine belt needs to be replaced. Over time, belts lose their elasticity and begin to crack, which can lead to poor performance or even complete failure. Regularly inspect the belt for visible signs of wear and replace it as needed to maintain optimal engine performance.

Step-by-Step Guide to Replacing the Serpentine Belt on a 5.7 HEMI Engine

To replace the serpentine belt on your 5.7 HEMI engine, follow these steps carefully to ensure the job is done right. Always wear safety gloves and glasses to protect yourself while working with the engine.

1. Disconnect the Battery

Start by disconnecting the negative terminal of the battery. This will prevent any electrical short while you’re working on the engine components.

2. Locate the Serpentine Belt

The serpentine belt runs along the front of the engine, usually around several pulleys, including the alternator, power steering pump, and water pump. Familiarize yourself with its path before removal.

3. Find the Tensioner

Locate the serpentine belt tensioner pulley. This is the pulley that keeps the belt under proper tension. Use a ratchet wrench to rotate the tensioner counterclockwise. This will loosen the belt so it can be removed.

4. Remove the Old Serpentine Belt

Once the tensioner is released, carefully remove the belt from the pulleys. Make sure to note how the belt is routed before taking it off–taking a photo can help when installing the new belt.

5. Install the New Serpentine Belt

Begin by routing the new belt around the pulleys in the same way the old one was. Follow the diagram if available or the image you took earlier. Ensure the belt sits properly in all grooves and is not twisted.

6. Tension the Belt

Rotate the tensioner again, this time to allow the belt to slip into place. Make sure the tensioner is securing the belt with the proper tension and the belt is firmly seated on all pulleys.

7. Double-Check the Installation

Before closing the hood, check the belt’s alignment and that it’s properly routed. Spin the pulleys manually to confirm the belt is moving freely and not slipping.

8. Reconnect the Battery

Reconnect the negative terminal of the battery. Start the engine and listen for any abnormal noises, which could indicate the belt is not properly installed.

With the serpentine belt replaced, your 5.7 HEMI engine will run smoothly. Keep an eye on the belt’s condition during regular maintenance checks.
