2005 Nissan Altima Serpentine Belt Diagram and Troubleshooting

To replace or inspect the belts in your 2005 Nissan Altima, start by locating the belt diagram under the hood. The diagram provides a clear visual guide for routing the serpentine belts correctly, ensuring proper engine function.

Ensure that you use the correct type of replacement belts for your Altima. Refer to the diagram for the exact path and tension specifications. A misaligned belt can cause premature wear or even engine damage.

When inspecting or replacing the belt, check for any signs of wear such as cracks, fraying, or glazing. Replacing a worn-out belt on time can prevent issues like overheating, poor air conditioning performance, or loss of power steering functionality.

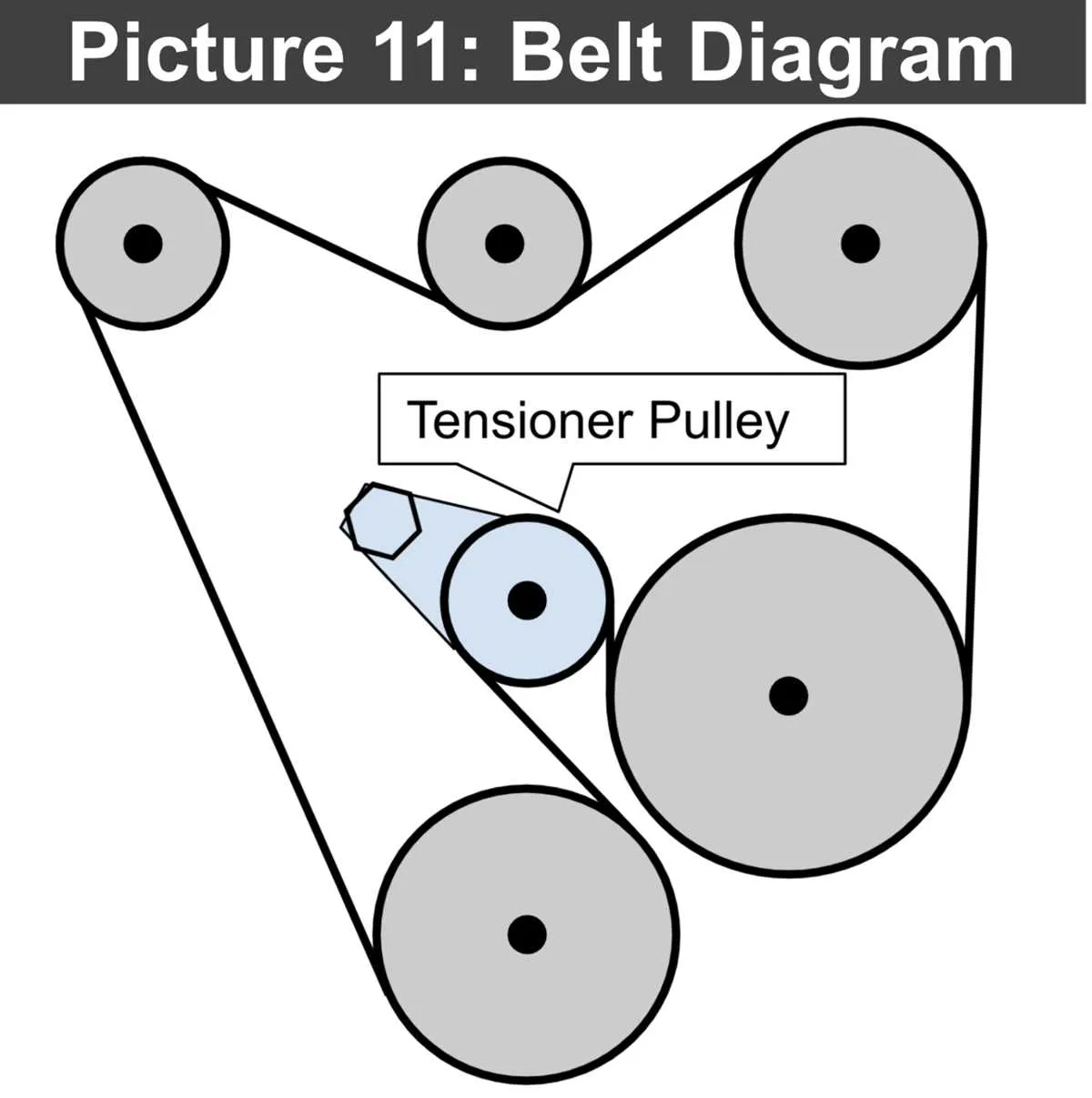

2005 Nissan Altima Belt Diagram

To replace or inspect the belts on your 2005 Nissan Altima, refer to the specific diagram for clear guidance on belt routing. The engine in this model typically uses multiple belts, including the serpentine belt, which powers several components such as the alternator, power steering pump, and air conditioning compressor.

Ensure the engine is off and cool before beginning any work. Here’s a step-by-step overview for belt inspection and replacement:

• Locate the belts: The serpentine belt is easily accessible on the front of the engine. It runs around several pulleys, providing power to various engine components.
• Inspect for wear: Look for cracks, fraying, or signs of excessive wear. If any damage is found, replacing the belt is necessary.
• Use the belt diagram: The diagram is located on a sticker on the radiator support or in the engine bay. It clearly shows the correct routing of the serpentine belt and other accessory belts.
• Check tension: A loose or overly tight belt can cause problems. If the belt appears loose, it may need tightening or replacement. If it’s too tight, it may damage engine components.
• Replacement steps: Use a serpentine belt tool or socket to relieve tension on the tensioner pulley. Remove the old belt, then route the new belt according to the diagram. Ensure the belt is aligned correctly on each pulley.

Follow these instructions carefully to avoid damage and ensure smooth operation of the engine components. Always double-check the belt alignment and tension after installation.

How to Locate the Belt Diagram for the 2005 Nissan Altima

To locate the belt diagram for the 2005 Nissan Altima, begin by checking the engine bay. Most manufacturers place the diagram on a label attached to the hood or the engine compartment’s inner wall. This label provides a clear, visual representation of how the serpentine belt is routed across the engine components.

If you cannot find the diagram in the engine bay, refer to the vehicle’s service manual. The manual typically includes the belt routing diagram in the maintenance section. If the original manual is unavailable, you can also access it online through the Nissan website or third-party sites offering service manuals for the Altima model.

If these options do not provide the information you need, another solution is to check online forums or parts retailers. Many websites dedicated to Nissan vehicles offer detailed guides and diagrams, often contributed by other Altima owners or mechanics.

Lastly, you may find the diagram printed on replacement belt packaging when purchasing a new belt. Belt manufacturers frequently include a routing diagram to assist with proper installation.

Steps to Replace the Serpentine Belt on a 2005 Nissan Altima

1. Prepare Your Tools and Safety Equipment: Before starting the replacement process, gather the necessary tools: a socket wrench, a belt tensioner tool, a new serpentine belt, and safety gloves. Make sure the engine is cool and the car is on a flat surface with the parking brake engaged.

2. Locate the Serpentine Belt and Tensioner: Open the hood and locate the serpentine belt. It runs through the front of the engine and is powered by the crankshaft pulley. Find the belt tensioner, which is usually located near the belt itself, and understand how it works before loosening the belt.

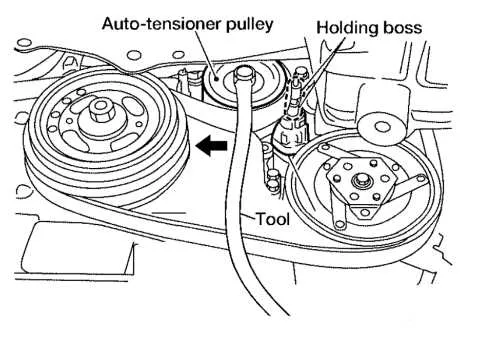

3. Release the Tension from the Belt: Using the belt tensioner tool, apply pressure to relieve the tension on the serpentine belt. This will allow you to remove the belt without damaging the tensioner or other components. Carefully slip the belt off the pulleys.

4. Compare the Old Belt with the New One: Lay the old serpentine belt next to the new one to compare the size and number of ribs. Ensure that the new belt matches the old one to prevent any misalignment during installation.

5. Install the New Serpentine Belt: Begin threading the new belt through the pulleys, following the same routing as the old belt. Make sure the belt sits securely in each groove on the pulleys. Pay special attention to the direction and alignment of the belt to ensure it runs smoothly.

6. Tighten the Tensioner: Once the new belt is in place, use the belt tensioner tool to apply tension to the belt. Ensure it is tight enough to prevent slipping but not over-tightened. Check the belt’s alignment as you go to ensure everything is in proper order.

7. Inspect the Installation: Before starting the engine, double-check that the belt is properly aligned and securely in place. Make sure there are no visible twists or misalignments that could cause issues during operation.

8. Test the New Belt: Start the engine and observe the serpentine belt in action. Listen for any unusual noises or signs of slipping. If everything runs smoothly, the installation is complete.

Troubleshooting Common Belt Issues on a 2005 Nissan Altima

If the serpentine belt on your 2005 Nissan Altima is squeaking, it could indicate wear or misalignment. Start by checking the belt for cracks, fraying, or glazing. Replace the belt if any damage is visible, as it could fail and leave your engine without power for critical components.

Check the tension of the belt. A loose belt can cause slipping, leading to poor performance of the alternator, air conditioning, or power steering. Use a belt tension gauge to ensure it has the proper tension. If the gauge shows that the tension is off, adjust the tensioner pulley or replace the tensioner if it’s faulty.

Inspect the pulleys. Worn or damaged pulleys can cause the belt to run off track, creating noise or uneven wear. Rotate each pulley by hand to check for smooth operation. If any pulley feels rough or has a significant wobble, replace it immediately.

Look for oil or coolant leaks. These fluids can degrade the rubber on the belt, reducing its lifespan. Clean up any leaks you find and replace the belt if it shows signs of damage from exposure.

If the alternator or power steering pump is malfunctioning, it can put extra strain on the belt, leading to premature wear. Listen for unusual noises from the engine bay, as they may indicate a failing component that’s overloading the belt. In such cases, repair or replace the faulty component to prevent further damage to the belt.
