2008 Honda Odyssey Serpentine Belt Diagram and Routing Guide

The serpentine belt in a 2008 Honda Odyssey plays a key role in driving multiple engine accessories such as the alternator, power steering pump, and air conditioning compressor. Understanding the correct routing of this belt can save you time and prevent costly repairs. If you’re replacing the serpentine belt or troubleshooting issues related to belt wear or squealing noises, a clear diagram of the belt’s path is crucial.

To ensure proper belt routing, refer to the diagram that shows the exact path of the serpentine belt around the pulleys. The diagram will help you understand how the belt interacts with components like the crankshaft pulley, tensioner, idler pulleys, and accessory drives. This visual guide makes it easy to install the new belt and maintain proper alignment, which is critical for engine performance.

If you’re looking for a reliable guide, follow this serpentine belt diagram closely. The tensioner pulley should be released to allow for slack when removing or installing the belt. After replacing the belt, double-check the alignment and ensure there’s enough tension on the belt to avoid slippage. Maintaining the right tension will prevent premature wear and keep your Odyssey running smoothly.

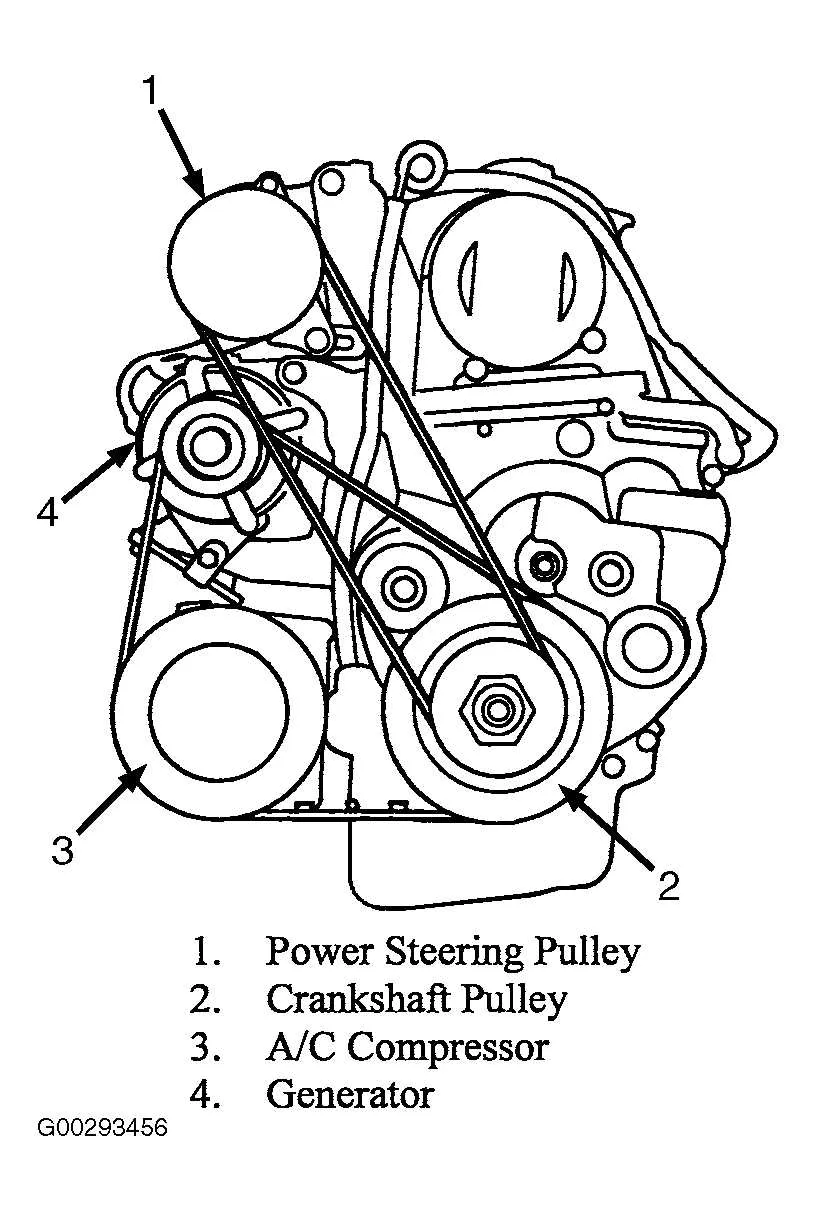

2008 Honda Odyssey Serpentine Belt Diagram

To replace or inspect the serpentine belt on a 2008 Honda Odyssey, it’s crucial to understand the belt’s routing. Follow these steps for the correct alignment:

• Start at the top right pulley, where the belt attaches to the alternator.
• Run the belt clockwise over the alternator, ensuring it loops around the idler pulley.
• Continue looping the belt across the power steering pump and the A/C compressor.
• Ensure the belt wraps around the water pump pulley next, then proceed to the tensioner pulley.
• Finish by running the belt over the crankshaft pulley.

The tensioner pulley plays a key role in maintaining proper belt tension. Make sure the belt sits snugly on all pulleys without being too tight, as excessive tension can lead to premature wear.

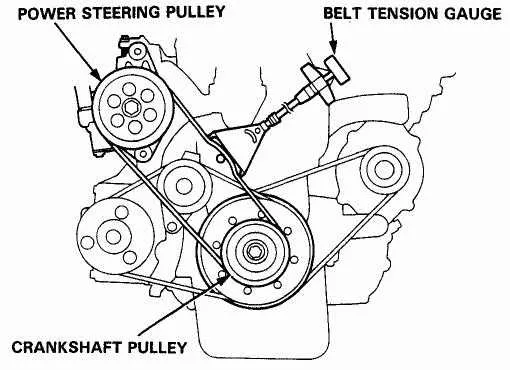

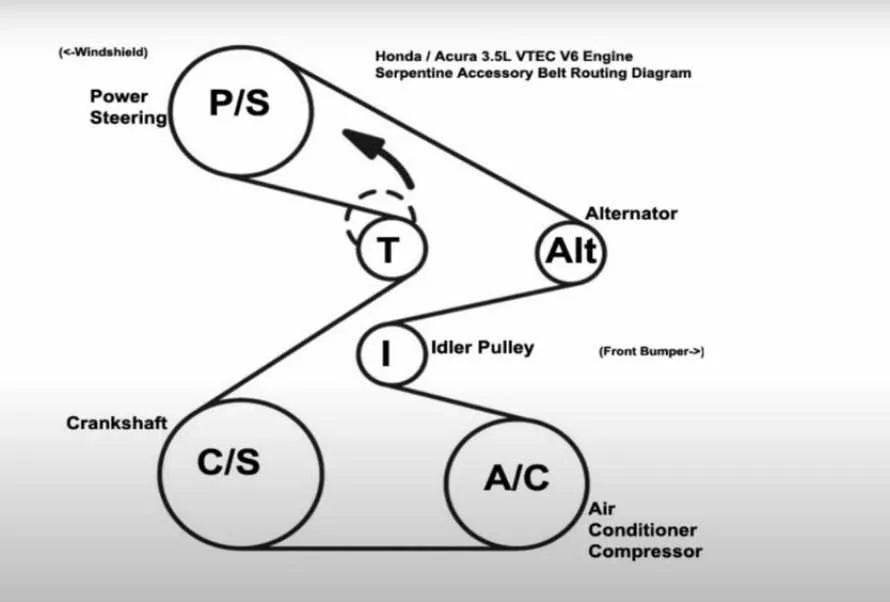

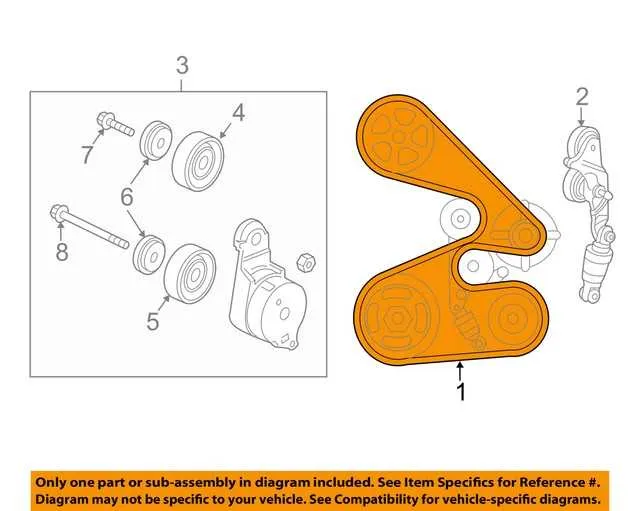

For reference, here’s a diagram of the belt’s routing:

• Alternator
• Idler pulley
• Power steering pump
• A/C compressor
• Water pump
• Tensioner pulley
• Crankshaft pulley

Verify that the serpentine belt is intact and shows no signs of wear before starting the replacement process. If the belt has significant damage or fraying, it’s a sign that it should be replaced immediately.

How to Locate the Serpentine Belt on a 2008 Honda Odyssey

To locate the serpentine belt on your 2008 Honda Odyssey, open the hood and stand in front of the vehicle. The serpentine belt runs across the engine, connecting several key components like the alternator, power steering pump, and air conditioning compressor. It’s positioned near the front of the engine, slightly to the right when you’re facing it. The belt is wrapped around the pulleys, and you should see it running across the engine’s main components.

The belt itself is long, black, and made of rubber with grooves on its inner surface. If you follow the path of the belt, you will notice how it loops around different pulleys. Look for the tensioner pulley, which keeps the belt taut. It’s located at the top-right corner of the engine, near the power steering pump. You may need to use a flashlight for a clearer view if the space is tight.

If the belt is difficult to see, use a mirror or a camera on your phone to get a better angle. In some cases, the plastic engine cover may need to be removed to fully expose the belt. Check the diagram usually found near the engine bay for the exact routing of the belt and ensure it is aligned properly.

Step-by-Step Guide to Replacing the Serpentine Belt on a 2008 Honda Odyssey

Before you begin, make sure you have the right serpentine belt for your 2008 Honda Odyssey model. Double-check the part number against your vehicle’s specifications.

1. Start by disconnecting the vehicle’s negative battery cable. This will prevent any accidental electrical shorts while working on the engine.

2. Locate the serpentine belt. You’ll find it running over several pulleys and the alternator. A diagram is usually printed on a sticker near the engine for reference.

3. Use a 3/8-inch drive ratchet wrench to release tension from the belt tensioner. Insert the wrench into the tensioner pulley and rotate it clockwise to loosen the belt. Make sure to note the belt’s routing, either by taking a picture or using the diagram as a guide.

4. Once the belt is loosened, carefully remove it from the pulleys. Take note of its path around the components as you take it off–this will make the reinstallation much easier.

5. Inspect the new belt for any defects or twists before installing it. Compare it to the old one to make sure it matches in length and width.

6. Begin installing the new serpentine belt by following the same routing path as the old belt. Make sure it sits properly on each pulley, especially the alternator and tensioner pulleys.

7. Once the belt is in place, use the ratchet wrench again to move the tensioner pulley and slip the belt over it. Double-check that the belt is tight and correctly aligned with all pulleys.

8. Reconnect the negative battery cable. Start the engine and observe the belt’s operation. Listen for any unusual sounds or signs of misalignment. If everything looks good, you’ve successfully replaced the serpentine belt.

Common Issues with the Serpentine Belt and Troubleshooting Tips for a 2008 Honda Odyssey

If you notice unusual noises like squealing or high-pitched sounds coming from the engine, the serpentine belt may be loose or worn. Inspect the belt for cracks, fraying, or glazing, which are signs of wear. A cracked or damaged belt can lead to engine overheating, loss of power steering, or alternator failure. If the belt is damaged, replacing it promptly is the best solution.

Another issue that might arise is belt slippage, which can occur due to excessive wear or incorrect tension. A slipping belt won’t properly power accessories like the alternator or air conditioning, leading to poor performance. To fix this, check the belt tensioner. If it’s not holding the correct tension, it might need replacement. Be sure to inspect the pulleys too–worn or misaligned pulleys can also cause slippage.

Over time, dirt, oil, and grease can accumulate on the serpentine belt, causing it to wear out faster or slip. Cleaning the belt with a mild degreaser can help extend its lifespan. Avoid using harsh chemicals, as they may cause further damage to the belt material.

Pay attention to the tensioner pulley and idler pulley as well. If either shows signs of wear or the bearings are damaged, they could lead to improper belt alignment, which can accelerate wear on the belt itself. Replacing these pulleys at the first sign of trouble can prevent more costly repairs down the line.

Lastly, if the serpentine belt continues to malfunction despite replacing it, check the alignment of the entire accessory drive system. Misalignment may indicate an underlying issue such as a warped component, requiring professional attention.
