2000 Nissan Frontier Serpentine Belt Diagram and Routing Guide
The 2000 Nissan Frontier uses a serpentine belt system to drive multiple engine accessories, such as the alternator, power steering pump, and air conditioning compressor. Understanding the layout and function of the belt system is crucial for maintenance and repairs. Refer to the diagram to identify the correct routing path and ensure proper belt tension.
Ensure proper alignment: Misalignment can lead to premature wear and belt failure. Use the diagram to double-check the position of each accessory and the correct path for the belt. Keep the belt free from cracks or damage to avoid unexpected breakdowns.
Check belt tension regularly: A loose or overly tight belt can cause engine components to malfunction. The diagram will help you identify how to adjust the tensioner to keep the system running smoothly.

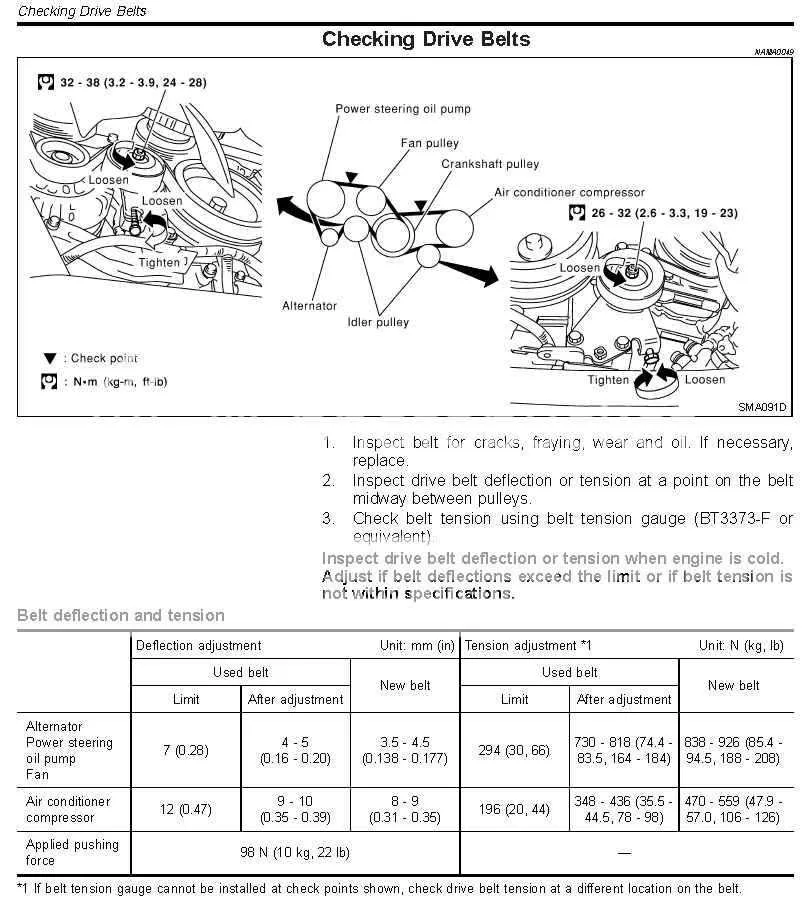

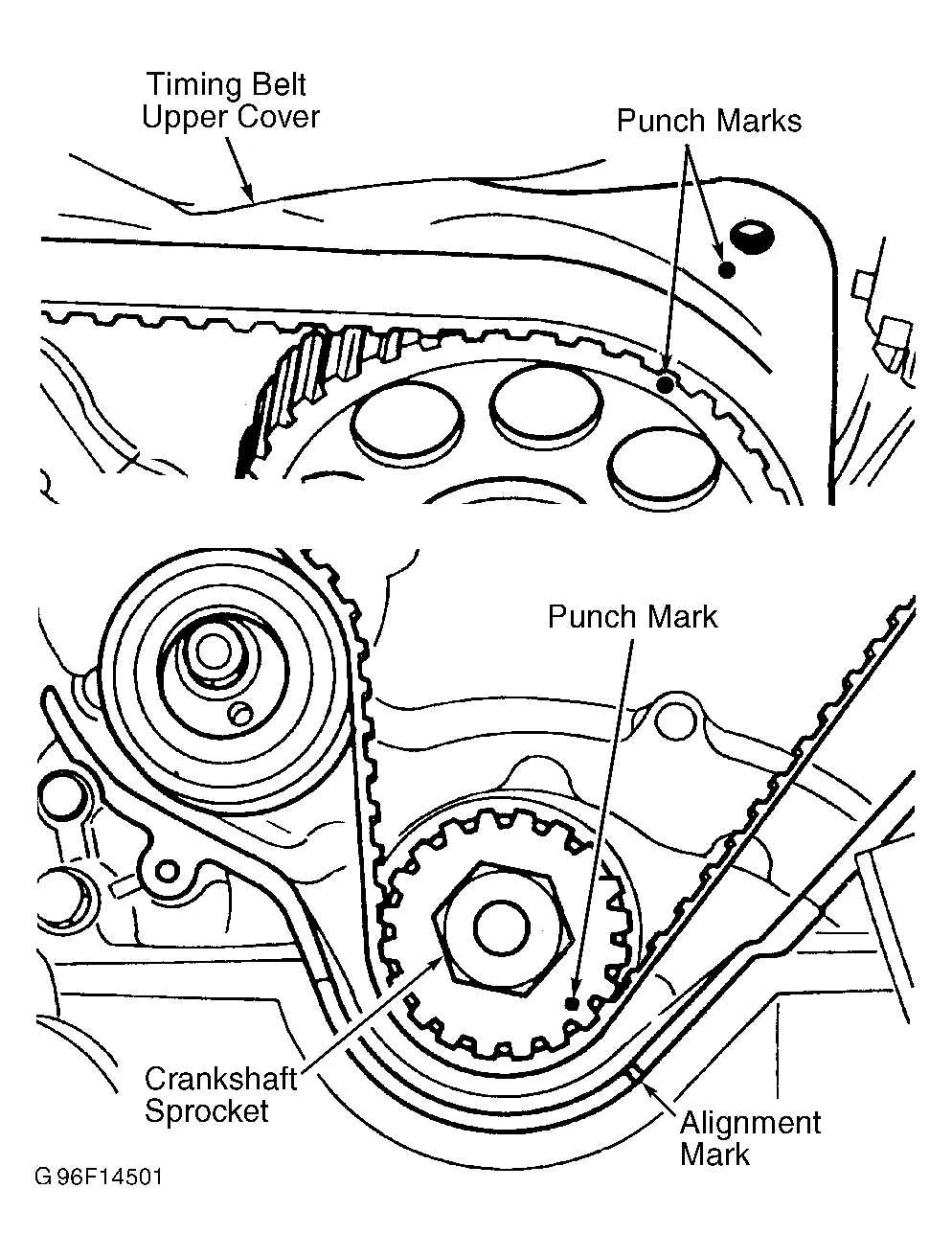

2000 Nissan Frontier Belt Diagram
For accurate belt installation on a 2000 Nissan Frontier, refer to the engine layout specific to your model. The serpentine belt connects various components such as the alternator, power steering pump, air conditioning compressor, and water pump. It is crucial to ensure proper alignment and tension to avoid any premature wear or belt slippage.
Before starting the installation, gather the necessary tools, including a serpentine belt tool or ratchet. If the current belt is worn out or damaged, remove it by loosening the tensioner pulley. Make sure to check the routing diagram specific to your vehicle, which should be located on the engine bay or available in the vehicle’s manual.
Once the new belt is in place, check that it is properly seated on all pulleys. Ensure that the tensioner maintains the correct pressure to prevent the belt from slipping or becoming loose during operation. After installation, manually rotate the engine to verify that the belt moves smoothly without any obstruction or noise.
Regular maintenance is recommended to check the belt for signs of wear, cracks, or fraying. A timely replacement can help avoid potential breakdowns and keep the engine running smoothly. Always consult the manufacturer’s guide for precise specifications and intervals for replacing the belt.
How to Identify the Correct Belt Routing for 2000 Nissan Frontier
To identify the correct belt routing for the 2000 Nissan Frontier, begin by locating the vehicle’s serpentine belt diagram. This diagram is typically found near the radiator support, on the underside of the hood, or on the front of the engine. If the diagram is missing or unreadable, refer to the vehicle’s manual for a detailed routing guide.
Follow these steps to ensure the correct belt placement:
- Examine the pulleys: The serpentine belt routes around various pulleys, including the alternator, water pump, power steering pump, and air conditioning compressor. Make sure each pulley is correctly aligned with the belt’s path.
- Check tensioner placement: The belt must be routed through the automatic tensioner. Ensure the belt is properly tensioned to avoid slippage or wear.
- Compare with diagrams: If a diagram is available, use it to compare the belt routing with the actual setup in your vehicle. Ensure that the belt’s path matches exactly with the diagram.
- Adjust for tension: The serpentine belt should not be overly tight or too loose. Check the tensioner to verify it provides adequate pressure for proper operation.
When routing the belt, ensure all pulleys are accessible and that the belt doesn’t interfere with moving parts. Once routed, rotate the engine manually to check the belt’s movement, ensuring it runs smoothly without any slack.
Common Issues with Serpentine Belts on 2000 Nissan Frontier
Serpentine belts on the 2000 Nissan Frontier can face a few recurring problems that affect vehicle performance. These belts are essential for driving components such as the alternator, power steering pump, and air conditioning. Below are some common issues and tips for handling them.
1. Cracking or Fraying
Over time, serpentine belts on the 2000 Nissan Frontier may develop cracks or fray. This is usually caused by prolonged exposure to heat and friction. A cracked belt can lead to slippage, poor engine performance, or complete failure. Regular inspection for visible damage can prevent sudden breakdowns.
2. Squealing Noise
If the serpentine belt begins to squeal, it’s often a sign that it’s either too loose or worn out. The noise occurs due to the belt slipping over the pulleys. Tension adjustments or replacing the belt can resolve this issue.
3. Belt Wear and Misalignment
Misalignment of the serpentine belt can occur due to damaged pulleys or improper installation. Misalignment results in uneven wear on the belt and reduces its lifespan. It’s important to check pulley alignment regularly and replace any damaged components.
4. Excessive Tension or Looseness
Both excessive tension and looseness can cause problems. A belt that is too tight may damage the pulleys, while one that is too loose won’t efficiently power the vehicle’s accessories. Use a belt tension gauge to ensure the proper tension is maintained.
5. Oil or Coolant Contamination
If the serpentine belt comes into contact with oil or coolant leaks, it can degrade much faster. Check for leaks in the engine, and replace any damaged components to prevent fluid contamination of the belt.
6. Deterioration Due to Heat
Heat exposure is one of the most common reasons for belt deterioration. Continuous high temperatures can cause the rubber in the serpentine belt to crack and lose flexibility. Keeping an eye on the engine cooling system will help prevent this issue.
Replace the serpentine belt as soon as these issues arise to avoid more severe damage to your 2000 Nissan Frontier. Regular maintenance can prevent many of these common problems and help keep your vehicle running smoothly.
| Issue | Cause | Solution |
|---|---|---|
| Cracking or Fraying | Heat and friction over time | Inspect regularly, replace if cracked |
| Squealing Noise | Loose or worn-out belt | Adjust tension or replace belt |
| Misalignment | Damaged pulleys | Check pulley alignment, replace damaged parts |
| Excessive Tension or Looseness | Incorrect tension setting | Check tension with a gauge, adjust as needed |
| Oil or Coolant Contamination | Leaks in engine components | Fix leaks, clean or replace belt |
| Deterioration from Heat | Continuous exposure to high temperatures | Monitor engine cooling system, replace belt when needed |
Step-by-Step Instructions for Replacing the Serpentine Belt on 2000 Nissan Frontier
Begin by locating the serpentine belt. It runs across the engine, connecting various components like the alternator, power steering pump, and air conditioning compressor.
1. Disconnect the vehicle’s battery to prevent any electrical mishaps while working near the engine.
2. Use a wrench to loosen the tensioner pulley. This pulley keeps the belt tight. Turn the tensioner in the direction indicated on its body to release the tension, allowing the belt to be removed.
3. Once the tension is released, remove the belt from the pulleys. Make sure to note the belt’s routing to ensure the new belt is installed correctly. A diagram of the belt path can usually be found near the radiator or engine bay.
4. Inspect the new belt for any damage or defects. Compare its size with the old belt to ensure a proper fit before installation.
5. Install the new belt by following the same route as the old one. Carefully place it over each pulley, ensuring it sits securely in the grooves.
6. Re-engage the tensioner pulley. Use the wrench to apply tension until the new belt is tight. Double-check that the belt is properly aligned and that the tensioner holds the belt in place.
7. Reconnect the battery. Start the engine and observe the belt in operation. Ensure there are no unusual noises and that the belt runs smoothly without slipping.
