2007 Hyundai Entourage Serpentine Belt Diagram and Installation Guide

The serpentine belt in the 2007 Hyundai Entourage plays a key role in powering various components of the engine, including the alternator, air conditioning compressor, and power steering pump. Understanding its layout is crucial for maintaining your vehicle.

Before proceeding with any repairs or maintenance, make sure the engine is off and cool. It’s also recommended to use the appropriate tools for removing or replacing the serpentine belt to avoid damage to the components.

The diagram for the 2007 Hyundai Entourage serpentine belt is available in the vehicle’s manual. It will provide a clear layout of the belt’s routing, along with any additional instructions for proper installation. It’s important to check the tensioner and pulleys for wear before replacing the belt to ensure the new one operates smoothly.

If you need to replace the serpentine belt, follow the routing instructions carefully, paying close attention to the tensioner pulley, which keeps the belt at the correct tension.

Regularly inspect the serpentine belt for signs of wear, such as cracks, fraying, or visible damage. If the belt is showing any of these signs, it’s important to replace it immediately to avoid further engine issues.

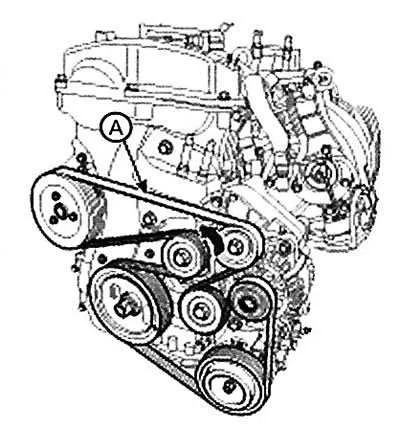

2007 Hyundai Entourage Serpentine Belt Diagram

The serpentine belt on the 2007 Hyundai Entourage is responsible for driving multiple accessories like the alternator, power steering pump, and air conditioning compressor. When replacing or troubleshooting the serpentine belt, it’s important to follow the correct routing to ensure proper function of these components.

Below is the detailed belt routing for the 2007 Hyundai Entourage:

• The serpentine belt starts at the crankshaft pulley, passing over the alternator pulley.
• It then moves to the power steering pump pulley, then continues to the air conditioning compressor pulley.
• The belt then loops around the idler pulley and tensioner pulley to maintain proper tension.
• Finally, it returns to the crankshaft pulley, completing the loop.

When installing or replacing the serpentine belt, ensure the belt is aligned properly with each pulley. A misaligned belt can cause premature wear or failure, leading to a breakdown.

For accurate installation, use a serpentine belt tool to relieve tension from the tensioner pulley. This will allow you to remove and replace the belt without damaging the system. Double-check the belt’s condition regularly to avoid unexpected breakdowns and maintain optimal vehicle performance.

Step-by-Step Guide to Identifying the Correct Serpentine Belt

Begin by checking your vehicle’s manual. The manual provides specific details about the serpentine belt, including part number and dimensions. If you can’t find it, move on to the next step.

Next, inspect the current belt. Take note of its length, width, and the number of ribs or grooves. This information will help you find a compatible replacement. Measure the belt using a tape measure or caliper for accurate results.

If you are unsure, visit an auto parts store with the belt in hand. The staff can cross-reference the part number and suggest a matching replacement. Be sure to bring the vehicle’s make, model, and year to help narrow down the options.

Another option is to check online auto parts databases. Many websites offer a search tool where you can enter your car’s details to find the correct serpentine belt.

Lastly, consider the belt’s condition. A worn or cracked belt should be replaced as soon as possible. Ensure the replacement matches the specifications of the old belt to avoid any issues with fit or performance.

How to Replace the Serpentine Belt on a 2007 Hyundai Entourage

To begin, safely lift the front of the vehicle and secure it on jack stands. This will provide access to the underside of the engine bay.

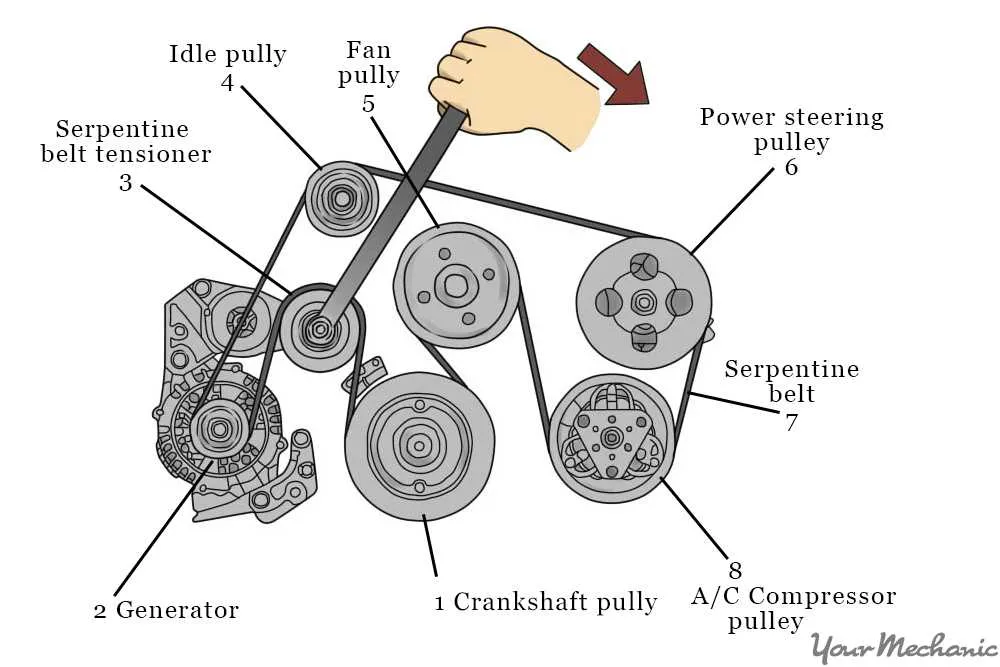

Locate the serpentine belt tensioner. On the 2007 Hyundai Entourage, the tensioner can be found on the front side of the engine. Use a wrench or socket to relieve tension from the belt by rotating the tensioner pulley clockwise.

Once the tension is released, carefully remove the serpentine belt from the pulleys. Take note of the belt routing. It’s helpful to take a picture of the diagram on the hood or refer to a service manual for a detailed routing guide.

Inspect the new serpentine belt to ensure it matches the old one in size and shape. Position the new belt around the pulleys, following the same routing pattern.

After the belt is in place, rotate the tensioner pulley again to apply tension to the new belt. Double-check the alignment and ensure the belt is properly seated on each pulley.

Start the engine and observe the belt while running. Listen for any unusual noises and check that the belt is moving smoothly around all pulleys. If all seems fine, lower the vehicle and test drive it to confirm everything is working properly.

Troubleshooting Common Serpentine Belt Issues in the 2007 Hyundai Entourage

If your 2007 Hyundai Entourage’s serpentine belt is making noise, slipping, or causing engine performance issues, it’s time to troubleshoot. Start by inspecting the belt for visible damage such as cracks, fraying, or signs of wear. If the belt is damaged, replace it immediately to avoid further damage to engine components.

Next, check the belt tension. If the belt appears loose or too tight, adjust the tension. A loose belt can cause slippage, while an overly tight belt may strain engine pulleys and accessories. Ensure the tensioner is functioning correctly and replace it if necessary.

Check the pulleys for any signs of misalignment or damage. Misaligned pulleys can cause uneven wear on the serpentine belt and disrupt the engine’s operation. Spin each pulley by hand to ensure smooth rotation. If any pulley feels rough or makes noise, it may need to be replaced.

If the belt is squealing or producing noise, it might be due to debris buildup or oil contamination. Clean the pulleys and belt with a soft cloth and check for leaks from surrounding engine components. Oil or coolant leaks can degrade the belt and cause slipping.

Lastly, if the serpentine belt keeps breaking or slipping after replacing it, consider checking the alternator or other components driven by the belt. A faulty alternator can create excessive load on the belt, causing it to fail prematurely. Run a voltage test on the alternator to rule out electrical issues.
