MTD 46 Inch Deck Belt Diagram and Manual Guide
If you’re looking to replace or adjust the deck belt on your MTD 46-inch mower, understanding the belt diagram is crucial. The right belt configuration ensures optimal performance and helps prevent unnecessary wear. Start by checking the belt routing to avoid tension issues and ensure smooth operation.
The belt diagram typically outlines the correct path the deck belt should follow through the pulleys. Each pulley has a specific function, and the correct routing maintains the right tension for efficient grass cutting. The belt must be routed precisely through the spindles and idler pulleys, ensuring that the mower blades receive the proper power for cutting.
Before you begin, make sure to disconnect the battery to avoid any accidental starts. Once you have the diagram, carefully remove the old belt and inspect the pulleys for wear or damage. Replace any worn-out pulleys to ensure the new belt runs smoothly. Proper installation will make your mower run like new and help extend its lifespan.

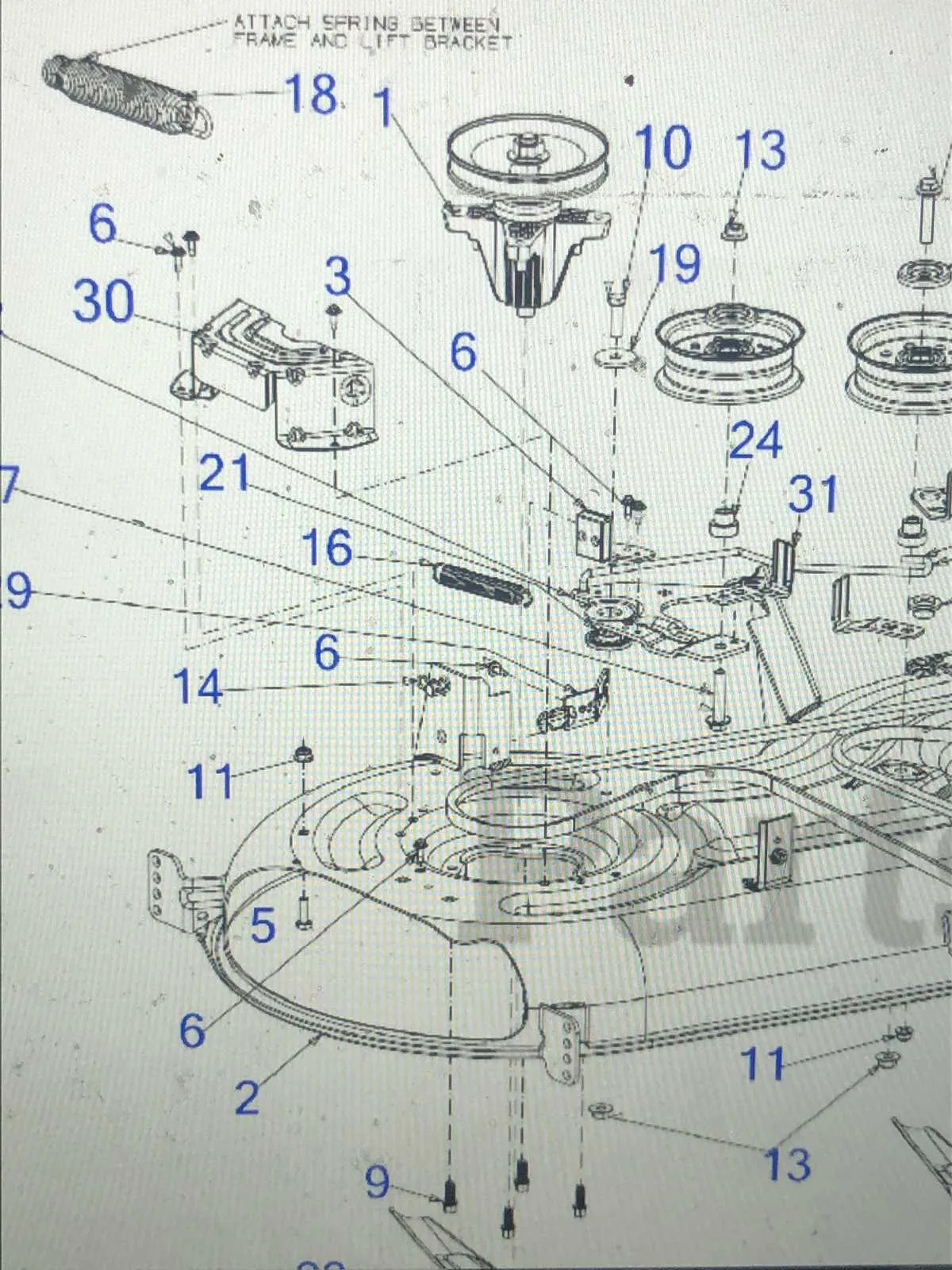

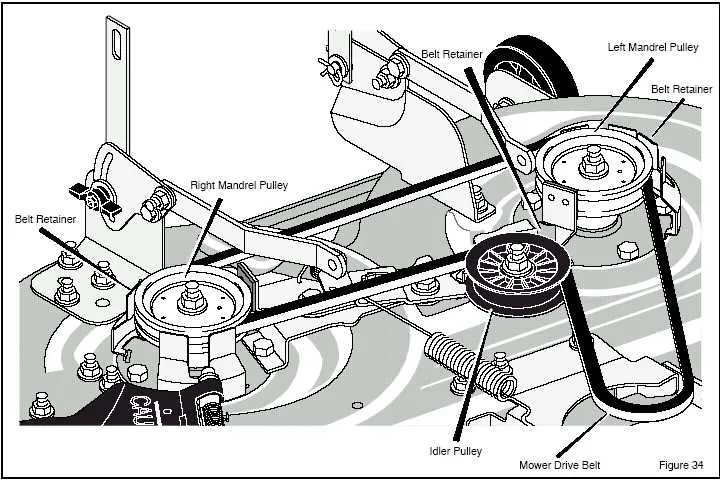

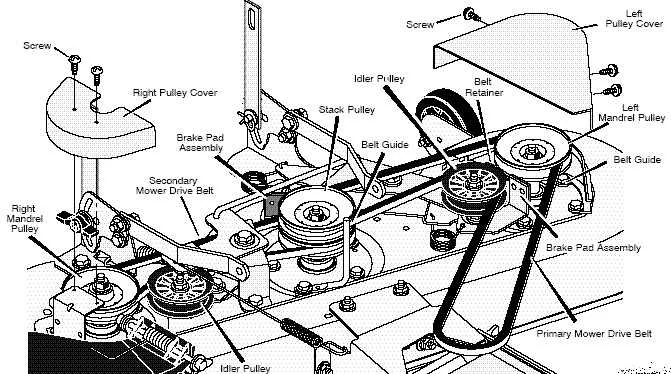

Manual MTD 46 Inch Deck Belt Diagram
For accurate deck belt installation on your MTD 46-inch mower, follow the diagram closely. Begin by removing the old belt and inspecting the pulleys for any damage or debris that could obstruct the new belt. Ensure the mower is turned off and the spark plug is disconnected to avoid any accidents.
Start by positioning the belt over the front and rear pulleys, making sure the belt fits tightly but not too stretched. Follow the path outlined in the manual, paying attention to the tensioner pulley and routing it correctly to maintain proper tension. Adjust the belt on the tensioner pulley until it aligns correctly with the rest of the system.
Ensure the belt engages all the necessary drive components and runs in a smooth, uninterrupted path. Once the belt is installed, check for any slack and adjust as necessary. After installation, rotate the deck manually to ensure smooth movement and that the belt does not slip or misalign.
Consult the MTD manual for specific tension settings, as over-tightening the belt can cause premature wear, while under-tightening may result in poor performance or belt slippage. Once everything is properly aligned and the belt is in place, reconnect the spark plug and test the mower to confirm the belt works as expected.
Identifying the Correct Belt for MTD 46 Inch Deck
To ensure your MTD 46 inch deck performs optimally, choose the correct replacement belt. Check the model number of your mower and refer to the owner’s manual for the exact belt specification. The correct belt will fit the deck’s pulley system without being too tight or too loose. Using a belt that is too short can cause unnecessary tension on the components, while a longer belt may slip off or cause poor cutting performance.
The standard MTD 46-inch deck uses a 1/2-inch wide belt. Measure the belt length before purchase, as it typically ranges from 95 inches to 105 inches depending on the mower’s model. If you’re unsure, it’s best to verify the specific length for your mower version from the manufacturer or a reputable dealer.
Check the belt for wear and cracks regularly. A damaged or stretched belt will reduce the effectiveness of the mower, leading to uneven cutting or failure to drive the blades properly. Always replace the belt as soon as you notice significant signs of wear.
When replacing the belt, ensure the pulleys are aligned and free of debris. A misaligned pulley can cause premature wear on the belt. Keep the new belt clean and free from oil or grass buildup to extend its lifespan.
For the best results, use original MTD replacement parts. Using non-original belts can lead to compatibility issues, causing poor performance or damage to the mower.
Step-by-Step Guide to Replacing the MTD 46 Inch Deck Belt
Before starting, make sure the mower is turned off and the engine is cool. Disconnect the spark plug wire to avoid any accidental starts.
1. Lift the Mower Deck – Use a jack or lift to raise the mower deck to a comfortable working height. Secure it in place so it doesn’t move during the process.
2. Remove the Old Belt – Begin by locating the deck belt and checking how it is routed around the pulleys. Carefully loosen the tension on the belt by either removing the tension spring or using the tensioner pulley. Slide the belt off the pulleys. If necessary, refer to the manual to understand the exact pulley layout.
3. Inspect the Pulleys – Check all pulleys for wear or damage. Spin each one to ensure it moves smoothly. Replace any pulleys that show signs of wear, as a damaged pulley can cause the new belt to fail prematurely.
4. Install the New Belt – Take the new belt and follow the same routing pattern as the old one. Begin by placing it around the main drive pulley and move towards the smaller idler and spindle pulleys. Ensure the belt is seated properly in the grooves of each pulley. Refer to your mower’s manual for the exact belt path.
5. Reattach the Tensioner – Once the belt is properly routed, reattach the tension spring or engage the tensioner pulley. This will create the necessary tension to keep the belt in place during operation.
6. Test the Belt – Manually rotate the belt a few times to ensure it moves freely without any obstruction. This will also help check if the belt is properly tensioned.
7. Lower the Deck – Once everything is properly installed, lower the mower deck back to its original position. Make sure all parts are secure before moving on to the next step.
8. Reconnect the Spark Plug – After confirming that the belt is in place and functioning correctly, reconnect the spark plug wire and test the mower by running it briefly to ensure the new belt operates smoothly.
Common Issues with MTD 46 Inch Deck Belt and How to Fix Them
If your MTD 46-inch deck belt isn’t functioning properly, it could be due to several reasons. Here’s a guide to help you identify and resolve the most common issues.
- Belt Slipping or Falling Off
If the belt frequently slips off the pulleys, it’s often due to incorrect tension or worn-out components. Start by checking the belt tension; it should be snug but not too tight. If the belt is too loose, adjust the tension according to the manual’s instructions. If the belt is worn or frayed, replace it with a new one. Also, inspect the pulleys and idler arm for damage or misalignment that could prevent proper tracking.
- Belt Squealing or Making Noise
A squealing belt is usually a sign of friction, often caused by misaligned pulleys, or a worn-out belt. Inspect the pulleys and ensure they are in good condition and properly aligned. If the belt has become too worn or glazed, replace it. You can also apply a belt dressing to reduce noise, but this is a temporary solution, so consider replacing the belt if the noise persists.
- Belt Overheating
Overheating can occur if the belt is too tight or if it’s rubbing against other components. Check the belt tension and adjust it if necessary. Also, examine the bearings and pulleys for wear that might be causing excess friction. Replace any worn parts and make sure the belt is aligned correctly.
- Uneven Cutting
If your lawnmower isn’t cutting evenly, the deck belt might be slipping or worn out. Inspect the belt for any signs of wear or damage. Check the mower deck for any obstructions or debris that could interfere with the belt’s movement. Also, ensure the blade spindles are free of debris and rotating smoothly. If everything seems in order but the problem persists, replacing the belt may solve the issue.
- Belt Sticking or Binding
Belt sticking can be caused by debris buildup or a worn-out pulley. Clean all pulleys and remove any debris from the mower deck. Make sure the pulleys rotate freely and that no components are obstructing the belt’s movement. If the problem continues, inspect the belt for cracks or tears and replace it if necessary.
