Z225 Drive Belt Diagram and Maintenance Guide
To replace the drive belt on your Z225, first ensure that the engine is off and the key is removed. This minimizes the risk of accidents. The Z225 uses a specific drive belt configuration that must be installed correctly for smooth operation. Consult the diagram to identify the belt routing and ensure the correct installation path.
The drive belt runs from the engine pulley to the mower deck. Misalignment can cause premature wear or malfunction. Carefully follow the belt diagram to avoid potential issues during installation. Make sure the belt tension is correct, as an overly tight or loose belt can lead to uneven cutting performance or damage to other components.
Once the new belt is in place, check for smooth rotation of the pulleys. Ensure the belt isn’t rubbing against any surrounding parts. If the mower still fails to start or the belt slips, inspect the tensioners and pulleys for wear or damage. Replacing these parts might be necessary if the problem persists.

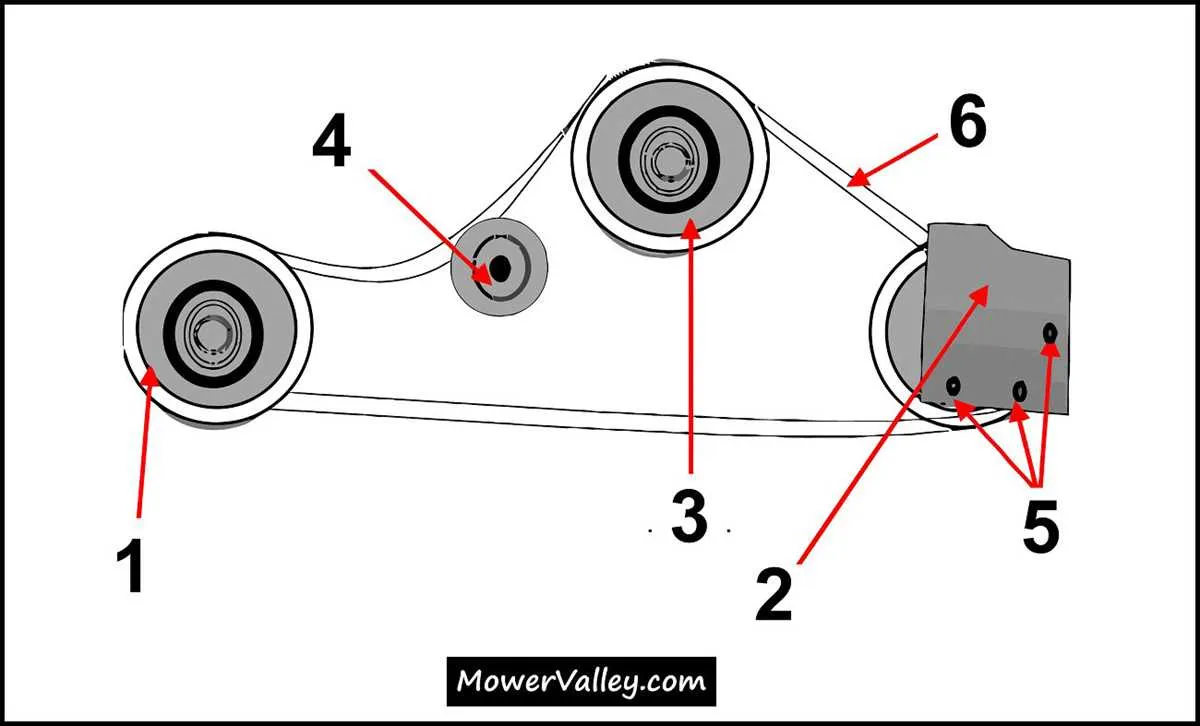

Z225 Drive Belt Diagram
The Z225 drive belt system consists of several key components that work together to transfer power from the engine to the mower deck and wheels. The main drive belt connects the engine pulley to the transmission and the deck pulleys, ensuring the mower operates smoothly. Refer to the diagram to locate each component and identify how the belt loops around the pulleys.
When inspecting the diagram, ensure the belt follows the correct routing. Any deviation in the belt path can lead to inefficient operation or even belt slippage. Start by verifying that the belt is seated properly on each pulley, paying special attention to the tensioning springs that help maintain correct belt tension. If the belt is loose, it may need adjustment or replacement.
For proper maintenance, check for signs of wear such as cracks, fraying, or missing chunks. If the belt appears damaged, replace it immediately to prevent further issues. When replacing the belt, follow the exact routing as shown in the diagram to avoid misalignment that could cause the system to malfunction. It’s advisable to consult the Z225 manual for additional specifications related to belt sizes and tension adjustments.
How to Identify the Correct Drive Belt for Z225
First, locate the model and serial number of your Z225. This information is crucial for finding the exact part number for your drive belt. You can usually find this on a label near the seat or the engine.
Check the manufacturer’s specifications for the Z225. John Deere provides detailed manuals that include part numbers for all replacement parts, including the drive belt. The correct belt should match the length, width, and rib count specified in the manual.
Inspect the drive belt itself. Measure its length and width using a tape measure. If the original belt is damaged or worn, compare it with the new one to ensure they match in size.
Consult a John Deere parts dealer or the official website. Enter your Z225 model number to find compatible parts. The dealer will also help you identify the right belt if you provide the serial number of your machine.
If you are replacing a worn belt, ensure that the replacement has the same number of ribs and the correct tension specifications. A belt with the wrong specifications can affect performance and cause premature wear.
Double-check the routing diagram. Ensure that the new belt matches the path shown in the Z225’s service manual to avoid installation errors.
Step-by-Step Instructions for Installing the Z225 Drive Belt
First, ensure the Z225 mower is turned off and placed on a stable surface. Disconnect the spark plug to prevent accidental starts.
Locate the existing drive belt. If you are replacing an old belt, remove it by loosening the tension from the pulley system. Use a wrench or socket set to release the tension from the spring-loaded idler pulley. Remove the belt from all pulleys and take note of its routing for the new installation.
Prepare the new drive belt. Compare its size with the old one to confirm compatibility. Begin by threading the new belt over the engine pulley, ensuring it sits snugly in the groove.
Next, route the belt over the spindle pulleys and through the idler pulleys, following the same path as the old belt. Make sure the belt is aligned properly and securely placed in the pulley grooves to avoid slippage during operation.
Reinstall the spring-loaded idler pulley, adjusting the tension so that the belt is tight but not overly strained. Use a wrench to tighten the bolt on the idler pulley, securing it in place.
Double-check the belt’s routing and tension. Ensure that it moves freely over all pulleys without any obstructions or slack.
Reconnect the spark plug and perform a test run. Listen for any unusual sounds, and check for smooth movement of the belt during operation. If everything runs smoothly, the installation is complete.
Common Problems with Z225 Drive Belt and How to Fix Them
If the Z225 drive belt is slipping or not functioning properly, follow these steps to address the issue:
- Slipping Belt: A slipping belt may be due to wear or improper tension. First, inspect the belt for visible cracks or fraying. If the belt appears worn, replace it with a new one. Ensure the belt tension is correct; adjust the tension using the tensioner pulley if necessary.
- Noisy Belt: A noisy belt often indicates misalignment or debris buildup. Check the alignment of the belt on the pulleys. If it’s misaligned, adjust the pulley position. Clean any debris from the pulleys and the belt path to reduce noise.
- Loose Belt: A loose drive belt can cause loss of power. Inspect the tensioner spring for wear or damage. If the spring is worn, replace it to restore proper tension. Ensure the belt is properly routed around the pulleys according to the manufacturer’s diagram.
- Belt Breakage: If the belt snaps, check for any obstructions or damaged pulleys. Often, debris or a faulty pulley can cause excessive stress on the belt. Replace the broken belt and inspect the pulleys for any signs of wear or damage.
Routine inspection and maintenance will help prevent these common issues and extend the life of the Z225 drive belt.
